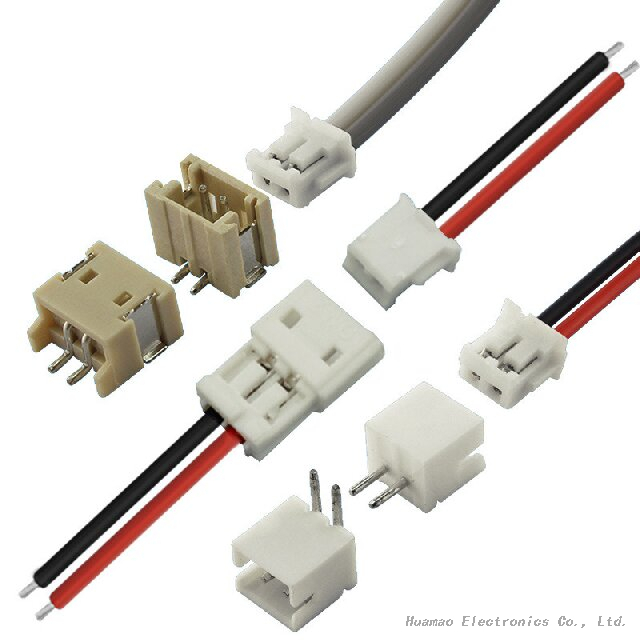

The jst zh connector series 1.5mm pitch wire harness assembly is designed for reliable wire-to-board connections in compact electronics. It supports stable low-current transmission in signal circuits and embedded modules.
This jst wire harness is compatible with through-hole header configurations. It features a 1.5mm pitch and installs with only 5.9mm mounting height. The gun-shaped housing helps guide the terminal into the mating part with ease.
Used in jst cable assembly applications, this harness ensures strong contact through its round-pin design and high contact force. It provides consistent conductivity and is ideal for limited-space devices such as sensors and LED controllers.
The jst zh series cable fits conductor sizes from AWG 32 to 26 and supports outer wire diameters from 0.5mm to 1.1mm. This makes it suitable for wiring harness assembly in small-scale power and control systems.
This jst zh series harness is widely used in led lighting units, smart modules, battery connectors, and small motor drivers. It also supports signal routing in drones, wearables, and home automation devices.
The connector offers up to 1.0A current and 50V voltage support, ensuring compatibility with most pcb-mounted power inputs. It works with pcb thicknesses between 0.6mm and 1.6mm, covering both compact and standard layouts.
This wire harness assembly is a strong option for cable assembly manufacturers and electronics suppliers needing consistent performance in high-density applications. It supports automated crimping and wire cutting, improving efficiency on production lines.
It meets rohs2 standards, making it usable in regulated international markets. With high insulation resistance and low contact resistance, it delivers long-lasting, low-noise signal performance.
This 1.50mm pitch wire harness offers a practical solution for electronics manufacturers needing stable, small-pitch connectors. It reduces connection failure and speeds up device integration in tight spaces.
| Series | ZH connector |
| Category | Crimp Style Connectors (Wire-to-Board type) |
| Type | Crimp style, Compact type Disconnectable type |
| Pitch | 1.5mm |
| Current rating | 1A (AWG#26) |
| Voltage rating | 50V |
| PC board mounting direction | Top entry, Side entry |
The Jst Zh Series Harness with a 1.50mm pitch is designed for small electronic devices and precision connection needs. It delivers consistent signal performance and space-saving integration in modern electronics. Below are the key features, optimized for long-term reliability and easy installation across many wiring harness assembly projects.
The compact housing of this jst wire harness reduces board space use. It occupies less than half the space of standard 2.0mm pitch connectors. Ideal for jst zh series cable layouts in sensors and small modules.
The flexible housing latch holds contacts tightly in place. It allows you to confirm correct insertion visually. This makes the jst cable assembly safe and easy to connect in low-voltage systems.
Even under movement or heat, the contact remains steady. The recessed contact structure keeps resistance low. This suits signal circuits in devices using a 1.50mm pitch wire harness.
The jst zh series harness uses a header that wraps around the mating area. This helps prevent stress from misalignment. It protects the connector pins from bending or breaking during use.
The same crimp housing fits both ZH crimp connectors and ZR IDC versions. You can switch between jst wire harness types without replacing the header. This flexibility improves production planning.
This wire harness assembly supports safe use in signal control and low-current designs. It's common in jst zh connector series applications such as LEDs, battery packs, and handheld devices.
Use this jst zh series harness in electronics where compact connections, efficient assembly, and long-term reliability are needed. It is compatible with automated wire harness assembly processes, making it a strong choice for device manufacturers and jst cable assembly suppliers looking to streamline production.
Q1: Can I use the JST ZH connector harness for low-voltage circuits?
A1: Yes, the harness works well in signal control and low-power electronic devices.
Q2: Is the 1.5mm pitch connector suitable for compact PCBs?
A2: Yes, its small footprint fits dense layouts in modern circuit board designs.
Q3: Do you offer custom lengths for the JST wire harness assembly?
A3: Yes, you can request specific lengths, pin counts, or wire types for your setup.
Q4: Can I combine ZH and ZR types in the same assembly?
A4: Yes, the connector housing supports both ZH and ZR interfaces without changes.
Q5: Is this JST cable assembly compatible with automated crimping machines?
A5: Yes, it’s designed for compatibility with standard crimping and wire-cutting tools.
