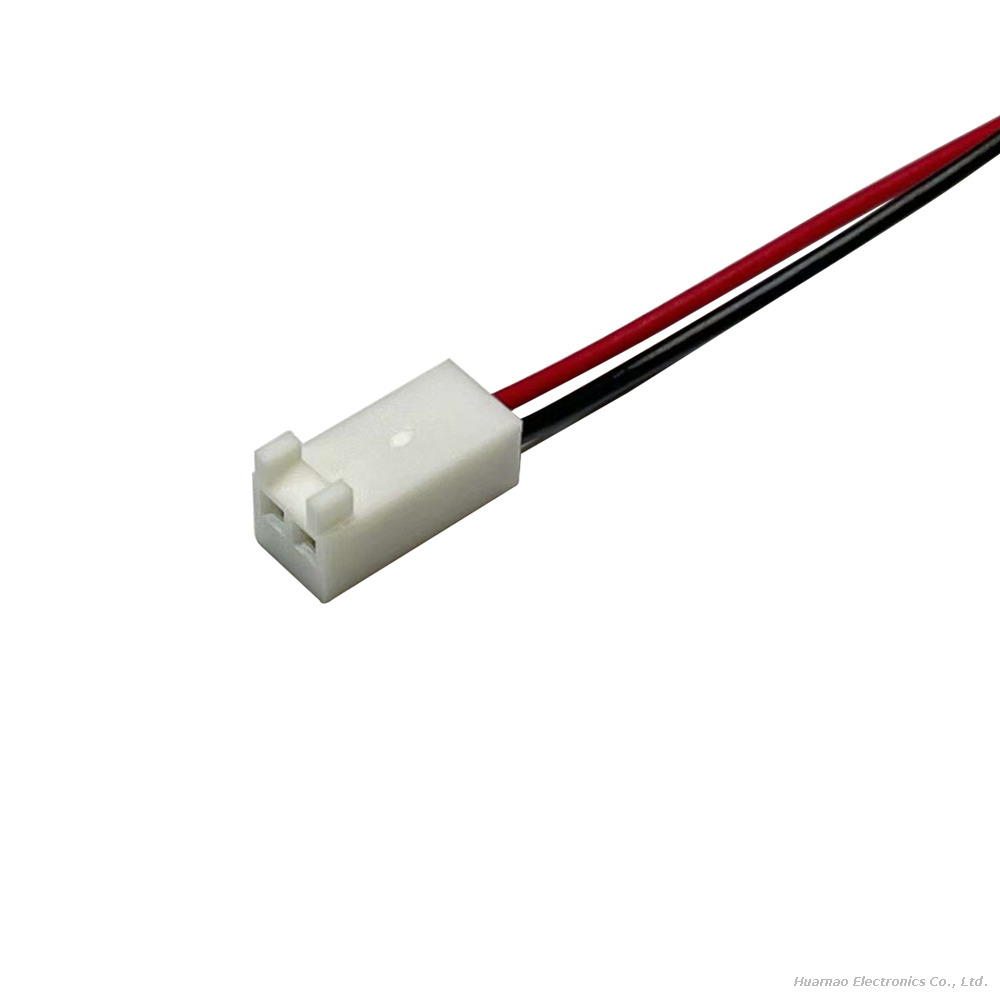

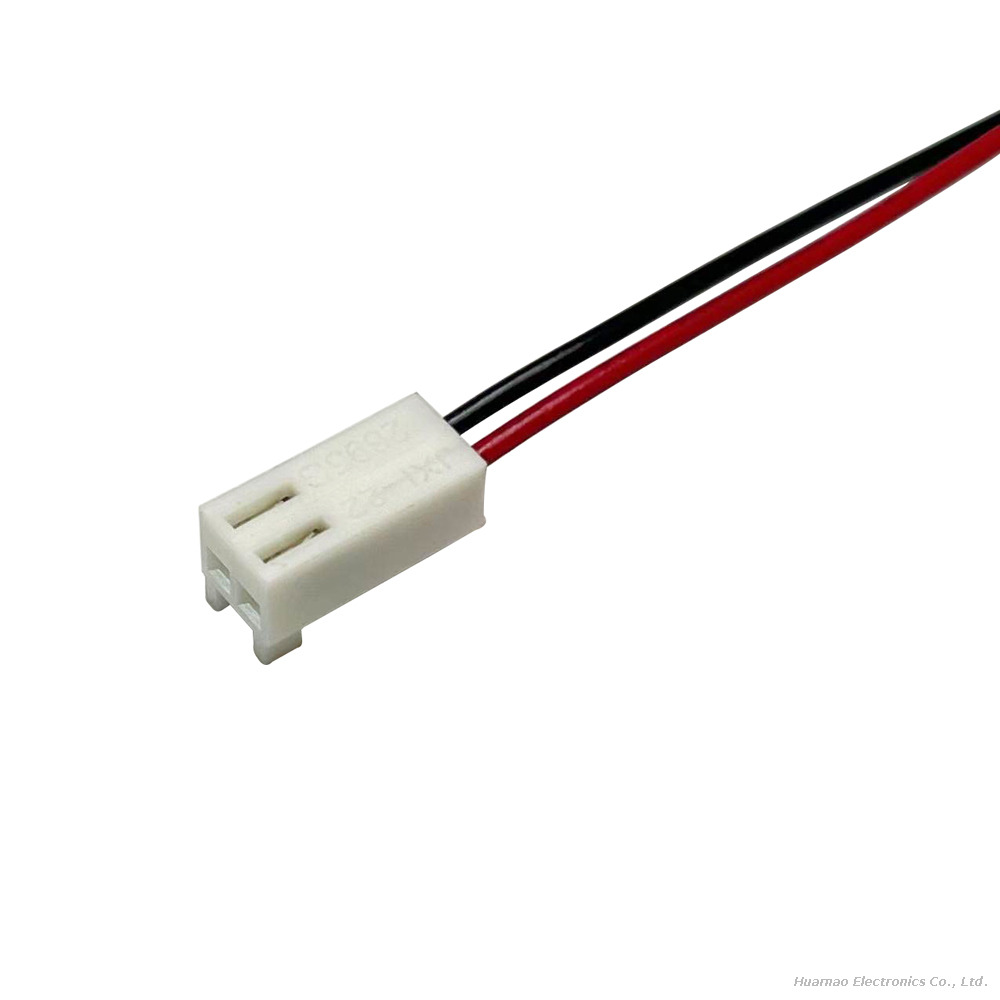

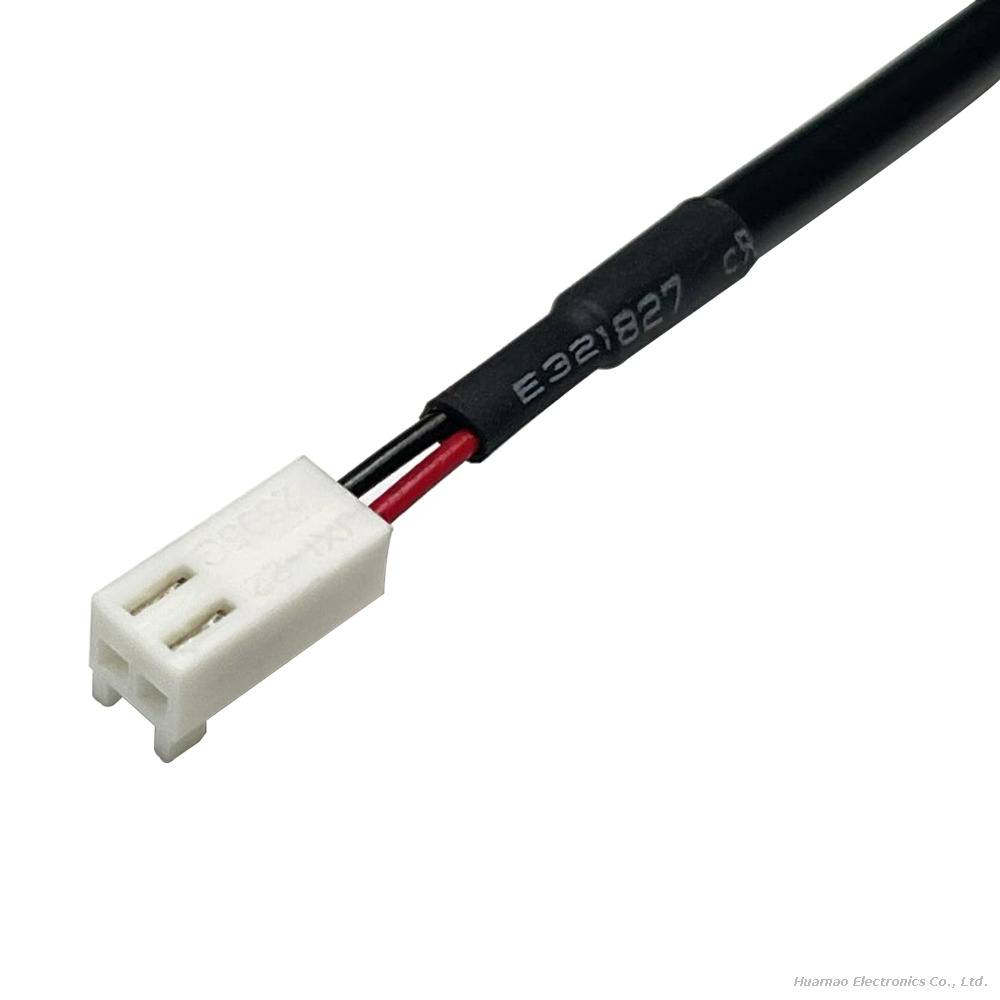

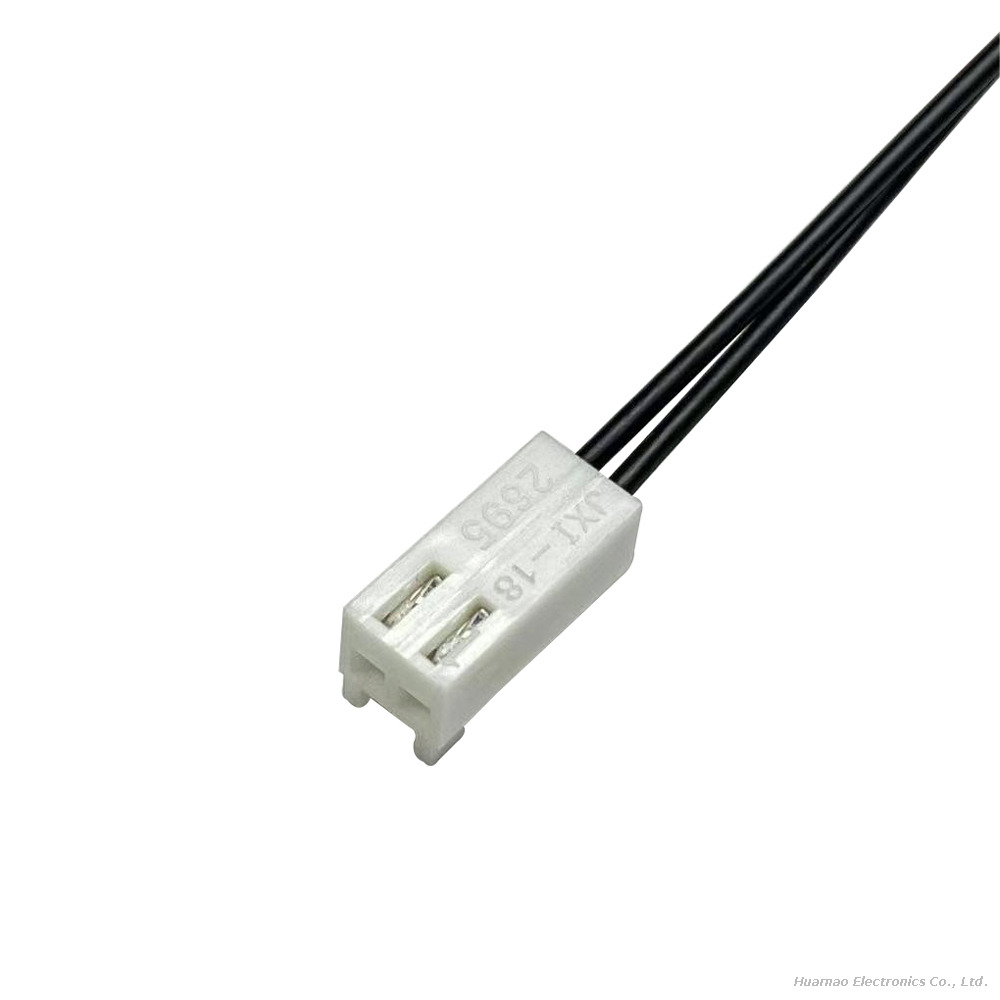

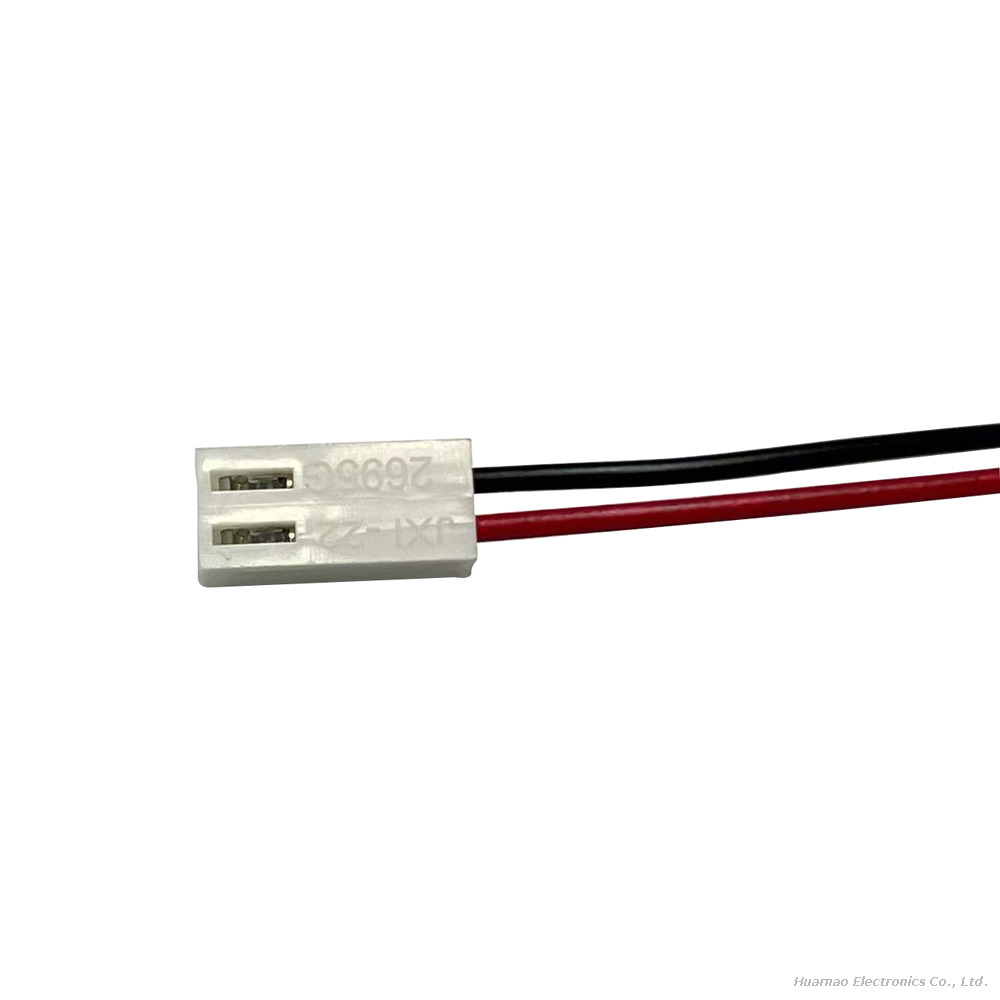

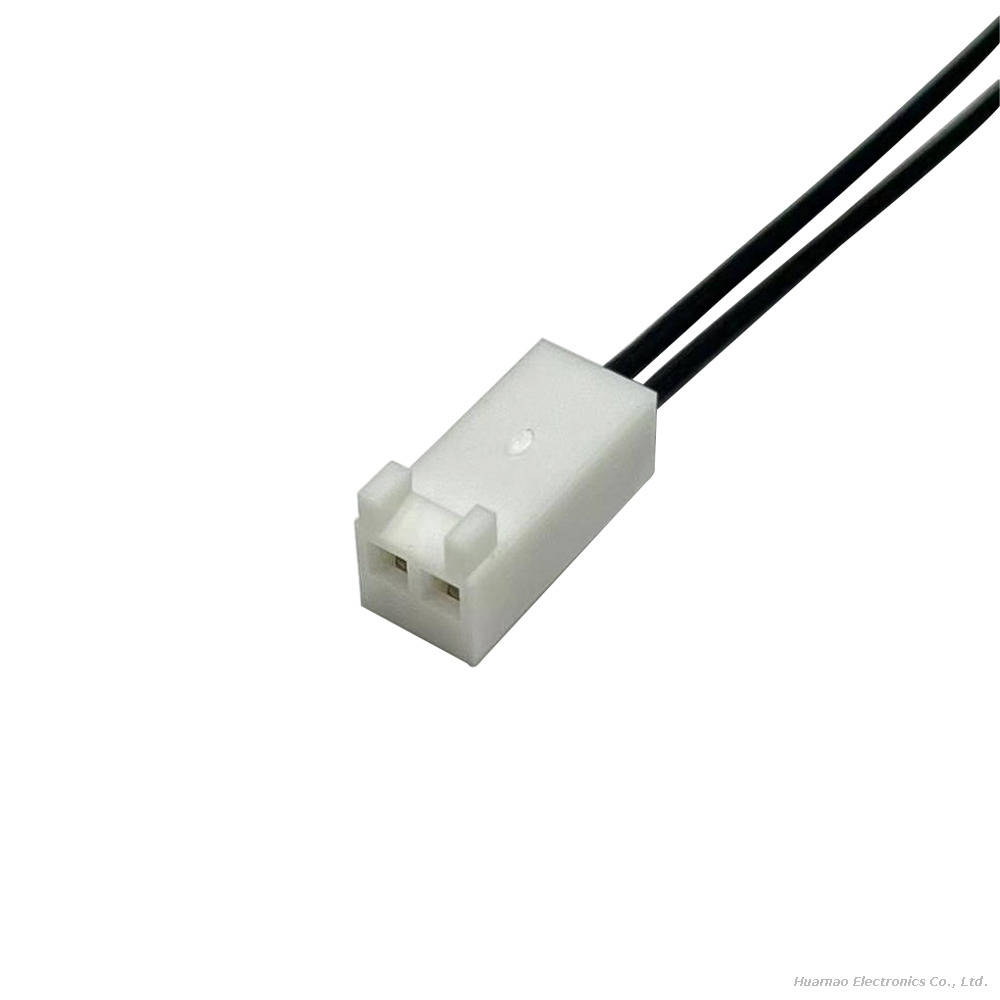

Molex 2201327, also referenced as 2695‑02RP, belongs to the well‑established KK 254 (2695) interconnect family, a 2‑position single‑row crimp‑style receptacle housing at classic 2.54 mm pitch. This custom‑built wire harness is assembled with matched Molex crimp contacts pre‑loaded into the natural‑color nylon housing.
Built‑in polarizing ribs prevent reverse mis‑mating, and friction‑lock structure holds terminals securely inside housing to resist vibration‑triggered loosening. Suitable for both signal and low‑medium power circuits. We support fully‑customized harness solutions: adjustable cable length, varied wire specifications, tin‑dipped bare ends, double‑ended connector setups and label marking services. Mainly used for home‑appliance internal links, sensor modules, power supply units and general‑purpose electronic equipment interconnection.
Specification
| Connector PN | 2201327(2695-02RP),KK254 2695 Series |
| Pitch | 2.54mm,single row |
| Circuits | 2 Position Receptacle |
| Connection Type | Wire to Board Crimp Harness |
| Rated Current | 3A per contact |
| Rated Voltage | 250V AC/DC |
| Operating Temperature | -40℃ to +105℃ |
| Applicable Wire Gauge | 22-26 AWG |
Advantages
Anti‑Mis‑Insertion Polarizing Rib Design
Special polarizing ribs on housing avoid reverse mating errors during manual or automated assembly, lower on‑site production defects.
Stable Friction‑Lock Terminal Holding
Inner friction‑lock structure firmly locks crimp contacts inside housing, prevents terminal back‑out under vibration or cable‑pull stress.
Industry‑Proven KK‑254 Interconnect System
Molex KK‑254 is a widely‑adopted mature 2.54 mm connector platform, with abundant matching PCB headers and tooling resources for mass‑volume production.
UL94‑V‑0 Flame‑Retardant Nylon Housing
Meets general electronic‑device safety requirements, suitable for household appliances and power‑related modules.
Flexible Custom‑Harness Service
Fully adjustable harness length, wire gauge, wire color and termination styles to match customers’ PCB layout and mechanical installation constraints.
Dual‑Purpose For Signal & Moderate‑Power Circuits
Handles both control‑signal transmission and low‑power power supply paths, simplifies BOM for equipment internal wiring.
Application
Household Appliance Modules
Small kitchen appliances, washing‑machine auxiliary components, smart home equipment internal power‑signal interconnection.
Sensor & Detecting Units
Temperature sensors, switch modules, small detecting sensor wire‑to‑PCB connecting harness.
General‑Purpose Consumer Electronics
Power‑bank internal links, desktop peripherals, small instrument internal wiring.
Light‑Duty Industrial Control Hardware
Relay modules, small controller peripheral signal and power connection.
DIY & OEM Electronic Assemblies
Prototype devices, OEM equipment custom internal cable assembly.
FAQ
Q1: What is Molex 2201327 (2695‑02RP)?
A: It is Molex KK 254 2695‑series 2‑pin crimp receptacle housing with 2.54 mm pitch, featuring polarizing ribs, used for wire‑to‑board custom harness assembly.
Q2: Which terminals work with 2695‑02RP housing?
A: It is designed for Molex KK‑254 dedicated crimp contacts (2759 / 4809 / 6459 series). Non‑matching substitute terminals may cause locking failure or poor contact.
Q3: What is the maximum rated current?
A: 3 A per contact, for signal and low‑power circuits, not intended for high‑current main‑power loops.
Q4: Can I order custom‑length finished harness?
A: Yes, we can customize cable length, wire colors and processing forms according to drawings or physical samples.
Q5: Is this connector waterproof?
A: Standard variant is non‑waterproof, only for inside‑device installation, not fit for exposed damp surroundings.
