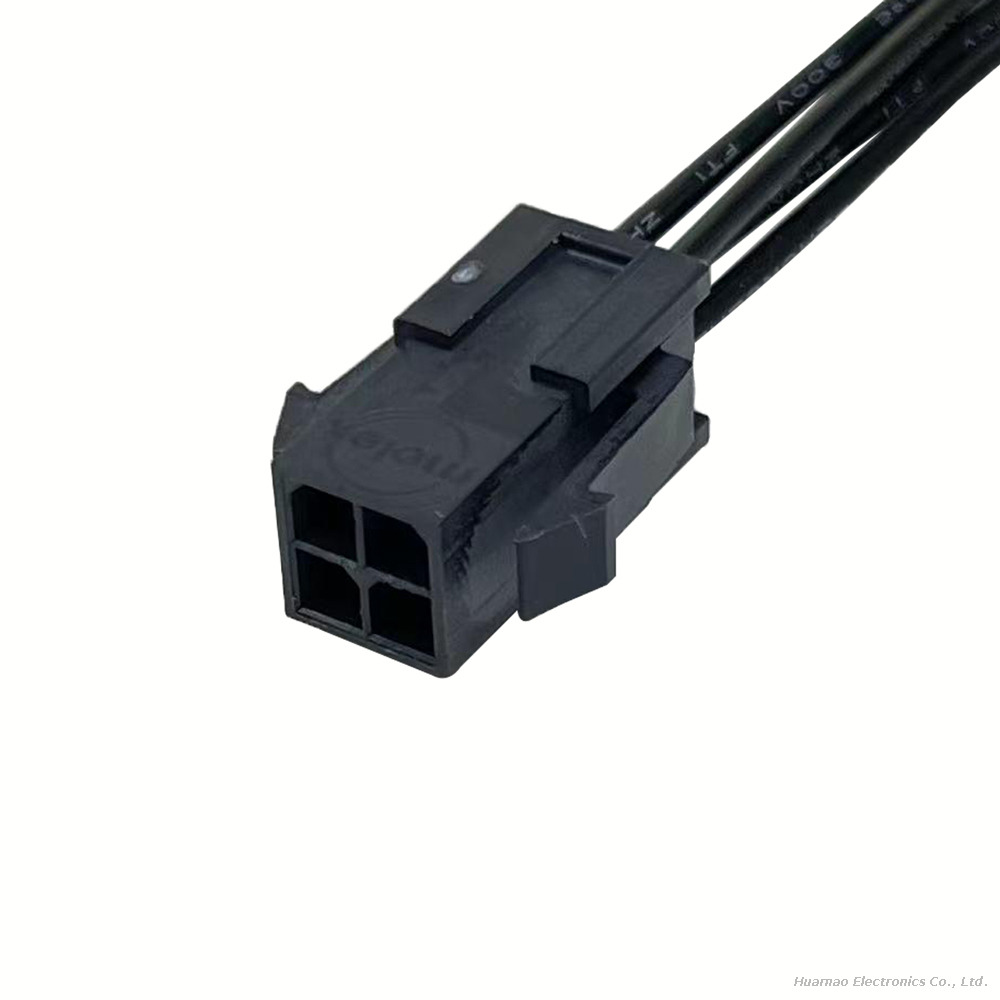

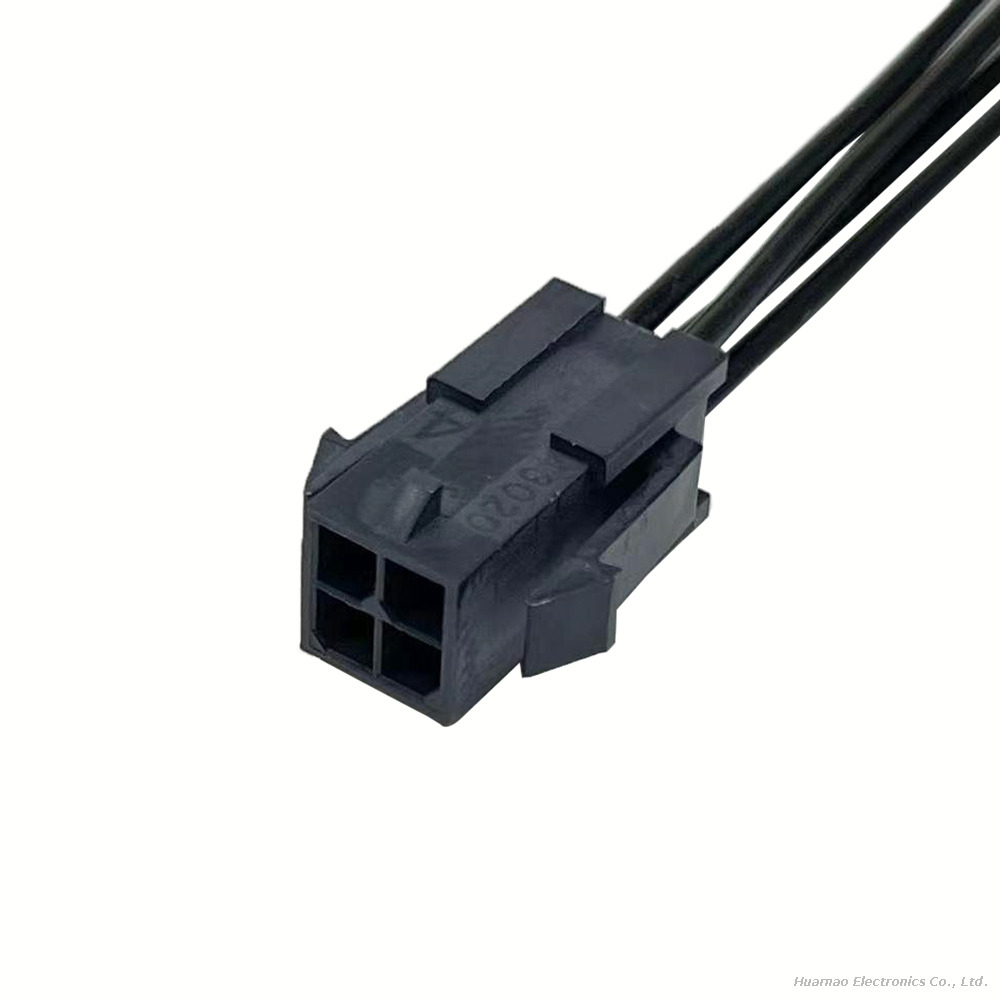

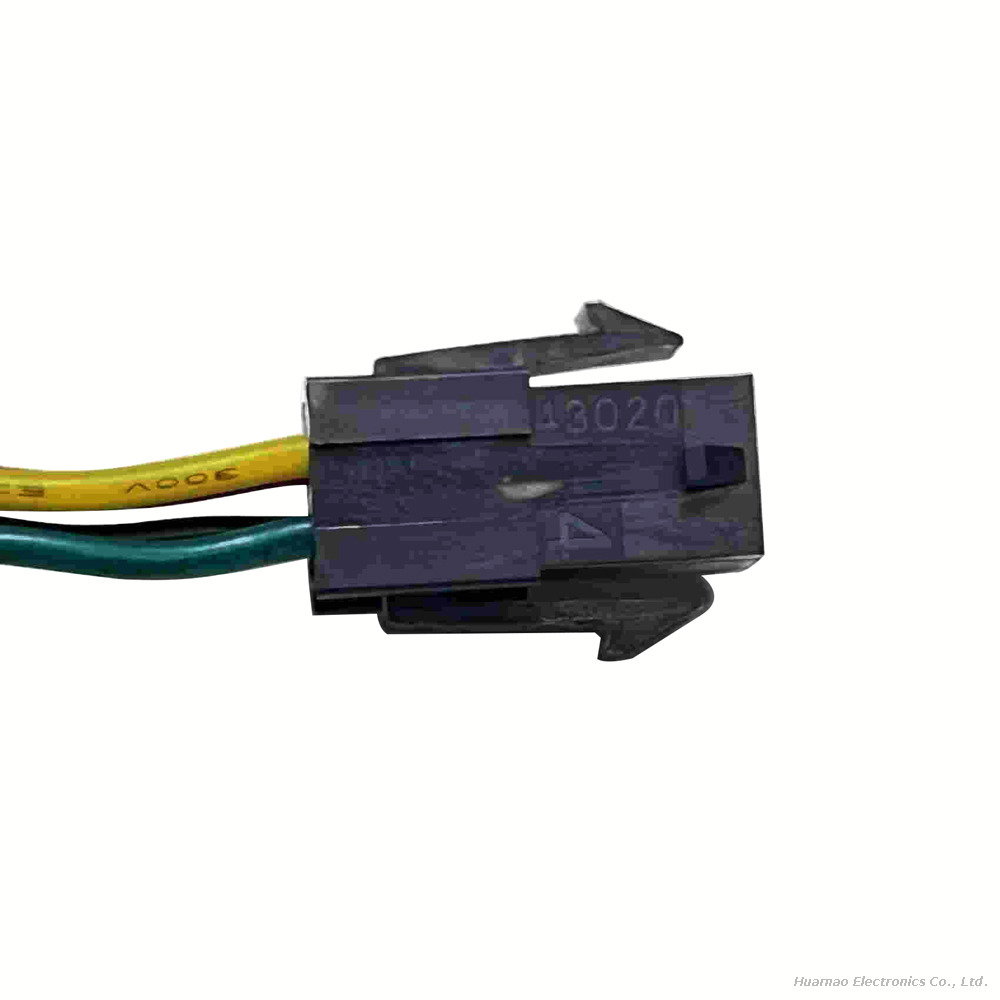

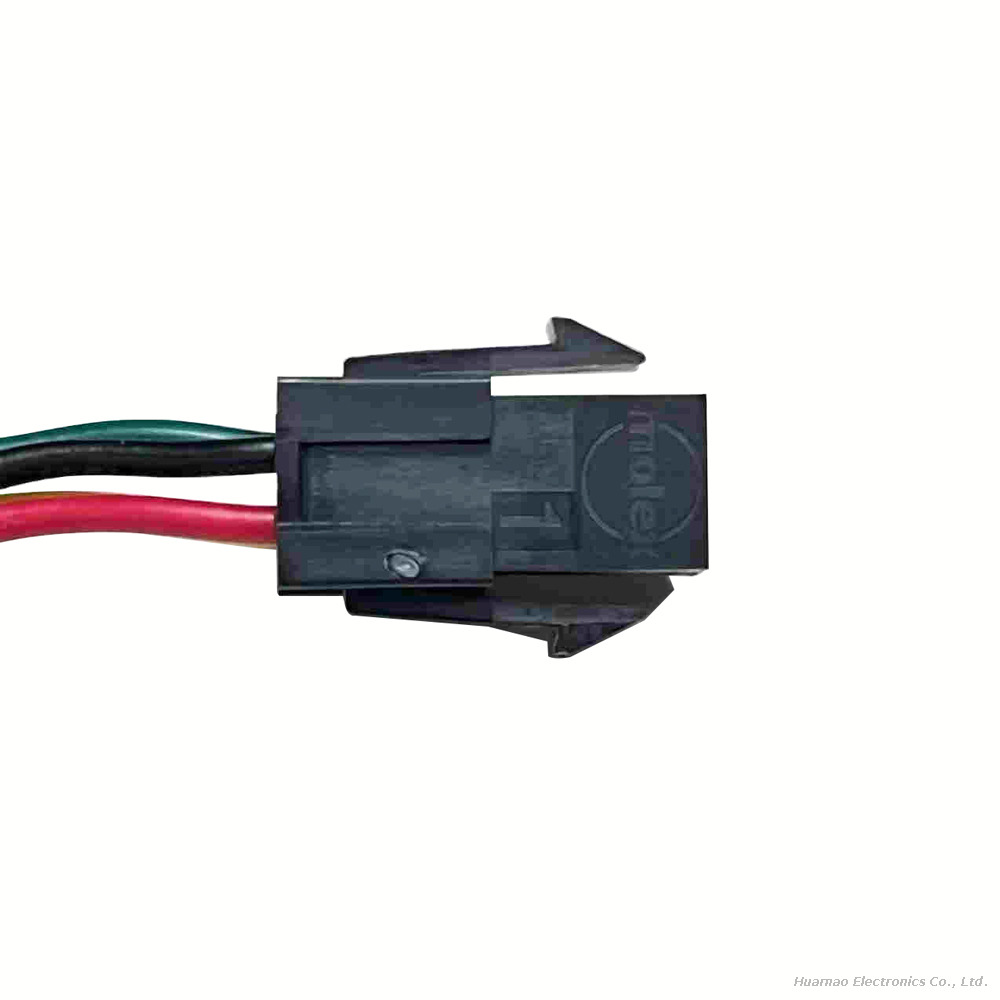

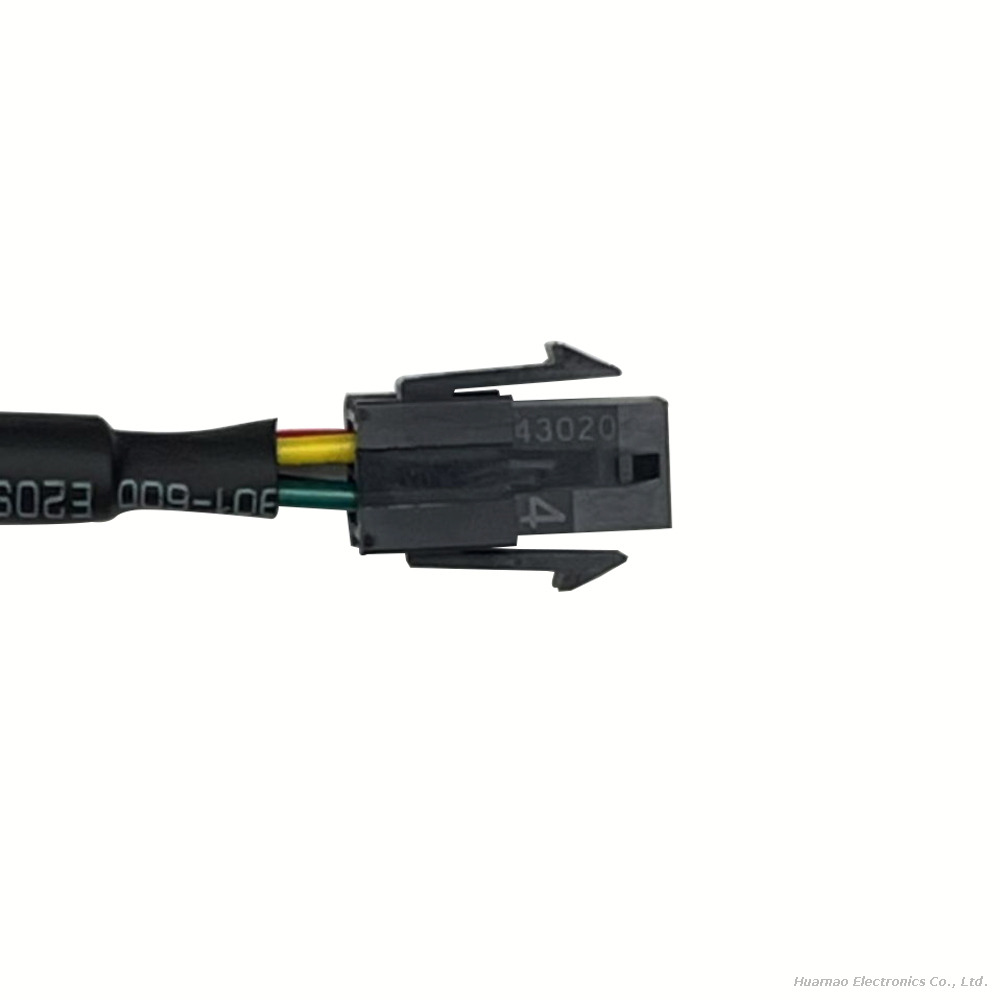

Molex 430200400 Micro-Fit 3.0 4 Position Power Signal Wiring Assembly

Custom industrial jumper harness equipped with genuine Molex 430200400 Micro-Fit 3.0 dual-row 4Pin wire-to-board connector. Compact 3.0mm pitch dual-row design saves PCB layout space, reinforced locking structure meets heavy vibration industrial working conditions. Optional gold/tin plated terminals, customizable wire length and AWG specs, RoHS compliant, cost-effective power interconnection solution for industrial automation and control equipment manufacturers.

Specifications

Advantages

1. Micro-Fit 3.0 Compact High Current Density Design

   3.0mm mini dual-row structure achieves up to 5A single-pin load capacity, balancing small PCB footprint and medium power transmission capability, superior to ultra-fine 1.5/2.0mm low-current signal connectors for mixed power-signal circuits.

2. Integrated Positive Lock + Panel Mount Dual Functionality

   Built-in elastic positive lock eliminates loose contact caused by long-term equipment vibration; integrated panel mounting lugs allow direct fixed installation on equipment cabinet panels without extra brackets, simplifying assembly layout.

3. Full Polarization Isolated Cavity Anti-Error Protection

   Asymmetric housing keyway completely prevents reverse misplug to protect expensive mainboard IC and drive chips; independent separated terminal chambers increase creepage distance to avoid cross-circuit short-circuit under humid and dusty workshop environments.

4. Dual Plating Terminal Options For Multi-Scenario Matching

   Tin-plated terminals for cost-effective medium-power power transmission; gold-plated terminals for low-noise high-frequency weak signal circuits, flexible to match power supply or sensor signal harness demands.

5. -40℃ ~ +105℃ Wide Temperature Flame Retardant Nylon Housing

   Stable mechanical and insulation performance under extreme temperature fluctuation, suitable for heating equipment control boards, cold storage industrial equipment and long-running power modules without deformation or brittleness.

6. One-Stop Custom Harness Manufacturing Service

   Support small-batch prototype samples and mass bulk production, finished harnesses can be processed with shielding, tin dipping, heat shrink strain relief and custom label marking for direct assembly on customer production lines.

Application

1. Switching Power Supply & DC-DC Module Equipment

   Small switching power supply output Micro-Fit 3.0 wiring harness, industrial DC-DC converter board 4pin 430200400 jumper, lithium charger internal power signal mixed cable

2. Industrial Automation PLC & Mini Drive Equipment

   Small servo driver auxiliary power extension wire, PLC I/O board Micro-Fit 3.0 connecting harness, packaging machine sensor power supply jumper cable

3. Portable Medical Electronic Devices

   Home blood monitor internal power wire harness, portable nebulizer control board 4pin Micro-Fit cable, beauty instrument low-power signal assembly wire

4. 3D Printing & Desktop Intelligent Hardware

   FDM 3D printer hot-end power Micro-Fit 3.0 harness, handheld industrial detector control panel jumper, mini IoT gateway inter-board connecting cable

5. Small Household & Smart Lighting Equipment

   Air purifier main control board power signal wire, cabinet LED driver internal Micro-Fit 3.0 cable, smart water dispenser touch panel extension jumper

FAQ

Q1: What maximum current can each pin of this Micro-Fit 3.0 harness support?

A1: Each pin carries up to 5A continuous current under UL certification, suitable for small power loads including low-power motors, heating elements and multi-channel sensor power supply, not recommended for loads over 6A continuous operation.

Q2: What is the difference between Micro-Fit 3.0 and DuraClik 2.0 series connectors?

A2: Micro-Fit 3.0 features larger 3.0mm pitch and higher 5A load capacity, mainly for medium power mixed power-signal circuits; DuraClik 2.0 is a small-pitch signal connector with max 3A per pin, focused on multi-channel weak sensor signals, and the two series are non-interchangeable.

Q3: Can we customize double-head wire-to-board jumpers with 430200400 male plug on one end and matching 43045 PCB header on the other?

A3: Yes, we can produce custom full-length double-head extension jumpers with arbitrary wire length according to customer PCB layout requirements.

Q4: Can this connector be used for long-term continuous heating power module equipment?

A4: The nylon housing operates stably from -40℃ to +105℃, applicable to normal power supply module ambient temperature; avoid direct long-term contact with heating core heat sources exceeding 110℃.
