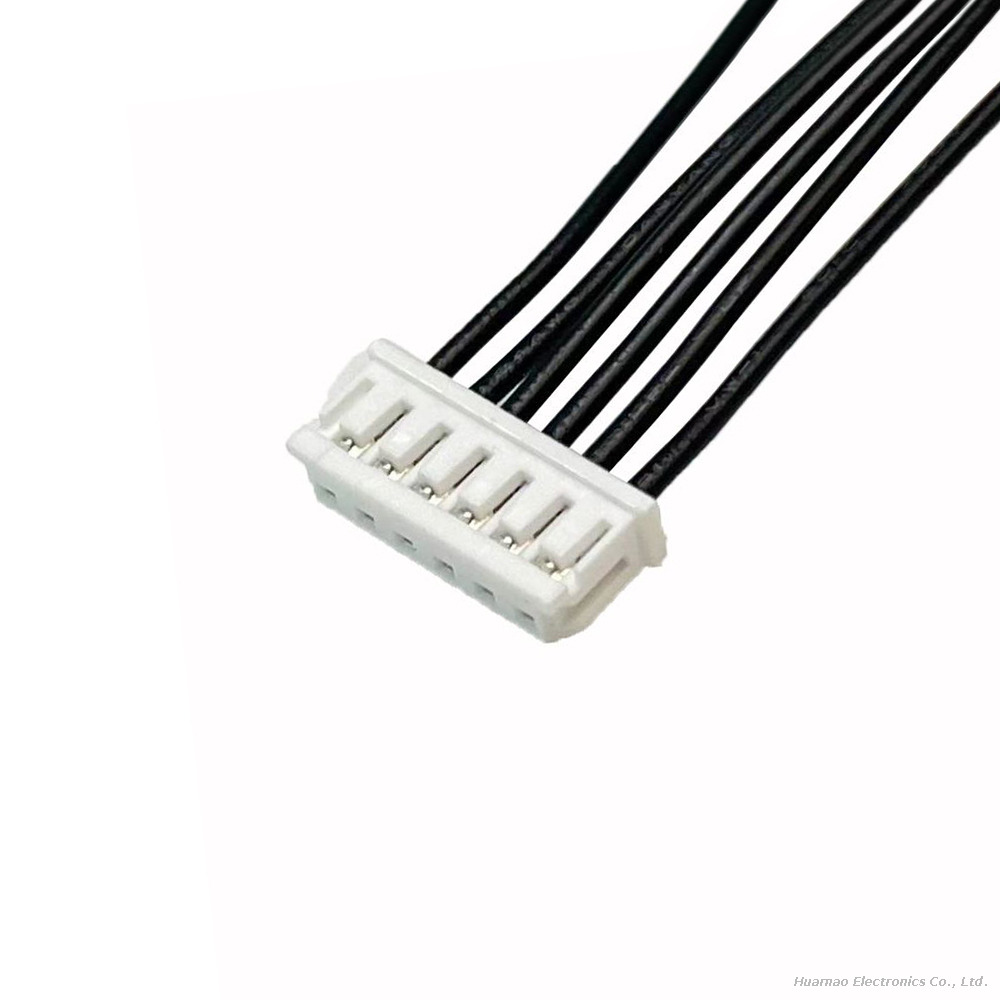

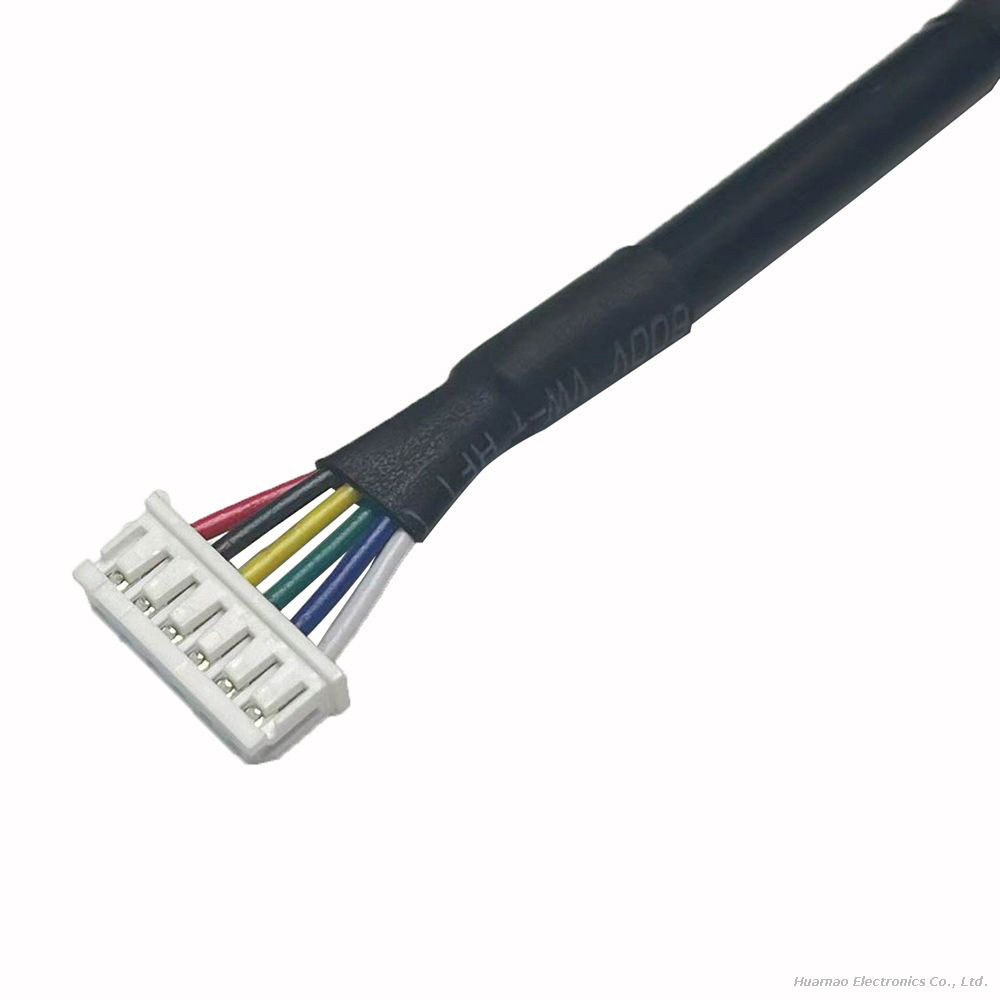

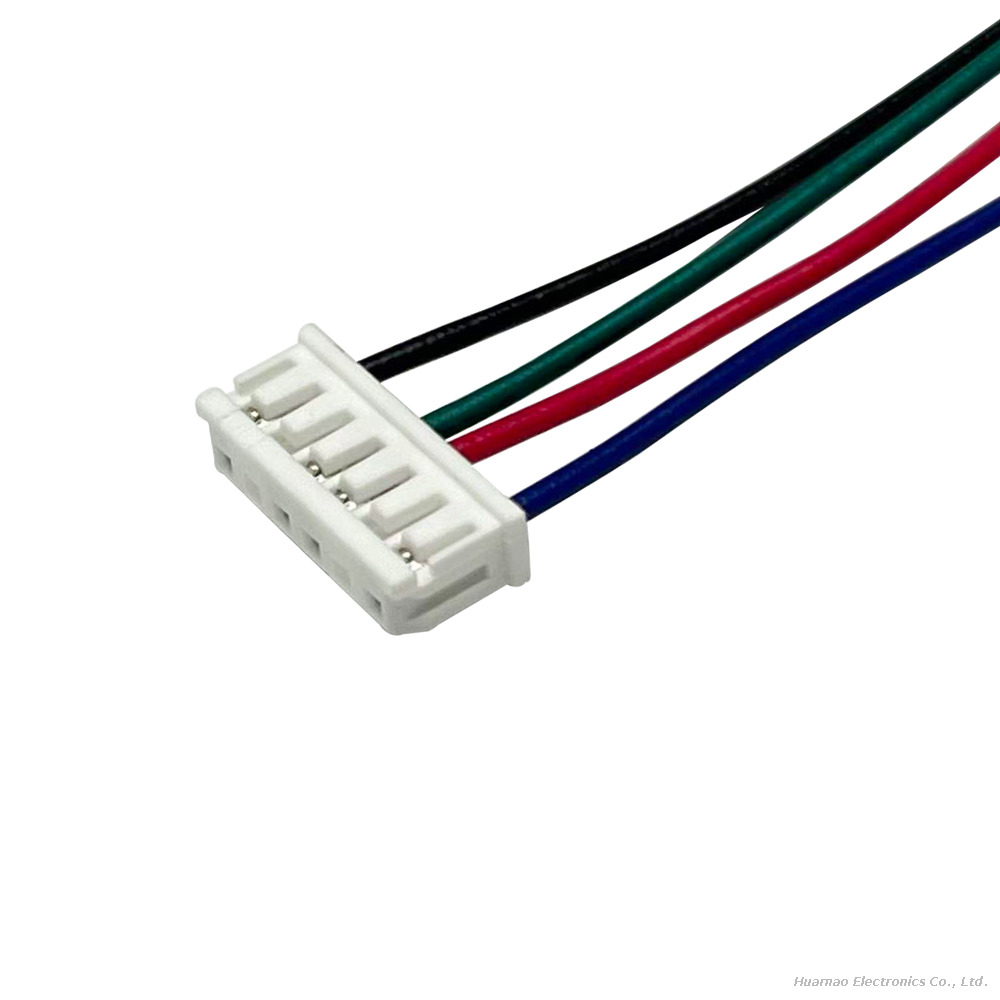

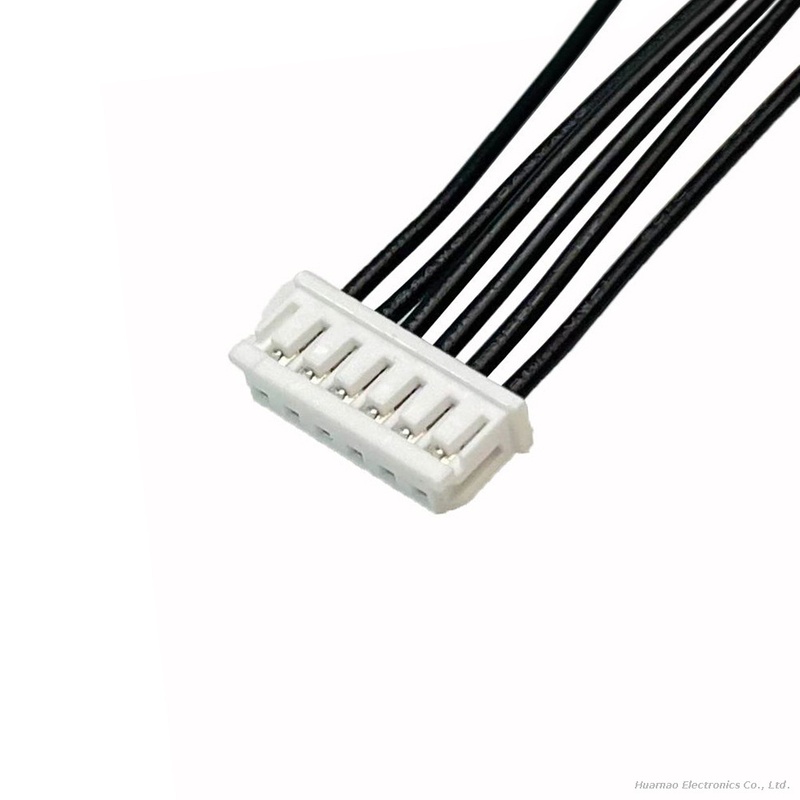

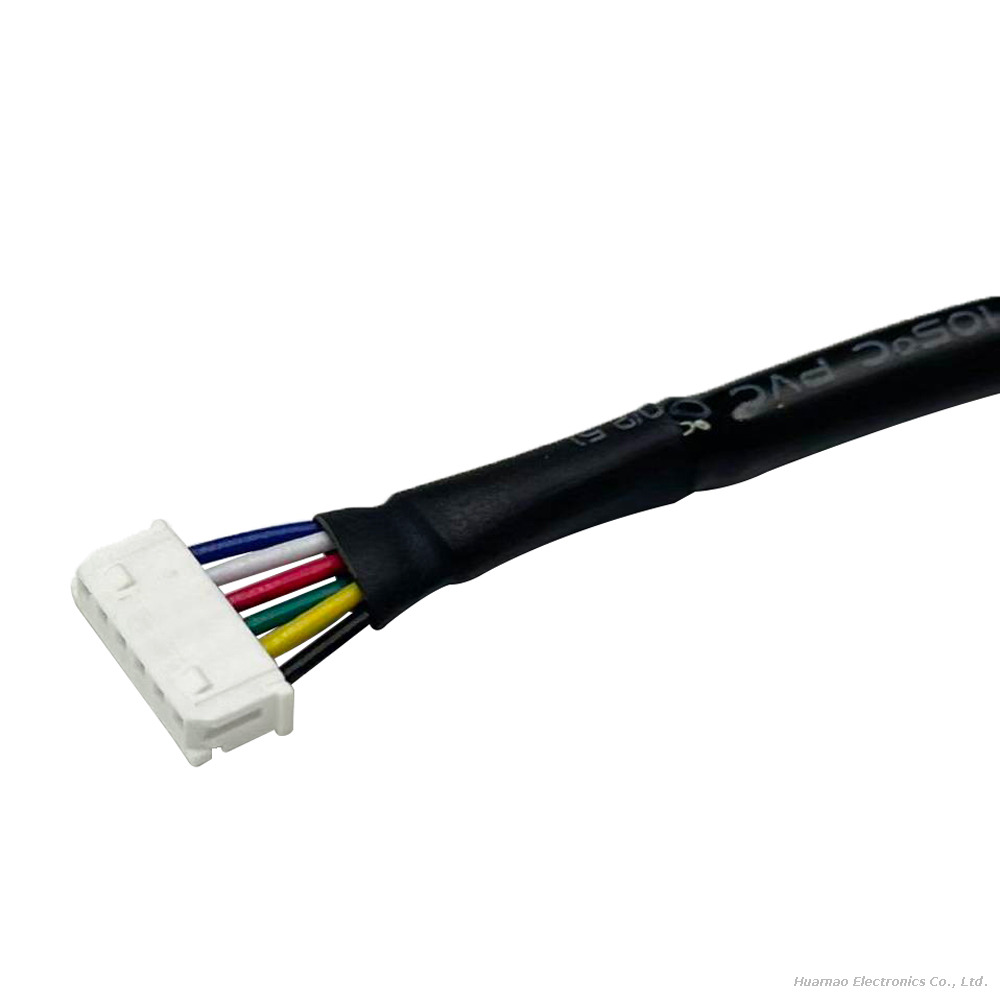

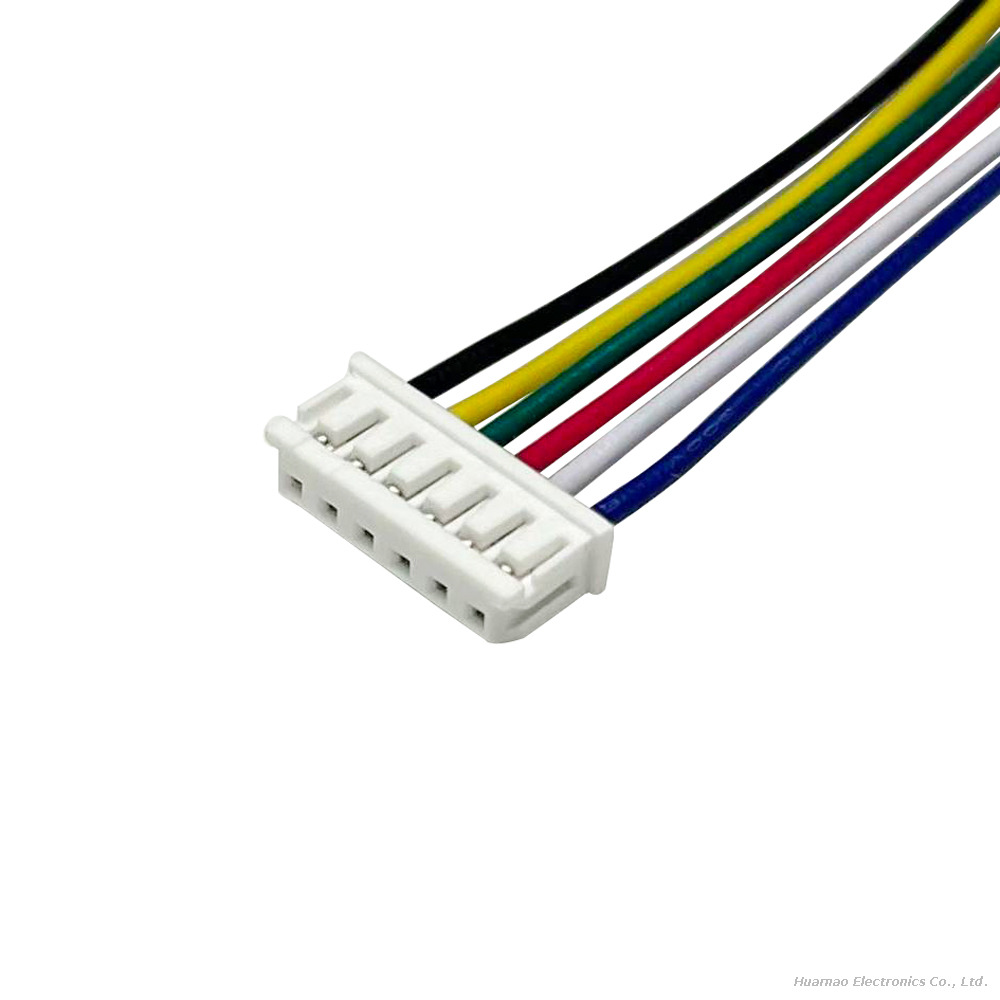

Molex 51065-0600 Micro Latch Wiring Harness 2.0mm PVC Cable

Molex 51065-0600 Micro Latch Wiring Harness 2.0mm PVC Cable

Name: Molex 51065-0600 Micro Latch Wiring Harness 2.0mm PVC Cable
Brand: Molex
Rating: 5.0 (96 reviews)

This customized signal harness adopts original Molex 51065-0600 (6Pin) Micro Latch wire-to-board crimp housing with standard 2.0mm single-row pitch, matched with multi-strand flexible PVC electronic wire. The Micro Latch series is a compact low-profile wire-to-board connector designed for low-power signal & miniature auxiliary power circuits of industrial control, home appliances, medical devices, smart home hardware and office automation equipment. Built-in integrated tactile spring latch provides reliable anti-drop locking force to avoid loose contact caused by equipment vibration; molded anti-reverse polarization ribs eliminate reverse insertion short-circuit risks during assembly. Dual-crimp tin-plated terminals firmly lock wire insulation and conductor separately, with stable low contact resistance for long-term signal transmission. UL94 V-0 flame retardant LCP housing withstands PCB reflow temperature impact, fully RoHS & halogen-free optional. Customizable wire length, AWG wire gauge, wire color, pin mapping and terminal processing are available, widely used for control board sensor signal interconnection, small drive power supply bridging, panel button wiring and portable electronic mainboard internal connection.

Model:
51065-0600
Brand:
Molex

Availability:

Quantity:



Inquire Add to Basket

Molex 51065-0600 connector cable Micro Latch wiring harness 2.0mm Pitch Terminal Wire Wire to Board Connector Cable PVC signal cable sensor connection wire

Product Description

The Micro Latch low-profile miniaturized structure occupies minimal vertical stacking space inside thin equipment housings, solving layout limitation pain points of large-pitch connectors for slim control boards. The visible spring latch delivers obvious tactile feedback after full insertion, effectively preventing incomplete mating that leads to intermittent signal failure under equipment vibration. 2.0mm moderate pitch balances miniaturization and safe creepage distance, avoiding arc leakage risks for 12/24V industrial low-voltage circuits. LCP high-temperature housing resists thermal deformation during PCB reflow soldering, stable performance in equipment cabinets with continuous heat accumulation. Flexible multi-strand wire withstands thousands of reciprocating bending cycles without core fracture, suitable for frequently disassembled test equipment and movable panel wiring. All crimp transition joints are wrapped with heat shrink tubing for strain relief and secondary insulation reinforcement.

Every finished harness passes strict factory quality testing before shipment, including continuous signal stability aging test, reciprocating bending fatigue test, terminal pull retention force test and high voltage insulation withstand screening. We supply fixed-length jumper cables and customized cross-pin conversion wiring for industrial control manufacturers, medical device factories, smart home hardware brands and laboratory test instrument suppliers.

Specifications

Connector Part Number	Molex 510650600,6Pin Micro Latch wire to board plug
Housing Material	LCP high heat resistant resin
Crimp Contact Material	Phosphor bronze with tin-nickel plating
Compatible Wire Gauge	AWG22-AWG26
Electrical Rating	3A continuous per pin
Operating Temperature Range	-40℃ to +85℃
Core Structural Feature	Micro Latch integrated spring anti-loose lock

Advantages

Molex Micro Latch integrated spring lock safety design: One-piece molded elastic latch provides lasting clamping force, will not loosen under long-term equipment vibration; obvious tactile click feedback ensures full insertion, eliminating incomplete mating signal dropout faults.
2.0mm moderate safe creepage pitch: Balances miniaturization layout demand and electrical safety margin, effectively suppressing arc discharge and leakage current for 24V industrial control and medical low-voltage circuits, safer than ultra-fine 1.0/1.25mm pitch connectors for auxiliary power transmission.
LCP high-temperature reflow resistant housing: No deformation or melting during PCB SMT reflow soldering process, compatible with automated mass production lines for industrial control and smart hardware mainboards.
Dual independent crimp terminal anti-wire-shedding structure: Separate crimp zones lock bare copper conductor and outer PVC insulation simultaneously, strong tensile resistance, no wire slip after thousands of plugging and vibration cycles.
Multi-scenario universal flexible PVC thin wire: Ultra-soft multi-strand conductor withstands tens of thousands of reciprocating folding, suitable for narrow equipment internal wiring, movable operation panels and frequent maintenance disassembly environments.
Multi-industry targeted full customization service: Support ultra-short 0.05m built-in control board internal jumpers and 8m long-distance equipment extension cables; small-batch prototype samples available for new industrial control, medical and smart home product development verification.

Application

Small Industrial Control & Automation Equipment:Desktop mini PLC sensor signal Micro Latch wiring harness, automated testing bench control board interconnection cable, small solenoid valve drive signal 6Pin 2.0mm assembly, logistics sorting machine photoelectric detection connecting wire
Medical Portable Monitoring Devices:Handheld vital sign detector mainboard signal cable, portable blood glucose meter internal bridging harness, wearable temperature monitoring equipment low-power signal wire, medical nebulizer control panel wiring assembly
Smart Home & Small Household Appliances:Intelligent air purifier control board sensor connecting cable, desktop mini dehumidifier power-signal integrated harness, smart water heater temperature detection Micro Latch wire, built-in oven touch panel signal cable
Office Automation & Mini Test Instruments:Desktop thermal printer mainboard signal wiring harness, electronic balance serial detection jumper wire, multi-channel sensor aging test bench conversion cable, laminator control board internal connecting wire
Educational Electronic & Mini Intelligent Hardware:Programming education robot mainboard signal cable, mini environmental detector power-sampling integrated harness, small wireless gateway internal thin connecting wire, portable charging equipment control board wiring assembly

FAQ

Q1: What is the core difference between Micro Latch and ordinary 2.0mm wire-to-board connectors?

A: Molex Micro Latch adopts an integrated one-piece spring latch inside the housing without extra plastic locking pieces, compact low-profile structure, clear tactile locking feedback and stronger anti-vibration performance than split lock connectors.

Q2: What maximum continuous current can a single 51065-0600 terminal support?

A: When matched with AWG22 thick multi-strand wire, each pin stably carries 3A continuous current, suitable for mixed transmission of low-current sensor signals and miniature auxiliary power supply.

Q3: Can reversed plugging damage the equipment PCB?

A: Molded physical anti-reverse polarization ribs on the housing only allow one correct docking direction, completely block reversed insertion to avoid mainboard chip short-circuit burnout during assembly and maintenance.

Q4: Is this harness suitable for equipment cabinets with long-term vibration?

A: Dual-lance internal terminal lock + Micro Latch spring double anti-loose structure, passed long-term vibration simulation test, no loose contact or signal interruption under continuous equipment operation vibration.
