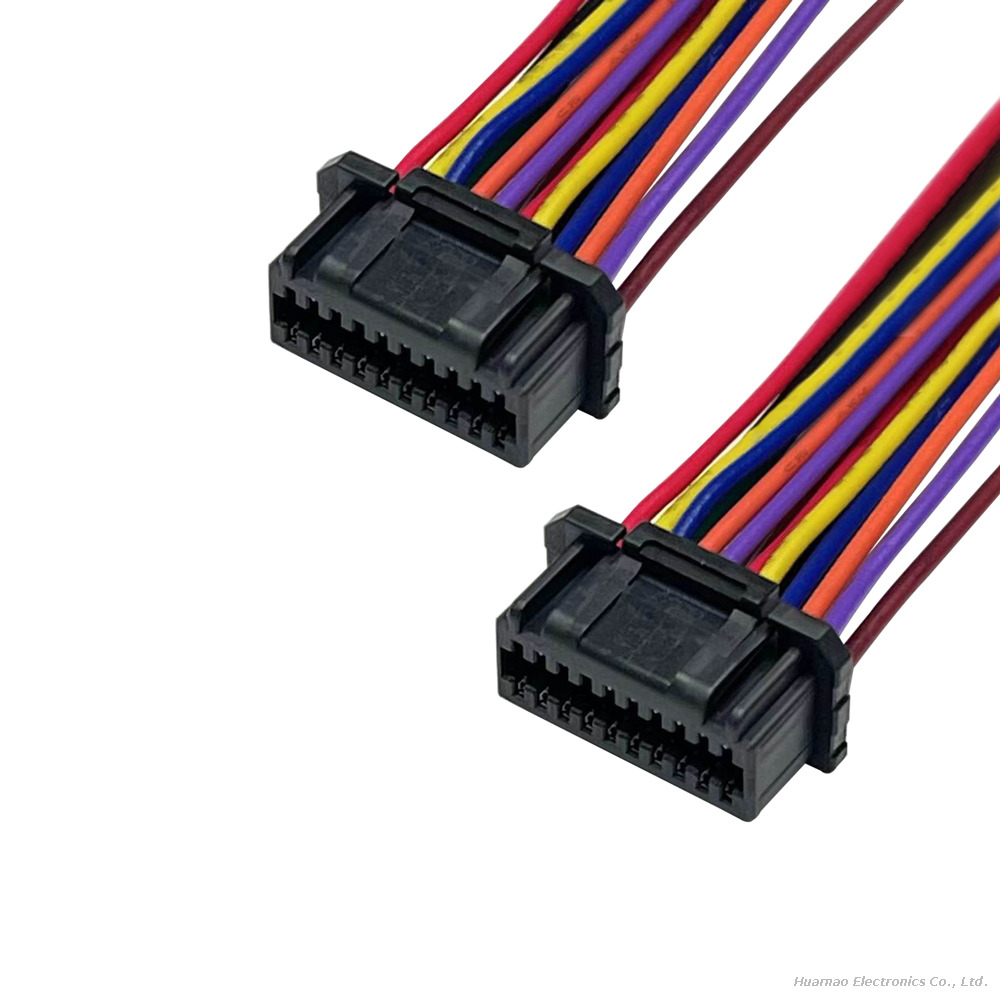

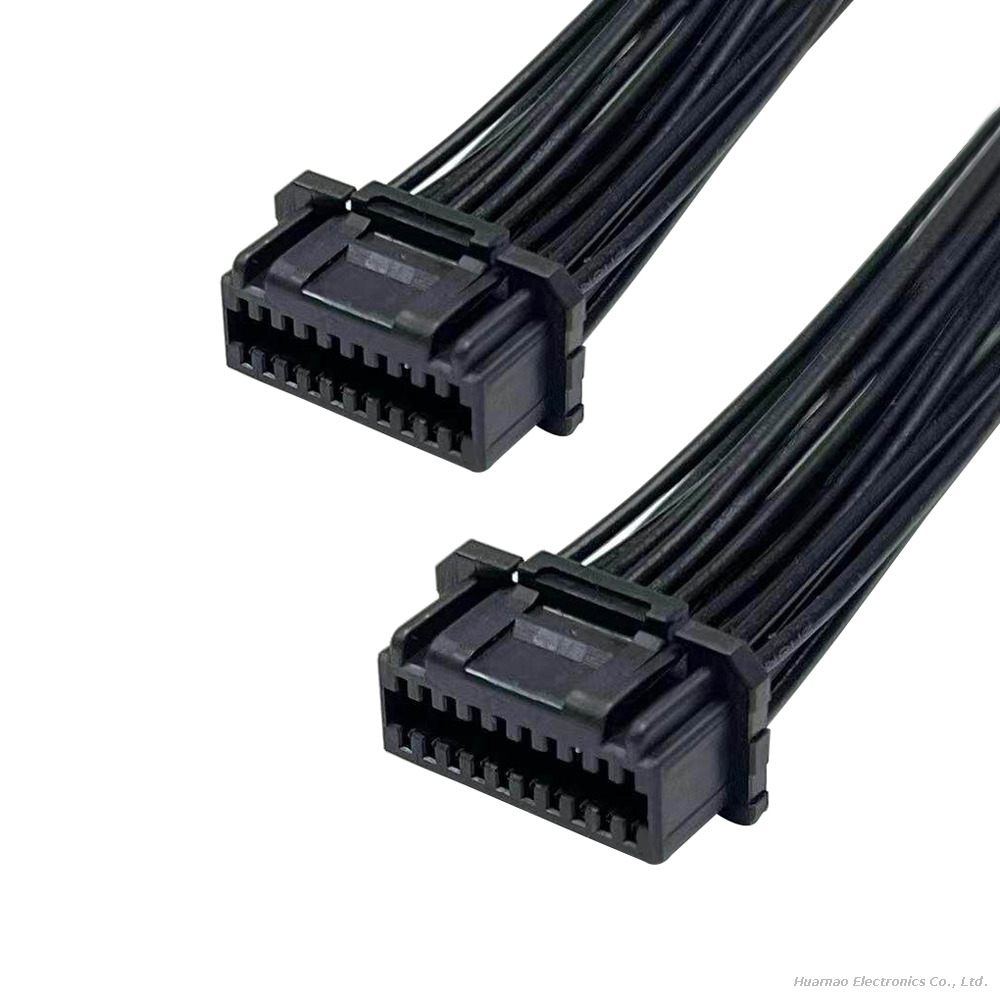

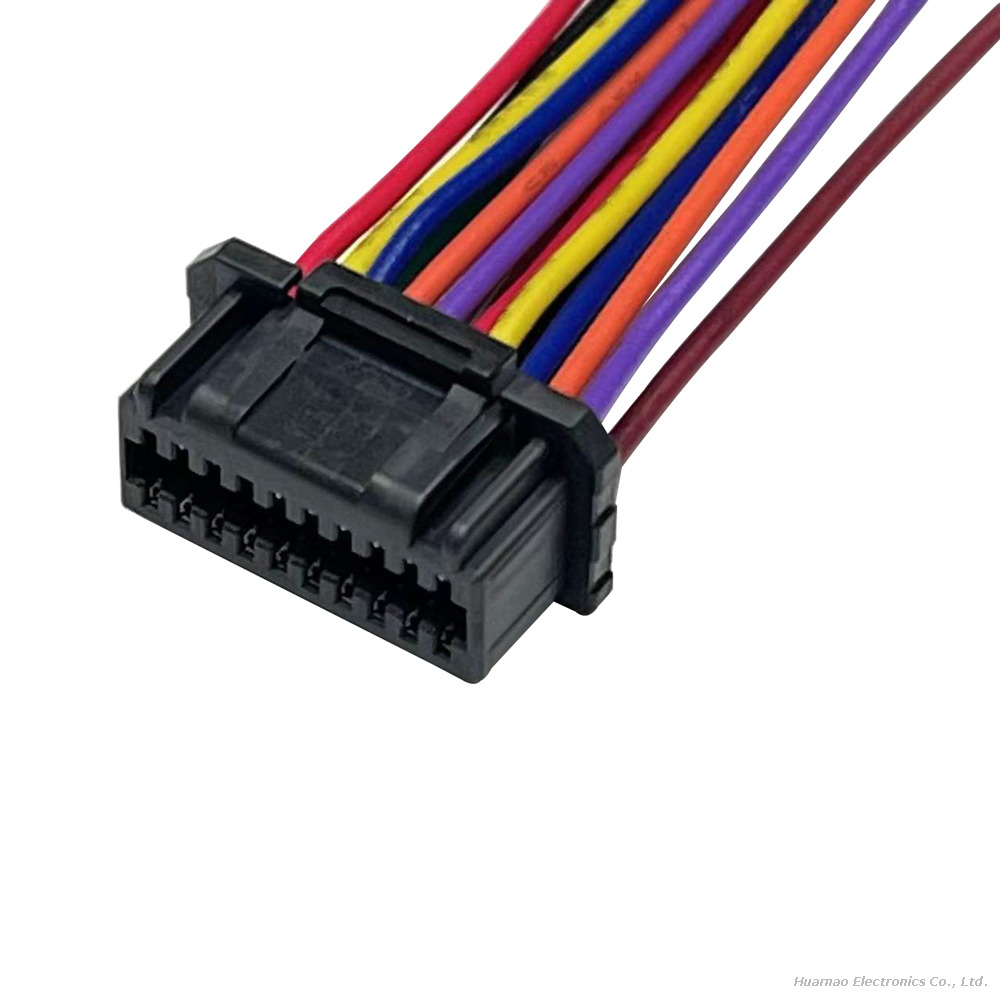

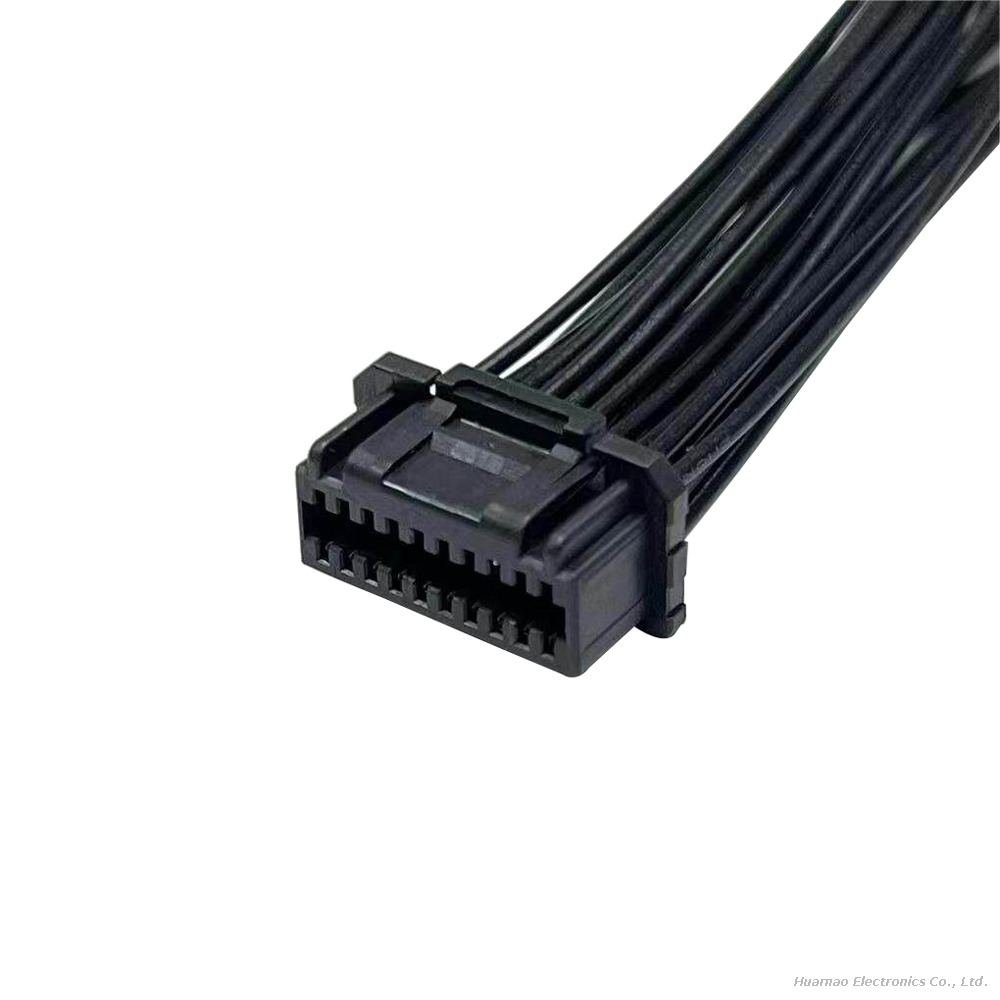

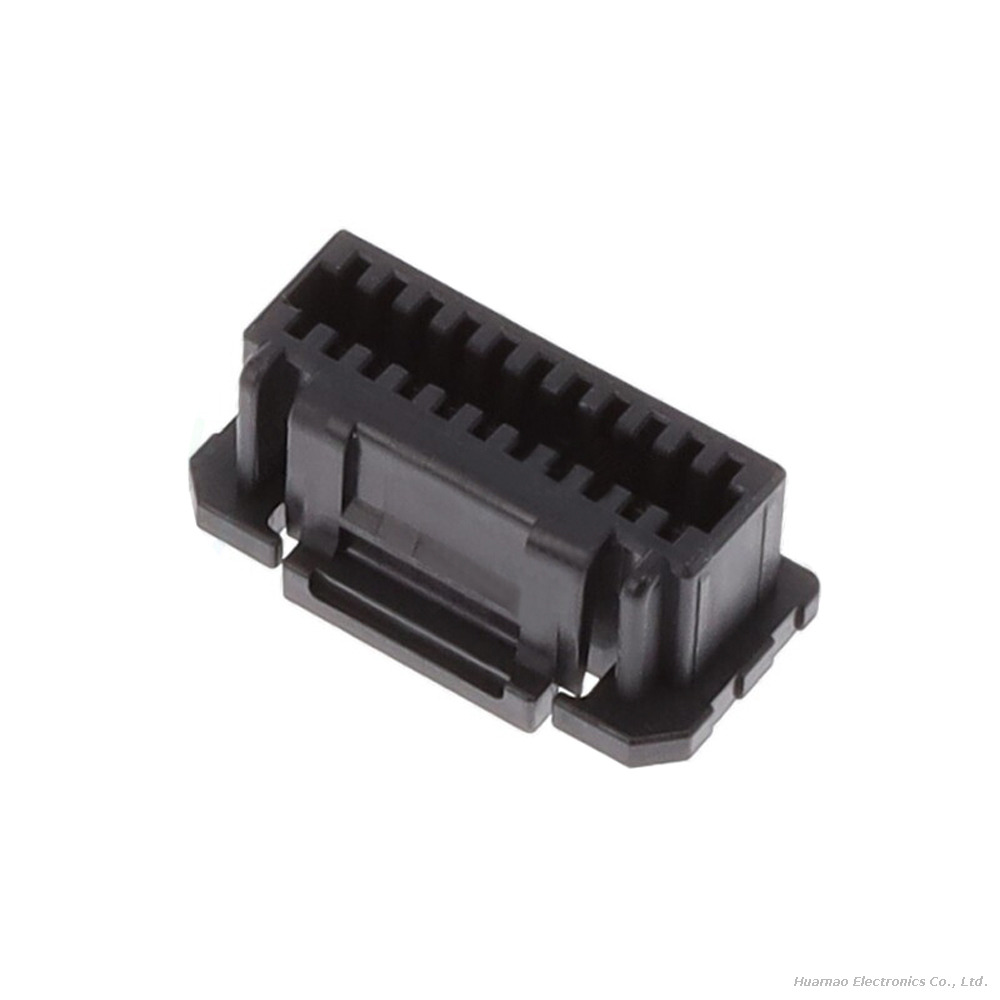

Molex 5054322201 Micro-Lock Plus Wiring Harness 1.25mm Cable Assembly

Molex 5054322201 Micro-Lock Plus Wiring Harness 1.25mm Cable Assembly

Name: Molex 5054322201 Micro-Lock Plus Wiring Harness 1.25mm Cable Assembly
Brand: Molex
Rating: 5.0 (13 reviews)

This multi-channel precision wiring harness adopts genuine Molex 5054322201 Micro-Lock Plus series 22-position wire-to-board crimp plug with standard 1.25mm single-row pitch, specially customized for compact industrial control mainboards, multi-sensor integrated modules, medical portable monitoring equipment, smart large-size wearable devices and multi-cell lithium BMS multi-channel sampling systems. Micro-Lock Plus features a slim low-profile body with integrated one-piece tactile spring lock and physical anti-misplug ribs, solving the space limitation of large-pitch connectors on dense PCB layouts. Dual crimp gold-plated terminals lock wire core and insulation separately to resist long-term equipment vibration signal loss. The 22Pin full-row layout supports synchronous transmission of multi-group analog/digital sensor signals, multi-cell battery voltage sampling and miniature auxiliary power circuits in one single cable. High-temperature LCP UL94 V-0 flame retardant housing withstands SMT reflow soldering heat shock, fully RoHS compliant with optional halogen-free material. Customizable cable length, AWG wire gauge (26/28/30AWG), wire color sorting, pin mapping and terminal processing are available, widely applied to automated test bench multi-channel signal acquisition, medical multi-parameter monitors, large-capacity lithium pack BMS sampling and desktop multi-axis robot control board interconnection.

Model:
5054322201
Brand:
Molex

Availability:

Quantity:



Inquire Add to Basket Buy at Aliexpress

Molex 5054322201 connector cable Micro-Lock Plus Wiring Harness 1.25mm Terminal Wire wire-to-board cable

Product Description

The 1.25mm compact moderate pitch balances miniaturization layout and safe creepage clearance, allowing dense 22-channel signal integration without excessive PCB occupation, solving the layout congestion pain point of split multi-small connectors on multi-sensor control boards. The integrated Micro-Lock spring latch delivers obvious tactile click feedback after full insertion, effectively avoiding incomplete mating leading to partial channel signal dropout under workshop and equipment vibration. Gold-nickel double plating contacts suppress fretting corrosion under alternating cold-hot cycling, maintaining ultra-stable low contact resistance for high-precision multi-channel sampling signals. Flexible multi-strand thin wire withstands tens of thousands of reciprocating bending cycles without wire core fracture, adapting to frequent disassembly of test benches and movable medical monitoring equipment. All crimp transition joints are wrapped with high-temperature heat shrink tubing for secondary insulation and strain relief reinforcement, eliminating wire breakage risks at connector roots.

Every finished Micro-Lock harness passes strict factory quality testing before shipment, including multi-channel signal synchronous stability aging test, reciprocating bending fatigue test, terminal pull retention force test and high voltage insulation withstand screening. We supply fixed-length built-in equipment internal jumpers and customized long-distance multi-channel extension cables for industrial automation integrators, medical device manufacturers and large lithium energy storage pack factories.

Specifications

Connector Part Number	Molex 5054322201,22Pin Micro-Lock Plus wire to board plug
Housing Material	LCP high heat-resistant resin
Compatible Wire Gauge	AWG26/AWG28/AWG30
Operating Temperature Range	-40℃ to +85℃

Advantages

22Pin full-row integrated 1.25mm Micro-Lock dense layout design: One connector realizes synchronous transmission of up to 22 independent signal/power channels, replacing multiple scattered small-pin connectors to greatly simplify dense PCB wiring layout, reduce assembly labor cost for multi-sensor industrial and medical equipment.
Integrated Micro-Lock Plus one-piece spring self-locking dual safety protection: Molded elastic latch provides lasting anti-vibration clamping force, matched with molded anti-reverse positioning ribs to completely block reversed insertion; eliminates hidden dangers of partial channel signal loss and mainboard chip burnout caused by incomplete plug-in misoperation.
Gold-nickel double plating anti-fretting corrosion precision contacts: Uniform thin gold coating avoids contact resistance drift and signal distortion under long-term temperature cycling and equipment vibration, guaranteeing accurate synchronous collection of multi-channel weak sensor and lithium sampling signals.
Wide wire gauge compatibility flexible thin wire options: Supports thick AWG26 wire for 2A miniature auxiliary power supply loops and ultra-thin AWG30 wire for ultra-slim equipment internal multi-channel signal wiring, multi-strand soft copper core excellent anti-bending fatigue performance.
High-temperature LCP reflow resistant housing: No deformation or melting during PCB SMT reflow soldering process, fully compatible with automated mass production lines of multi-channel industrial control and medical monitoring mainboards.
Industrial & medical dual-scenario targeted flexible customization service: Support ultra-short 0.05m built-in control board internal jumpers and 10m long-distance test bench multi-channel extension cables; small-batch prototype sample orders available for new multi-axis robot, portable medical monitor and large lithium energy storage BMS development verification.

Application

Multi-Axis Collaborative Industrial Robot Control Equipment:6-axis robot mainboard multi-channel sensor Micro-Lock wiring harness, automated assembly test bench 22Pin multi-signal acquisition cable, desktop handling robot servo feedback integrated multi-core assembly, multi-channel temperature displacement detection equipment connecting wire
Portable Multi-Parameter Medical Monitoring Instruments:Multi-parameter vital sign monitor mainboard 22Pin signal harness, wearable multi-indicator patient monitoring device dense channel cable, handheld comprehensive physical examination equipment sensor integrated wire, medical infusion intelligent monitoring multi-channel detection assembly
Large-Capacity Lithium Pack & Energy Storage BMS Systems:Multi-cell lithium energy storage cabinet multi-channel voltage sampling cable, large 10S~18S polymer lithium battery pack BMS Micro-Lock harness, outdoor portable energy storage multi-temperature detection signal wire, industrial lithium aging test bench multi-group sampling conversion cable
Automated Production Line Multi-Sensor Integrated Modules:Automatic packaging machine multi-photoelectric sensor integrated wiring harness, logistics sorting AGV multi-channel obstacle detection signal cable, electronic component aging test bench multi-channel temperature current acquisition wire, automatic dispensing machine multi-axis control board connecting cable
Small Intelligent Multi-Sensor IoT Environmental Equipment:Indoor comprehensive air quality multi-parameter monitor dense channel cable, agricultural greenhouse multi-point temperature-humidity light detection harness, industrial workshop multi-point environmental monitoring station 22Pin signal assembly, water quality multi-index real-time detection equipment connecting wire

FAQ

Q1: What is the advantage of Molex 5054322201 22Pin 1.25mm Micro-Lock compared with split small-pin connectors?

A: Single 22Pin full-row integrated design concentrates up to 22 independent signal/power channels in one slim connector, saving PCB space and reducing messy wiring; the unified Micro-Lock spring lock simplifies equipment assembly and maintenance compared with multiple separate small connectors.

Q2: What maximum continuous current can a single 5054322201 terminal carry?

A: Matched with AWG26 multi-strand wire, each pin stably supports 2A continuous DC current, meeting miniature auxiliary power supply and high-precision weak sensor signal transmission demands.

Q3: Will the spring latch loosen under long-term industrial equipment vibration?

A: Integrated elastic Micro-Lock spring latch + dual internal terminal locking lances form double anti-loose structure, passed hundreds of hours of industrial vibration simulation test, no loose contact or partial channel signal interruption failure.

Q4: Can the pin wiring mapping between the plug and free-end terminals be customized non-one-to-one?

A: Fully supported, we can adjust arbitrary cross pin wiring according to customer multi-channel circuit schematics to match special multi-sensor and BMS signal sorting requirements.
