Molex 5013300600 Pico Clasp Connector Cable 1.0mm Crimp Terminal Wire

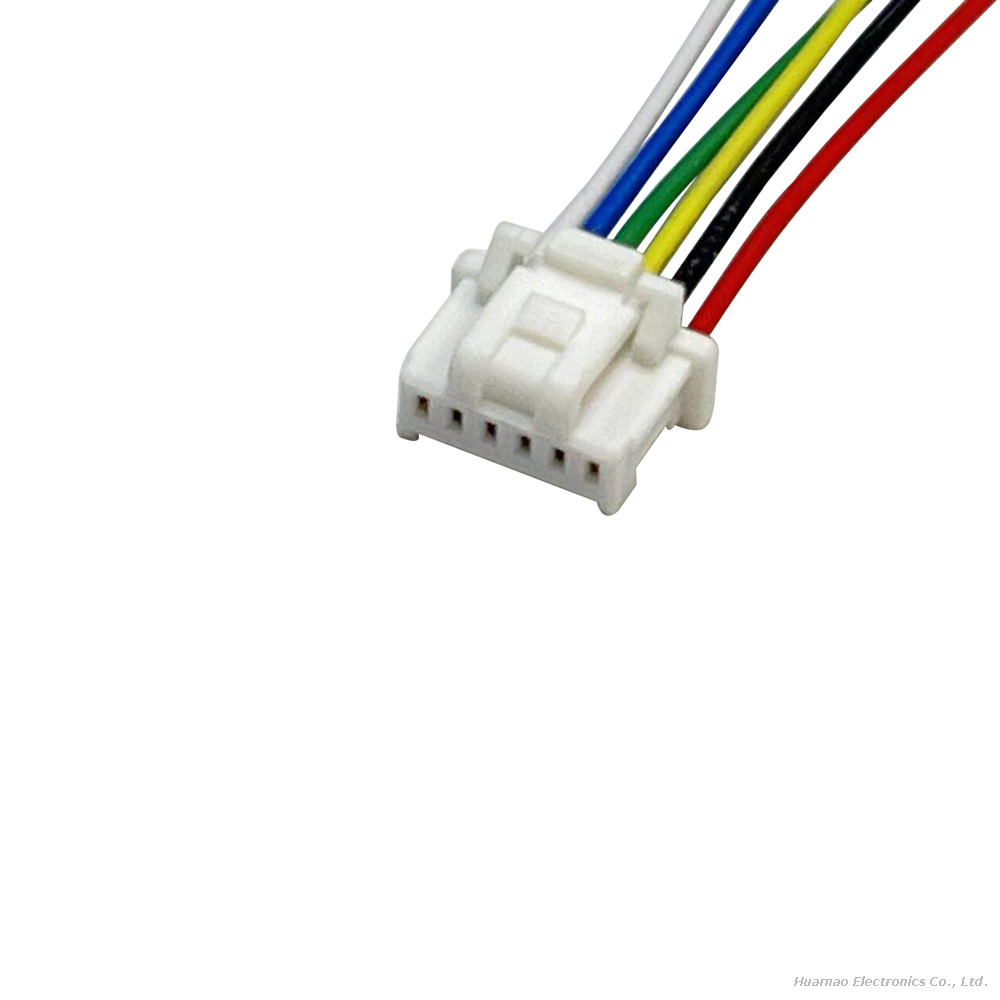

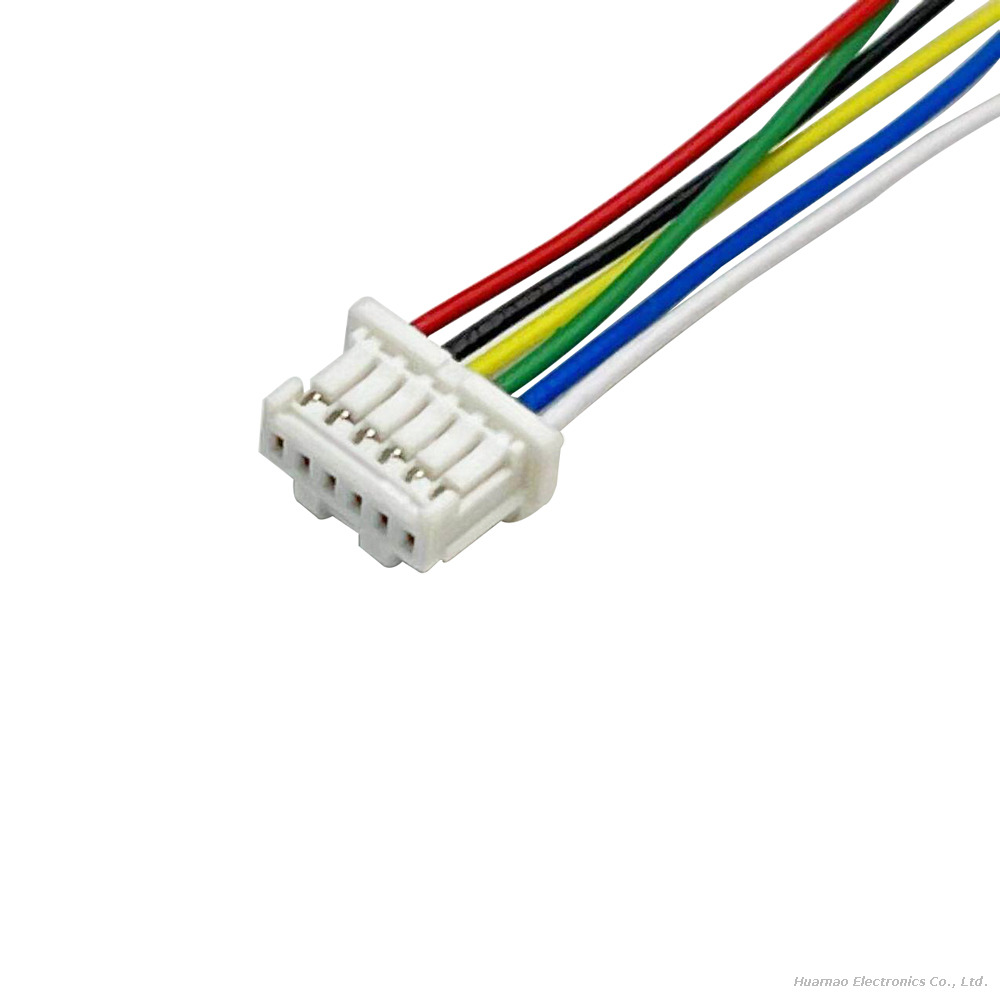

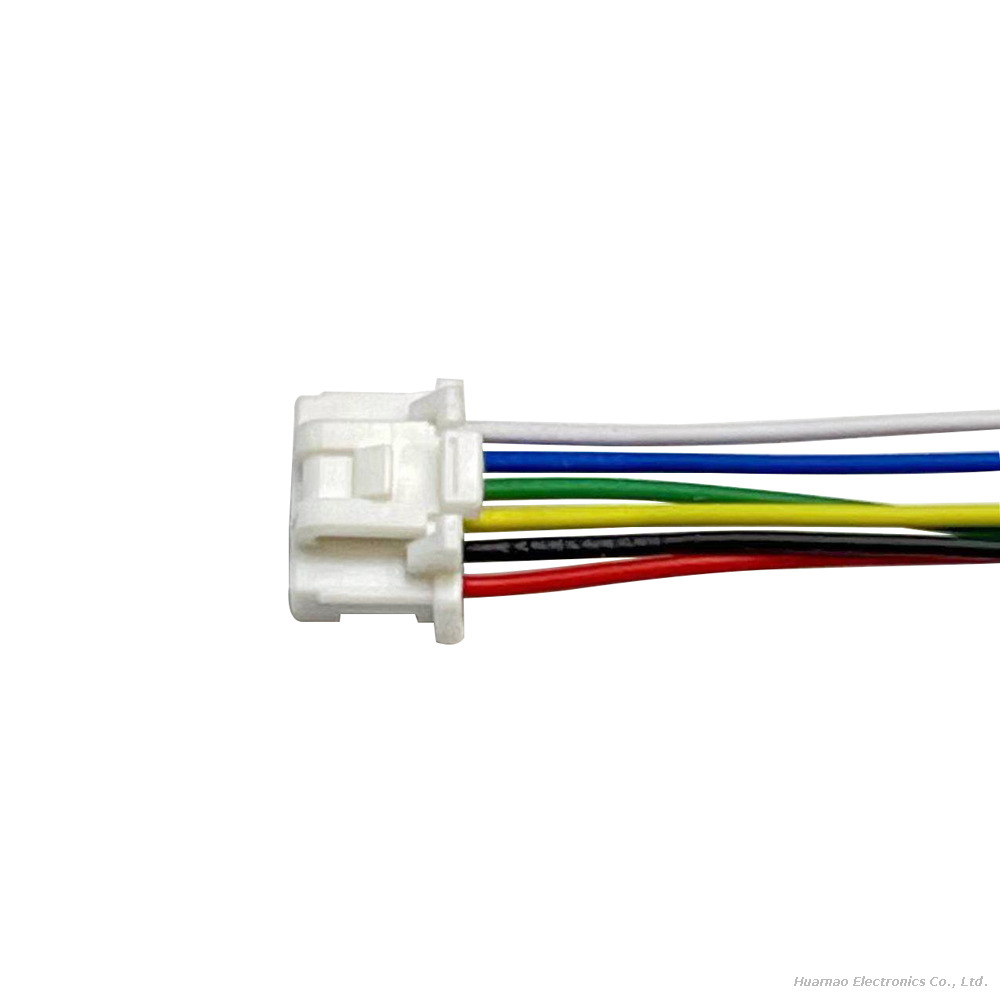

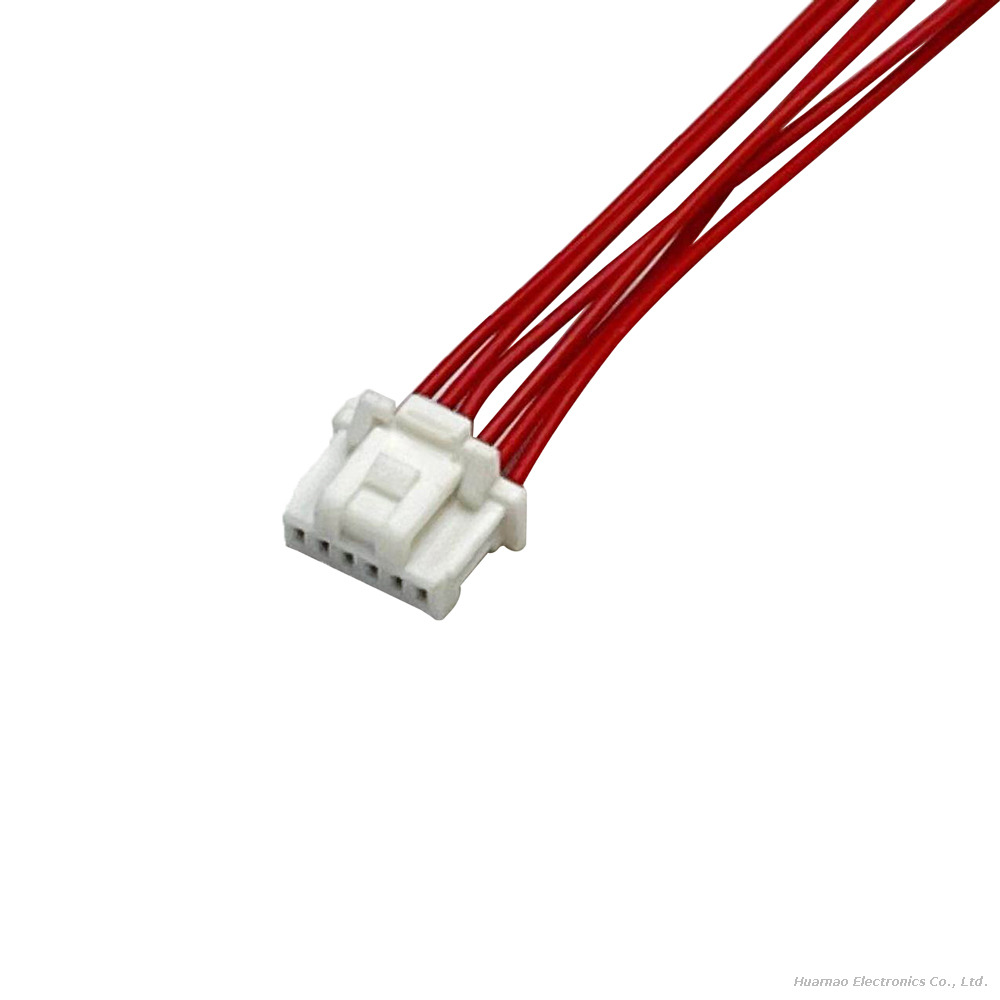

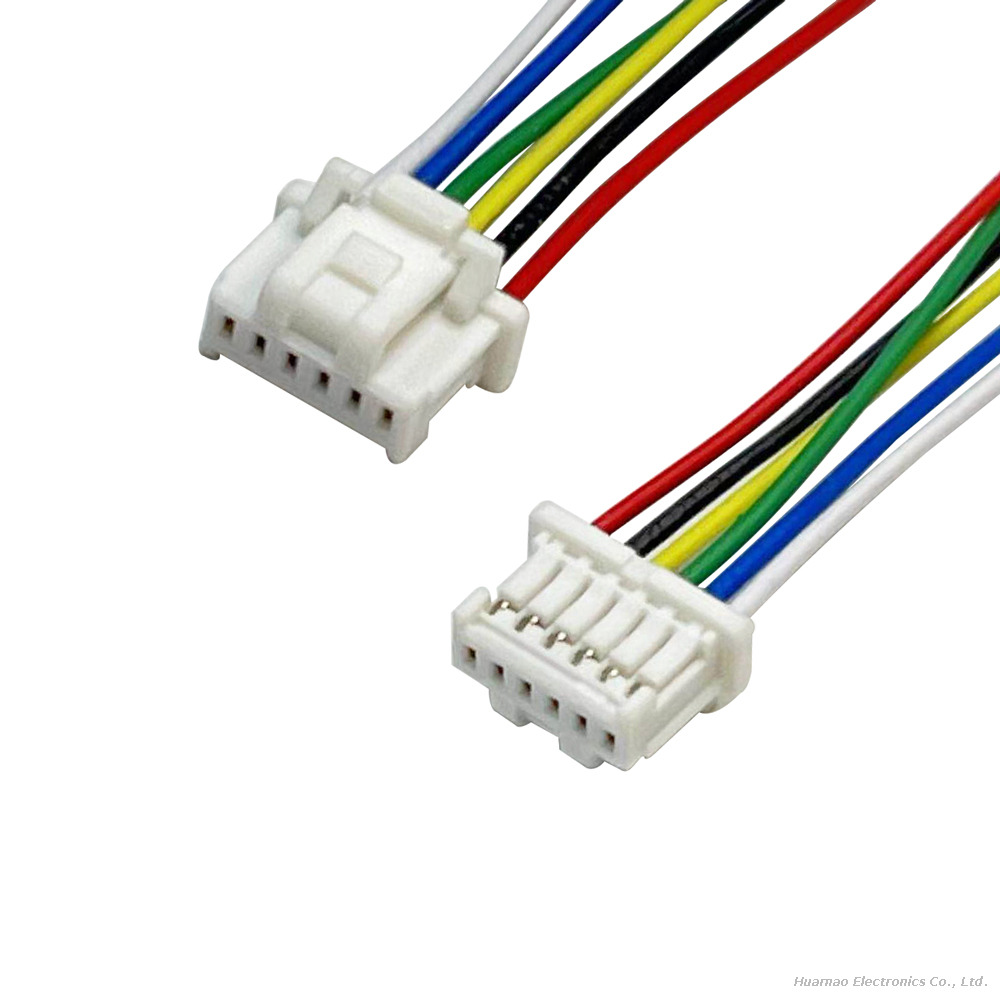

Distinguished from conventional outer-latch fine-pitch connectors, the 6-circuit and above Pico-Clasp models adopt an inner hidden positive lock design. The locking structure is fully wrapped inside the plastic housing without outward protruding buckles, drastically reducing horizontal space occupation inside ultra-thin devices such as smart watches, foldable notebook auxiliary boards and portable patient monitors. Molded physical polarization keys are integrated on both sides of the housing to block reverse mating, eliminating component burnout risks during mass assembly.

Double-point elastic crimp terminals maintain ultra-stable low contact resistance; thick gold plating options effectively suppress fretting corrosion caused by alternating cold and heat, ideal for long-term weak sensor signal transmission. Multi-color coded thin wires clearly separate each signal channel to simplify circuit sorting during equipment assembly. All crimp transition points are wrapped with heat shrink tubing for strain relief to prevent wire fracture after repeated bending inside narrow device cavities.

Every finished harness undergoes strict factory full inspection before shipment, including continuity test, terminal pull retention force test, insulation resistance & high voltage withstand test and thermal cycle aging screening. We supply single-end Pico-Clasp finished cables and cross-series conversion harnesses matched with other miniature connectors for wearable electronics manufacturers, medical device R&D teams and industrial sensor suppliers.

Specifications

Advantages

• Inner hidden positive lock space-saving design: Unlike traditional external latch connectors, the locking mechanism is fully embedded inside the housing with no protruding parts, perfectly adapting to ultra-narrow internal space layout of slim wearable and portable electronic products without extra lateral clearance reserved for latches.

• Multi-tier plating terminal selection for different signal demands: Cost-effective tin plating for general digital signal circuits; 0.38μm / 0.76μm thick gold plating optional for medical monitoring, high-frequency weak sensor signals, resisting oxidation and signal drift under long-term temperature alternating environments.

• Low-halogen flame retardant white housing material: Meets strict low-smoke low-halogen export standards for medical and consumer electronics, UL94 V-0 grade delivers excellent heat resistance to avoid deformation during PCB SMT reflow soldering.

• Built-in full physical anti-reverse polarization protection: Integral molded positioning ribs completely block reverse plugging, reducing short-circuit defective rate during mass production assembly and cutting equipment after-sales maintenance costs.

• Ultra-fine AWG28~32 wire matching miniaturization solution: Thin wire outer diameter fits narrow internal wiring channels of smart wearables and miniature sensors, while flexible stranded conductors withstand thousands of repeated bending cycles without core breakage.

• Flexible full-range OEM customization service: Support arbitrary wire length adjustment, switching between ordinary PVC and high-temperature silicone wire, small batch prototype sample orders available for portable medical device and wearable hardware product development verification.

Application

• Wearable Intelligent Consumer Electronics:Smart watch built-in heart rate & temperature sensor signal harness, TWS wireless earbuds mainboard thin connecting wire, fitness tracker lithium battery detection signal cable, foldable secondary screen auxiliary control wiring assembly

• Portable Medical Monitoring Equipment:Wearable blood oxygen vital sign detector internal thin signal wire, handheld portable ECG monitoring module cross-board harness, miniature portable glucose sensor transmission cable

• Notebook & Flat Panel Auxiliary Modules:Thin notebook built-in camera MIPI signal jumper wire, tablet proximity light sensor connecting harness, portable display screen backlight drive miniature wiring assembly

• Miniature Industrial & IoT Sensing Devices:Compact environmental temperature/humidity sensor internal signal cable, miniature industrial vision detection module power signal integrated wire, smart water/gas meter internal control board thin terminal harness

• Small Household Smart Control Equipment:Smart door window magnetic contact detection wiring, mini air quality monitor internal signal harness, compact intelligent cabinet lock control thin connecting cable
