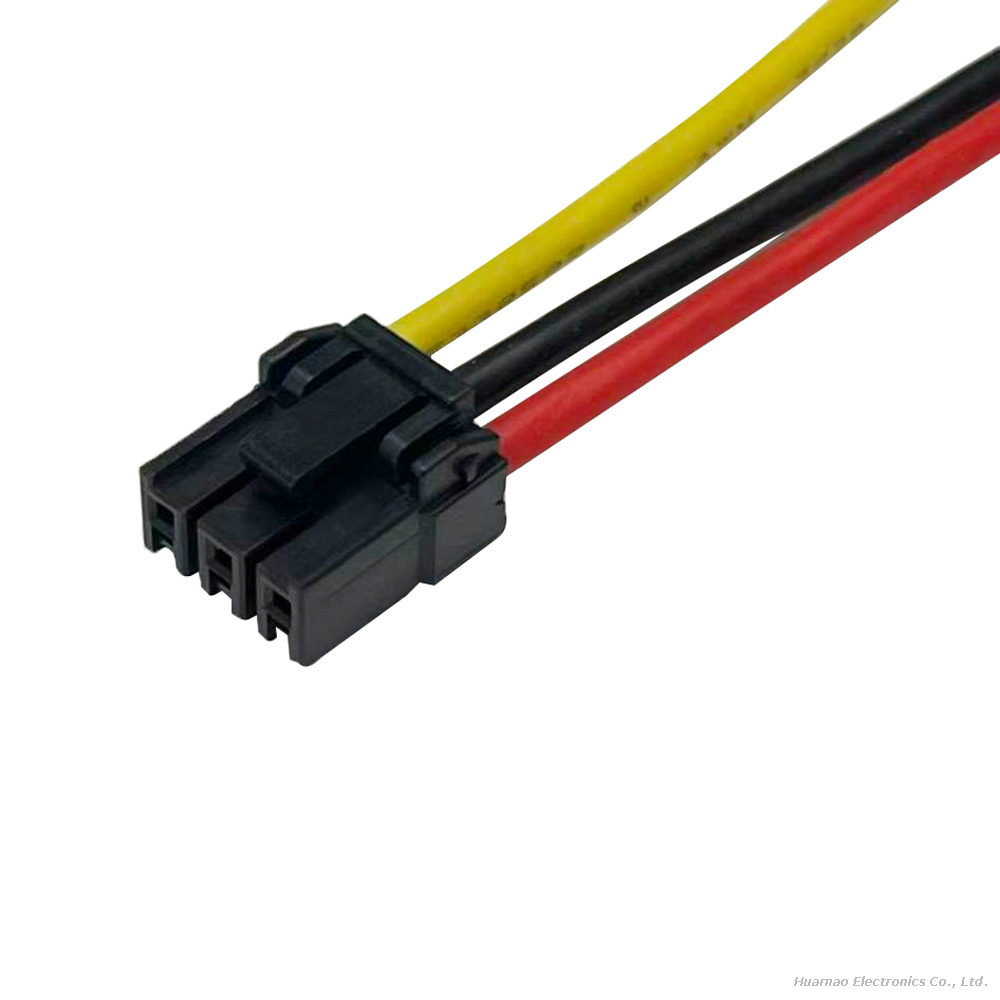

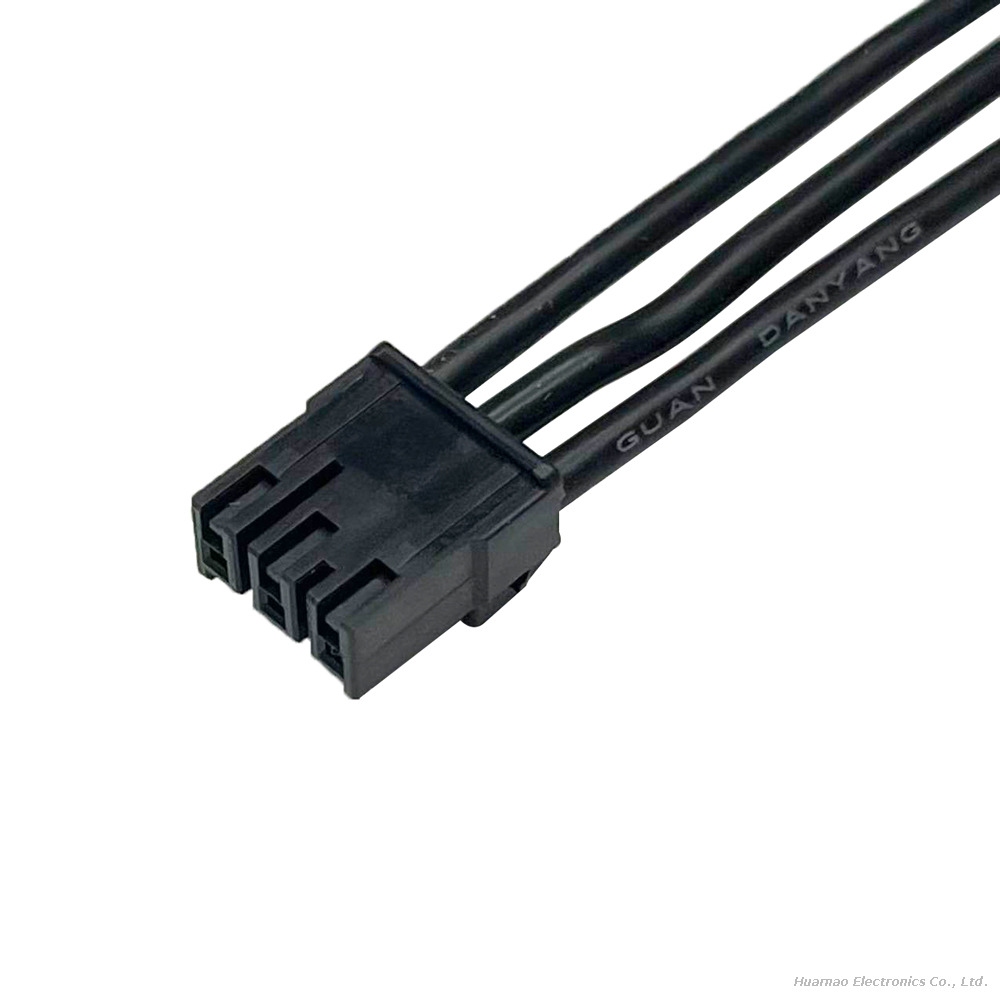

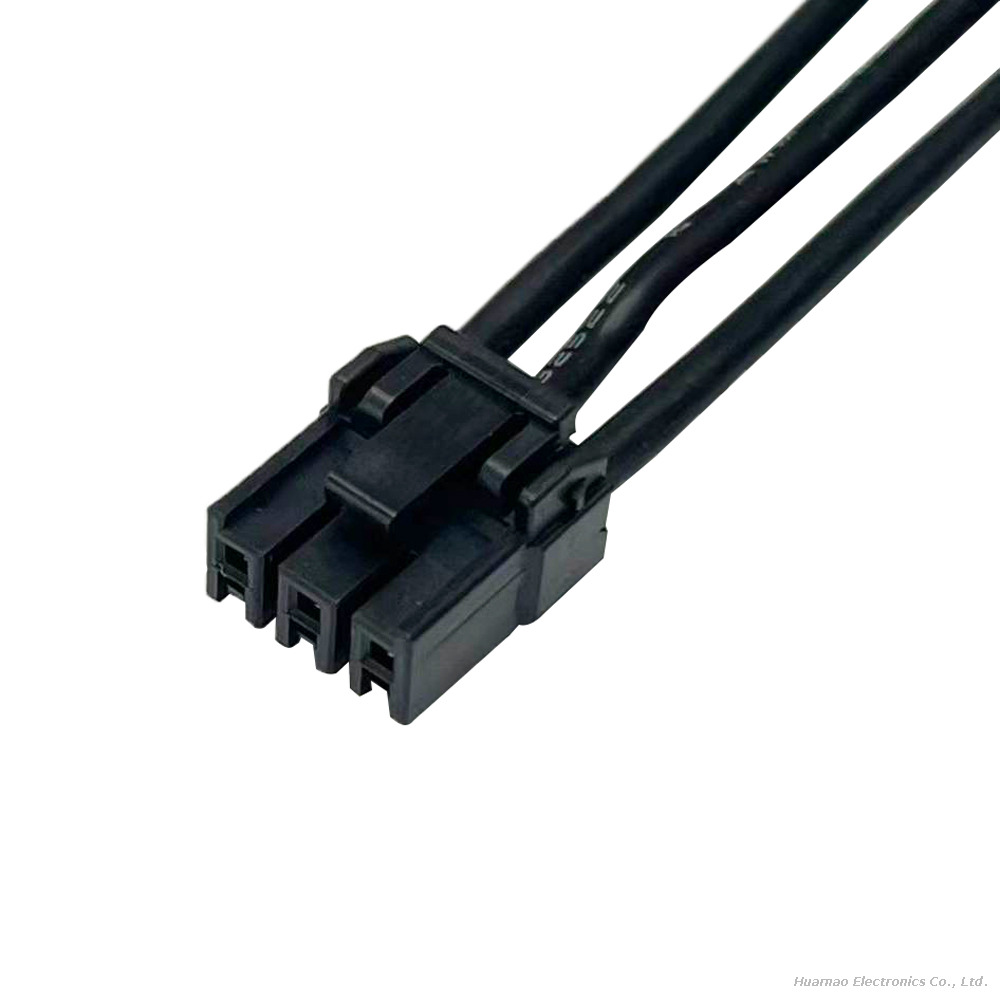

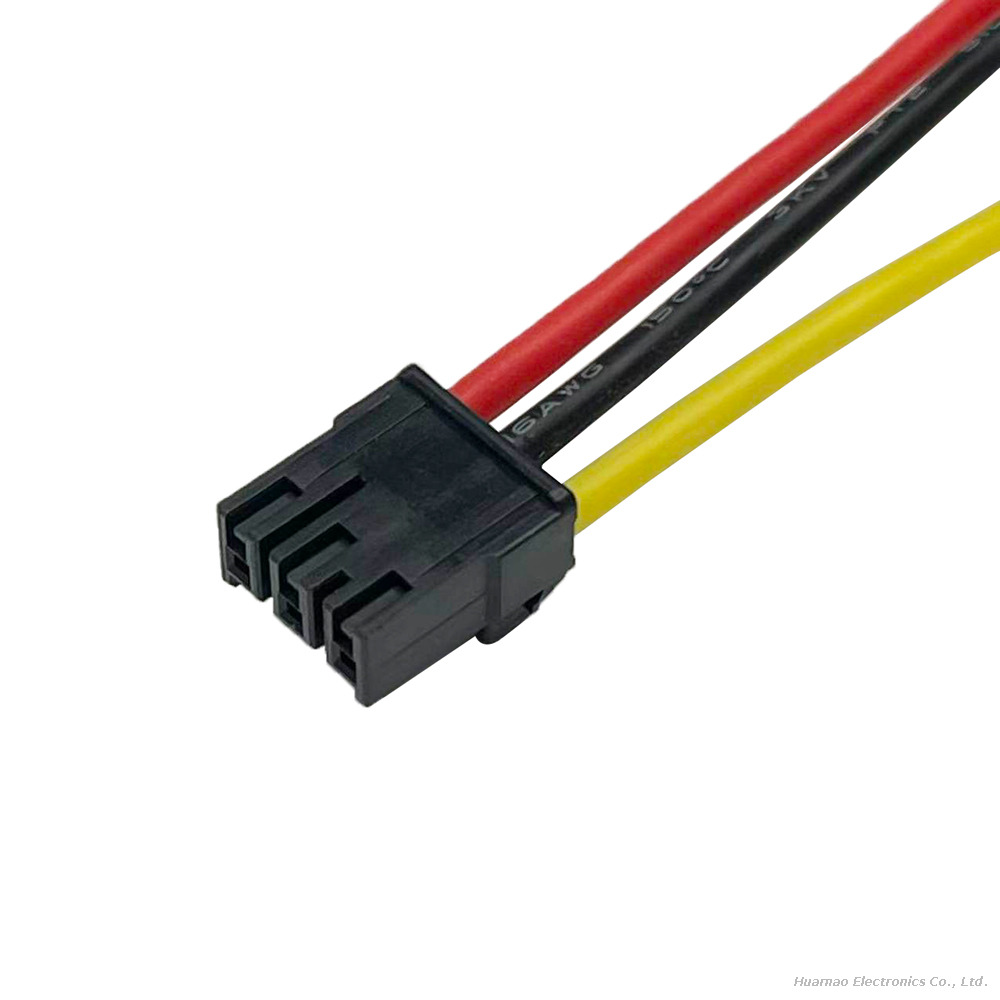

Hirose DF63-3S-3.96C Connector Cable 3.96mm Internal Power Wiring Harness

Hirose DF63-3S-3.96C Connector Cable 3.96mm Internal Power Wiring Harness

This high-current power wire harness adopts original Hirose DF63-3S-3.96C 3-position female crimp receptacle from EnerBee™ DF63 series, fixed 3.96mm single-row medium-large pitch, specially developed for internal power supply circuits of industrial equipment, switching power supplies, servo drives and medical devices. It features integrated positive tactile click lock, built-in anti-reverse keying, anti-short-circuit contact protection, and molded terminal retention lance. Max rated 12A continuous current per pin (16AWG wire) / 630V AC/DC, UL/C-UL/TÜV triple safety certified, high heat-resistant PBT housing, fully RoHS 2.0 & REACH compliant. We provide full OEM customization of cable length, wire cross-section, wire color and dual-end connector collocation, ideal for medium-current main power and auxiliary power interconnection inside all types of power supply equipment.

Model:
DF63-3S-3.96C
Brand:
HRS

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

DF63-3S-3.96C Connector Cable 3.96mm terminal wire Internal Power Wiring Harness 16AWG Silicon Cable DF63A-1618SCF Terminal Wire

Product Description

This pre-crimped finished wire-to-board power assembly is built with complete authentic HRS DF63 series matched components, all parameters cross-checked against Hirose official catalog and datasheet:

Female Receptacle Housing PN: DF63-3S-3.96C, 3-circuit single-row crimp socket, 3.96mm center pitch, black high-temperature PBT plastic
Dedicated Crimp Terminal: DF63 series tin-plated thick phosphor bronze multi-point contact, compatible with AWG16~AWG22 power stranded wire
Mating PCB Headers: DF63 vertical through-hole male wafer / DF63 right-angle through-hole male wafer for PCB power board soldering
Matching Wire Spec: AWG16~AWG22 flexible power cable, insulation outer diameter φ1.8~φ2.8mm

As a flagship EnerBee power connector series from Hirose, DF63-3S-3.96C is optimized for medium-high current power transmission. The exclusive tactile positive lock structure sends an obvious "click" sound after full mating, effectively avoiding incomplete mating hidden danger that causes overheating burnout during long-term power operation. Molded physical polarization keys block reverse insertion and cross-model mis-mating, completely eliminate PCB short-circuit risks in mass production assembly.

Internal molded lance structure locks crimp terminals firmly inside the housing, preventing terminal back-out caused by wire pulling and equipment vibration. Square wide-surface male pins on the PCB header and multi-point female contacts jointly reduce contact resistance, minimizing temperature rise under continuous heavy load. The tapered housing base supports potting resin filling up to 5mm height, suitable for sealed power supply module design.

Matched multi-color coded power cables clearly distinguish positive, negative and ground power circuits. Every finished harness undergoes strict full inspection before shipment: continuity test, terminal pull retention force test, 2200V AC high voltage withstand test, vibration aging test and long-time load temperature rise test. We supply single-end DF63 finished cables and cross-type conversion harness (matched with terminal blocks, aviation plugs) OEM mass customization solutions for power supply, industrial automation and medical equipment manufacturers.

Specifications

Receptacle Housing PN	HRS DF63-3S-3.96C,3Pin single row female crimp socket
Connector Series	Hirose EnerBee DF63 high-current wire to board series
Center Contact Pitch	3.96mm single row medium power safety pitch
Applicable Wire Gauge	AWG16-AWG22 stranded copper power wire
Operating Temperature Range	-40℃ to +85℃
Core Structural Feature	Tactile click positive lock,anti-reverse keying
Customizable Service	Custom cable length,wire cross-section,wire color order

Advantages

3.96mm wide safety pitch for medium power circuits: Larger creepage distance between pins than small-pitch connectors, effectively suppress high-voltage arc discharge, fully meet safety standards for industrial internal power supply equipment.
Tactile click positive locking anti-loose design: Clear audible feedback after full mating, avoid incomplete insertion and loose contact faults caused by equipment vibration, eliminate overheating fire risks of power circuits.
12A high continuous current capacity: Thickened multi-point tin-plated contacts with ultra-low impedance, stable power transmission without obvious temperature rise under long-time full load operation.
Multi-layer anti-fault safety structure integration: Built-in anti-reverse keying + contact isolation anti-short-circuit shield + terminal anti-back-out lance, triple protection to reduce assembly failure rate and after-sales maintenance cost.
High-temperature PBT housing & potting compatibility: Resist heat accumulation of power circuits, tapered base supports resin encapsulation for sealed power modules, anti-solder crack during PCB reflow soldering.
Flexible full OEM customization support: Arbitrary adjustable cable length and wire thickness according to equipment power parameters; small prototype sample orders available for power supply prototype verification.

Application

Industrial Switching Power Supply Equipment:Industrial AC-DC switching power supply internal main power wiring, DC-DC power module input/output harness, medical equipment built-in power connecting cable
Automation Drive & Control Equipment:Small servo drive auxiliary power supply wire, PLC expansion module power terminal harness, industrial sensor medium-current power connecting cable
Medical Electronic Devices:Portable diagnostic instrument internal power harness, medical monitoring equipment mainboard power wiring, laboratory test instrument power supply cable
Office & Intelligent Equipment:High-power printer internal power transmission wire, intelligent cabinet control module power harness, charging equipment auxiliary power connecting cable
Small New Energy & LED Equipment:High-wattage industrial LED driver power wire, small energy storage control board internal power harness, solar controller auxiliary power cable

FAQ

Q1: What series, pitch and pin count does HRS DF63-3S-3.96C belong to?

A: It belongs to Hirose EnerBee™ DF63 high-current wire-to-board connector series, 3-position single-row female crimp housing with fixed 3.96mm center pitch, all data sourced from official Hirose DF63 datasheet.

Q2: What maximum continuous current can each pin bear?

A: Current capacity varies by wire gauge: AWG16 wire supports up to 12A continuous load, AWG18 for 10A, AWG22 for 8A; specially designed for medium-current internal power supply circuits.

Q3: What is the core advantage of the DF63 series tactile click lock?

A: It produces obvious click feedback after full mating, which can visually and audibly confirm complete insertion, fundamentally avoid hidden danger of incomplete mating that leads to power contact overheating.

Q4: Can this connector be used for sealed power modules with potting resin?

A: Yes, the tapered housing base and built-in resin stopper structure limit resin overflow height, perfectly adapt to potting encapsulation production process of sealed power supplies.

Q5: Can different connector types be matched on the opposite cable end?

A: Yes, we provide conversion harness customization service, the other end can be equipped with terminal blocks, M23/M16 aviation plugs, ring terminals and other connectors as customer drawings and power schematics required.
