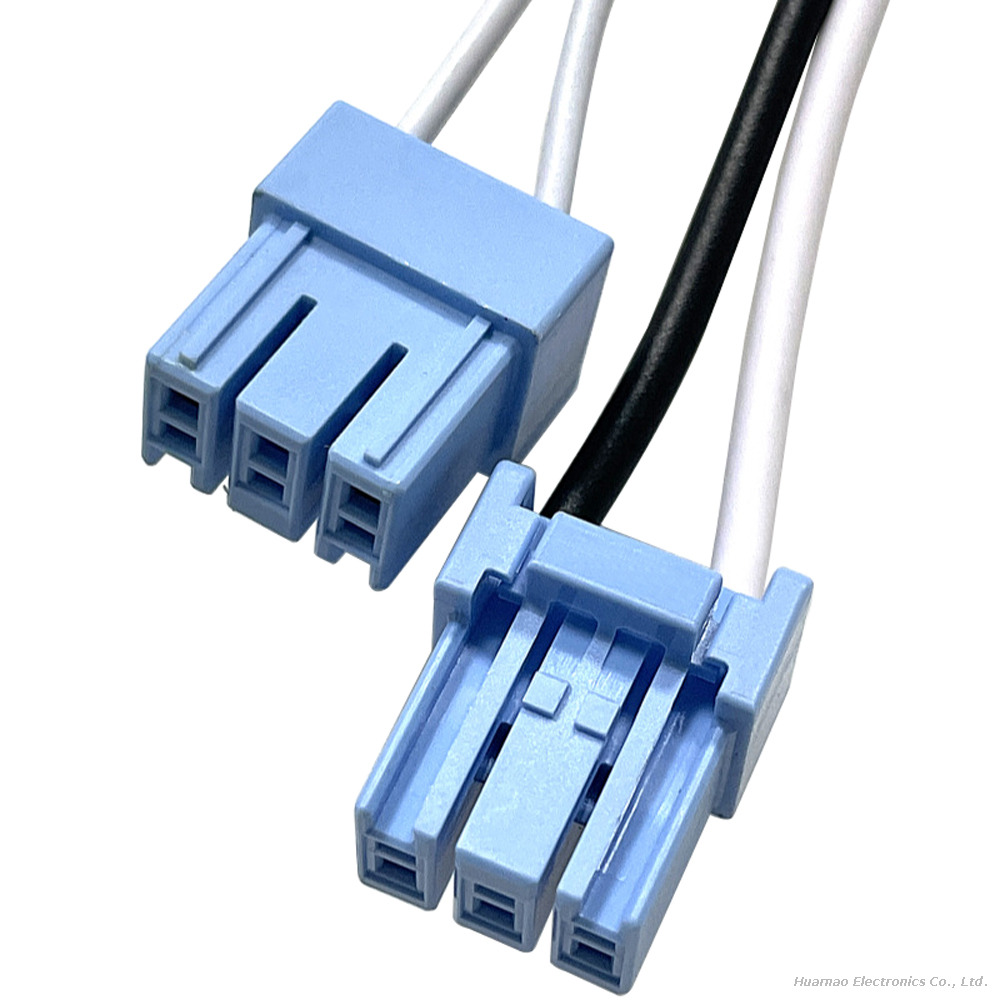

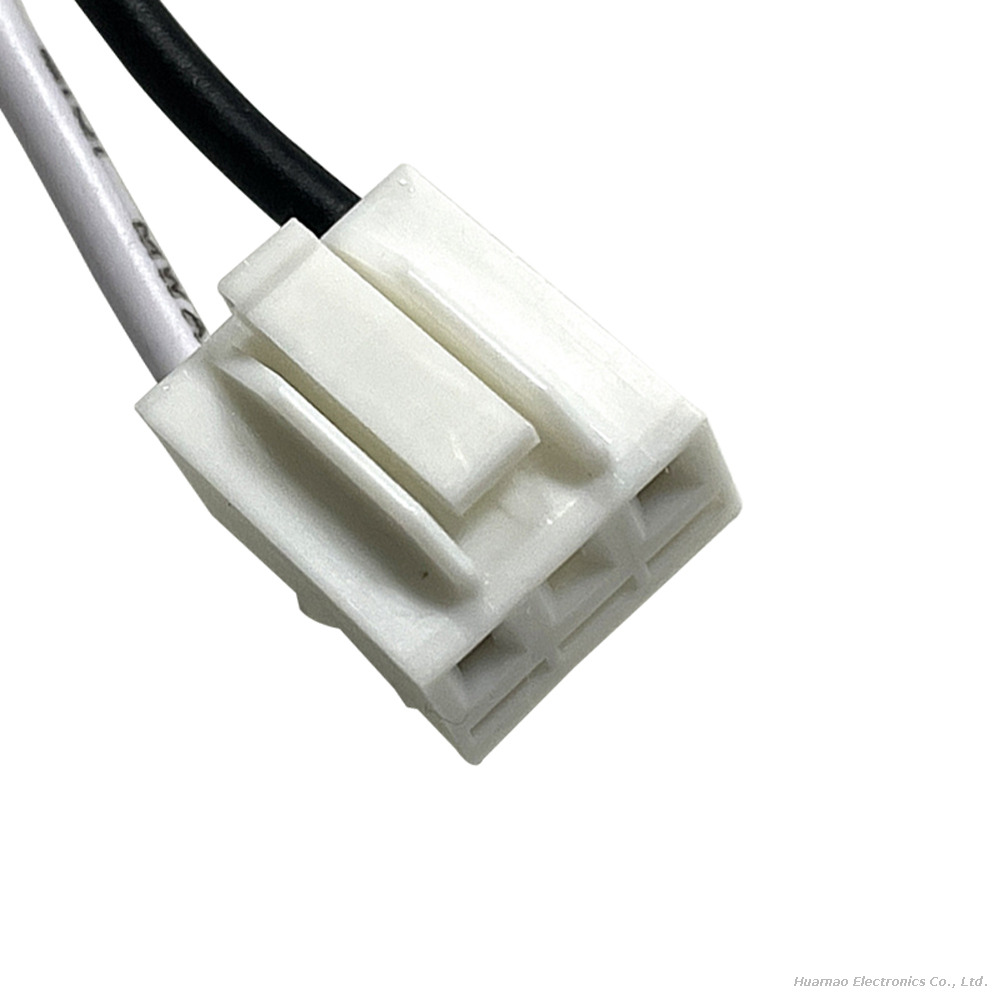

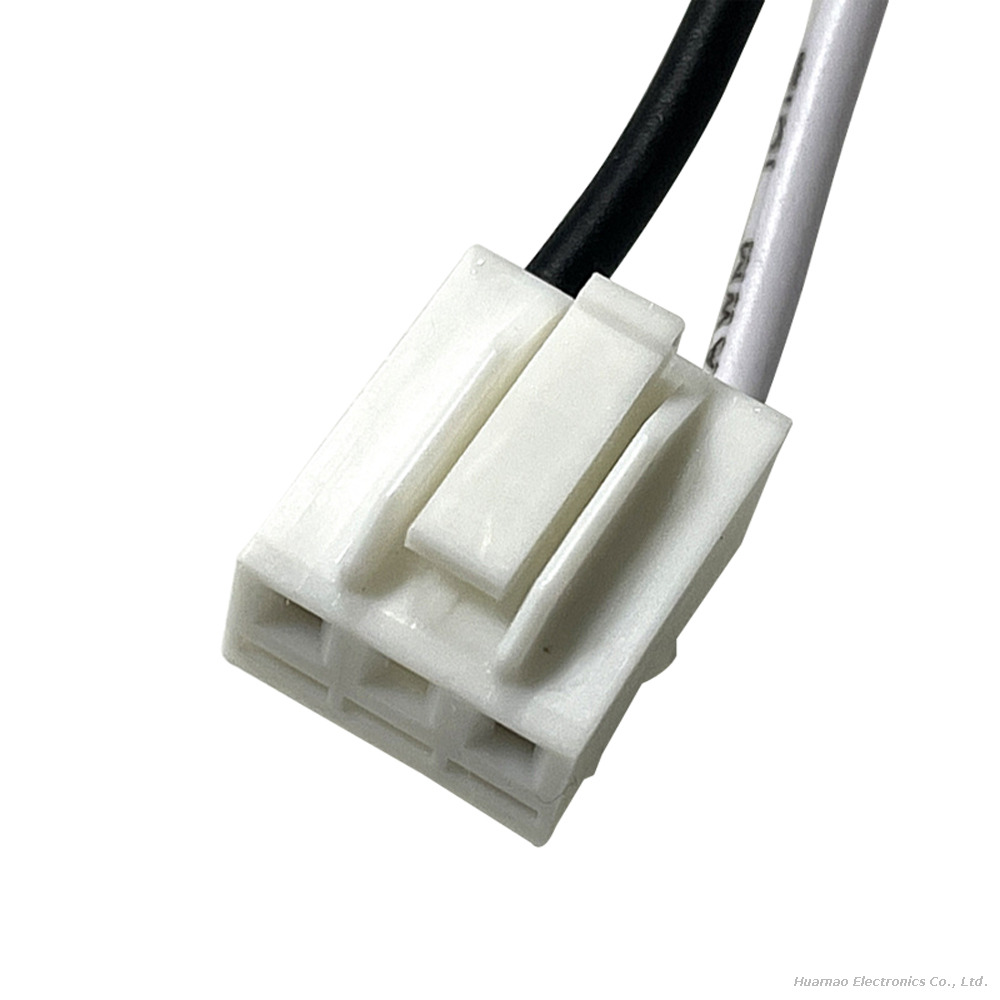

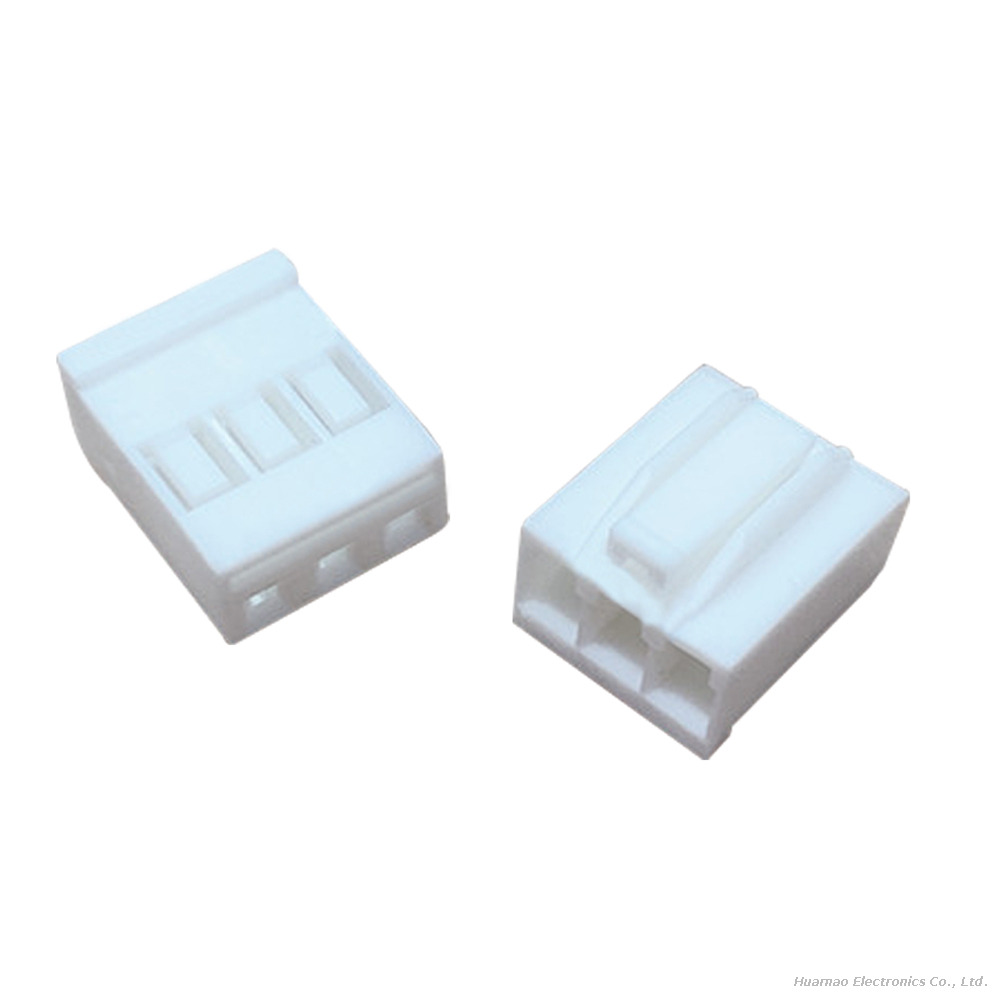

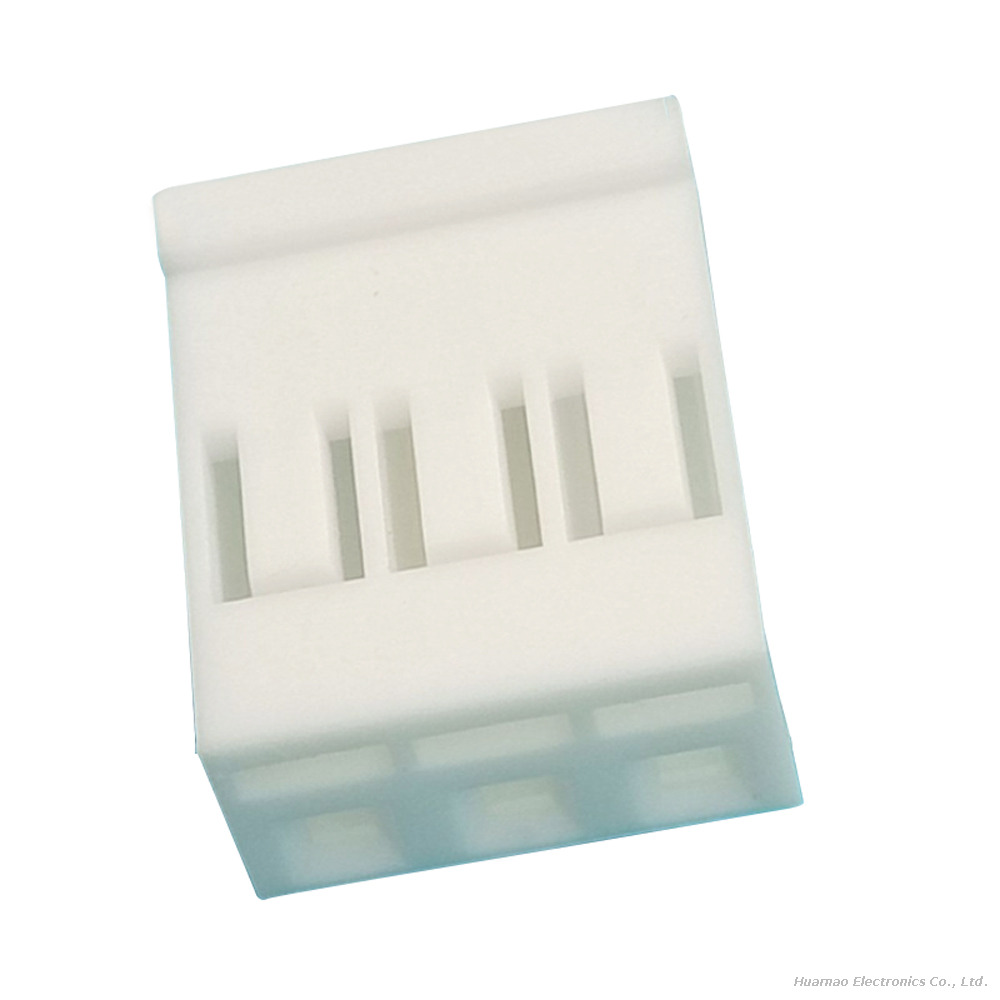

The Molex 510670300 wire harness is a complete pre-terminated cable assembly based on Molex Mighty-SPOX 51067 interconnect system, adopting single-row 3-position 3.5mm pitch female housing model 510670300 (0510670300).
Every harness undergoes automatic precision crimping with standard Molex 50217 phosphor bronze tin terminals, paired with UL-certified stranded copper wires ranging from AWG18 to AWG24. The natural-color UL94 V-0 flame retardant PBT housing integrates audible positive lock and polarization key, solving accidental disconnection and reverse plugging issues under vibration scenarios.
This finished connector cable can mate with vertical/right-angle PCB headers (53258, 53259, 53265 series) for wire-to-board layout, or match male plug housings to realize wire-to-wire inline connection. All finished harnesses pass 100% continuity test, terminal pull-out test and high voltage withstand inspection, consistent with Molex original electrical & mechanical standards, suitable for mid-current power supply and low-voltage signal transmission across consumer, industrial and automotive electronics.
Specifications
| Item | Parameter |
| Main Housing PN | Molex 510670300 |
| Maching Terminal | Molex 50217 series |
| Working Temperature | -40℃ to +105℃ |
| Key Mechanical Design | Positive lock + anti-reverse polarication |
| Customizable Options | Cable length, wire color,double-end connectors |
Advantages
Original Molex matched components deliver low contact resistance and stable long-term conductivity.
Audible lock structure resists vibration and shock; polarization ribs avoid reverse plug burnout.
UL94 V-0 flame-retardant PBT housing withstands high-temperature operating environments.
Fully pre-assembled finished cables cut customer secondary processing time and defect rate.
Flexible OEM customization meets diverse length, wire and dual-connector layout demands for global export.
Application
Automotive interior: steering control, mirror adjustment, interior LED lights, seat small motors
Home appliances: air conditioners, refrigerators, washing machines, small kitchen appliances
Industrial automation: proximity sensors, small servos, power tools, industrial cameras
Smart IoT & consumer electronics: surveillance cameras, smart home sensors, printer internal wiring
FAQ
Q1: Which terminals fit the 510670300 harness?
A: It uses exclusive Molex 50217 crimp terminals compatible with AWG18 to AWG24 stranded wires.
Q2: Can I customize two different connectors on both cable ends?
A: Yes, we provide double-end custom harness solutions with various mating connector brands and models.
Q3: Is this wiring harness compliant for EU export?
A: All materials meet RoHS 2.0 and REACH standards, complete certification documents available for customs clearance.
Q4: Are small prototype sample orders supported?
A: Samples are available for testing, mass production minimum order quantity can be negotiated.
