Molex 5055650801 Microlock Connector Cable for Robot Internal Wiring Harness

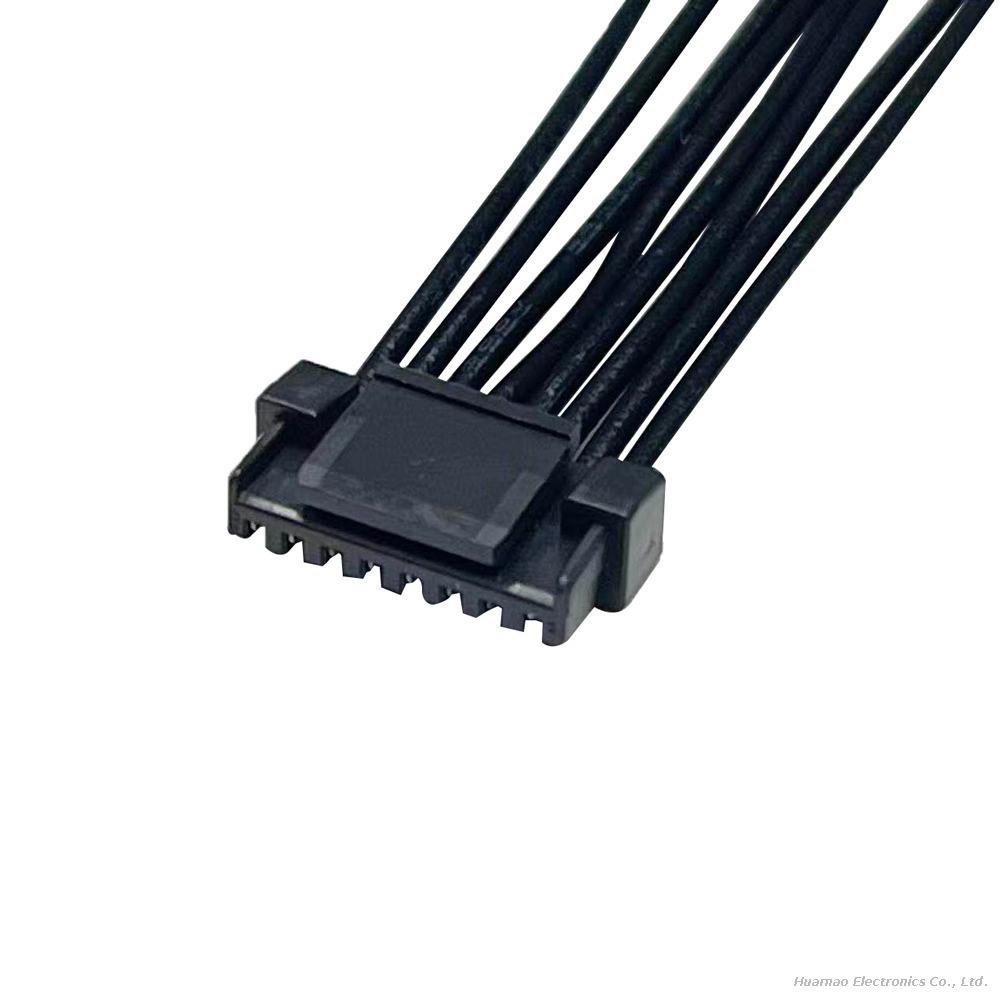

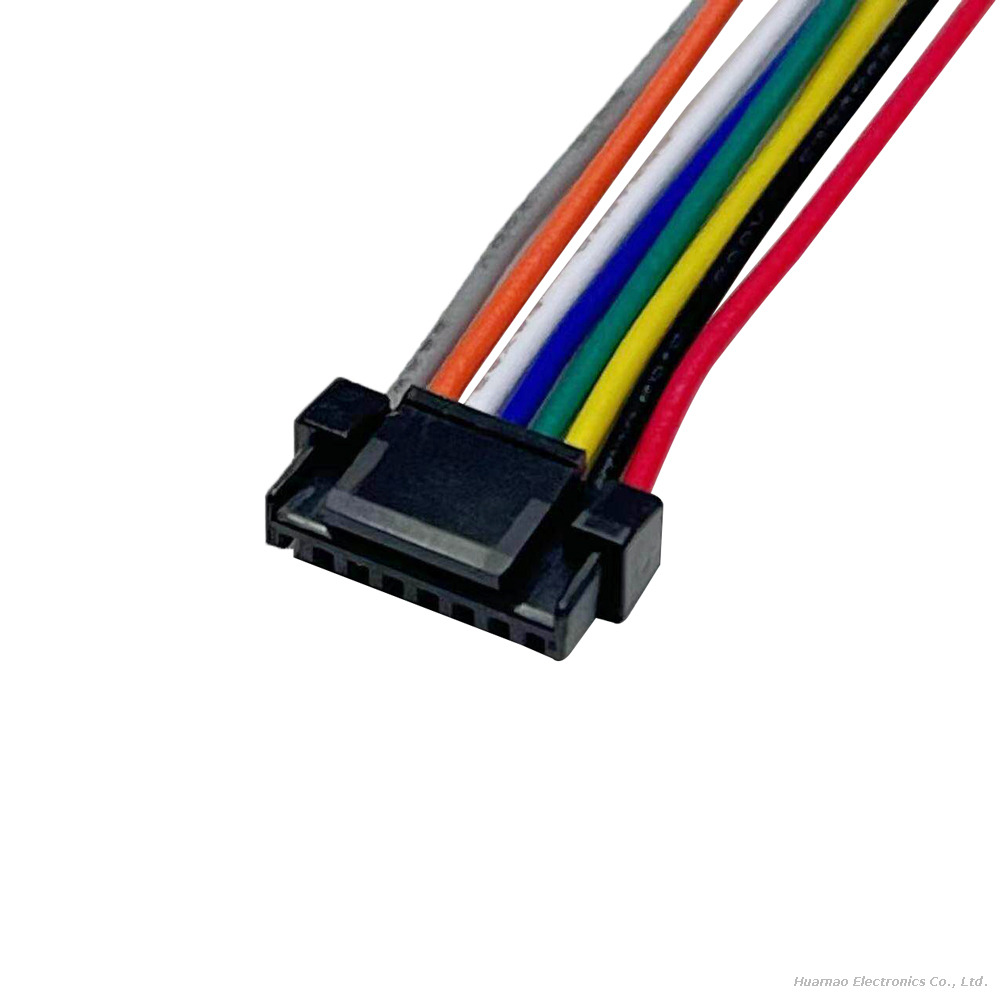

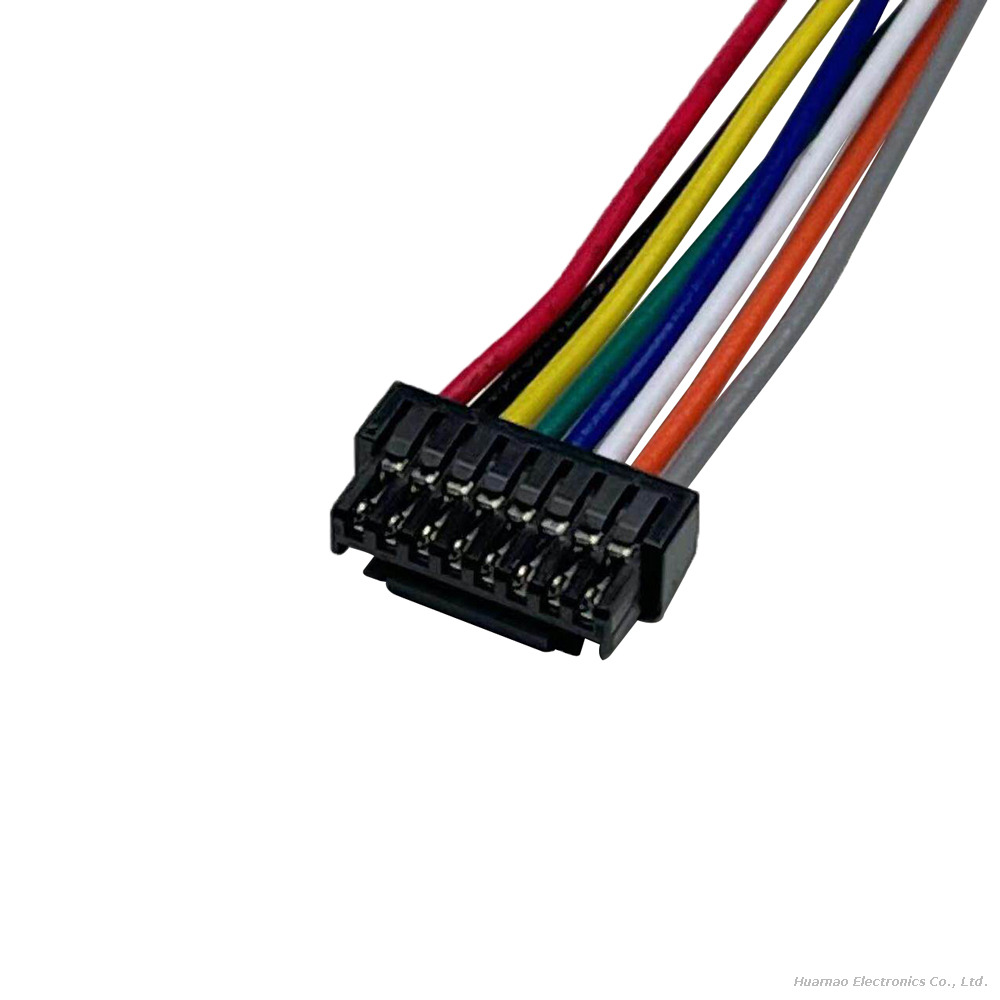

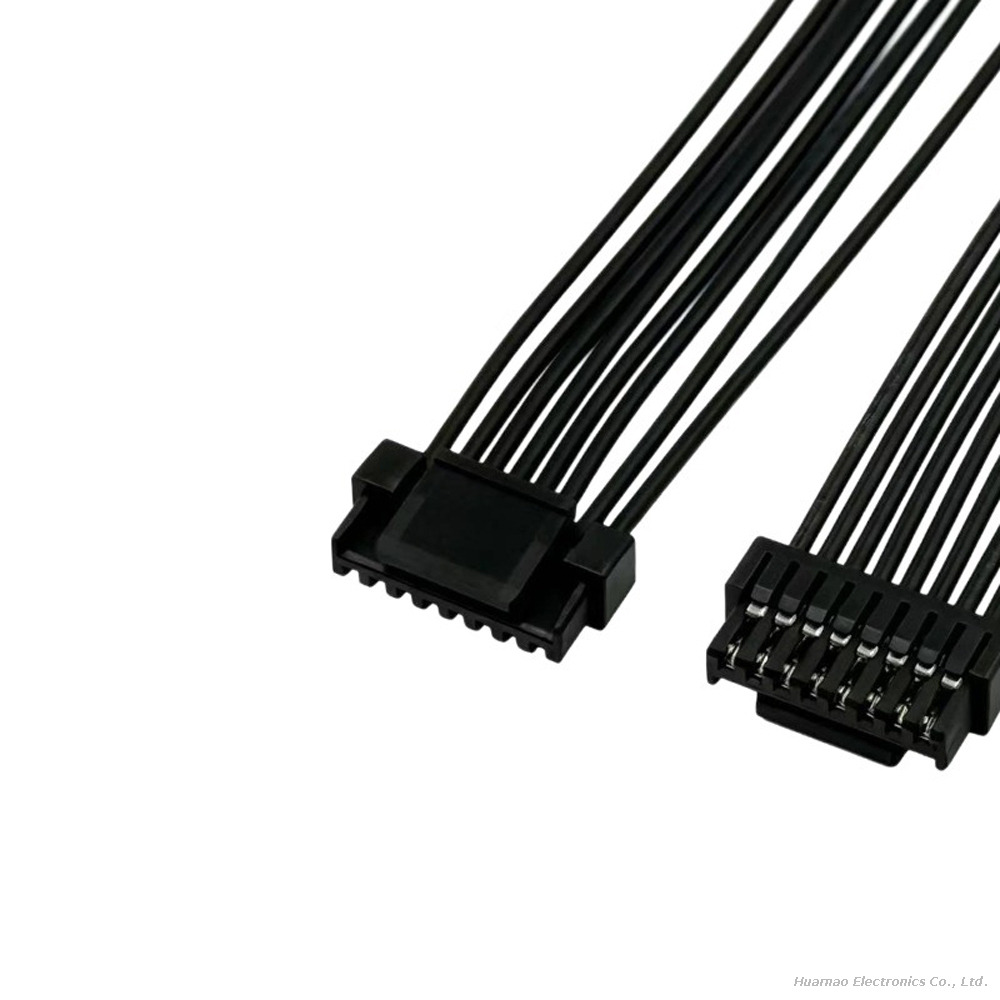

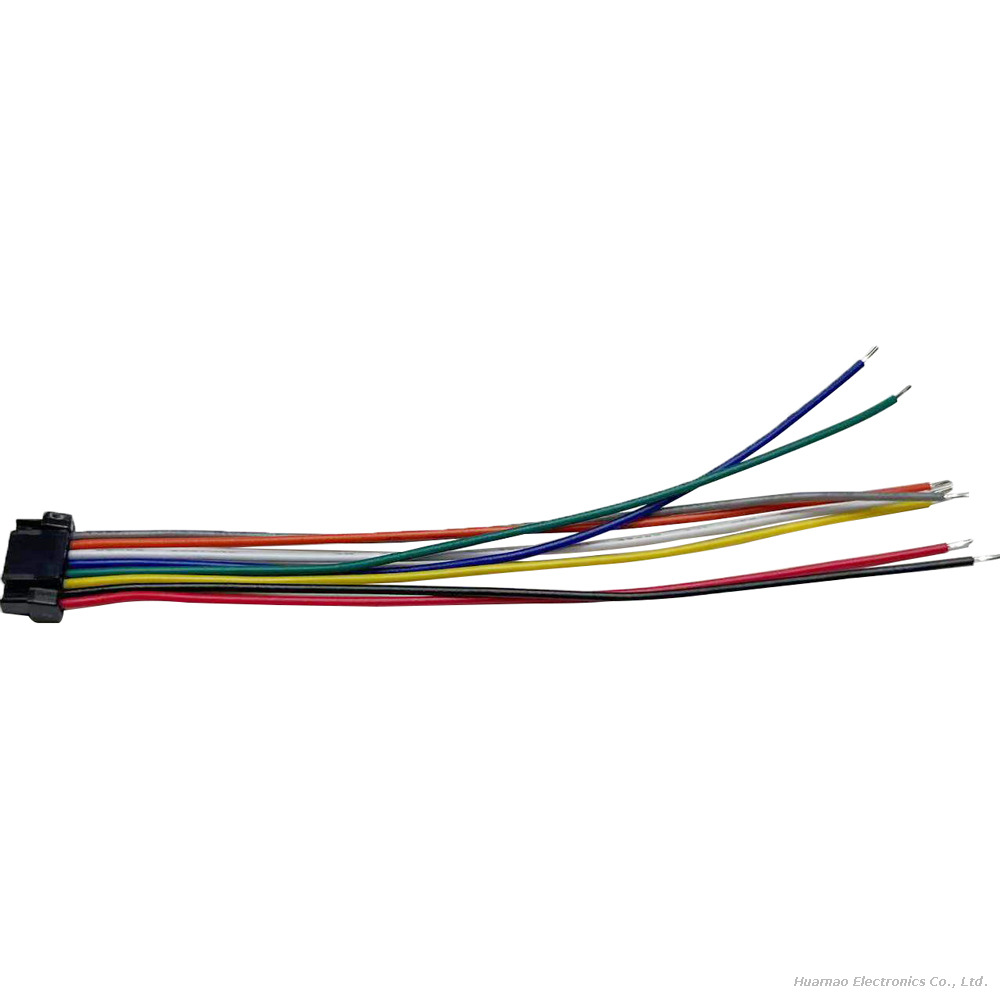

Molex 5055650801 belongs to the Micro-Lock Plus connector system with a pitch of 1.25mm, supporting matched terminal 5054311000 and adopting 26AWG standard cable. Developed for miniaturized electronic equipment, this connector cable solves the wiring difficulties of compact equipment layouts. The whole set combines connectors, terminals and cables into an integrated wiring harness, which simplifies on-site wiring work. With excellent temperature resistance and structural stability, it not only meets the basic power and signal transmission demands, but also passes the strict reliability tests of the automotive industry. Whether it is internal circuit wiring of intelligent robots, power connection of drones, circuit assembly of medical equipment or on-board wiring of automobiles, this product can maintain long-term stable operation.

Paramerter Item

Core Advantages

l Compact Size & Flexible Design: The 1.25mm ultra-fine pitch design greatly saves installation space, fully suitable for narrow internal space of precision equipment, and provides high flexibility for overall product design.

l Reliable Locking Structure: Dual-row connectors adopt inner positive lock, while single-row versions use outer lock. The professional locking mechanism realizes tight mating, and users can hear a clear click sound when connection is completed, which helps to judge assembly status and avoid incomplete connection.

l Excellent High Temperature Resistance: The maximum operating temperature reaches 105℃, which can cope with high-temperature operating environments, effectively resisting heat aging and extending the service life of the wiring harness.

l Superior Electrical & Mechanical Performance: The product has stable conductivity and strong vibration resistance, will not be disconnected due to equipment operation and vibration, ensuring uninterrupted signal and power transmission.

l Wide Compatibility: Standard 26AWG cable and matched 5054311000 terminal ensure good compatibility, convenient assembly and replacement, and low maintenance cost in later stage.

Application Scope

This 1.25mm Microlock connector cable features excellent environmental adaptability and a wide range of applications.

1. Industrial & service robots: Internal wiring harnesses

2. Drones: Circuit connections for consumer and industrial drones

3. Medical devices: Internal wiring of various precision medical instruments

4. Automobiles: In-vehicle wiring and component connections

5. Other equipment: Miniaturized industrial electronic devices requiring high temperature resistance and compact wiring

FAQ

Q1: What is the pitch and wire gauge of this Molex connector cable?

A1: The pitch is 1.25mm, the supporting terminal model is 5054311000, and the cable adopts 26AWG specification.

Q2: What is the maximum operating temperature of this product?

 A2: It can withstand a continuous operating temperature up to 105℃, which meets the use standard of automotive industry and harsh high-temperature environments.

Q3: How to confirm that the connector is fully mated?

 A3: The connector is designed with a locking structure. You will hear an obvious click sound when it is completely inserted and locked, so you can easily confirm the mating state.

Q4: What main scenarios is this wiring harness suitable for?

A4: It is widely used for internal wiring of robots, drones, medical equipment and automobiles, and also fits most compact miniaturized electronic devices.

Q5: Will the connector loosen during long-term vibration?

A5: No. The built-in professional locking structure can keep the connection firm against vibration, effectively preventing disconnection caused by mechanical shaking.
