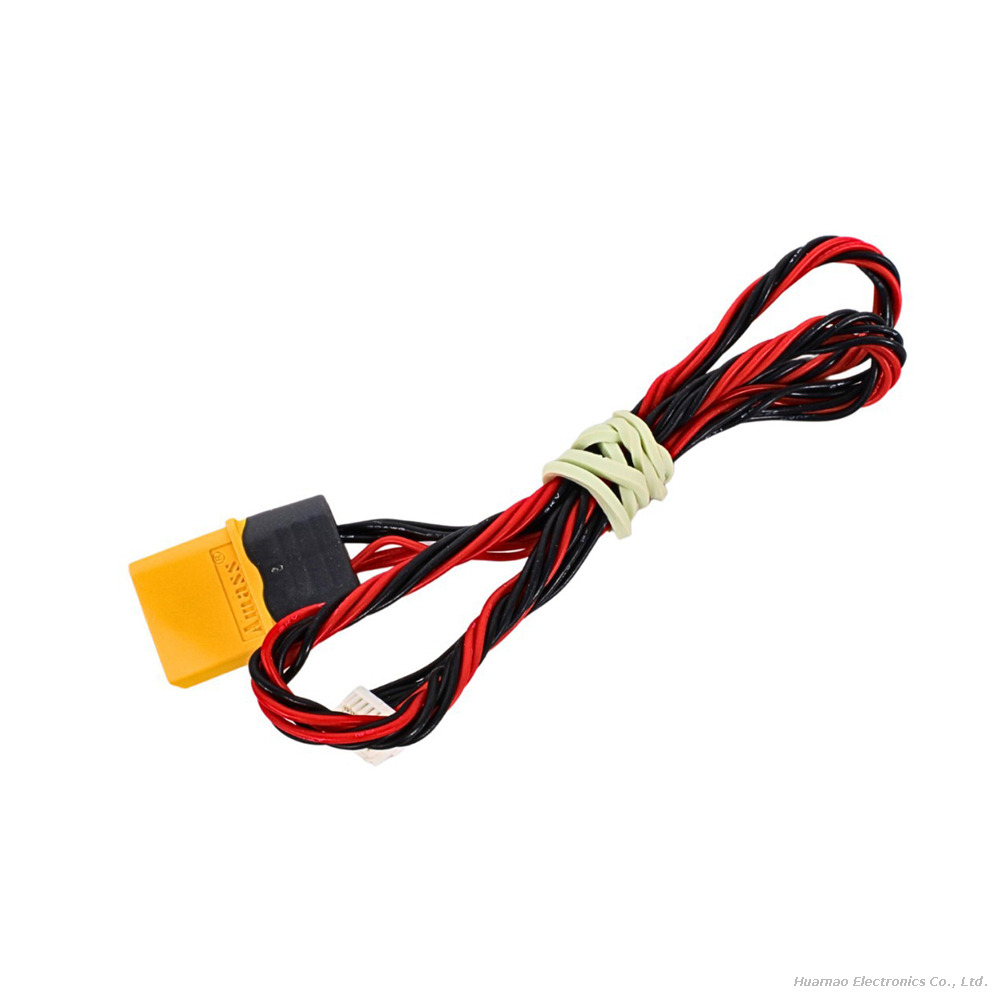

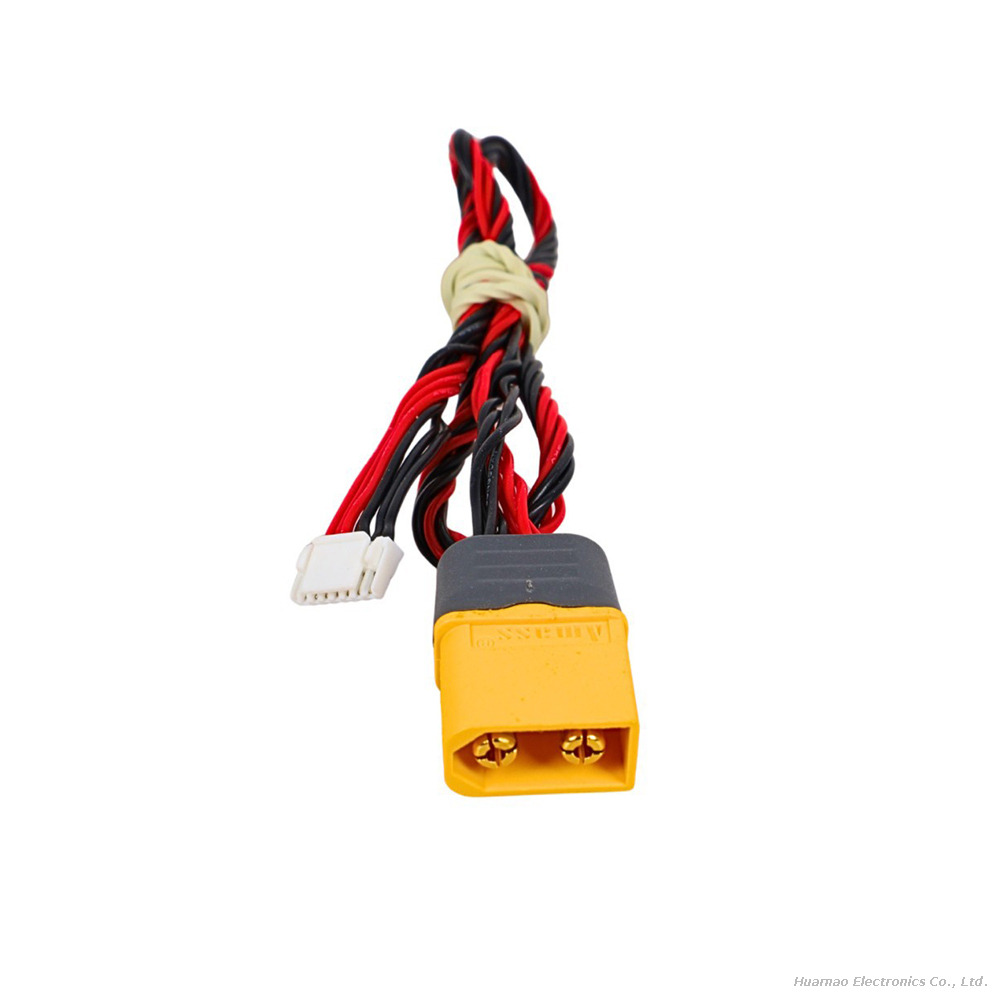

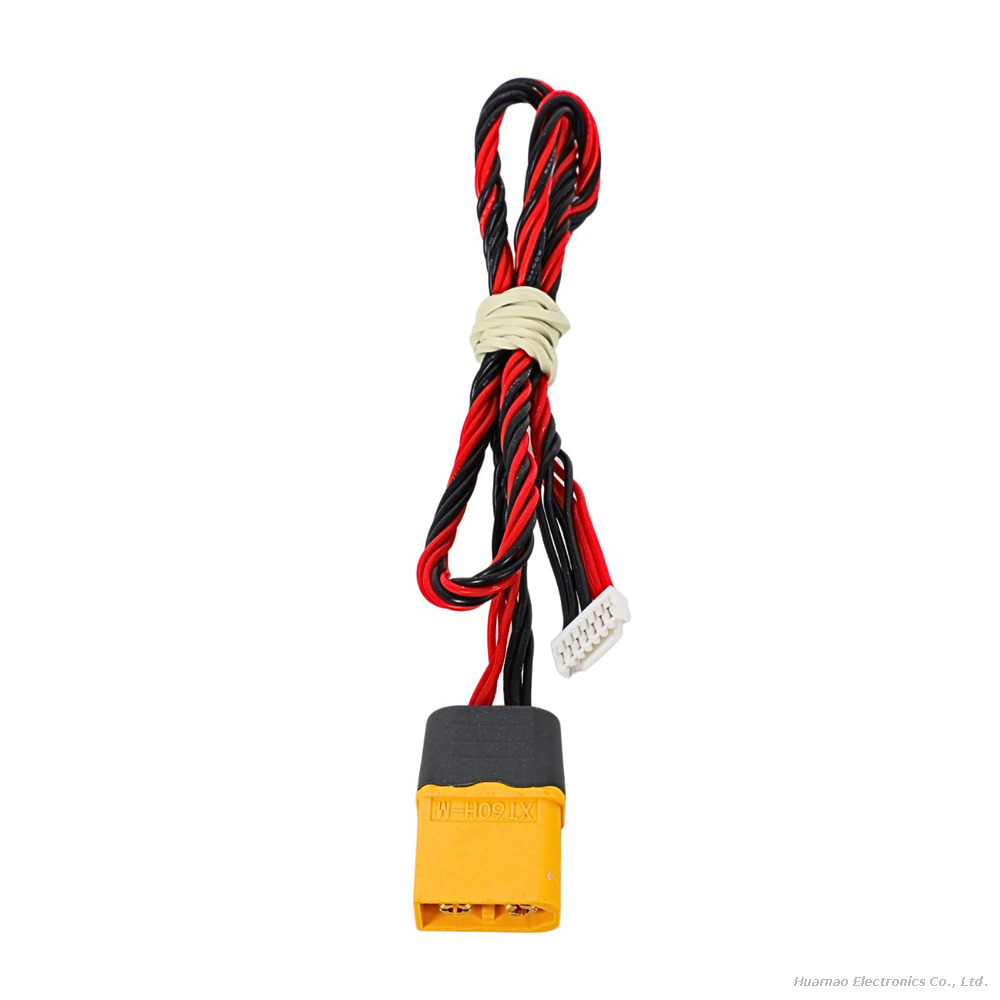

GHR-07V-S 7Pin To XT60U-M Cable UAV Drone Battery Connection Automotive Wiring Harness

GHR-07V-S 7Pin To XT60U-M Cable UAV Drone Battery Connection Automotive Wiring Harness

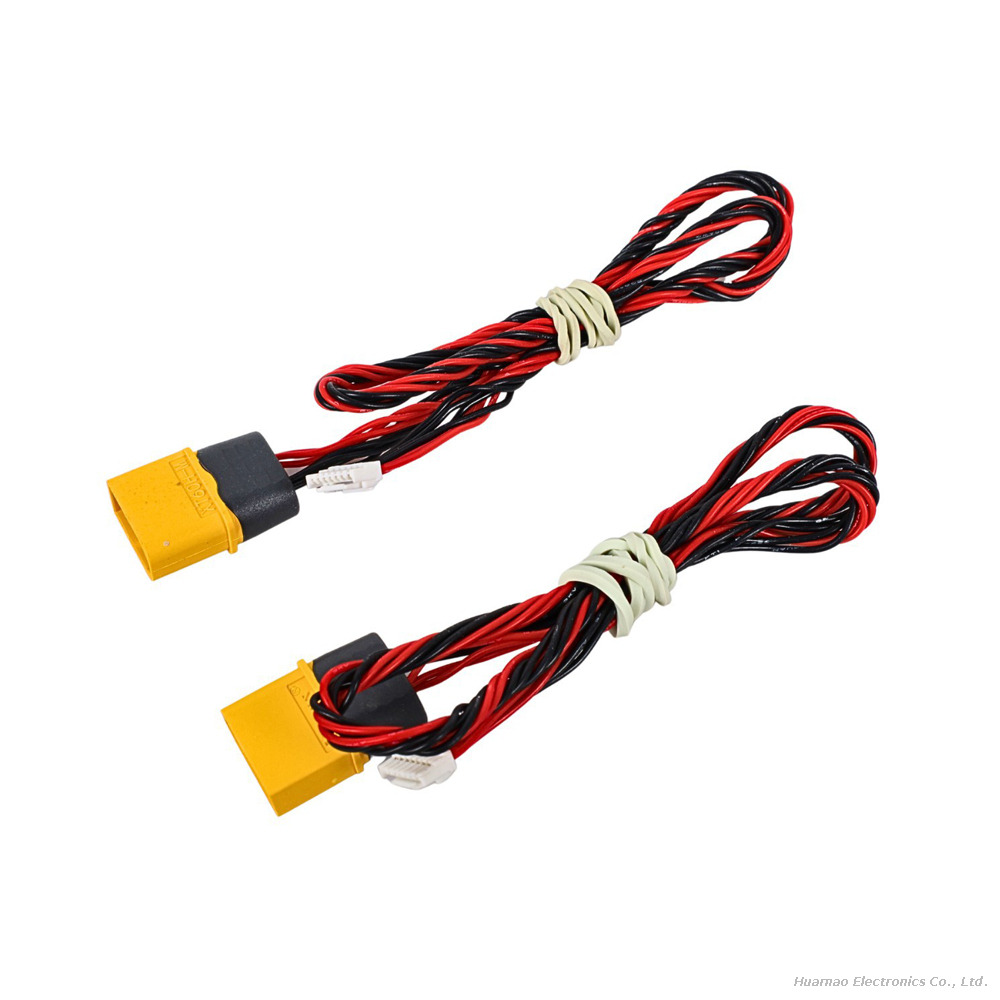

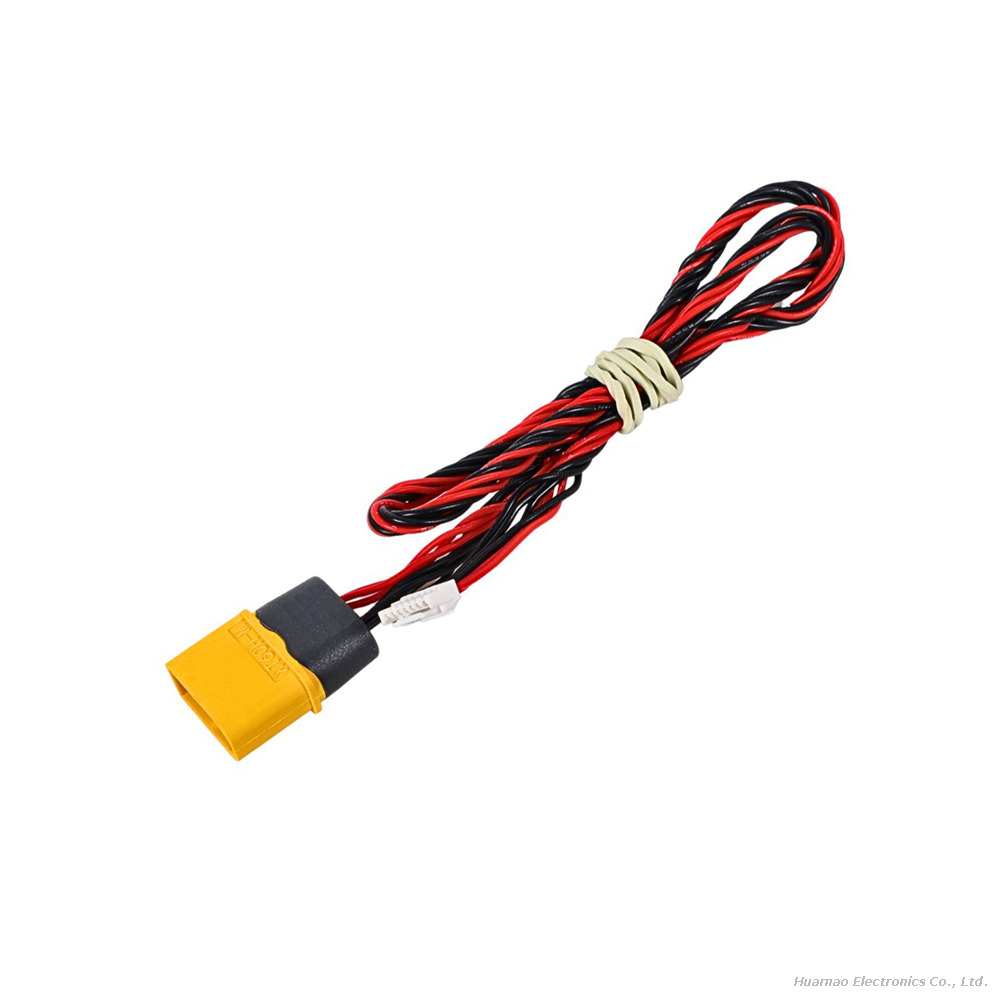

This custom cross-interface conversion harness integrates AMASS XT60U-M high-current male power plug and original JST GHR-07V-S 7Pin 1.25mm pitch balance signal receptacle, specially designed for multi-cell LiPo drone battery packs, aerial vehicle ESC flight control power and balance monitoring integration wiring. The XT60U-M delivers stable high-current discharge for drone main power output, while the JST GH 7Pin connector transmits battery cell voltage balance, temperature detection and BMS monitoring signals in one cable. It adopts flexible red-black twisted silicone wire with dual independent power/signal separation design, built-in anti-latch lock and reverse polarity prevention on both connectors, low contact resistance and anti-vibration performance adapting to UAV flight vibration and automotive electronic harsh working conditions. Fully UL, CE and RoHS compliant, customizable wire length, wire gauge, pin mapping and shielding are supported, widely applied to FPV racing drones, multi-rotor agricultural UAVs, RC model vehicles, portable lithium energy storage and automotive low-voltage auxiliary battery monitoring systems.

Model:
XT60 to GHR-07V-S
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

XT60U-M connector GHR-07V-S terminal wire XT60 male to GHR 7pin drone battery harness RC model power cable automotive XT60 cable XT60 drone connector cable automotive XT60 to GHR cable GHR 7pin to XT60 wire XT60U-M automotive wire

Product Description

The core design solves the split wiring trouble of traditional drone batteries: one single cable realizes simultaneous high-current power output and multi-cell balance signal feedback, eliminating separate balance extension wires and simplifying UAV internal wiring layout. The GHR-07V-S built-in latch buckle prevents accidental disconnection during high-vibration flight; physical polarization ribs block reverse insertion to avoid cell short-circuit and chip burnout risks. XT60U-M gold-plated thick contacts suppress heat generation under continuous high discharge current, avoiding plug melting failure common in inferior connectors during drone full-throttle flight. Twisted wire layout reduces electromagnetic crosstalk between power and signal lines, ensuring accurate BMS cell voltage sampling without data distortion. All crimp and solder joints are reinforced with heat shrink tubing for strain relief to prevent wire breakage from frequent drone disassembly and flight shaking.

Every finished harness passes strict factory testing before shipment, including continuous 30A load temperature rise test, vibration fatigue screening, LiPo balance signal stability test and high voltage insulation withstand test. We supply fixed-length battery conversion cables and customized pin-definition wiring for UAV battery manufacturers, RC model brands and automotive electronic accessory factories.

Specifications

Connector Model	XT60U plug,JST GHR-07V-S
Wire Configuration	Thick silicone power wire
Cable Insulation Material	High-temperature flexible silicone
Operating Range	-20℃ to +120℃

Advantages

Integrated power + balance all-in-one cable design: Combines XT60 high-current discharge and JST 7Pin multi-cell balance signal into one harness, reduces extra wiring inside drone frames, greatly simplifies battery installation and maintenance for FPV and agricultural UAVs.
XT60U-M upgraded gold-plated large-current plug: 2μm thick gold contact layer minimizes heat buildup under long-term high-load drone flight, UL94-V0 flame retardant housing prevents fire risk under overload, far safer than standard XT60 connectors for heavy-load multi-rotor UAVs.
JST GHR-07V-S anti-drop latch balance connector: Built-in elastic lock buckle tightly fixes the balance plug against aerial vibration; 1.25mm compact pitch fits narrow battery compartment space, ideal for slim FPV drone pack layout.
Twisted dual-circuit anti-interference wire layout: Separated twisted power and signal cores effectively isolate high-current discharge EMI noise, guarantee precise real-time cell voltage sampling for BMS overcharge/over-discharge protection.
High-temperature flexible silicone anti-fatigue cable: Resists heat generated by drone battery discharge and engine ambient temperature, withstands thousands of bending cycles without wire core fracture during repeated battery replacement.
UAV & automotive dual-scenario flexible customization service: Support ultra-short 0.1m built-in battery internal wiring and 5m long-distance ground station extension cables, small batch prototype sample orders available for new drone lithium battery and automotive monitoring equipment development verification.

Application

FPV Racing & Multi-Rotor Aerial Drones:5-inch FPV quadcopter LiPo battery power-balance integrated harness, large agricultural spray drone 6S battery conversion cable, long-range aerial photography UAV flight control connecting wire, cargo transport multi-rotor power distribution board signal assembly
RC Model Vehicle & Hobby Equipment:High-power RC off-road car lithium battery conversion cable, RC boat high-discharge LiPo balance monitoring harness, RC tank multi-cell power signal integrated wiring, model airplane brushless ESC connecting cable
Portable Lithium Energy Storage Equipment:Outdoor portable power station multi-cell battery monitoring harness, camping mini lithium generator balance signal cable, handheld high-power spotlight LiPo battery conversion wire
Automotive Low-Voltage Auxiliary Electronic Systems:Car backup lithium battery BMS detection wiring harness, RV mobile power battery balance monitoring cable, new energy vehicle low-voltage auxiliary power pack signal connecting wire
Laboratory Battery Test & Charging Equipment:Multi-channel LiPo battery aging test bench power-balance cable, intelligent lithium charger 6S cell detection conversion harness, battery capacity analyzer sampling signal wire

FAQ

Q1: What is the function of each end of this harness?

A: XT60U-M male plug transmits high-current main discharge power from LiPo battery to drone ESC flight controller; JST GHR-07V-S 7Pin connector connects battery balance taps to BMS/charger for single-cell voltage sampling, overcharge protection and equalization charging.

Q2: What maximum discharge current can the XT60U-M plug withstand?

A: Matched with 12AWG silicone wire, it supports continuous stable 30A discharge and instantaneous peak 60A surge current, fully meeting full-throttle flight load demands of most multi-rotor and FPV drones.

Q3: Why use JST GHR-07V-S 7Pin connector for drone balance leads?

A: The 7Pin 1.25mm GH series perfectly matches 6S LiPo battery balance tap standards, built-in latch lock prevents vibration-induced disconnection during drone flight, compact size saves limited battery compartment space.

Q4: Can this cable eliminate signal noise interference from drone motors?

A: The power and signal wires adopt independent twisted separation layout, which suppresses electromagnetic crosstalk between high-current power lines and weak balance sampling signals to avoid BMS voltage reading distortion.
