Molex MINI SPOX 50375063 Connector Cable 2.5mm Terminal Wire

Molex MINI SPOX 50375063 Connector Cable 2.5mm Terminal Wire

Name: Molex MINI SPOX 50375063 Connector Cable 2.5mm Terminal Wire
Brand: Molex
Rating: 5.0 (88 reviews)

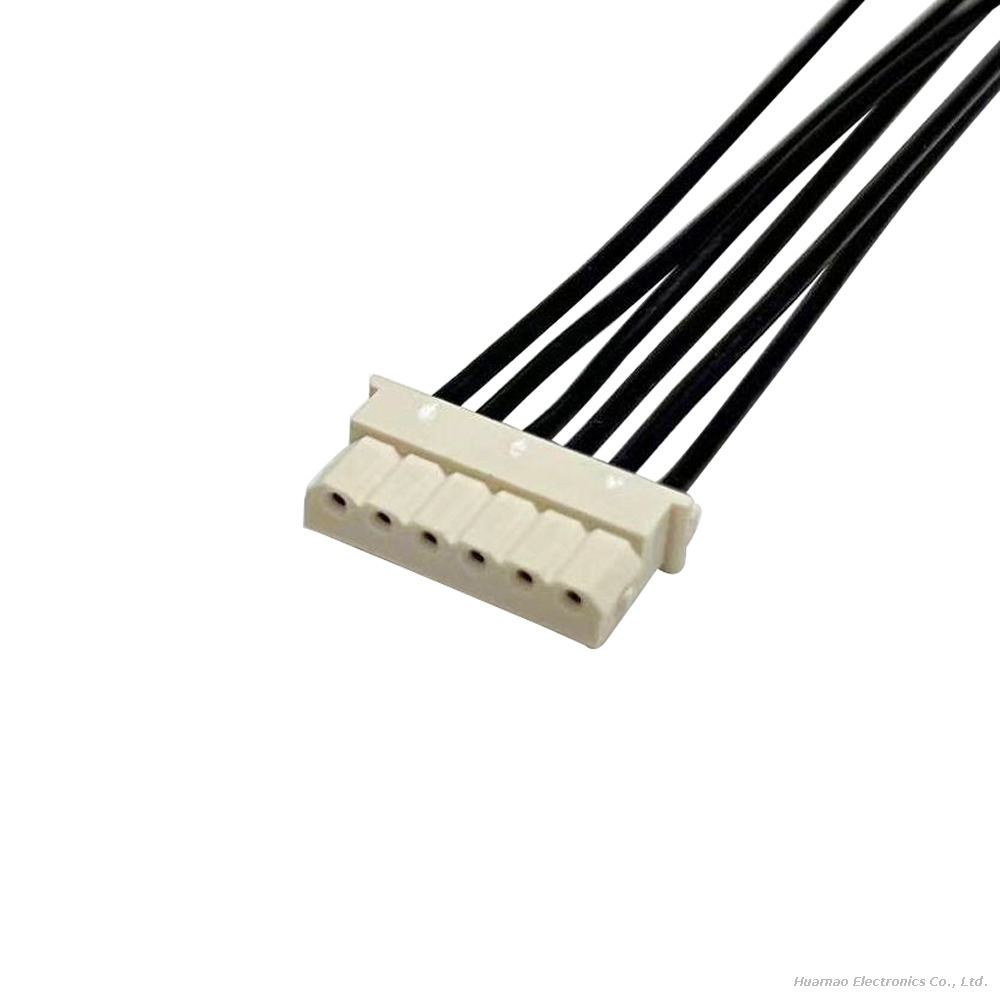

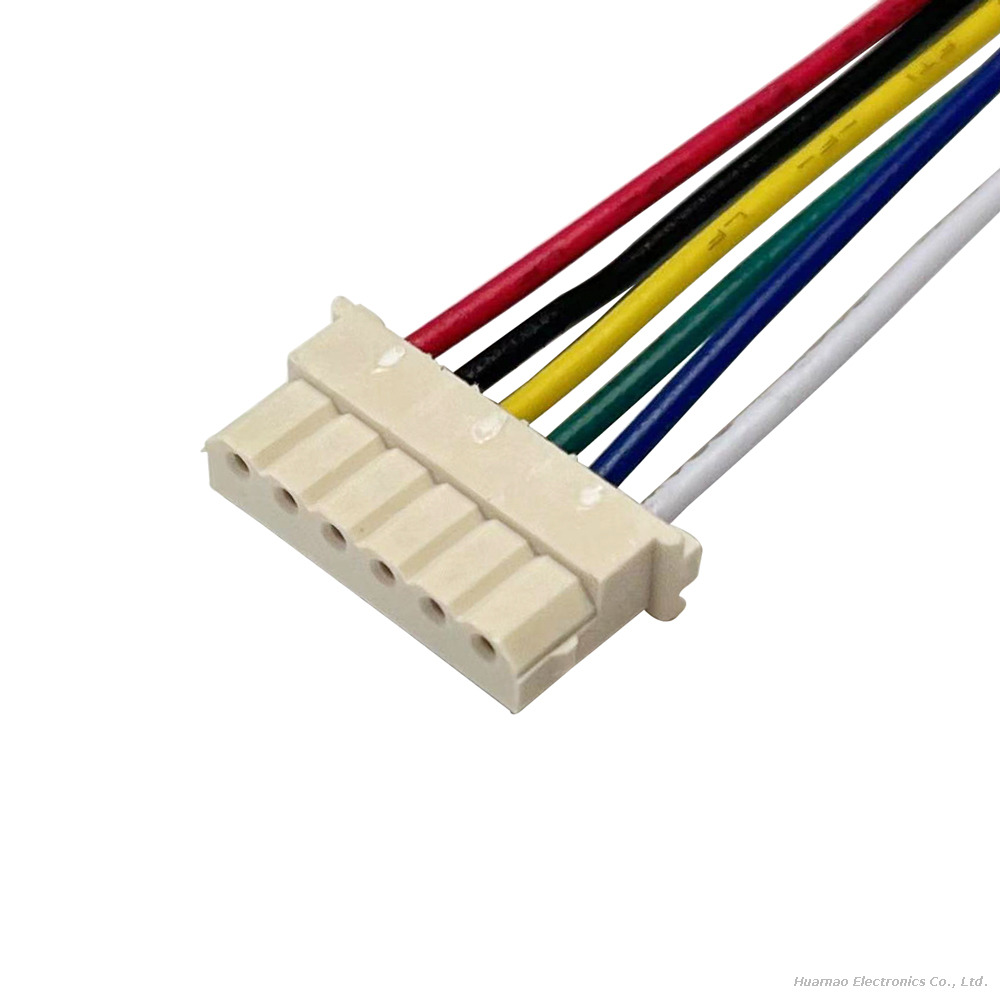

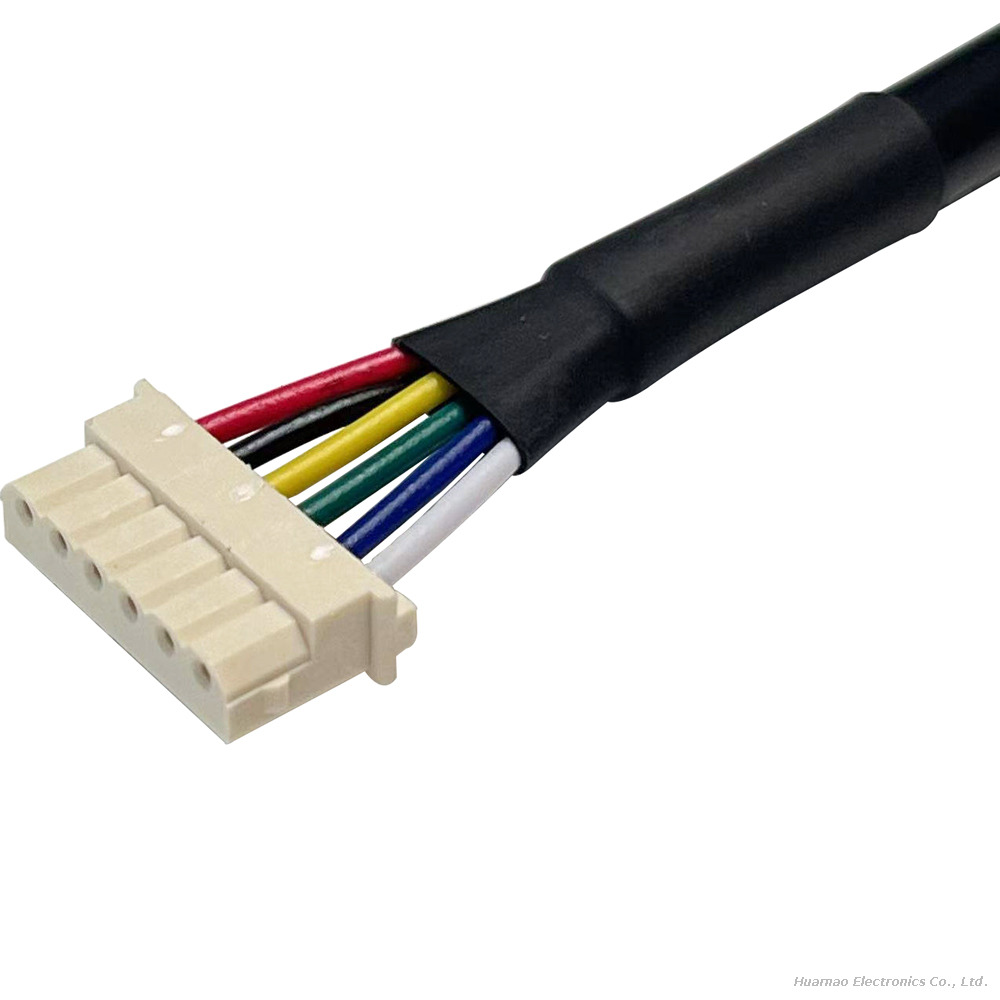

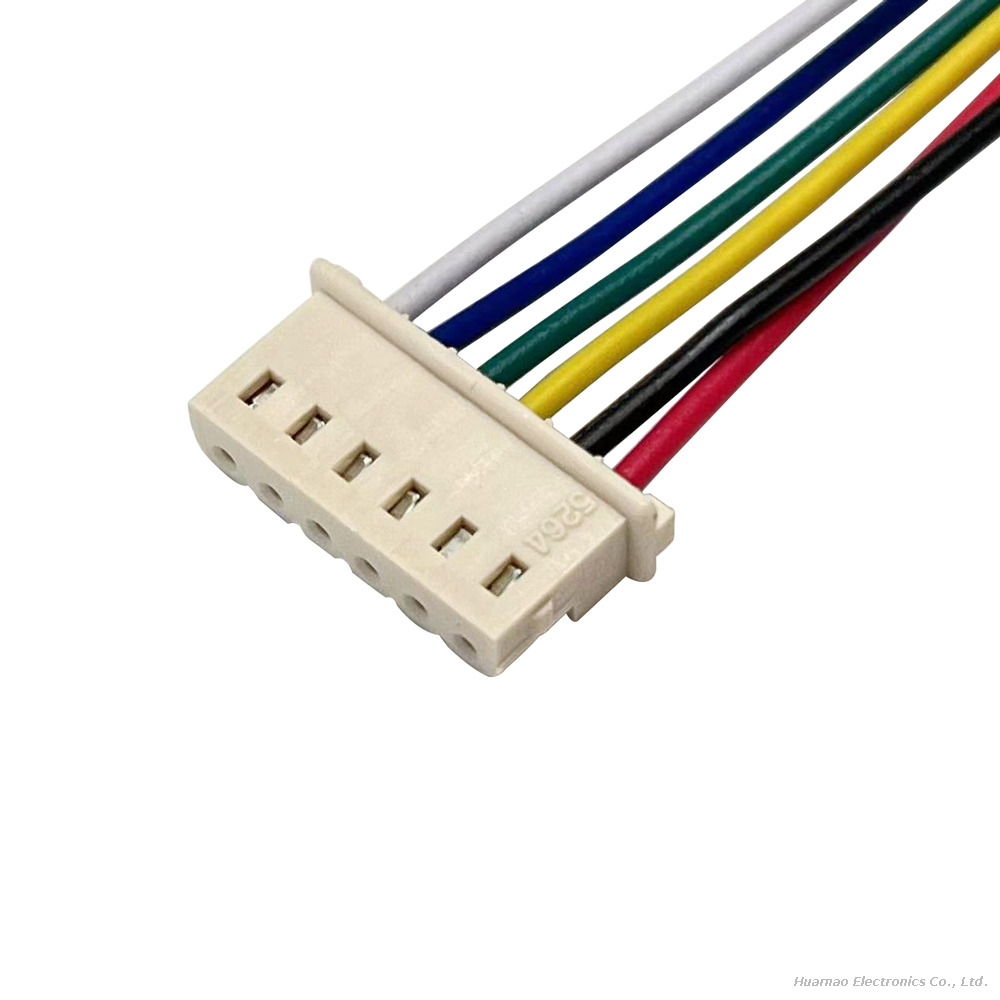

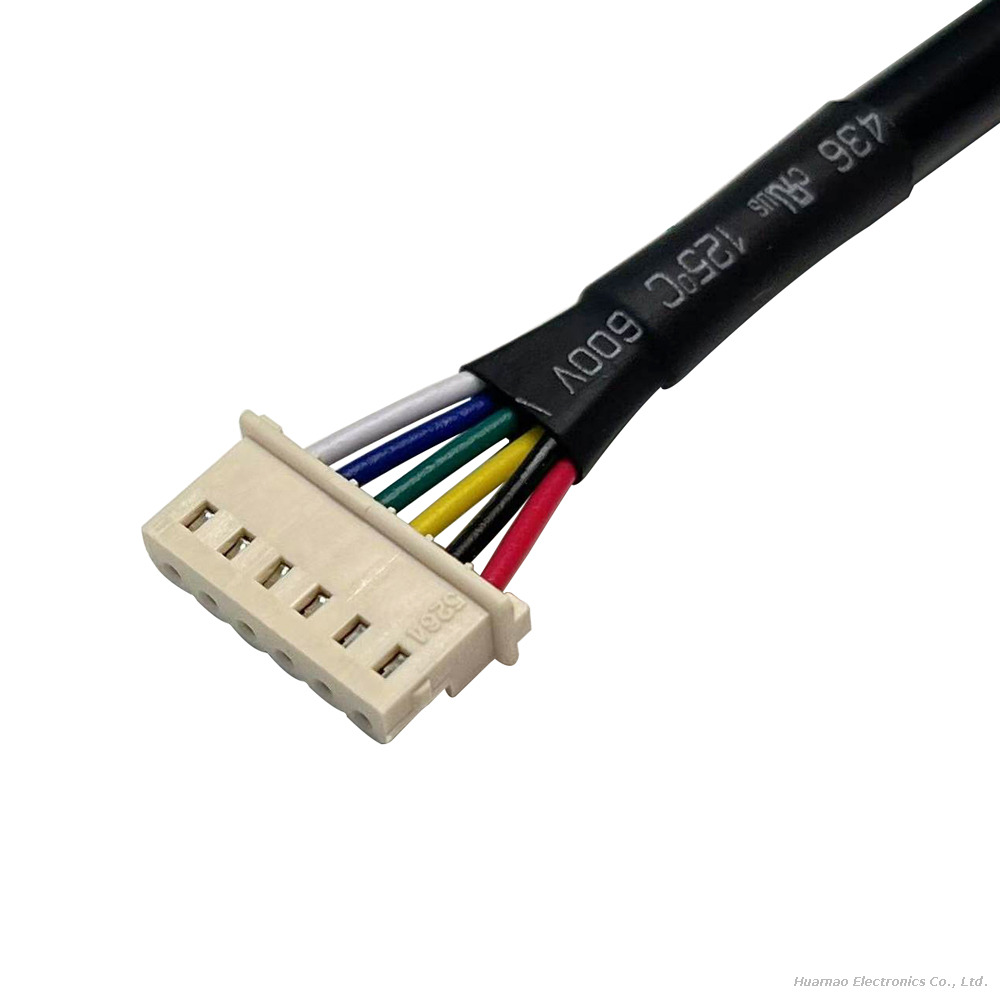

This pre-crimped wire-to-board wiring harness adopts authentic Molex 50375063 (alias 5264-06) 6-position female receptacle housing from Mini-SPOX™ 5264 series, standard 2.50mm single-row compact pitch, built-in integrated friction self-locking latch and physical anti-mismate polarization ribs. Matched dedicated 5263 series tin-plated phosphor bronze crimp terminals, rated max 3A per pin (AWG22 wire) / 250V AC/DC, UL94 V-0 flame retardant natural PA66 nylon housing, UL certified E29179, fully RoHS compliant. We provide full OEM customization of cable length, wire AWG, wire color and dual-end connector matching, widely applied for small household appliances, industrial control sensors, office automation equipment, miniature power supplies and smart home control board internal low-current signal wiring.

Model:
50375063
Brand:
Molex

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

Molex 50375063 Connector Cable Molex 5246-06 Connector Cable MINI SPOX Connector 2.5mm terminal wire 6pin Connector Cable 5263 Crimp Terminal Wire Custom Molex Mini-SPOX Electronic Wiring Manufacturer

Product Description

This finished wiring assembly uses fully matched original Molex Mini-SPOX series components, all parameters cross-verified with Molex official catalog and distributor data:

Receptacle Housing PN: 50375063 (5264-06) — 6-circuit single-row female crimp socket, fixed 2.50mm center pitch, natural ivory PA66 plastic
Dedicated Crimp Terminal: Molex 5263 series tin-plated phosphor bronze crimp contact, exclusive for AWG22~AWG28 stranded electronic wire
Mating PCB Headers: Vertical shrouded wafer 5267 series / right-angle shrouded wafer 5268 series for through-hole PCB soldering connection

The Mini-SPOX connector adopts compact single-row miniaturized layout with built-in friction lock buckle; after full mating with PCB header, the latch firmly locks the connector to avoid accidental disconnection caused by equipment vibration and wire pulling force. Molded polarization positioning ribs physically block reverse insertion, completely eliminate PCB short-circuit and component burnout risks during mass assembly production.

All terminals are processed by automated precision crimping equipment, stable terminal retention force ≥14.7N prevents terminal back-out under long-term vibration. Matched multi-color coded PVC electronic wires support clear circuit sorting during equipment assembly, insulation outer diameter φ1.15~φ1.9mm fits the connector wire inlet specification.

Each finished harness passes 100% strict factory inspection before shipment, including continuity test, terminal pull retention force test, 1000V AC high voltage withstand test and thermal cycling aging test. We supply single-end 50375063 finished cables and cross-type dual-connector conversion harness OEM mass customization solutions for consumer electronics, industrial sensor and small power supply manufacturers.

Specifications

Receptacle Housing Part Number	Molex 50375063(5264-06),6Pin single row female socket
Connector Series	Molex Mini-SPOX 5264 wire to board crimp series
Center Contact Pitch	2.5mm single row compact pitch
Applicable Wire Gauge	AWG22-AWG28 tinned stranded copper electronic wire
Operating Temperature Range	-40℃ to +105℃
Core Structural Feature	Integrated friction self-locking latch,built-in anti-mismate
Customizable Services	Custom cable length,wire cross-section,wire color order

Advantages

Compact 2.5mm miniaturized pitch design: Balances space-saving layout and multi-circuit signal transmission capacity, perfectly fits narrow internal space of slim small appliances and miniature control modules.
Built-in friction self-locking anti-drop structure: Integrated plastic latch provides lasting clamping force, effectively avoid loose contact faults caused by long-term equipment reciprocating vibration.
Physical anti-reverse polarization protection: Molded positioning ribs completely block reverse plugging, reduce mass production assembly short-circuit defective rate and lower manufacturers after-sales maintenance cost.
Graded current load matching different wire gauges: Max 3A stable continuous transmission with AWG22 thick wire, balance low-power power supply and multi-channel weak signal integration requirements.
UL94 V-0 high-temperature flame retardant nylon housing: Excellent heat resistance and anti-aging performance, eliminate hidden fire risks inside heat-generating small switching power supplies and control boards.
Flexible full OEM customization support: Arbitrary adjustable cable length, wire thickness and wire color sequence according to customer equipment circuit schematics; small prototype sample orders available for product development verification.

Application

Small Household & Smart Home Appliances:Air purifier mainboard sensor internal wiring, mini humidifier control panel signal harness, intelligent range hood touch module connecting wire, small kitchen appliance (air fryer, yogurt maker) power signal terminal cable
Industrial Control & Testing Equipment:Small PLC auxiliary multi-channel signal wiring, environmental monitoring sensor connecting cable, desktop laboratory test instrument low-current jumper wire, miniature servo drive internal signal harness
Office Automation Equipment:Printer/copier internal sensor wiring, scanner control board signal cable, laminator small power supply connecting harness
Miniature Switching Power Supplies:LED constant current driver board internal wiring, portable equipment auxiliary power signal cable, charging module control terminal wire
Portable Consumer Electronic Devices:Handheld beauty instrument internal wiring, wireless mouse/keyboard control board signal harness, portable fan miniature power connecting wire

FAQ

Q1: What series, pitch and pin count does Molex 50375063 belong to?

A: It belongs to Molex Mini-SPOX™ 5264 wire-to-board connector series, 6-position single-row female receptacle housing with fixed 2.50mm center pitch, alias model number 5264-06, all specifications sourced from official Molex datasheet.

Q2: What maximum continuous current can each pin withstand?

A: Current capacity varies with wire gauge: AWG22 wire supports up to 3A, AWG24 for 2.5A, AWG26 for 2A, AWG28 thin wire for 1.5A; designed for low-current signal and miniature power circuits, not suitable for high-power heavy load.

Q3: What matching PCB header mates with 50375063 receptacle housing?

A: Two standard matching PCB wafers: vertical through-hole shrouded header 5267 series, right-angle through-hole shrouded header 5268 series, both compatible with automatic SMT production lines.

Q4: What is the core anti-vibration advantage of Mini-SPOX series?

A: Integrated friction self-locking plastic latch firmly locks the mated PCB header, combined with high-retention-force crimp terminals, effectively prevent loose contact and terminal shedding under long-term equipment vibration.

Q5: Can different connector types be matched on the opposite cable end?

A: Yes, we provide OEM conversion harness service, the opposite end can be equipped with other Molex/JST/Hirose standard wire-to-board connectors as required by customer drawings and circuit schematics.
