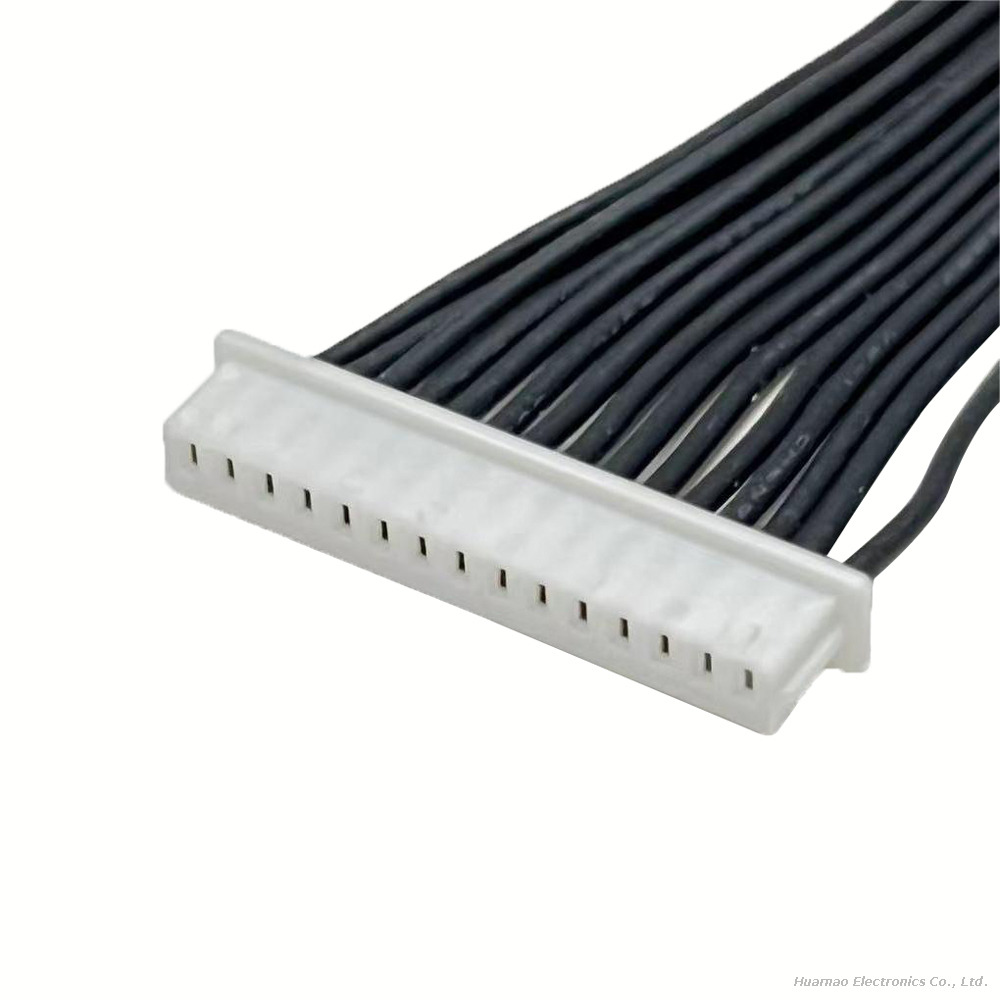

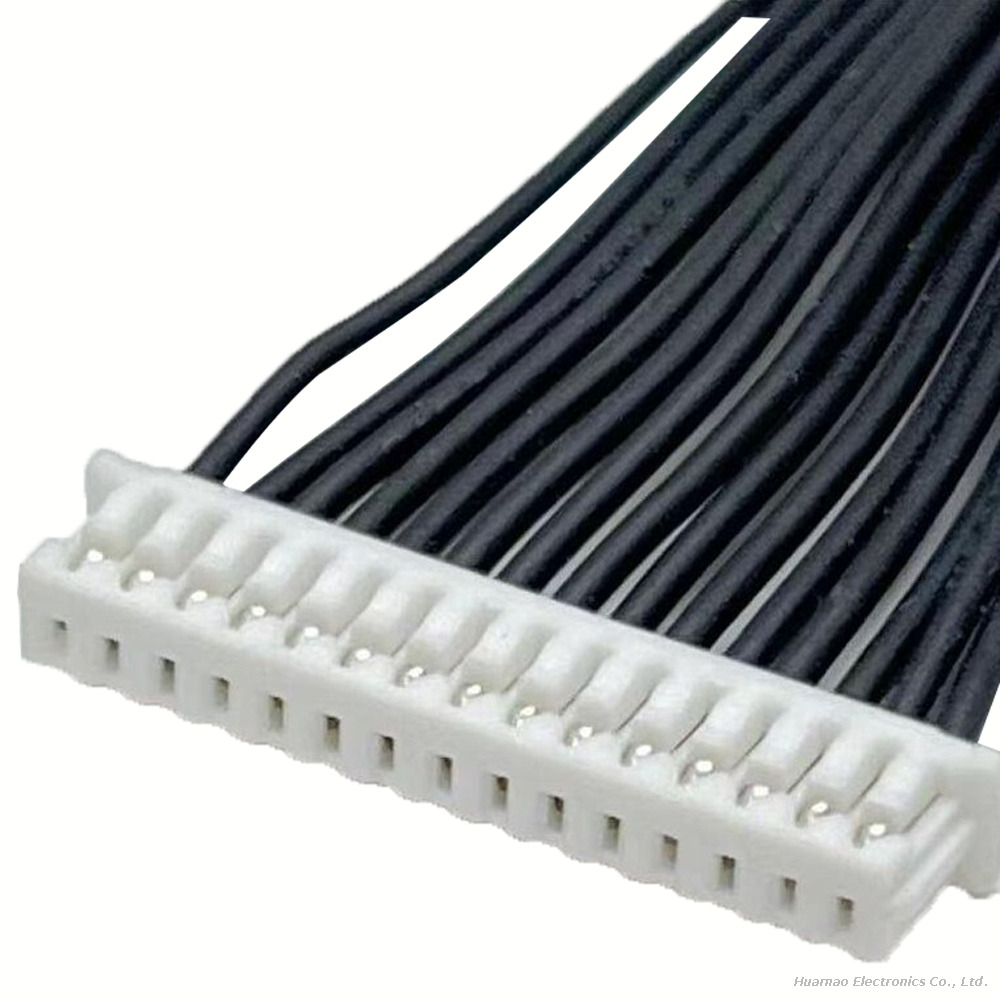

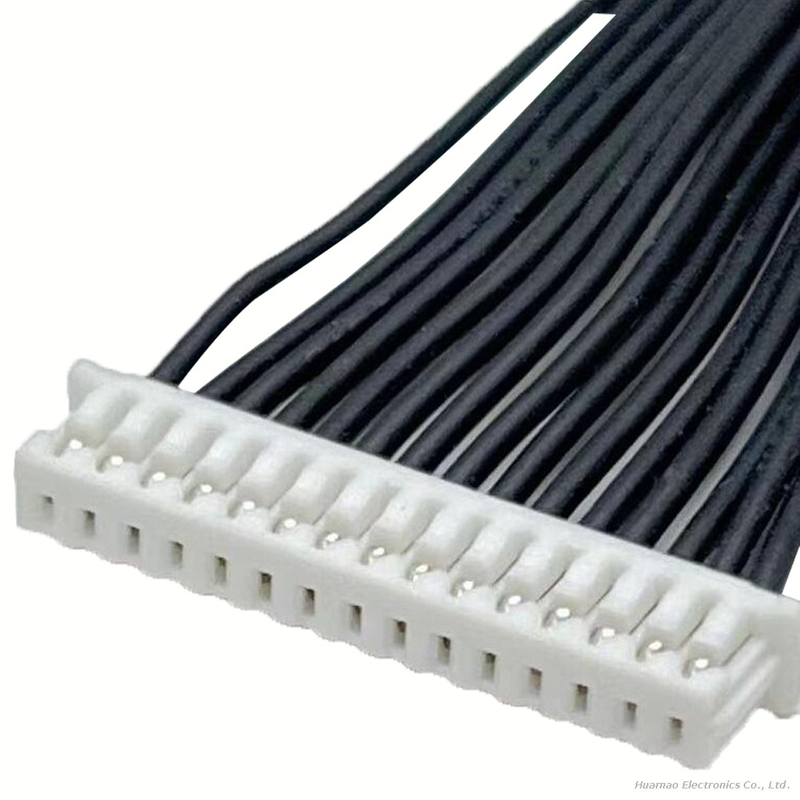

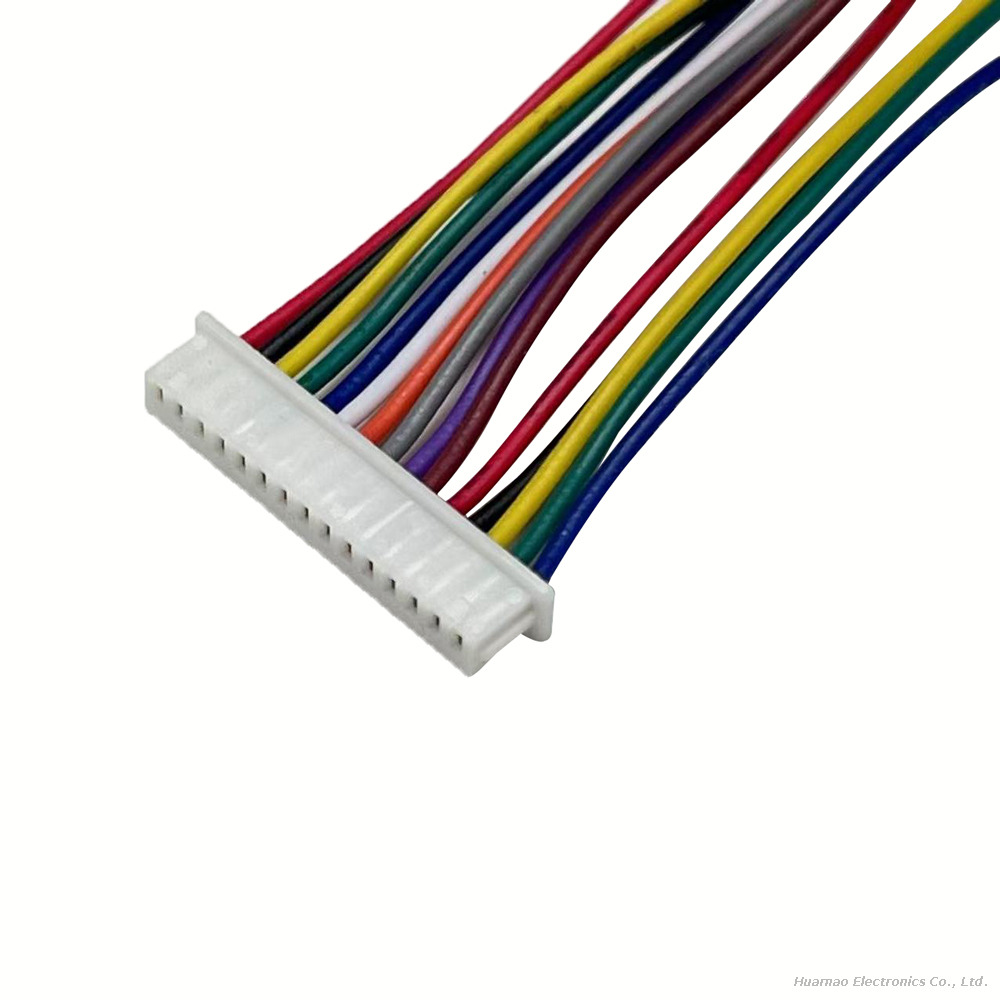

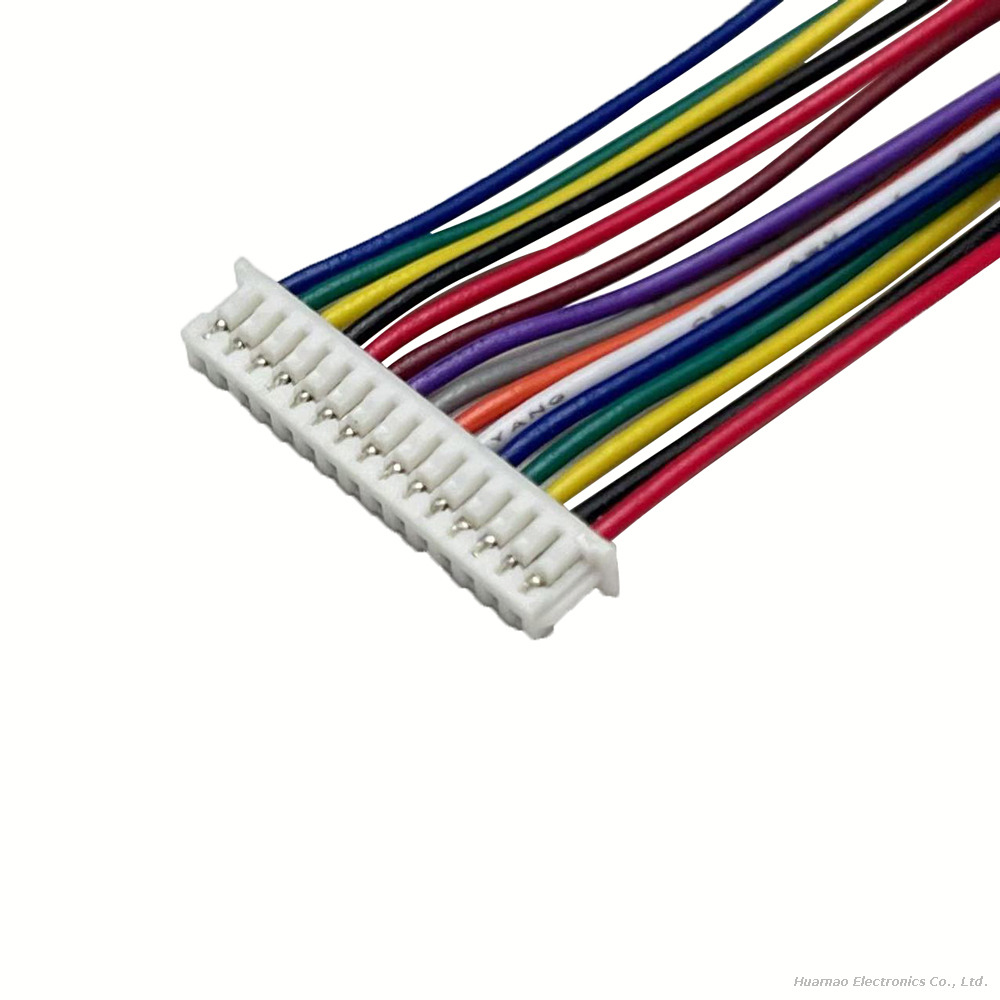

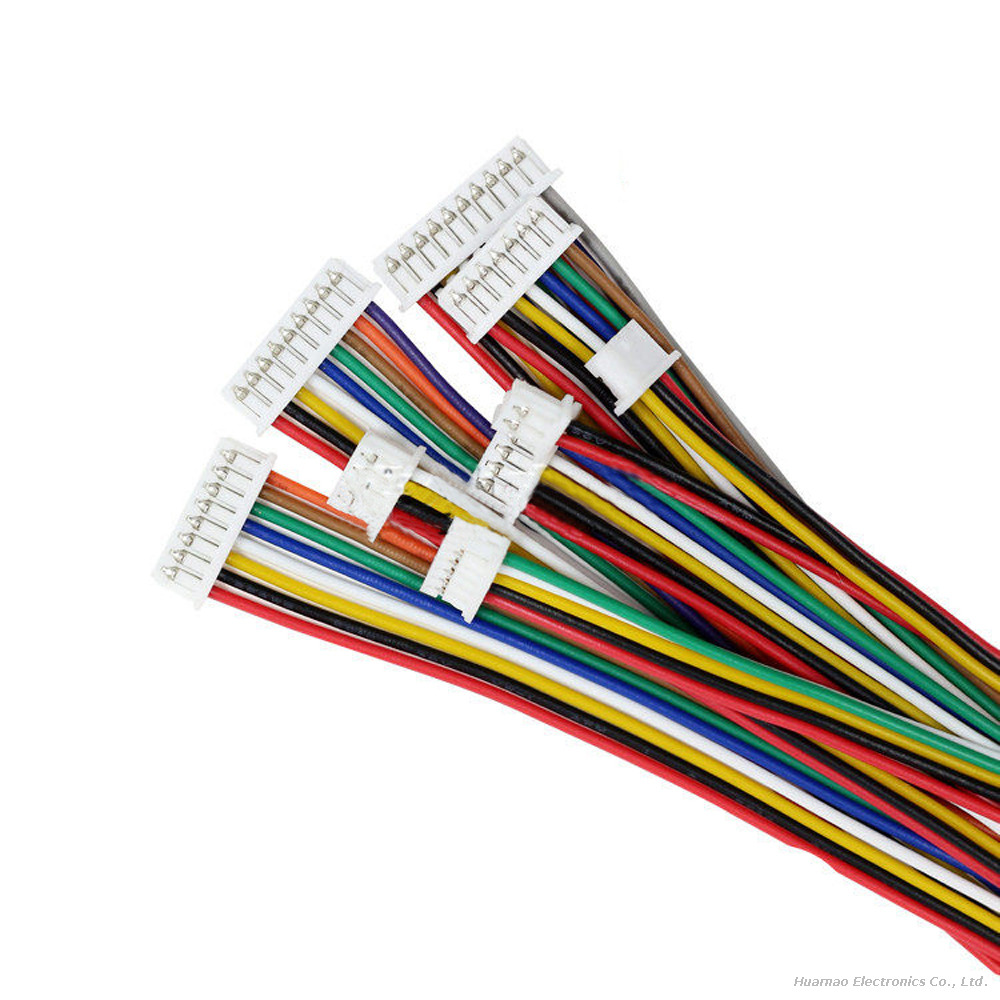

This is the receptacle crimp housing of Molex classic PicoBlade™ 1.25mm connector system, single row, 15-circuit (15P), natural white PBT plastic shell. It works with separately purchased female crimp terminals to complete cable-side wire harness assembly, and mates with PicoBlade series PCB headers to realize compact wire-to-board connection, or matches plug housing for wire-to-wire interconnection.
Built-in friction locking structure reliably retains crimp terminals inside housing to prevent terminal back-out under vibration. Polarized housing design avoids incorrect mating with PCB headers. Ultra-small 1.25mm center pitch greatly saves equipment internal layout space, ideal for low-current signal transmission in compact electronic equipment.
Specifications
| Part No | 51021-150/510211500 |
| Series | PicoBlade 51021 Series |
| Pitch | 1.25mm |
| Circuit Count | 15 Cirecuits(15Pin),Single Row |
| Type | Receptacle Crimp Housing |
| Lock Type | Internal Friction Lock |
| Operating Temperature | -40℃ to +105℃ |
Advantages
Ultra-Compact 1.25mm Mini Pitch Design
Small footprint, helps engineers miniaturize PCB and device internal structure, perfect for slim consumer electronics and portable medical instruments.
Built-in Friction Lock Terminal Retention
Independent locking tang firmly holds crimp terminals, effectively avoids terminal disconnection caused by wire pulling or equipment vibration, improves harness reliability.
Polarized Anti-Error Mating Geometry
Unique housing shape prevents reverse insertion with PCB header, eliminates assembly error risk in mass production.
Wide Operating Temperature & Reliable Plastic Material
UL94 V-0 PBT housing withstands -40~+105°C, stable performance for equipment with continuous heating; good resistance to common plasticizers and chemical contaminants inside devices.
Complete Ecosystem of Matching Parts
Rich PCB header variants (vertical/right-angle, SMT/through-hole) and crimp terminals, flexible for diverse wire harness design requirements.
Global Standard Certification
UL & CSA recognized, RoHS/REACH compliant, supports export electronic product certification.
Application
Medical Electronic Equipment
Patient monitoring equipment, portable diagnostic instruments, hearing aids, handheld medical testing devices internal signal wiring
Consumer Smart Electronics
Smart home control panels, gaming devices, printers, smart TV, set-top box internal sensor & fan wiring
Industrial Automation & Instrumentation
Small PLC modules, smart meters, sensor signal cables, portable testing equipment
Mobility & New Energy Equipment
New energy vehicle cabin auxiliary modules, instrument cluster, drone flight control signal wiring
Computer & Communication Hardware
Notebook peripheral internal wiring, small server auxiliary signal harness, portable wireless communication modules
