Molex Micro‑Lock Plus 1.25mm Pitch 6Pin Cable Assembly 5055650600 Wire Harness

Molex Micro‑Lock Plus 1.25mm Pitch 6Pin Cable Assembly 5055650600 Wire Harness

Name: Molex Micro‑Lock Plus 1.25mm Pitch 6Pin Cable Assembly 5055650600 Wire Harness
Brand: Molex
Rating: 5.0 (77 reviews)

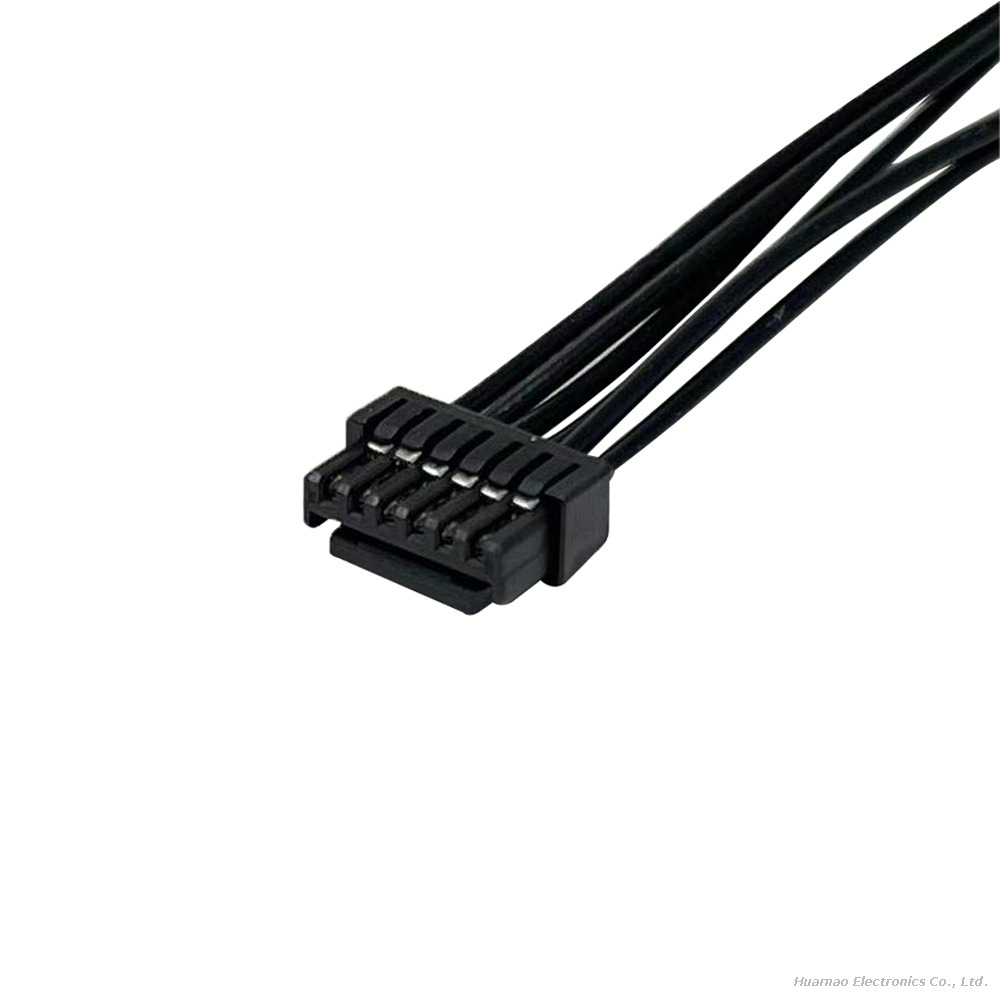

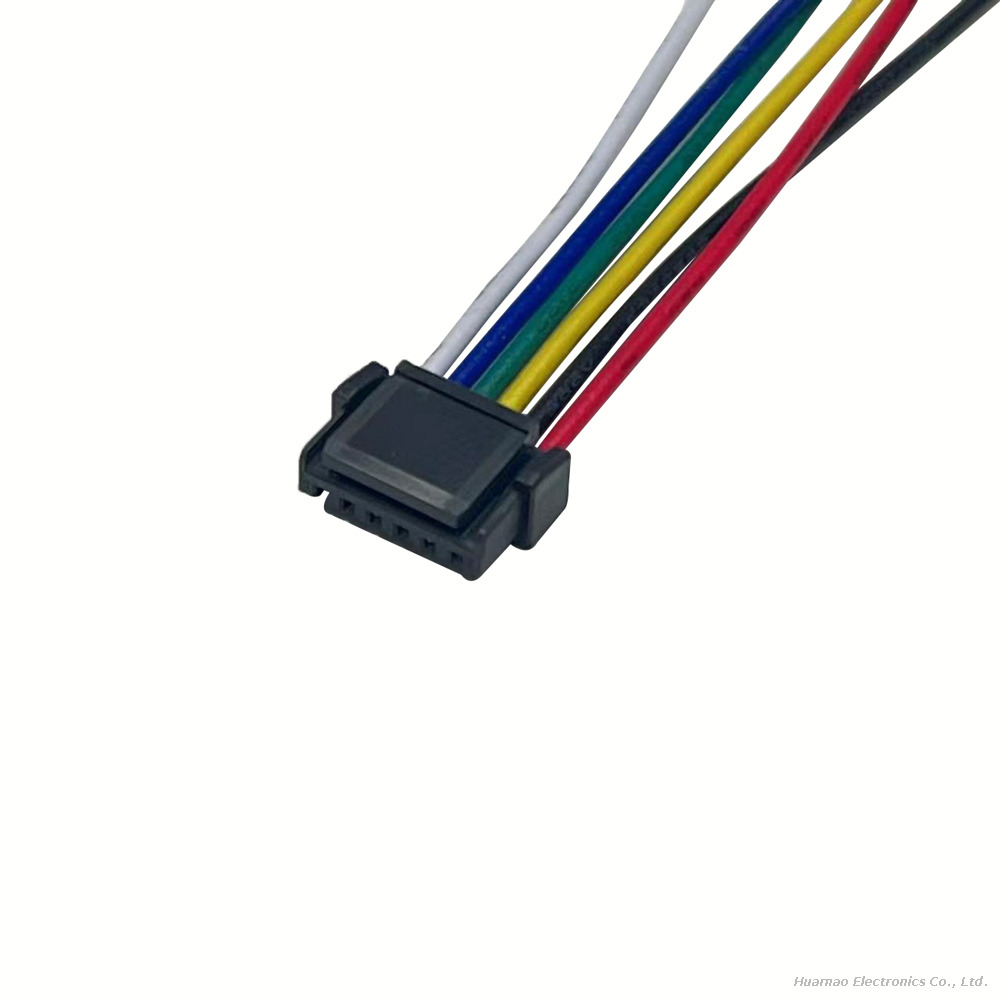

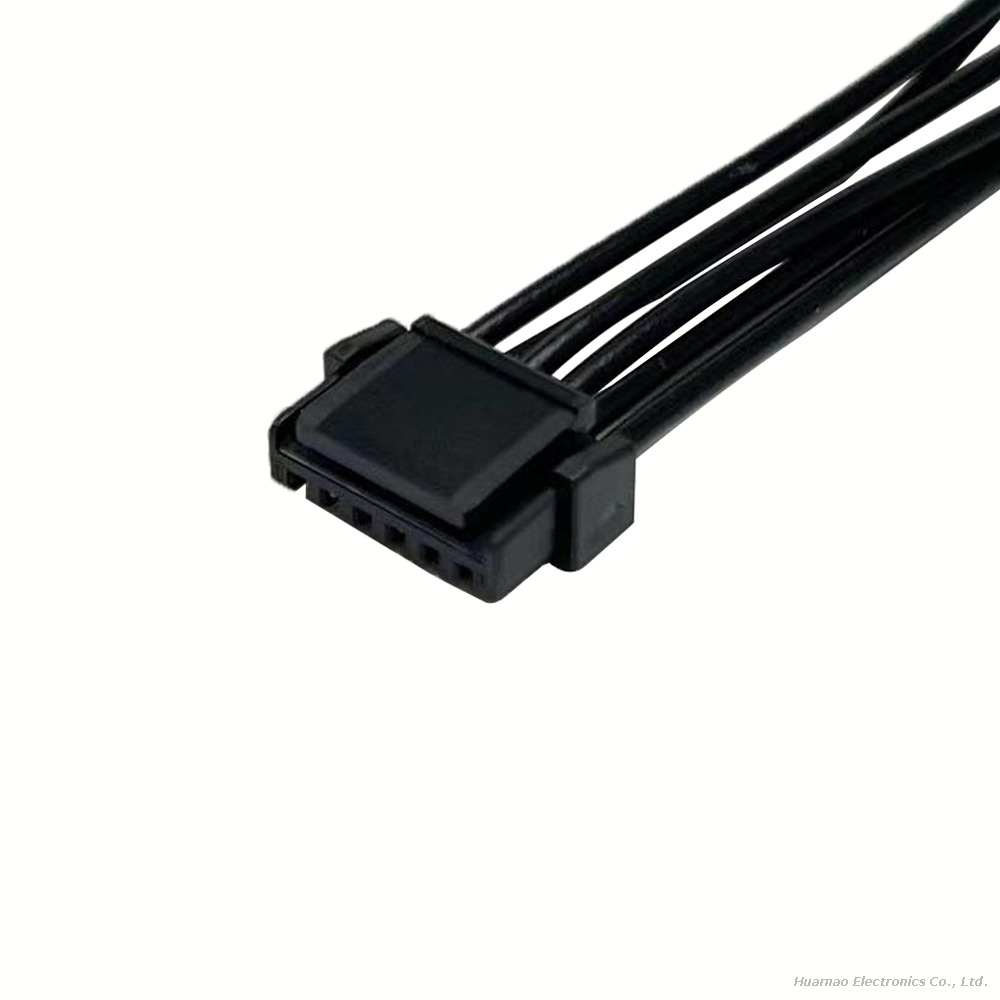

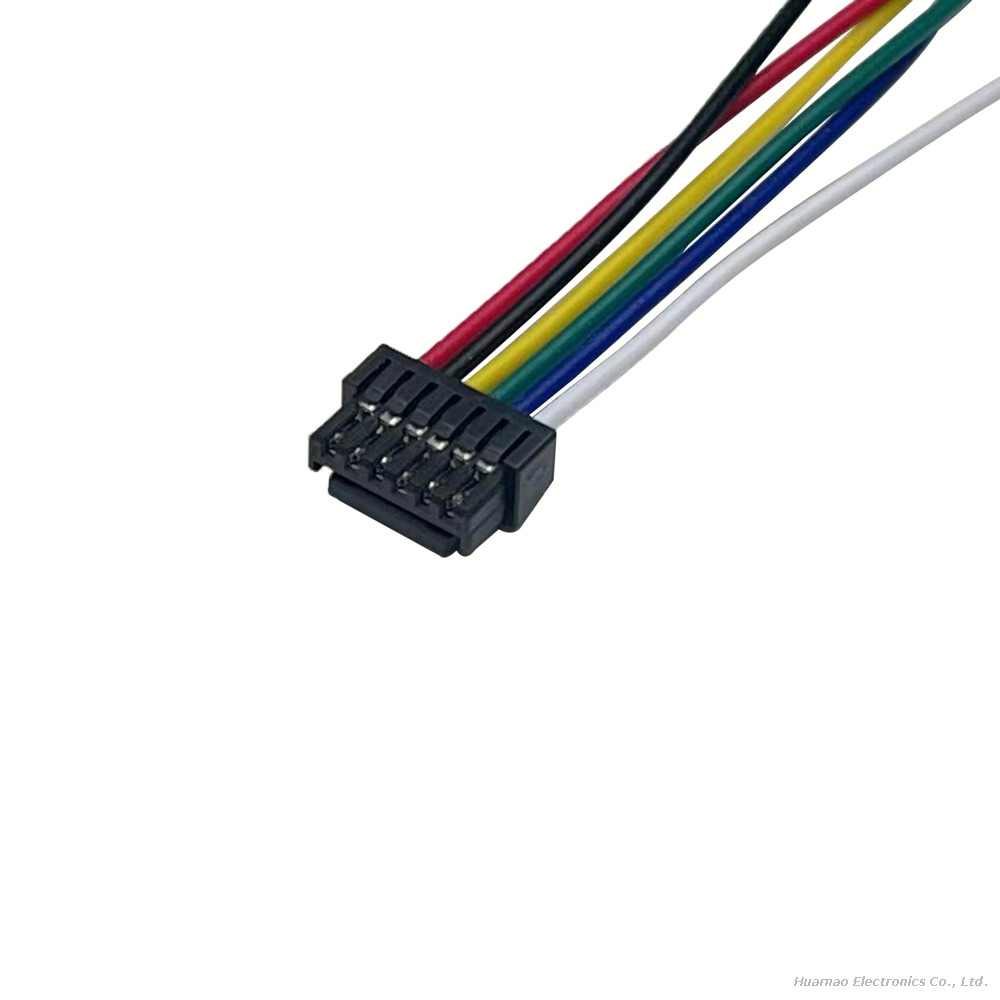

This finished ultra‑thin miniature signal harness adopts genuine Molex 5055650601 (505565‑0601) Micro‑Lock Plus series 6‑position single‑row black free‑hanging female crimp receptacle housing, ultra‑compact 1.25mm wire‑to‑board pitch. It pairs with dedicated Micro‑Lock Plus crimp terminals (tin/gold plated 505431) and UL certified AWG28~AWG32 ultra‑fine multi‑strand thin signal wire, specially designed for multi‑channel micro weak signal transmission in ultra‑space‑constrained electronic hardware.

Built‑in integrated side positive lock latch and polarized foolproof keyway prevent accidental disconnection and reverse misplug short‑circuit under slight equipment vibration; glass‑filled PBT black housing supports wide temperature operation from -40℃ to +105℃, meets partial automotive interior temperature standards.Widely applied to smart watches, TWS wireless earbuds, portable medical monitors, miniature IoT sensors, mini cooling fans, automotive interior tiny detection modules and compact consumer wearable hardware. Customizable wire length, wire gauge, single‑end tinned bare leads, double‑head wire‑to‑board jumpers and shielded twisted anti‑EMI wiring; all raw materials fully RoHS 3 & REACH compliant.

Model:
5055650601
Brand:
Molex

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

Molex 5055650601 wire harness Molex Micro‑Lock Plus connector cable 1.25mm Terminal Wire wire to board jumper cable ultra‑fine multi‑strand wire interior sensor cable

Product Description

Custom automotive sensor wiring harness fitted with original Molex 5055650601 Micro-Lock Plus 6Pin black receptacle, 1.25mm mini pitch wire-to-board assembly. Automotive-grade PA66 black housing with anti-misinsertion structure, high terminal retention force meets vehicle anti-vibration standards. Optional gold/tin plating terminals, customizable wire length and AWG, RoHS & auto industry compliant, miniature signal interconnection solution for passenger car and new energy vehicle electronics manufacturers.

Specifications

Connector Model	Molex 5055650601, Micro‑Lock Plus series
Pitch	1.25mm
Rated Current	Max 1.5A continuous per contact
Housing Material	Glass‑filled black PBT plastic
Applicable Wire Gauge	AWG28 ~ AWG32
Operating Temperature Range	-40℃ ~ +105℃

Advantages

1.25mm Ultra‑High Density Miniature Form Factor (Core Advantage)
1.25mm tiny pitch shrinks 6 signal channels into an ultra‑small 9.5mm long black housing, far slimmer than 2.0mm DuraClik/Micro‑Latch connectors; solves space bottlenecks for smart watches, wireless earbuds, ultra‑thin medical patches and automotive interior tiny sensors with limited PCB real estate.
Positive Side Latch Anti‑Drop Vibration Resistant Structure
Built‑in elastic side lock firmly holds mated PCB headers, eliminates intermittent signal dropout faults caused by wearable daily shaking, pocket friction and vehicle road bump vibration, critical for continuous monitoring medical and automotive sensing systems.
-40℃ ~ +105℃ Glass‑Filled PBT High‑Temperature Housing
Glass‑reinforced PBT maintains stable insulation and mechanical performance from -40℃ cold storage to +105℃ equipment self‑heating, meets automotive interior temperature requirements without deformation or brittleness.
Dual Terminal Plating Options For Signal Matching
Tin terminals for cost‑sensitive consumer mass production; gold terminals for high‑precision medical analog signals and automotive sensors that demand long‑term anti‑oxidation and consistent low contact resistance, flexible matching different product performance grades.
Polarized Anti‑Reverse Misplug Safety Protection
Asymmetric housing positioning ribs physically block reverse insertion, eliminating miniature chip burnout risks during manual assembly or after‑sales maintenance of slim portable and automotive devices.
One‑Stop Miniature Ultra‑Thin Harness Custom Manufacturing Service
Support small‑batch prototype samples and mass OEM bulk production; finished ultra‑fine harnesses can be processed with micro shielding, tin dipping, tiny heat shrink strain relief and mini custom label marking for direct assembly on wearable, medical, automotive and mini IoT equipment production lines.

Application

Wearable Smart Consumer Hardware
Smart watch multi‑sensor 6pin Micro‑Lock Plus thin signal harness, TWS wireless earphone control board micro wiring lead, fitness wristband heart rate detection extension cable, smart ring miniature power‑signal mixed jumper
Portable Medical Electronic Monitoring Devices
Home portable blood glucose monitor internal thin sensor wire, wearable ECG patch multi‑channel signal harness, portable skin beauty detector miniature control board cable, ambulatory blood pressure monitor micro interconnect lead
Automotive Interior Miniature Sensor Modules
Car door tiny position detection 5055650601 wiring harness, dashboard ambient light sensor ultra‑thin cable, seat occupancy auxiliary micro signal jumper, rearview mirror ADAS tiny detection wiring lead
Miniature IoT & Industrial Micro Sensors
Mini human body induction sensor ultra‑thin wiring assembly, handheld portable gas detector multi‑signal jumper, small PLC micro auxiliary I/O input thin cable, wireless temperature/humidity sensor extension harness
Mini Cooling Fan & Compact Handheld Hardware
Notebook mini CPU cooling fan speed/tachometer signal cable, small embedded industrial PC auxiliary fan control jumper, mini digital camera auxiliary sensor thin harness, portable wireless charger control board micro signal cable

FAQ

Q1: How much current can each pin of this 5055650601 ultra‑thin harness carry?

A1: Each single pin supports maximum 1.5A continuous low‑current transmission, only applicable to micro‑sensor detection, indicator LED and miniature low‑power supply circuits; not suitable for any load exceeding 1.8A continuous operation to avoid ultra‑fine wire overheating.

Q2: What is the key difference between Micro‑Lock Plus 1.25mm 505565 series and DuraClik 2.0mm series?

A2: Micro‑Lock Plus 505565 adopts 1.0mm ultra‑tiny pitch, ultra‑small housing body, only 1.5A rated current, targeted exclusively for ultra‑thin wearable/medical/automotive miniature micro signals; DuraClik uses larger 2.0mm pitch, 3A load capacity, thicker wire compatibility, for household appliances and general industrial multi‑sensor circuits; the two series have incompatible pitch and cannot cross‑mate.

Q3: Can we customize double‑head wire‑to‑board jumpers with 5055650601 female on one end and matching Micro‑Lock Plus SMT male header on the other?

A3: Yes, we can produce custom full‑length ultra‑thin double‑head extension jumpers with arbitrary wire length according to customer slim wearable/automotive PCB layout drawing requirements.

Q4: Can this Micro‑Lock Plus connector be used on vehicle dashboard interior modules?

A4: The PBT housing operates stably from -40℃ to +105℃, fully meets passenger compartment interior temperature standards; avoid direct long‑term contact with exhaust heat sources above 110℃ to prevent plastic aging deformation.
