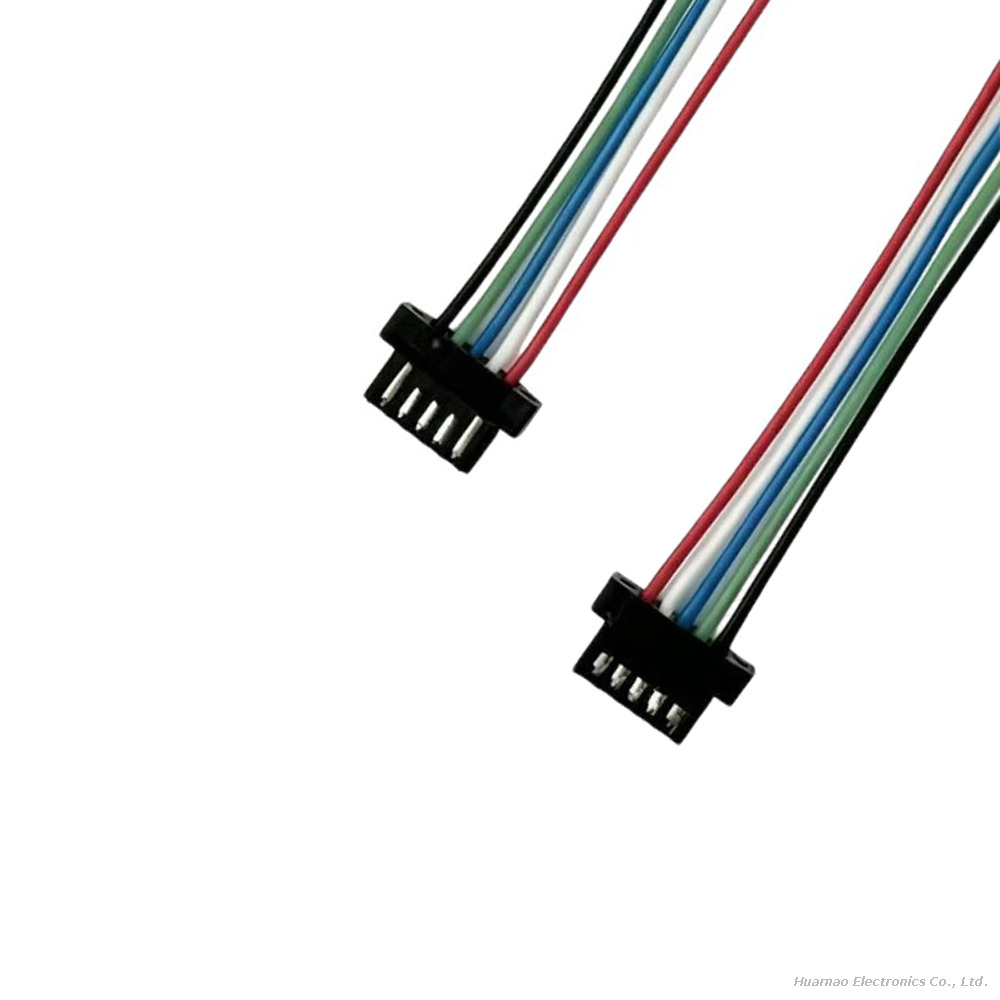

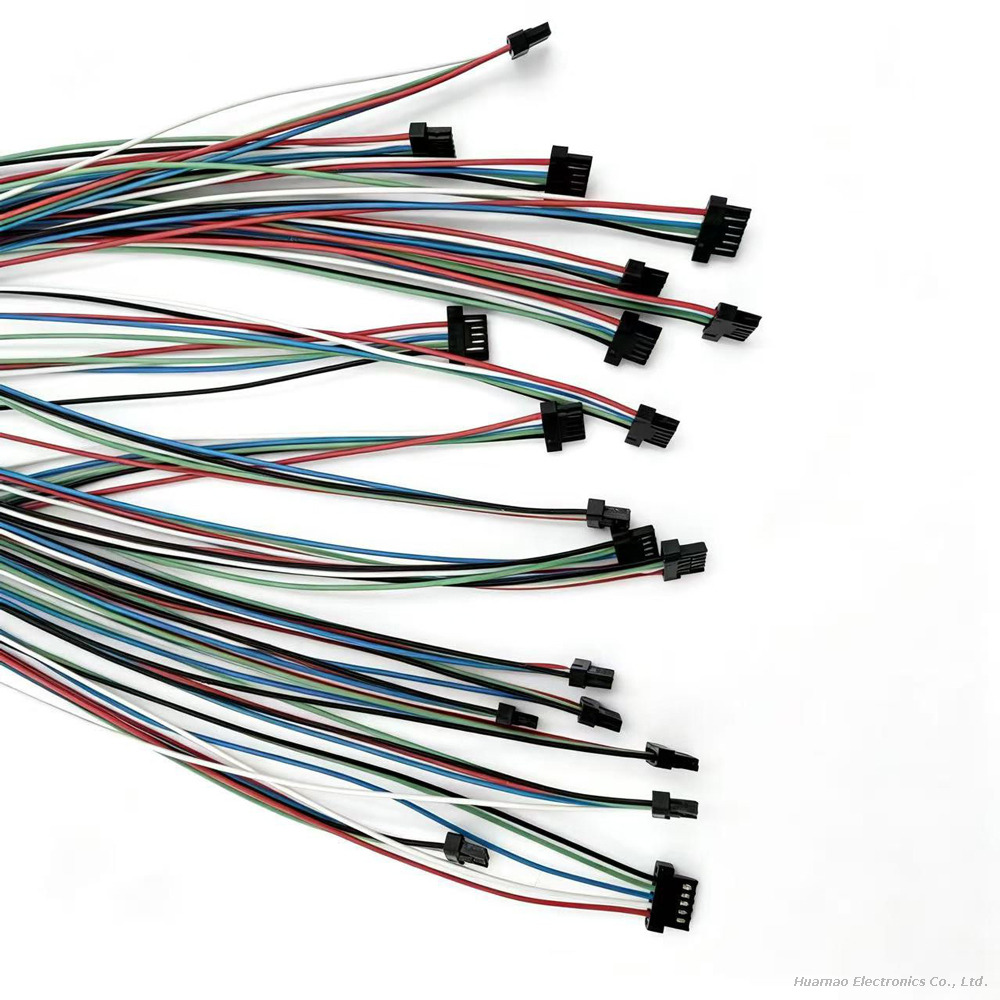

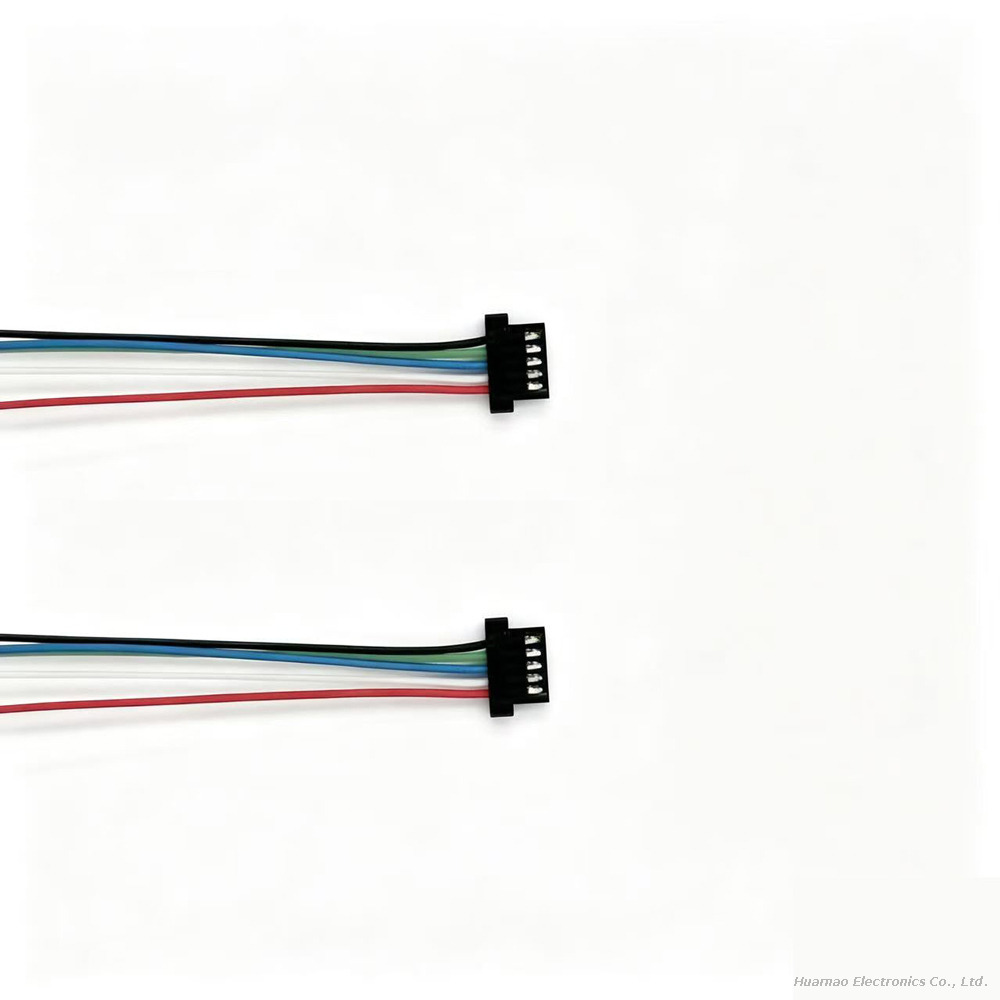

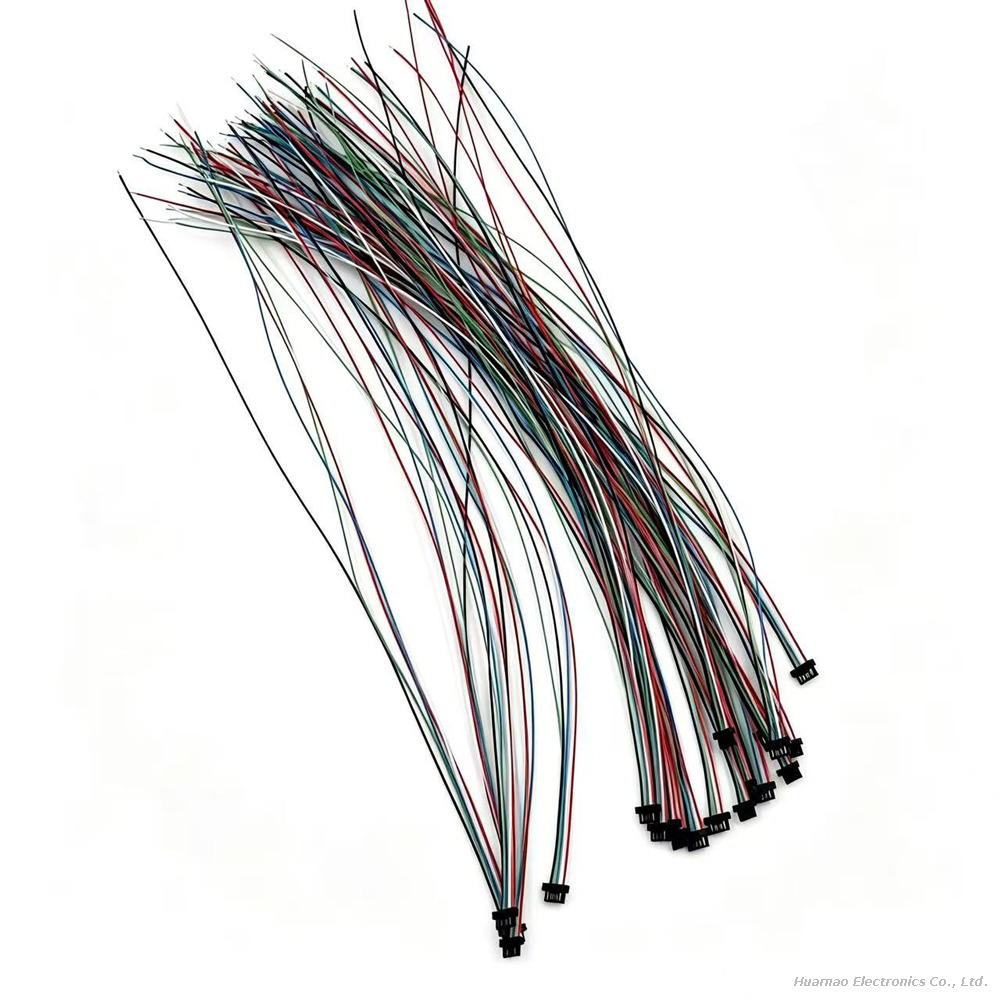

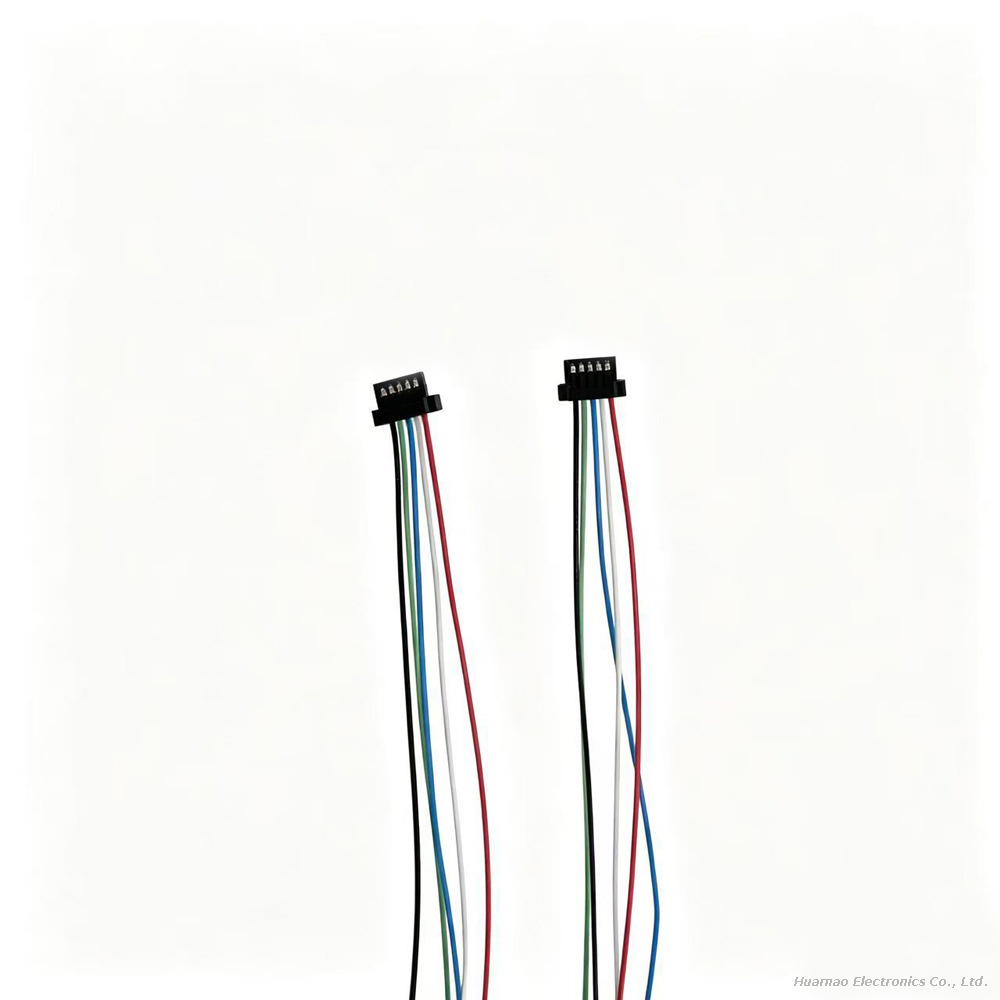

DF53-5P-0.6C Connector Robot Wire Harness Hirose 0.6mm Cable Assembly

DF53-5P-0.6C Connector Robot Wire Harness Hirose 0.6mm Cable Assembly

This custom wire harness adopts original Hirose DF53-5P-0.6C 5-position crimp plug housing, matched with corresponding DF53 series PCB header receptacle, 0.6mm ultra-fine pin pitch ultra-low profile wire-to-board connector assembly. It is designed for space-limited precision equipment: industrial collaborative robot servo micro signal transmission, medical communication modules, portable testing instruments, mini industrial cameras and compact IoT control boards. DF53 series is Hirose’s SignalBee™ miniature crimp connector, the industry’s smallest 0.6mm pitch wire-to-board solution with only 1.45mm overall height, supporting AWG32 ultra-thin multi-strand signal wire. Double lock friction locking + box-shaped contact structure prevents incomplete mating and wire drop-off, stable low-resistance signal transmission under long-term robot arm reciprocating vibration. Halogen-free black flame retardant housing fully complies with RoHS 2.0; customizable wire length, shielded twisted pair, single/dual end DF53 plug, tin-dipped terminal or secondary connector conversion, widely used for robot encoder micro-signal cables, communication board internal jumpers and mini sensor data transmission wiring.

Model:
DF53-5P-0.6C
Brand:
HRS

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon Buy at Aliexpress

DF53-5P-0.6C Connector cable robot wire harness Communication Equipment Cable 0.6mm Cable Assembly

Product Description

0.6mm ultra-fine pitch ultra-thin body solves the PCB layout space bottleneck of miniature collaborative robot servo encoders and portable communication modules, saving over 60% board space compared to 1.0mm/1.25mm common connectors. Double locking anti-drop structure avoids signal disconnection caused by robot high-frequency arm vibration, eliminating robot position drift and communication packet loss faults. Closed box tin-plated contacts maintain stable low resistance for weak differential signals, critical for high-precision robot positioning data transmission. Halogen-free low-smoke flame retardant material meets fire safety standards of medical communication and industrial automation control cabinets; ultra-thin AWG32 flexible wire can be freely routed inside narrow robot joint cavities without occupying mechanical movement clearance. Visual half-mating prevention window enables quick visual inspection during mass production assembly to avoid hidden quality risks from incomplete plug-in.

Every finished DF53 wire harness passes strict factory testing: terminal pull force test, full signal continuity test, vibration fatigue bending test, insulation withstand voltage and salt fog anti-corrosion screening. We supply single-end DF53 plug jumpers, double-head DF53 inter-board cables and shielded anti-interference robot encoder dedicated harnesses for collaborative robot manufacturers, communication module R&D teams and precision test instrument factories.

Specifications

Connector Model	Hirose DF53-5P-0.6C 5Pin crimp plug
Contact Pitch	0.6mm ultra-fine miniature spacing
Rated Electrical Performance	Single pin 1.3A max
Overall Connector Height	1.45mm ultra-low profile
Contact Plating	Copper alloy base matte tin plating
Matching Wire Spec	AWG32 multi-strand thin wire
Operating Temperature Range	-55℃ ~ +85℃

Advantages

Industry-leading ultra-compact 0.6mm pitch low-profile design: Only 1.45mm height, occupies minimal PCB area, perfectly fits ultra-thin miniature robot control boards and compact communication modules with strict space limits.
Dual double-lock anti-drop & anti-half-mating structure: Inner contact lock + outer friction lock with visual inspection window, fundamentally eliminate loose contact and incomplete plug-in hidden dangers under robot long-term vibration.
Closed box-shaped tin-plated contact terminals: Resist pin deformation during wiring, maintain stable low contact resistance, guarantee high-precision differential encoder weak signal transmission without distortion.
Halogen-free flame retardant low-smoke housing: Meet medical communication, industrial automation fire protection requirements, safe for 24/7 continuous operation of precision electronic equipment.
Flexible ultra-thin AWG32 signal wire + strain relief protection: Small bending radius, adapt narrow robot joint internal routing, heat shrink tubing reinforced connector root to prevent wire fatigue fracture after thousands of swing cycles.
Precision equipment exclusive customized harness service: Supply unshielded standard jumpers and shielded anti-EMI robot encoder dedicated cables; small-batch prototype samples available for collaborative robot, mini communication module and portable test instrument product development verification.

Application

Desktop Collaborative Mini Industrial Robots:6-axis collaborative robot servo encoder DF53-5P micro signal harness, small handling gripper position detection DF53 wire-to-board jumper, educational mini robot joint internal thin communication cable assembly
Compact Communication & Network Equipment:Mini industrial gateway control board inter-board DF53 jumper cable, portable 4G/5G communication module internal signal harness, medical patient monitoring equipment micro data transmission wire
Laboratory Precision Test & Measuring Instruments:Portable miniature spectrum analyzer DF53 thin signal cable, multi-channel micro temperature/humidity detector PCB connecting wire, optical measurement instrument low-profile inter-board harness
Mini Industrial Vision Camera Equipment:USB mini industrial camera internal sensor DF53 connector cable, high-speed tiny barcode scanner control board jump wire, machine vision micro trigger signal transmission harness
Small IoT Intelligent Control Hardware:Ultra-thin smart sensor gateway PCB DF53 wiring harness, mini environmental monitoring transmitter internal communication cable, wearable industrial handheld detector thin signal assembly wire

FAQ

Q1: What is the core advantage of Hirose DF53 series compared to common 1.0mm/1.25mm connectors?

A: DF53 adopts 0.6mm ultra-fine pitch with only 1.45mm ultra-low height, far smaller volume to save PCB layout space; double locking anti-drop structure is more reliable for vibration-prone robot equipment, unavailable on ordinary large-pitch connectors.

Q2: Can this DF53-5P-0.6C harness resist long-term robot arm reciprocating vibration?

A: Double-layer lock contact + heat shrink strain relief reinforced wire root design, passed continuous vibration aging test, no wire drop-off or signal interruption during long-term robot joint swing operation.

Q3: Can we upgrade to shielded twisted wire for robot encoder anti-interference needs?

A: Fully supported, we can customize aluminum foil overall shielded AWG32 twisted pair cable, filter EMI interference from robot servo drives to avoid positioning signal drift faults.

Q4: What PCB header matches DF53-5P-0.6C plug?

A: Supporting original Hirose DF53-5S-0.6H PCB receptacle, vertical straight pin and 90° right-angle elbow two mounting styles, compatible with automatic wave soldering production lines.

Q5: What signal circuits is 5Pin DF53 harness suitable for?

A: 5-circuit layout mostly used for robot encoder differential signal + power supply, mini sensor 24V low voltage power + multi-channel digital signal composite transmission.
