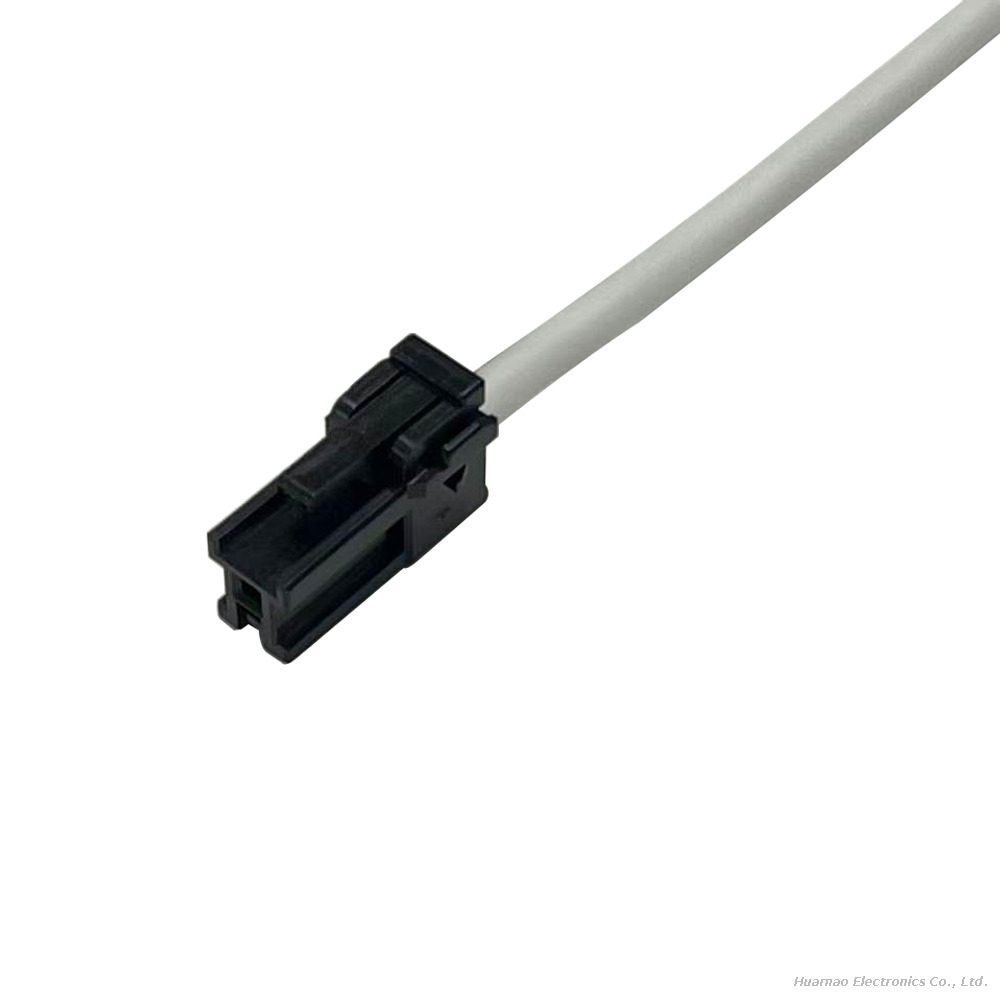

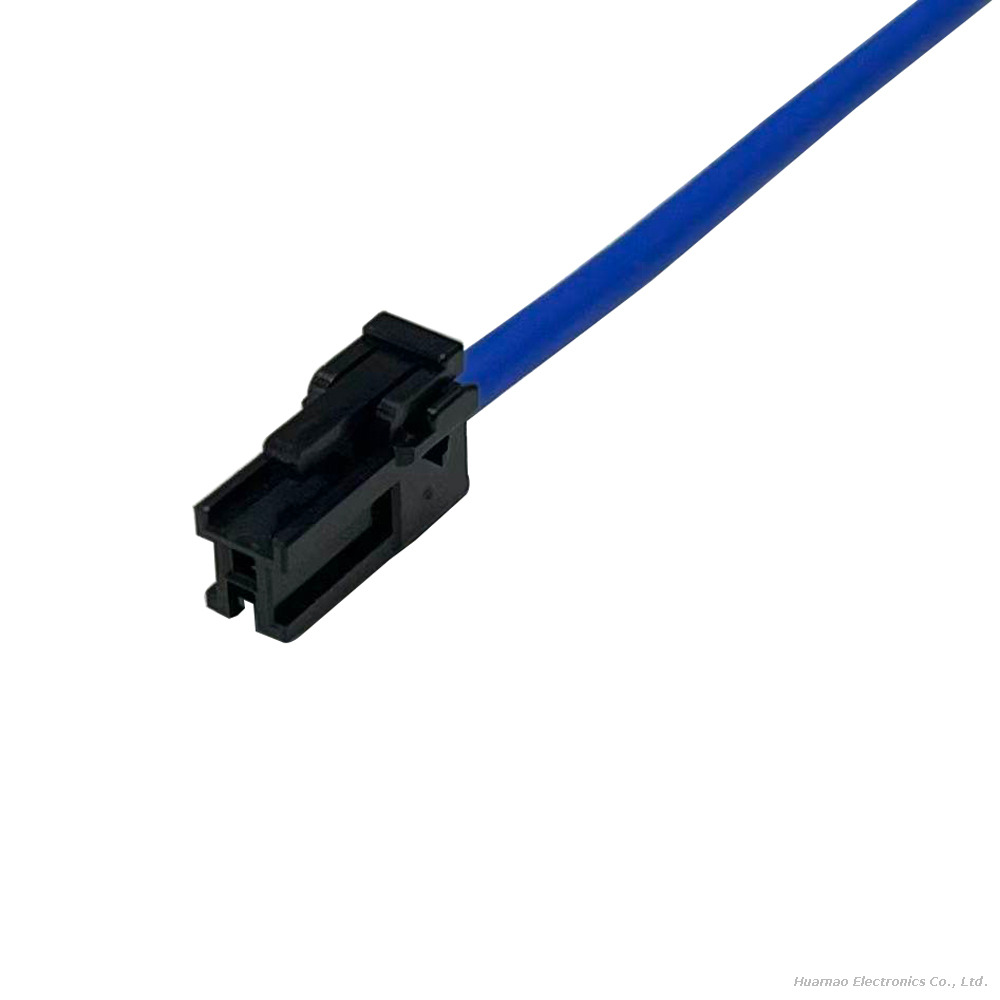

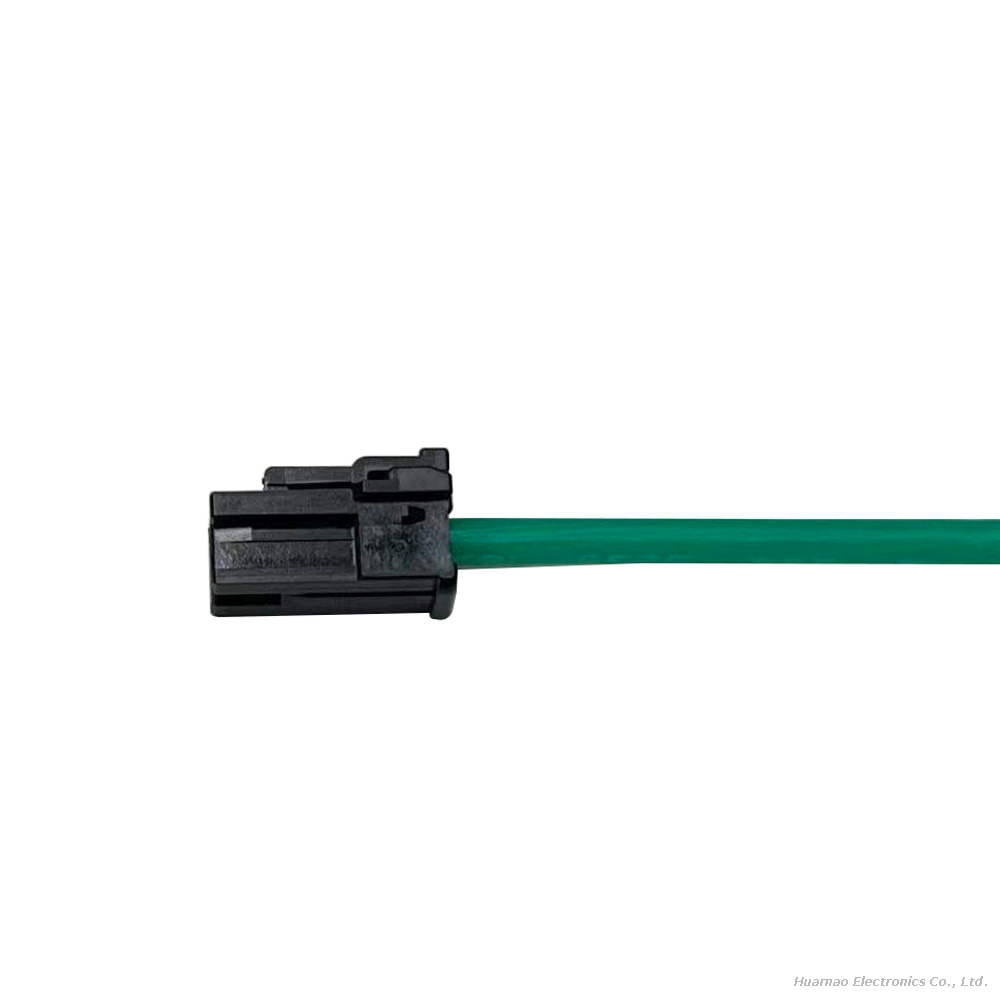

HRS DF63‑1S‑3.96C belongs to HRS DF63 (EnerBee™) high‑current wire‑to‑board connector series, a single‑position crimp‑style socket housing with 3.96 mm pitch, designed for equipment internal power supply interconnection.
Distinctive tactile‑click locking confirms full mating status; multi‑protective mechanical structures avoid reverse‑insertion, half‑insertion and adjacent‑pin short‑circuit risks. Glass‑reinforced housing material improves thermal stability, and the housing‑integrated lance eliminates terminal‑caused wire tangling during assembly.We provide customizable harness solutions: adjustable cable length, assorted wire specifications, tin‑dipped ends and marking labels. Mainly deployed for power distribution of industrial control hardware, household appliances, LED lighting and power‑driven modules.
Specification
| Connector PN | DF63-1S-3.96C(HRS DF63 Series) |
| Pitch | 3.96mm,single row |
| Circuits | 1 Position Crimp Socket |
| Connection Type | Wire to Board high-current power harness |
| Rated Current | Max 15A |
| Rated Voltage | 630V AC/DC |
| Operating Temperature | -55℃ to +105℃ |
| Applicable Wire Gauge | 16-22 AWG |
Advantages
High‑Current 15A Power‑Handling CapacityOptimized contact conductive area supports up to 15A with 16AWG wire, perfectly fits internal power‑supply loops instead of low‑current signal‑only connectors.
Tactile‑Click Central Locking MechanismCenter‑located lock generates obvious click feedback when fully mated, effectively prevents incomplete‑mating hidden faults; central‑lock design avoids side‑latch wire‑tangling issues.
Multi‑Layer Mechanical Protection DesignBuilt‑in anti‑half‑insertion, anti‑reverse‑mating and inter‑contact short‑circuit barrier wall greatly lower assembly‑caused failure risks on production lines.
Glass‑Reinforced High‑Strength HousingAnti‑solder‑crack header material withstands thermal cycling stress; housing‑integrated lance structure avoids wire‑harness entanglement during assembly operations.
Authoritative Global Safety CertificationsUL, C‑UL and TÜV listed, meets safety requirements for household appliances and industrial equipment mass‑production projects.

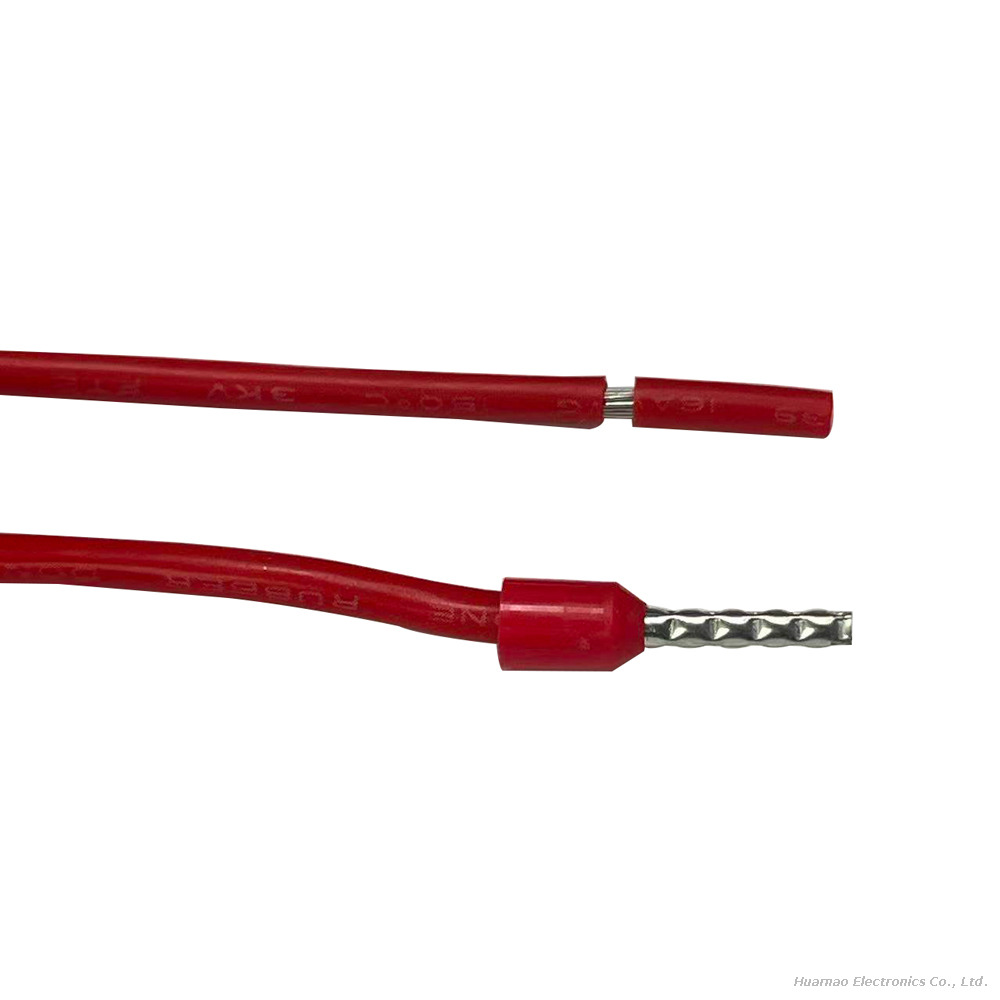

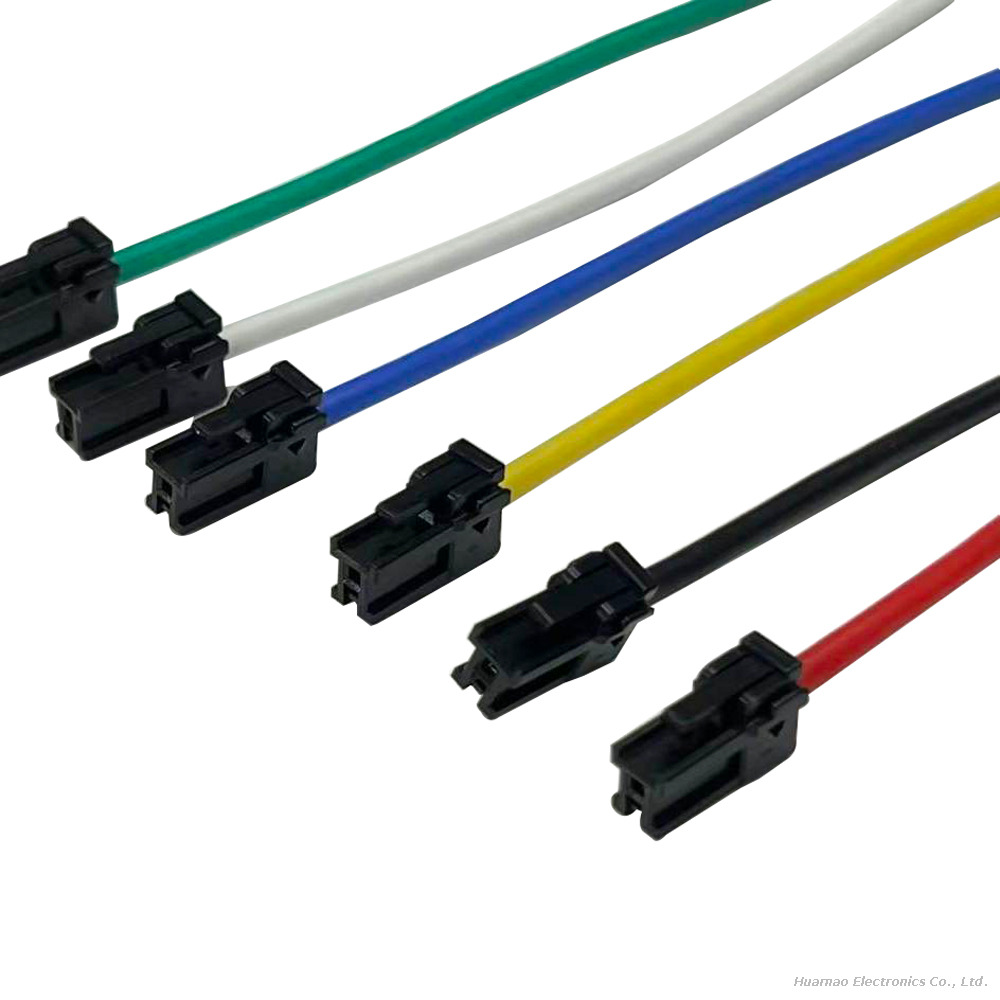

Flexible Custom‑Built Harness ServiceAdjust cable length, wire gauge and termination forms according to customer mechanical and electrical requirements.
Application
Industrial Control Equipment
PLC peripheral modules, motor driver unit, industrial controller internal power distribution wiring.
Household & Commercial Power‑Driven Appliances
High‑power kitchen appliances, smart vacuum equipment, power supply unit internal power harness.
LED Lighting Systems
High‑power LED panel, commercial lighting module internal power‑supply interconnection.
Energy‑Storage & Battery‑Related Modules
Small‑scale battery pack, stationary power unit internal power‑loop wiring.
Office & Automation Devices
Copier, printer and small automation equipment internal high‑current power connection.
FAQ
Q1: What is HRS DF63‑1S‑3.96C used for?
A: DF63‑1S‑3.96C is HRS DF63 series single‑position 3.96 mm pitch crimp socket housing, dedicated for wire‑to‑board high‑current internal‑power‑supply harness assembly, max 15A rating with 16AWG wire.
Q2: Why the actual current is lower when using thinner wire?
A: Rated current depends on wire cross‑section; 15A is achieved with 16AWG. Smaller AWG wires need current derating, please refer to official datasheet for exact values.
Q3: What does “tactile‑click locking” mean?
A: When connector is fully plugged‑in, users can feel and hear an obvious click, which visually and mechanically confirms complete mating and avoids half‑mating risks.
Q4: Is DF63‑1S‑3.96C waterproof?
A: Standard DF63 series is non‑waterproof, intended for inside‑enclosure installation. For waterproof requirement, select DF63W waterproof variant instead.
