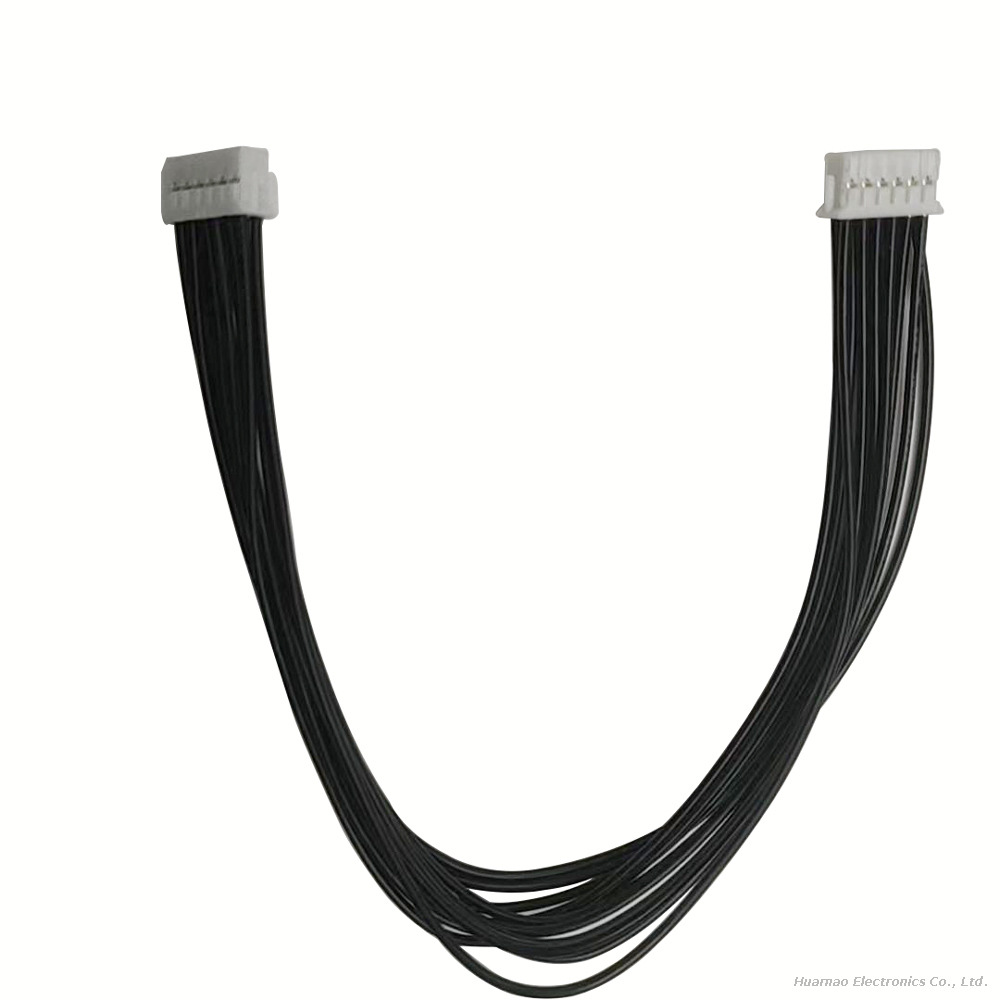

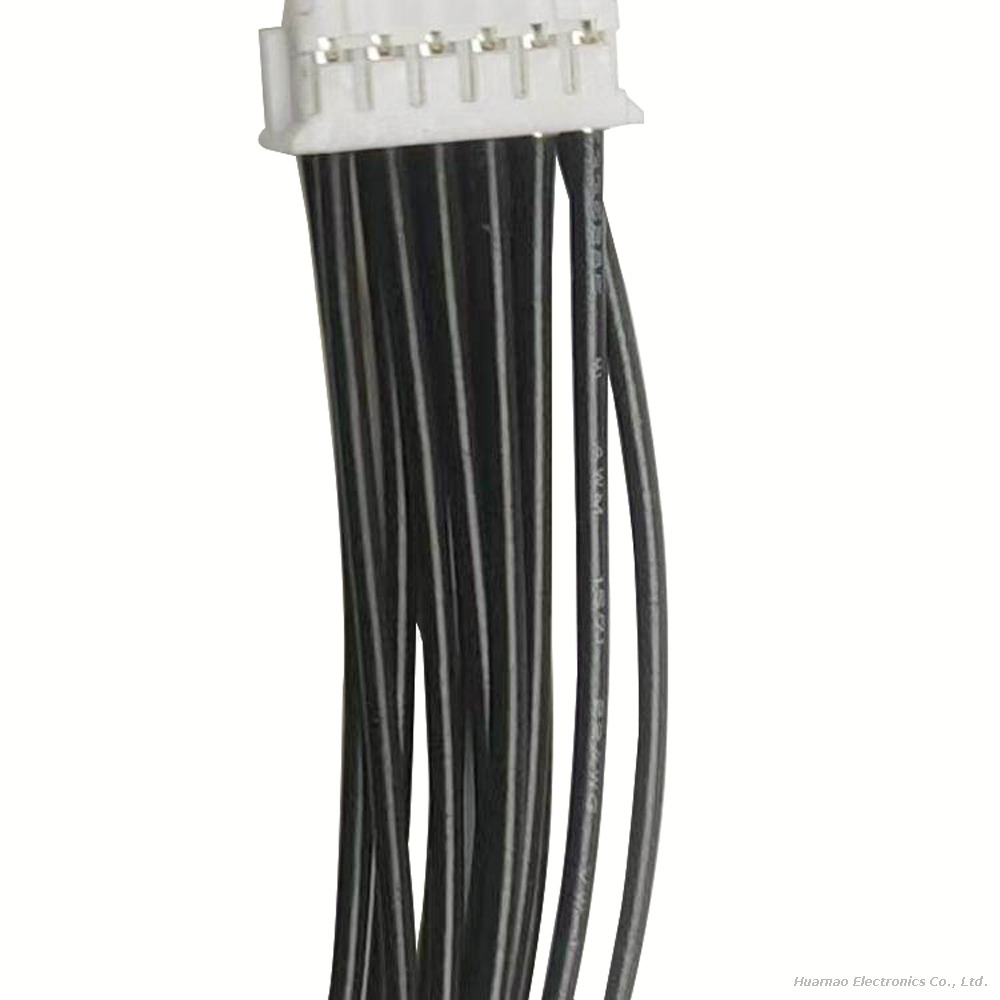

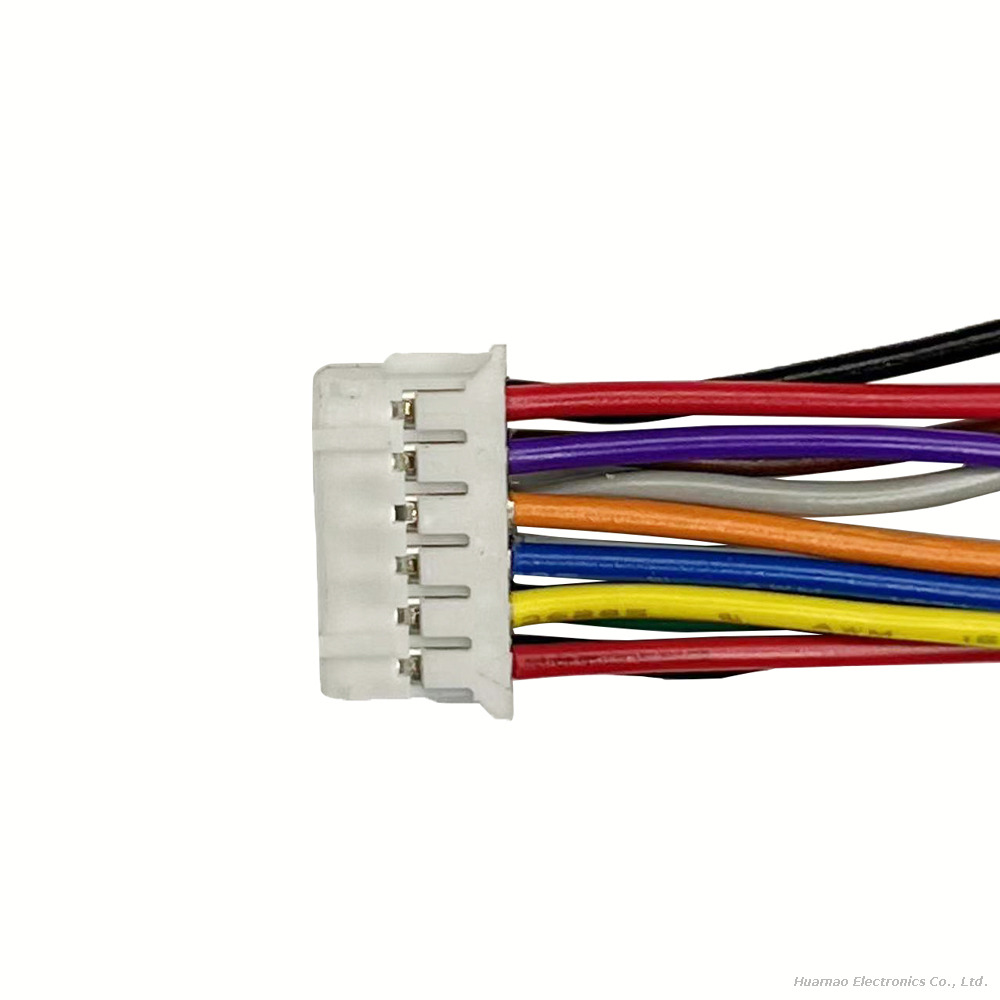

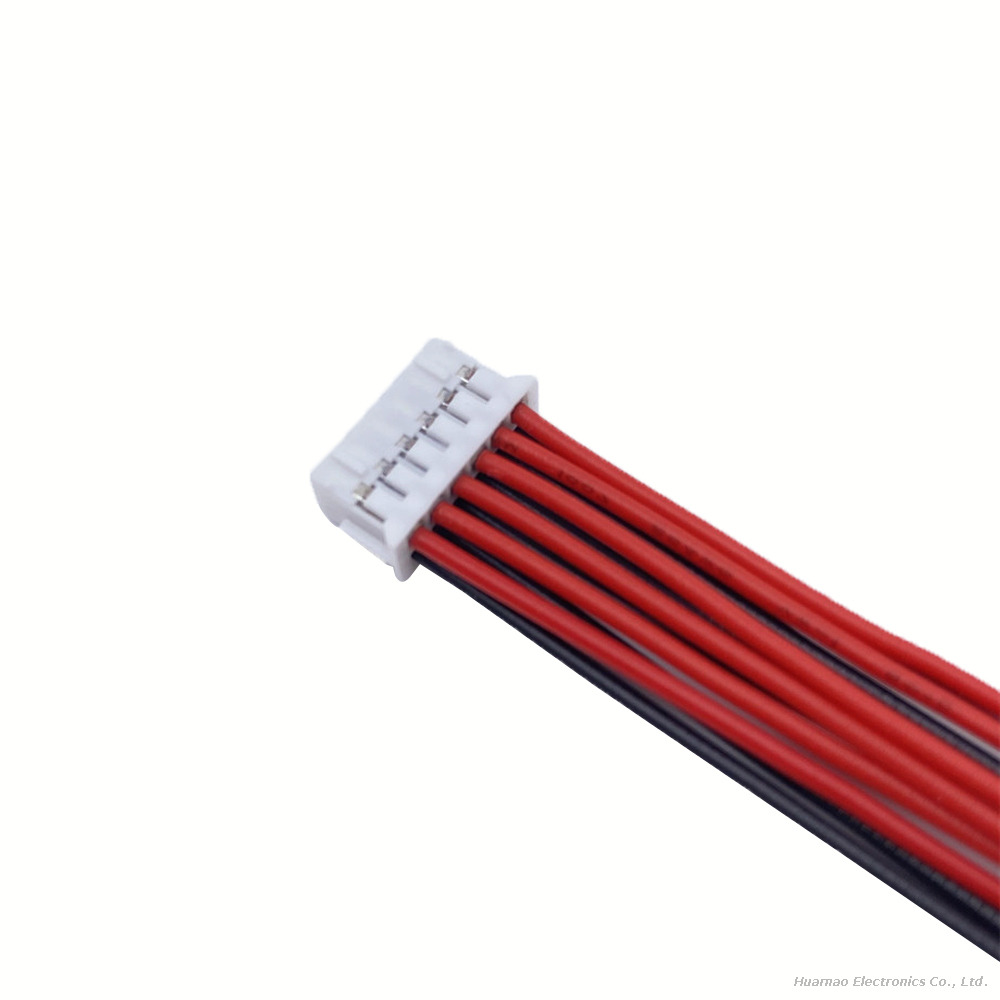

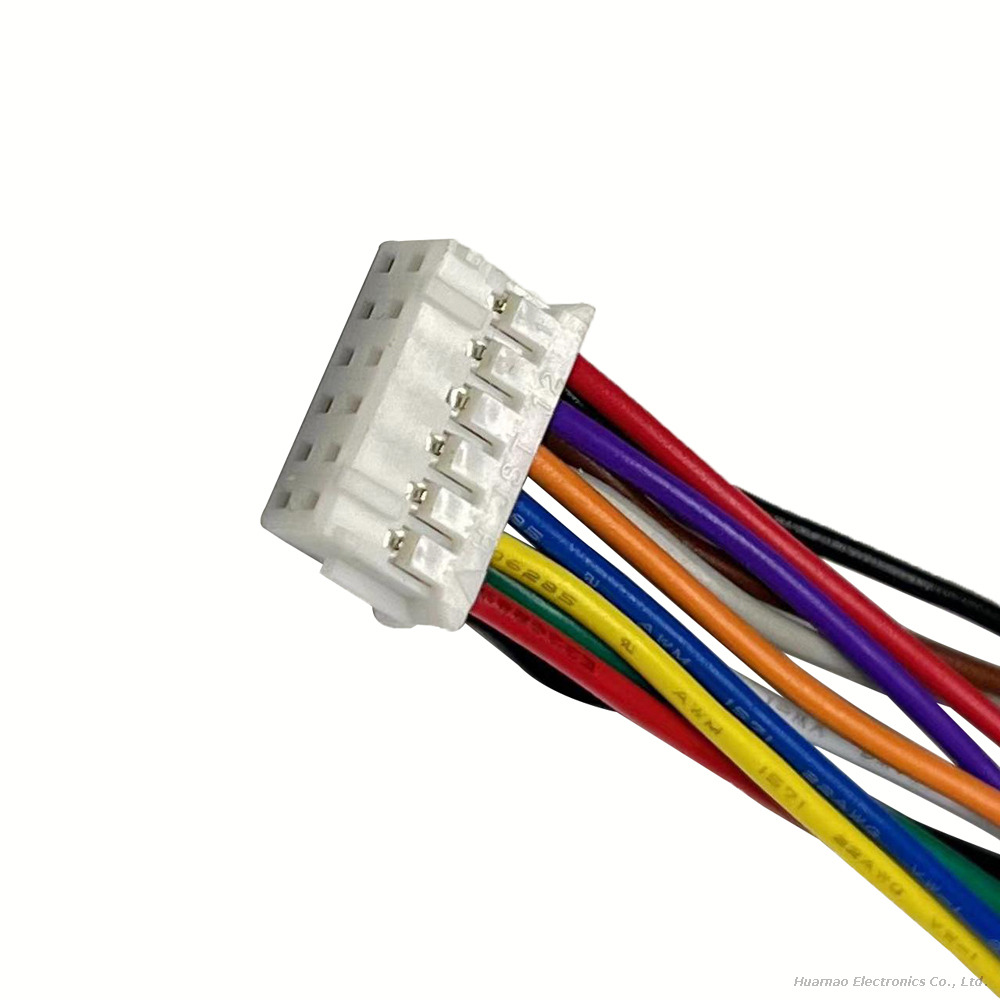

JST PHDR-12VS 12Pin Connector PHD 2.0mm Wire to Board Extension Jumper Wire

This industrial high-density finished wiring harness adopts genuine JST PHDR-12VS receptacle housing, belonging to PHD dual-row wire-to-board connector system, standard 2.0mm equal pitch.

The fully shrouded male matching header + polarized foolproof structure effectively avoids mis-mating and foreign metal debris short-circuit; dual-row high-density design integrates 12 power/signal channels into an ultra-compact housing, greatly saving PCB layout space for PLC, robot main control boards and servo modules. Matched with original SPHD series tin-plated crimp terminals and UL1007 multi-strand flexible wire, it supports simultaneous transmission of multi-channel sensor signals and miniature power supply.

Operating temperature range -25℃ ~ +85℃, UL94 V-0 flame retardant PA66 housing meets industrial automation safety standards. Widely applied to PLC expansion modules, 6-axis robotic arm main control boards, AGV multi-sensor integrated wiring, servo drive signal extension, automated production line detection equipment. Support full customization of wire length, wire gauge, single-end bare tinned lugs, shielded twisted anti-EMI wire; all raw materials comply with UL, RoHS and industrial low-halogen environmental requirements.

Specifications

Advantages

• 2×6 Dual-Row High-Density Design Saves Industrial Control PCB Space (Core Advantage)

  12 channels integrated into a slim dual-row housing, occupies only half the horizontal width of single-row 12Pin connectors, perfectly solves layout space limitations of compact PLC modules, mini servo drives and collaborative robot main control boards.
• Fully Shrouded Four-Sided Baffle Dustproof & Anti-Short Circuit For Workshop Environments

  Compared with open single-row PH series connectors, PHD fully shrouded structure blocks workshop metal cutting debris, dust and flux residue, avoids hidden short-circuit faults of industrial equipment under long-term 24-hour continuous operation.
• Box-Type Double-Sided Contact Terminals Ultra-Stable For Vibration Automation Scenarios

  Box enclosed contact has larger contact area and stronger anti-vibration performance than single-sided spring terminals; suitable for robotic arm reciprocating movement, stamping equipment vibration environment, no intermittent signal loss or communication dropout.
• UL94 V0 Flame Retardant PA66 Housing Meets Industrial Equipment Safety Certification

  Flame retardant nylon material complies with IEC industrial control safety standards, no continuous flame spread under local circuit overheating, can be directly matched with export PLC, servo and automation equipment for whole-machine certification.
• Complete 2P~30P Full Dual-Row PHD Series Unified Standardization

  PHD series covers full dual-row pin counts 2P/4P/6P/8P/12P/16P/30P with uniform 2.0mm pitch; industrial control manufacturers can unify one connector model for multi-module wiring, simplify PCB design and reduce spare part inventory types.
• One-Stop Custom Industrial Control Harness Manufacturing Service

  Support small-batch prototype samples and mass OEM bulk production; customizable wire-to-board single-end extension harnesses, multi-channel bundled PLC wiring sets, wear-resistant fabric bellows protected robot internal wiring, direct plug-and-play assembly after delivery to automation equipment factories.

Application

• PLC & Industrial Controller Multi-Signal Expansion Circuits

  Small PLC expansion module PHDR-12VS multi-channel IO extension harness, motion control mainboard power-signal composite wiring assembly, temperature/humidity multi-channel acquisition extension cable

• 6-Axis Collaborative & Handling Robotic Arm Main Control Systems

  Robot main control motherboard 12-channel encoder + limit sensor integrated wiring harness, servo joint multi-signal dual-row extension cable, AGV mobile robot BCM multi-sensor detection wiring line

• Servo Drive & Automated Production Line Detection Equipment

  Mini servo driver control board dual-row signal power jumper, packaging machine multi-photoelectric sensor composite cable, CNC equipment auxiliary IO interconnection extension harness

• Intelligent Logistics Sorting & Palletizing Automation Equipment

  Warehouse sorting robot multi-limit switch wiring assembly, palletizing machine safety detection 12Pin signal cable, conveyor line vision trigger multi-channel harness

• Medical Testing & Small Precision Automated Instruments

  Portable medical detection equipment multi-sensor wiring line, laboratory miniature signal analyzer high-density dual-row jumper, precision dispensing machine control board extension cable
