M8 Brass Socket Screw IP67 Waterproof Metal Panel Mount Connector

M8 Brass Socket Screw IP67 Waterproof Metal Panel Mount Connector

High-quality M8 Solder Socket, available in 3 4 5 6 8 pins for front or rear panel mounting. Features metal housing, IP67 waterproof protection, and solder cup terminals for secure wiring. Suitable for sensors, automation systems, and control devices, providing reliable signal transmission and long service life in industrial environments.

Model:
M8 Solder Socket
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

M8 Solder Socket m8 connector IP67 Waterproof Connector Metal Panel Mount Connector aviation connector

Product Description

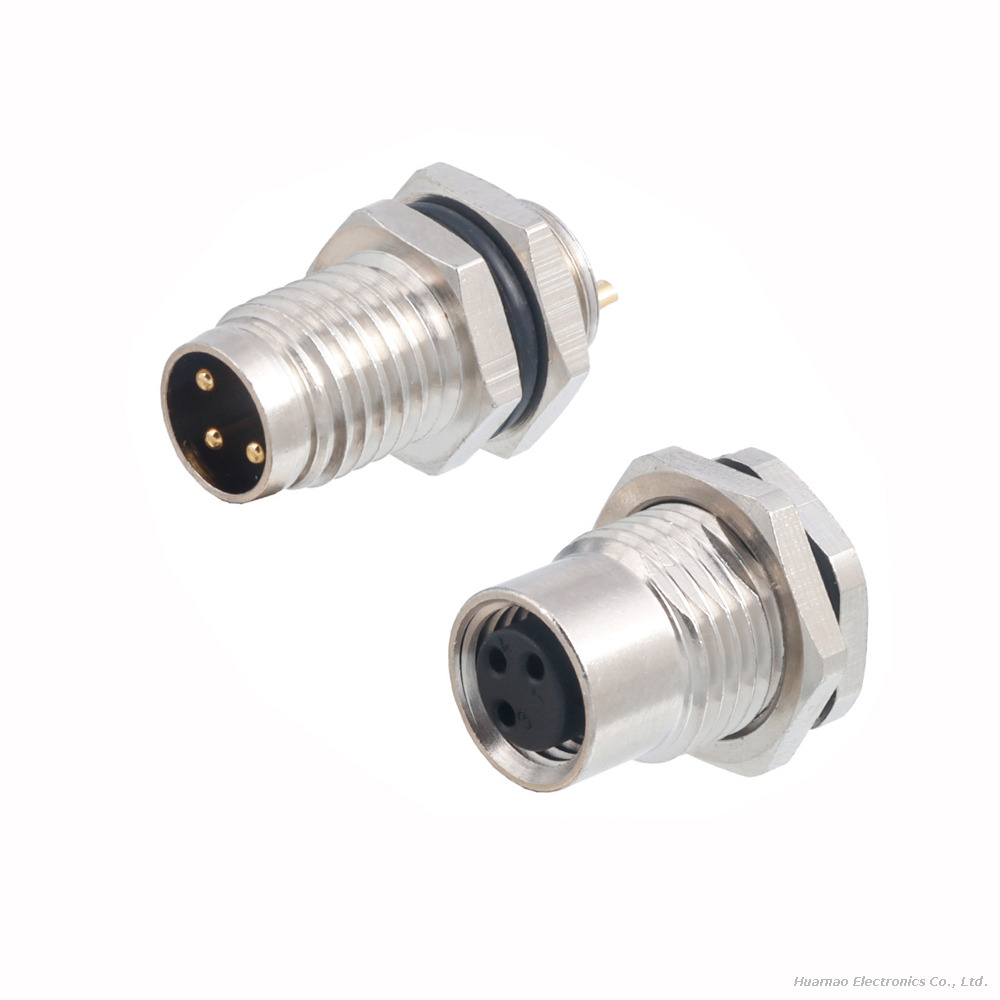

This is a pair of M8 3-position male/female through-panel metal aviation sockets, all nickel-plated brass threaded housing with built-in silicone waterproof gaskets, reaching IP67 dustproof & waterproof after full nut locking. It belongs to miniature industrial circular M8 series connectors, specially matched with straight/elbow molded M8 sensor cables, widely used for micro proximity sensors, miniature photoelectric detectors, desktop collaborative robot limit switches, laboratory precision micro transmitters and small AGV obstacle avoidance micro probe signal connection.

Ultra-small M8 metal threaded structure saves ultra-limited panel installation space of micro detection equipment; integrated silicone sealing ring realizes one-step panel waterproof isolation, effectively blocking workshop cooling water mist, fine metal dust and light cutting fluid splashing. Internal thick gold-plated contact pins provide stable low-resistance signal transmission, pass 48-hour neutral salt fog anti-corrosion test, anti-rust and anti-oxidation for long-term humid workshop operation. Fully RoHS compliant, optional 2/3/4/5Pin pin counts, front/rear two-way panel mounting design, customizable matching shielded/unshielded M8 drag chain cables, widely applied to mini packaging machinery, micro environmental monitoring sensors and compact automated test instruments.

M8-M12-Brass-Socket-Screw-IP67-Waterproof-Metal-Panel-Mount-Connector

Advantages

Full brass nickel-plated integrated panel waterproof structure: Compared with plastic M8 sockets, solid brass housing has strong compression and impact resistance, matched silicone gasket to realize panel one-step IP67 waterproof, no extra sealing auxiliary materials needed during assembly.
M8 ultra-miniature compact size design: Smaller outer diameter than M12 connectors, perfectly adapt thin micro sensor and mini equipment narrow panel mounting holes, realize lightweight miniaturized detection equipment layout.
Dual male/female matching panel sockets available: Male pin panel mount + female hole panel mount two types, flexible matching different equipment internal wiring design schemes, compatible with all standard M8 molded sensor cables on the market.
Anti-corrosion gold-plated contact system: Thick gold plating effectively avoids contact resistance rise caused by long-term workshop humidity and temperature cycling, guarantee accurate micro sensor weak signal collection without drift.

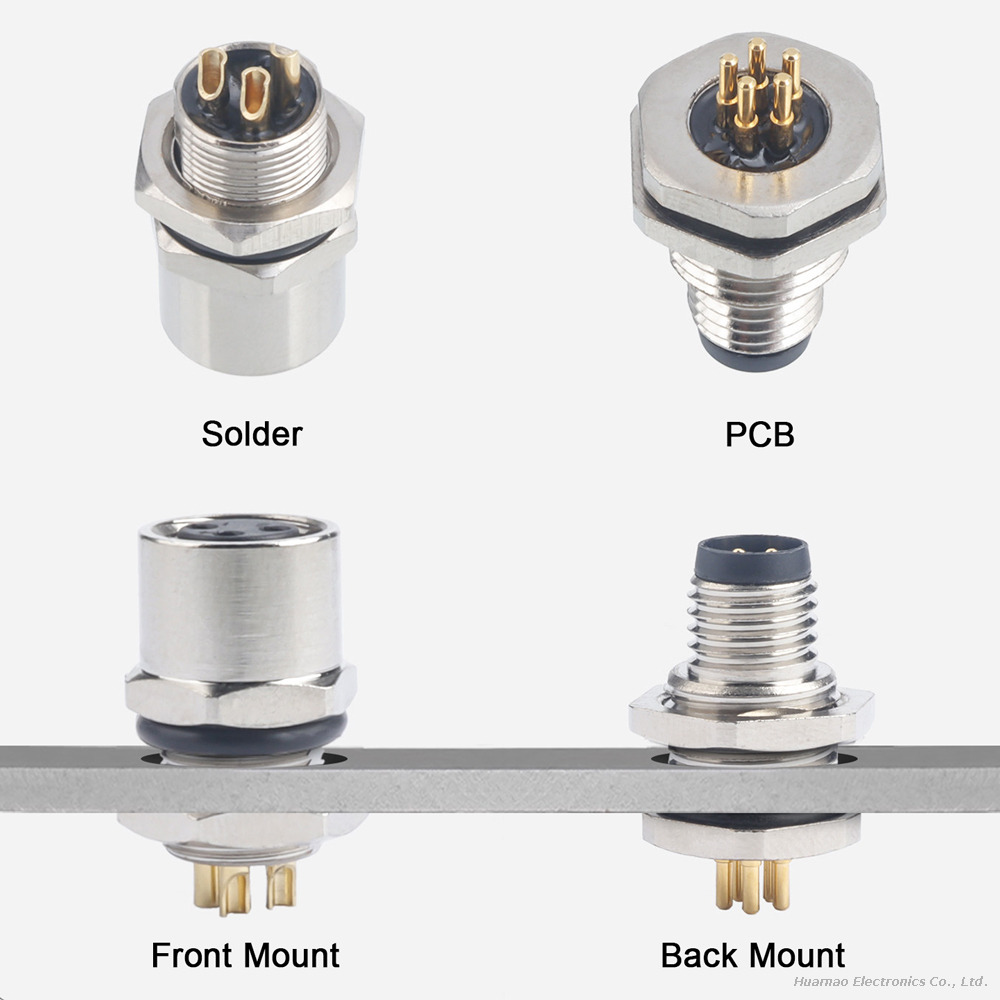

Two-way front/rear panel mounting compatible: The threaded body can be installed from front or back of equipment cabinet panels, flexible for different equipment internal space layout demands.
Micro sensor exclusive matching customization service: Support complete sets of M8 panel socket + customized length straight/elbow PUR/PVC signal cables, small batch prototype samples available for new miniature robot and micro sensor product verification.

Application

Desktop Mini Collaborative Robots:Desktop robot micro limit switch M8 female panel socket, small handling gripper proximity sensor male panel mount connector, educational mini robot obstacle detection 3Pin M8 metal socket assembly
Mini Automated Packaging & Labeling Equipment:Mini labeling machine micro color sensor M8 brass panel socket, desktop automatic screw machine proximity detection aviation socket, small food packaging counting photoelectric sensor panel mount connector
Laboratory Precision Micro Test Instruments:Laboratory micro temperature transmitter M8 3Pin panel socket, miniature optical displacement detector metal aviation socket, portable micro gas sensor equipment through-hole connector
Mini AGV & Light Logistics Sorting Equipment:Lightweight mini AGV car obstacle avoidance micro photoelectric M8 panel socket, small warehouse inventory counting micro scanning sensor metal aviation connector assembly
Mini Environmental Monitoring Intelligent Detectors:Indoor tiny air quality monitor micro sensor M8 brass socket, greenhouse miniature temperature and humidity transmitter through-hole panel connector, small water tank liquid level micro detection aviation socket

FAQ

Q1: What is the waterproof principle of this M8 metal panel socket?

A: A silicone compression O-ring is sleeved between the hexagonal lock nut and the equipment panel. After tightening the nut, the gasket is tightly pressed to fill the gap between the connector housing and the metal panel, realizing IP67 waterproof isolation for the panel mounting surface.

Q2: Can this M8 panel socket be used in machine tool workshops with cutting fluid and oil mist?

A: The whole nickel-plated brass shell passes 48h salt fog test, with excellent anti-rust and anti-corrosion performance; matched oil-resistant PUR M8 cable can resist long-term erosion of cutting fluid and lubricating oil mist.

Q3: What is the difference between male pin and female hole M8 panel sockets?

A: Male panel socket has exposed gold-plated male pins on the front for mating with female cable plugs; female panel socket has built-in elastic female jacks on the front for mating with male cable plugs, customers can choose according to equipment internal wiring layout.

Q4: Can the rear end of the socket be customized for direct wire crimping instead of PCB soldering?

A: Yes, we can customize rear crimp terminal structure, which can directly crimp AWG28/AWG30 thin signal wires without PCB board welding operation.

Q5: What signal circuits is the 3Pin M8 panel socket suitable for?

A: 3Pin layout is mainly used for two power lines + one signal line of micro proximity and photoelectric sensors, supporting DC 12V/24V miniature sensor power supply and analog/digital signal synchronous transmission.
