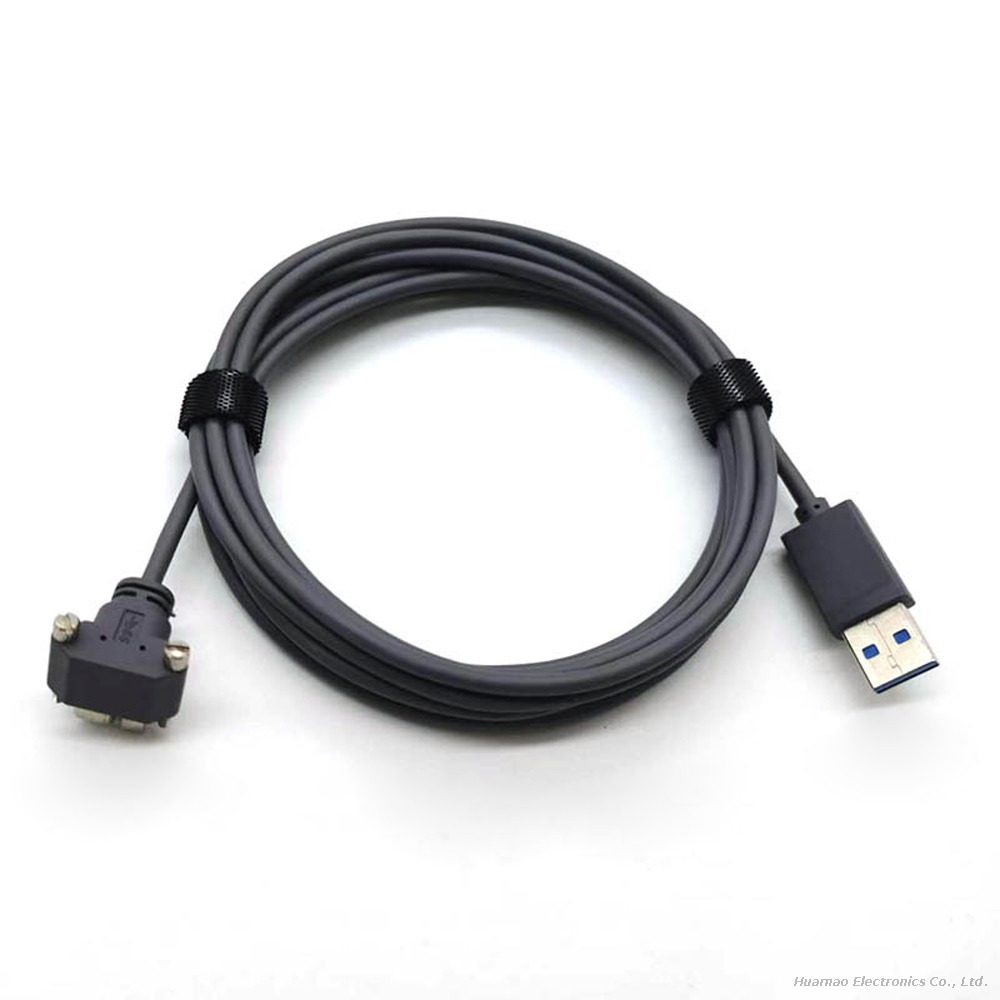

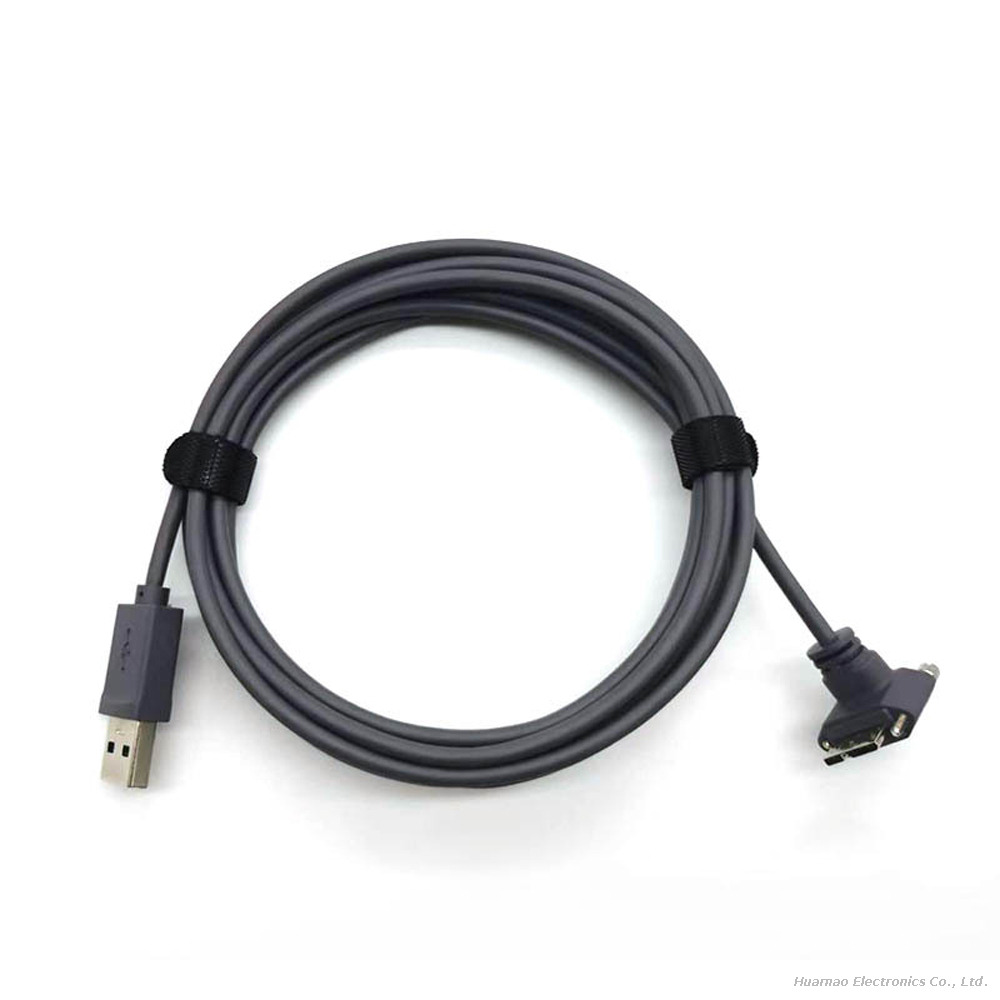

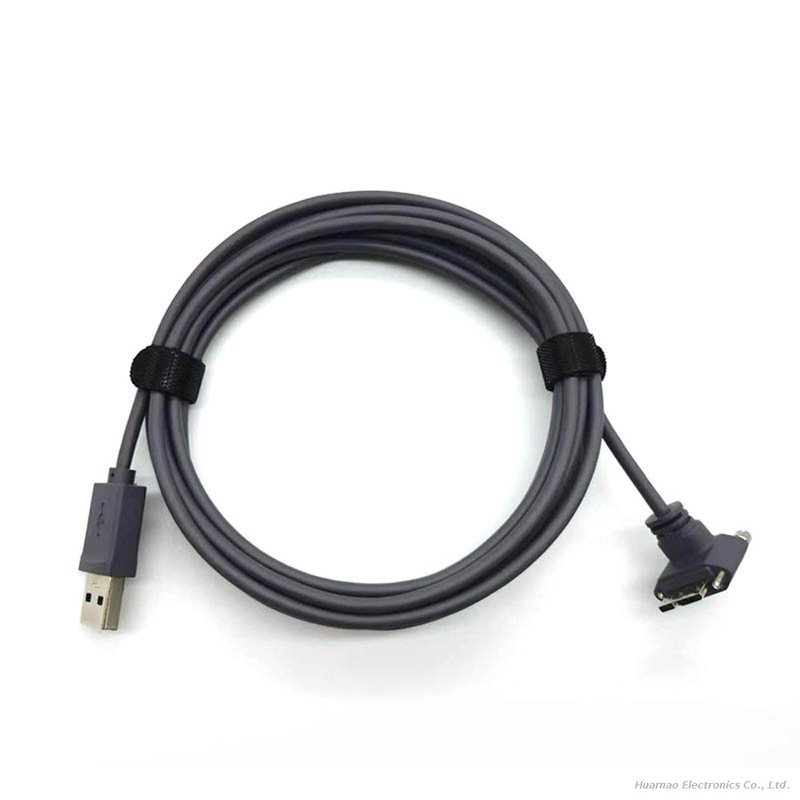

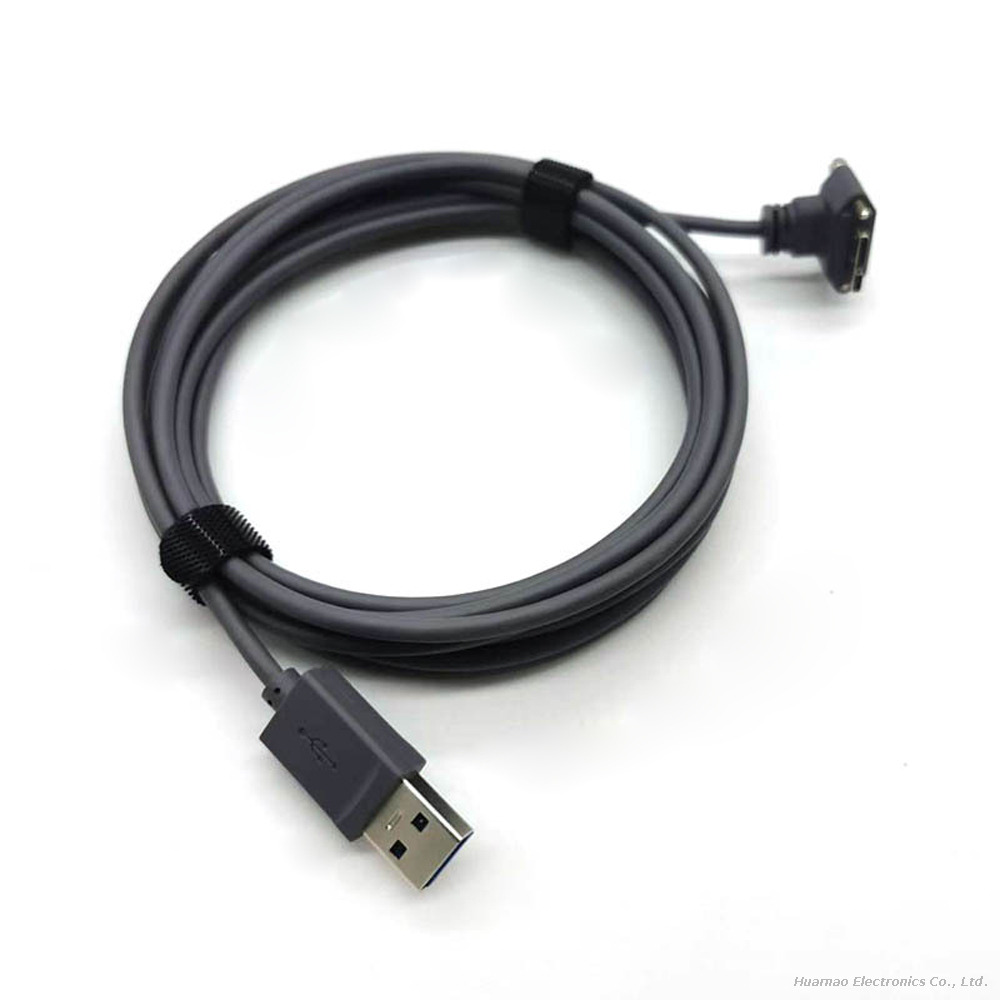

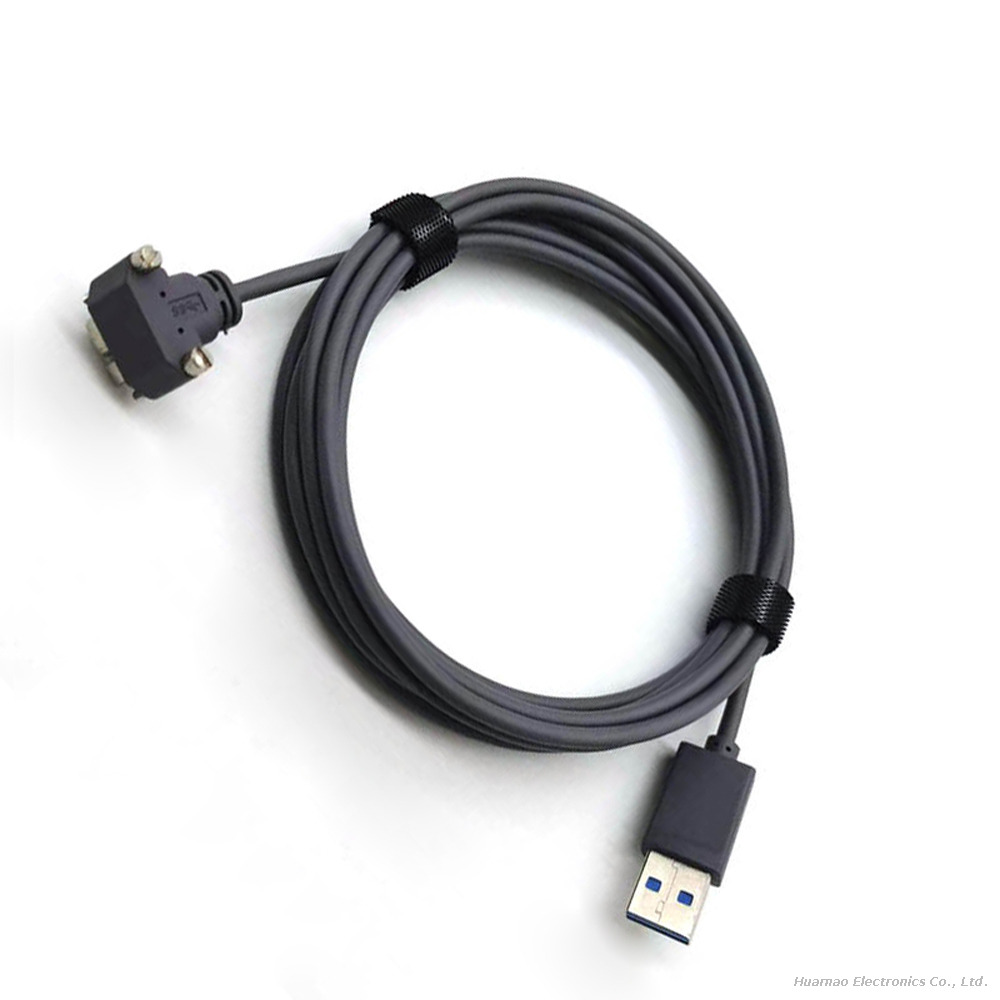

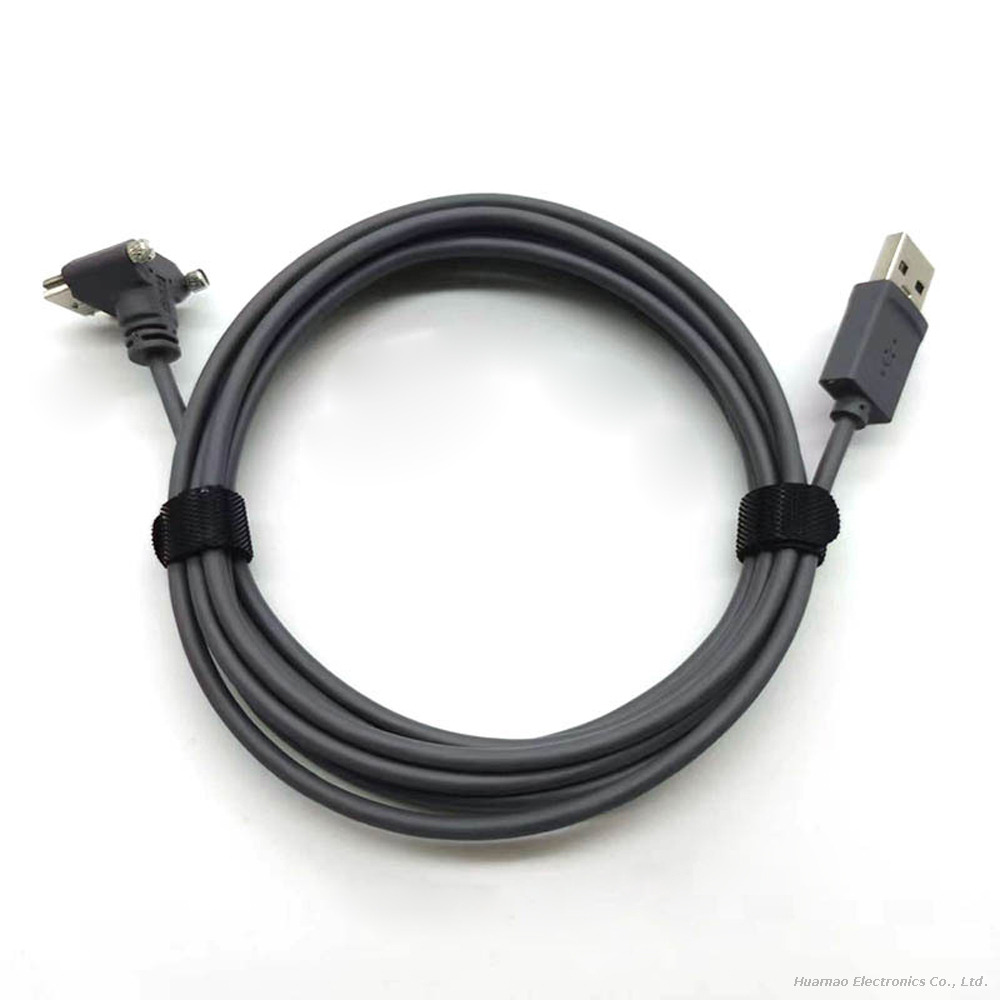

Elbow Micro USB to USB PVC High-flexible Cable Robot Data Wire

This customized data transmission harness matches straight standard USB-A male plug and 90° elbow panel-fixed Micro USB male connector, adopting high-flex soft PVC multi-core shielded cable, specially developed for intelligent collaborative robots, automated equipment touch screens, industrial handheld control terminals and embedded intelligent hardware data upload & power supply integrated wiring. The elbow Micro USB with flange mounting holes can be locked on equipment panels to avoid loose contact caused by cable pulling; built-in aluminum foil shielding layer effectively filters industrial motor electromagnetic interference to guarantee stable high-speed data transmission without packet loss. All materials comply with RoHS consumer & industrial dual standards, customizable cable length, wire gauge, shielding thickness and pin definition are supported, widely applied to desktop collaborative robots, automated test stations, intelligent vending machines, industrial handheld programmers and educational programming robot control modules.

Model:
Micro USB to USB
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

Micro USB to USB A wiring harness high-flex PVC cable robot data communication cable USB conversion cable elbow USB connecting assembly

Product Description

The flange-mounted elbow Micro USB solves the common failure of ordinary floating Micro USB plugs falling off after long-term equipment vibration and cable pulling; the 90° right-angle outlet does not occupy extra lateral internal space of narrow robot control boxes, avoiding cable extrusion abrasion. Twisted internal core layout reduces signal crosstalk between power and data lines, while full aluminum foil shielding isolates EMI noise from robot servo motors and frequency converters to prevent data transmission packet loss and garbled code faults. High-flex soft PVC outer sheath withstands tens of thousands of reciprocating bending cycles without wire core fracture, adapting to frequent opening/closing of robot control cabinet doors and regular equipment debugging plugging operations. Dual-end integral injection molding process eliminates split connector loose contact hidden dangers, and the attached black velcro cable tie facilitates neat wire sorting inside robot equipment cabinets.

Every finished robot data harness passes strict factory testing before shipment, including USB high-speed data transmission stability test, reciprocating bending fatigue test, terminal pull retention force test and electromagnetic interference shielding aging screening. We supply fixed-length finished data cables and customized pin-definition conversion wiring for intelligent robot manufacturers, automated equipment integrators and educational electronic hardware brands.

Specifications

Cable Internal Structure	4 core twisted composite wire
Wire Gauge	AWG26
Outer Sheath Material	High-flex soft gray PVC
Operating Temperature Range	-20℃ to +75℃

Advantages

Flange elbow panel mount Micro USB anti-loose design: Reserved screw mounting holes lock the connector firmly on robot equipment panels, completely avoid data interruption caused by accidental cable pulling and long-term equipment vibration, solving the biggest pain point of floating Micro USB plugs in industrial intelligent equipment.
USB2.0 full-speed aluminum foil anti-interference shielding wire: Twisted core + full aluminum foil wrapping structure effectively suppress electromagnetic noise generated by robot servo motors and industrial frequency converters, guarantee stable lossless data upload/download for robot motion parameter debugging.
High-flex soft PVC anti-bend cable: Ultra-soft thickened PVC outer sheath and multi-strand flexible copper core pass tens of thousands of bending tests, suitable for frequent opening of robot control cabinets and repeated disassembly during equipment maintenance, will not crack or break easily like rigid ordinary USB cables.
90° right-angle space-saving outlet layout: The elbow Micro USB bends the cable downward parallel to the equipment panel, does not protrude outward to occupy robot cabinet internal layout space, prevent cable extrusion friction damage caused by narrow cabinet stacking.
Integrated power + data one-line transmission: 4-core composite wire simultaneously provides 5V auxiliary power supply and high-speed data communication for robot control boards, eliminate separate power cord and data wire dual wiring layout to simplify equipment internal circuit arrangement.
Intelligent robot & educational equipment dual-purpose flexible customization service: Support ultra-short 0.2m built-in robot cabinet internal wiring and 8m long-distance debugging extension cables, small batch prototype sample orders available for new collaborative robot and educational coding robot product development verification.

Application

Desktop Collaborative & Educational Programming Robots:6-axis desktop collaborative robot control panel data communication cable, student coding education robot mainboard power-data integrated harness, small handling robot touch screen elbow Micro USB connecting wire, educational assembly robot parameter debugging USB conversion cable
Automated Production Line Intelligent Control Equipment:Automatic packaging machine touch screen panel fixed data transmission harness, logistics sorting robot handheld programming terminal USB cable, automated gluing equipment controller elbow Micro USB wiring assembly, bench test robot multi-channel sensor data upload wire
Retail & Commercial Intelligent Terminal Equipment:Self-service vending machine internal mainboard data communication cable, supermarket self-checkout touch screen fixed USB harness, intelligent access control embedded mainboard elbow Micro USB power-data wire, hotel self-check-in terminal data transmission cable
Industrial Handheld Debugging & Test Instruments:Portable robot parameter calibrator USB data cable, desktop multi-channel sensor test bench elbow Micro USB harness, handheld industrial code reader panel fixed data connecting wire, electronic component aging test equipment communication cable
Small Embedded Intelligent Hardware Devices:Mini industrial gateway power-data integrated wiring harness, intelligent monitoring camera panel fixed Micro USB cable, small environmental data collector USB transmission wire, indoor intelligent robot mainboard communication assembly

FAQ

Q1: What is the unique advantage of the elbow flange Micro USB compared to ordinary straight Micro USB plugs?

A: It has two reserved screw mounting holes that can be fixed on the equipment panel, effectively resisting external cable pulling force and long-term robot workshop vibration, avoiding accidental disconnection and data loss; the 90° bent outlet also saves cabinet internal layout space.

Q2: Can this cable resist electromagnetic interference from robot servo motors?

A: The internal 4-core twisted wire is wrapped with full aluminum foil shielding layer, which can isolate EMI noise generated by servo drives and frequency converters, ensure stable USB2.0 high-speed data transmission without packet loss.

Q3: How many bending times can the high-flex PVC cable withstand?

A: It passes more than 50,000 reciprocating folding fatigue tests, suitable for frequent opening and closing of robot control cabinet doors and repeated debugging plugging operations in daily production.

Q4: Does this cable support simultaneous power supply and data transmission for robots?

A: Yes, the 4-core composite wire integrates VBUS power supply line and D+/D- differential data lines, one cable completes 5V power supply and bidirectional high-speed data communication for robot control boards.
