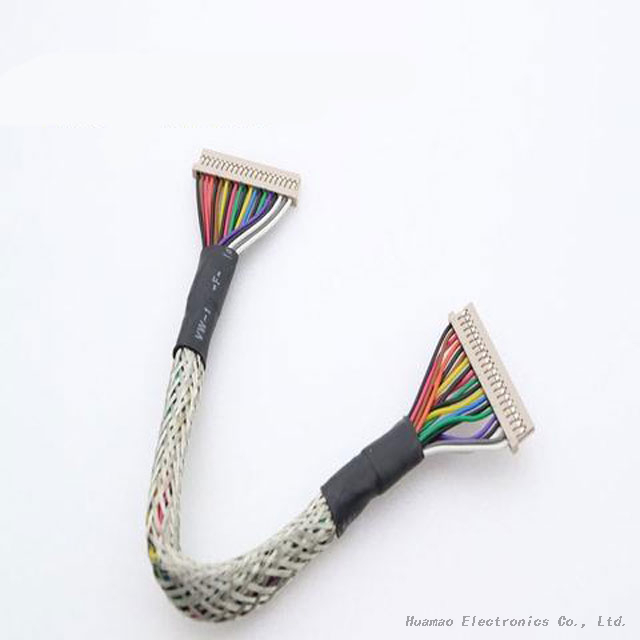

Hrs DF14 series 1.25mm Pitch Wire Harness Connector Cable Assembly for Battery

Hrs DF14 Series 1.25mm Pitch Wire Harness Connector Cable Assembly for Battery Integration

The Hrs DF14 series 1.25mm pitch wire harness connector cable assembly is developed for compact battery-powered applications. It uses a 1.25mm pitch DF14 connector, ideal for tight PCB layouts and space-limited designs.

This 1.25mm cable assembly features pre-crimped terminals, insulated wires, and a secure locking design. It provides reliable board-to-wire connections in portable electronics, smart wearables, and battery packs. The connector supports stable signal and low-voltage power transmission.

Each Hrs wire harness is available in different wire gauges and custom lengths. It’s used in rechargeable battery modules, IoT sensors, and robotics controls. The DF14 connector ensures consistent contact, even in constant-motion environments.

Manufactured with tinned copper conductors and PVC or Teflon insulation, the Hrs DF14 series cable offers strong electrical performance. It suits both indoor and outdoor battery assemblies. All harnesses are 100% tested for continuity and voltage resistance before shipping.

This Hrs DF14 series cable assembly for battery use is trusted in industries such as consumer electronics, medical equipment, and security systems. Its compact design supports modern miniaturized circuit requirements.

OEMs searching for a reliable 1.25mm pitch wire harness for battery integration choose this model for its dependability and customization options. We provide bulk supply, global shipment, and support custom production with short lead times.

This product meets growing demand for high-density battery wiring. It is a widely searched solution for engineers looking for Hrs DF14 series cable, Hrs wire harness for battery packs, or 1.25mm cable assembly for portable electronics.

Practical Features of Hrs DF14 Series 1.25mm Pitch Wire Harness for Battery Applications

1. Low-Height Connector for Space-Limited Designs

This 1.25mm pitch wire harness uses a right-angle DF14 connector. It supports low-profile mounting on compact PCBs. The DF14H version offers an even lower board height for tighter enclosures. You can use this Hrs DF14 series cable in battery-powered devices where space is limited.

2. Secure Locking Structure

The connector includes a built-in locking mechanism. It prevents unintentional separation during movement or vibration. This feature makes the Hrs DF14 series cable assembly reliable for wearable devices, medical tools, and robotic systems.

3. Compatible with Pick-and-Place Automation

The connector surface supports vacuum pickup. It comes packaged in embossed tape or tubes. This allows easy use in automated SMT lines during large-scale production. If you're sourcing a 1.25mm cable assembly for battery devices, this feature supports efficient manufacturing.

4. Four-Wall Structure for Alignment Protection

The housing includes four side walls. These help prevent misconnection or damage during mating. The connector resists stress and limits misalignment issues. That’s why it's used in 1.25mm pitch wire harness setups for embedded battery circuits.

5. Customizable Wire and Insulation Options

The wire harness can be made with different gauges and jackets. You can customize the length and layout to fit your product. OEMs often request custom Hrs wire harness solutions for lithium battery packs, smart terminals, and IoT devices.

6. Fully Tested and Ready for Integration

Each Hrs DF14 series cable assembly is tested for continuity and resistance. It is RoHS compliant and ready for plug-and-play use. This makes it ideal for battery cable assembly in POS systems, drones, and portable electronics.

This Hrs DF14 series connector cable is widely used in 1.25mm cable assembly for battery power, low-voltage signal lines, and high-density PCB layouts. You can apply it in automotive control units, medical equipment, and wireless modules requiring compact and secure wiring.

FAQs

Q1: Can I use the Hrs DF14 series wire harness in small battery packs?
A1: Yes, the 1.25mm pitch connector is ideal for compact battery packs and tight PCB layouts.

Q2: Is the Hrs DF14 series cable assembly suitable for low-voltage applications?
A2: Absolutely, this wire harness supports both signal and low-voltage power transmission in battery circuits.

Q3: Do you offer custom lengths for the 1.25mm pitch wire harness?
A3: Yes, you can request custom wire length, gauge, and layout to match your battery integration needs.

Q4: Where can I use the Hrs DF14 series wire harness in electronics?
A4: It’s used in portable medical devices, smart wearables, drones, and embedded battery modules.

Q5: Can I get a pre-assembled Hrs DF14 series cable with connector?
A5: Yes, the wire harness comes pre-crimped, tested, and ready to plug into your board or battery system.

Q6: Is this 1.25mm cable assembly compatible with automated production lines?
A6: Yes, the connector supports vacuum pickup and tape packaging, ideal for SMT and automated assembly.

Q7: Can I order Hrs wire harnesses in bulk for OEM use?
A7: Yes, bulk orders and OEM customization are available for large-scale battery device manufacturing.
