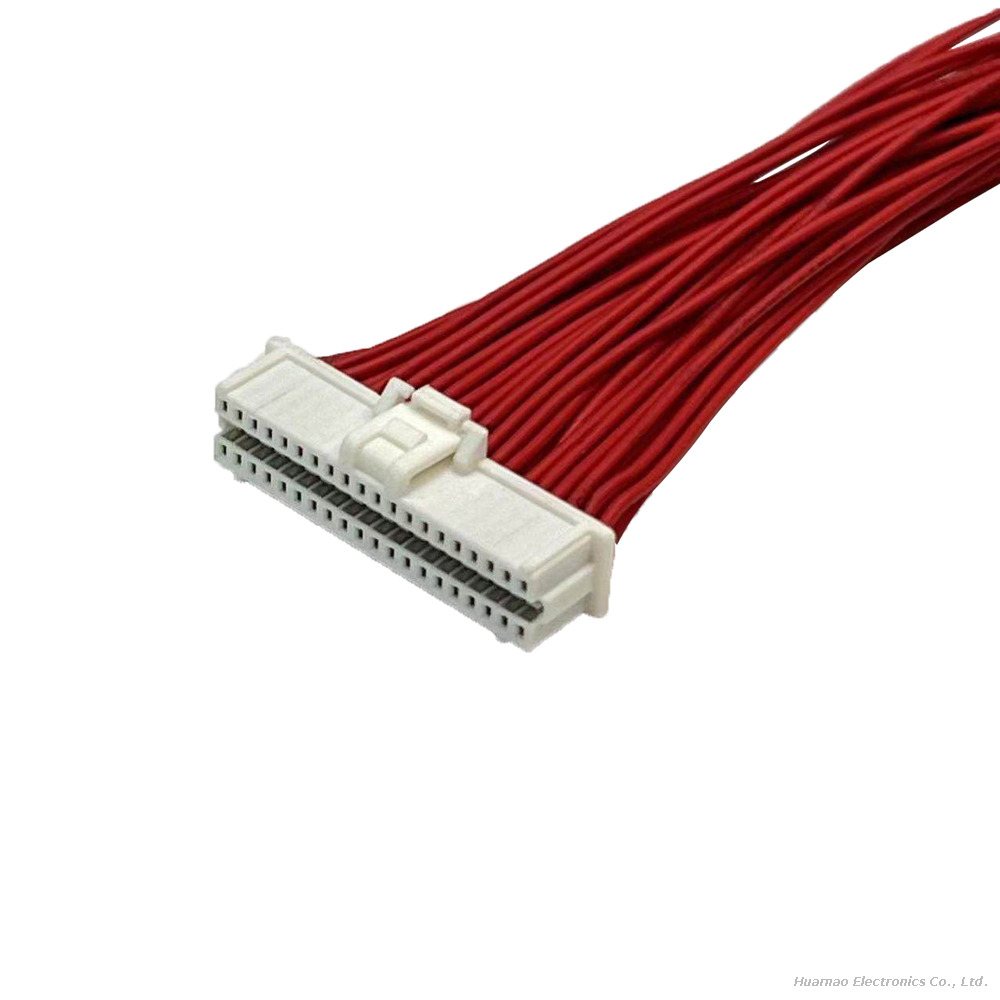

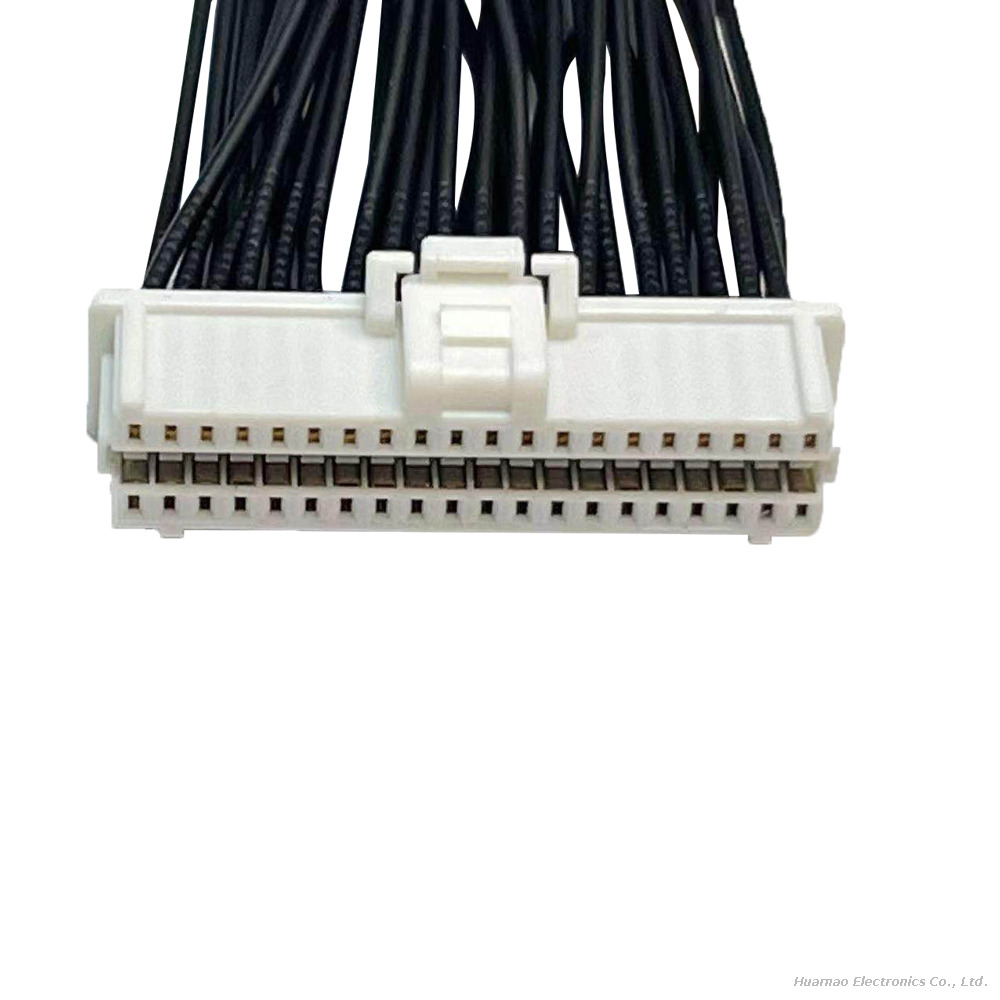

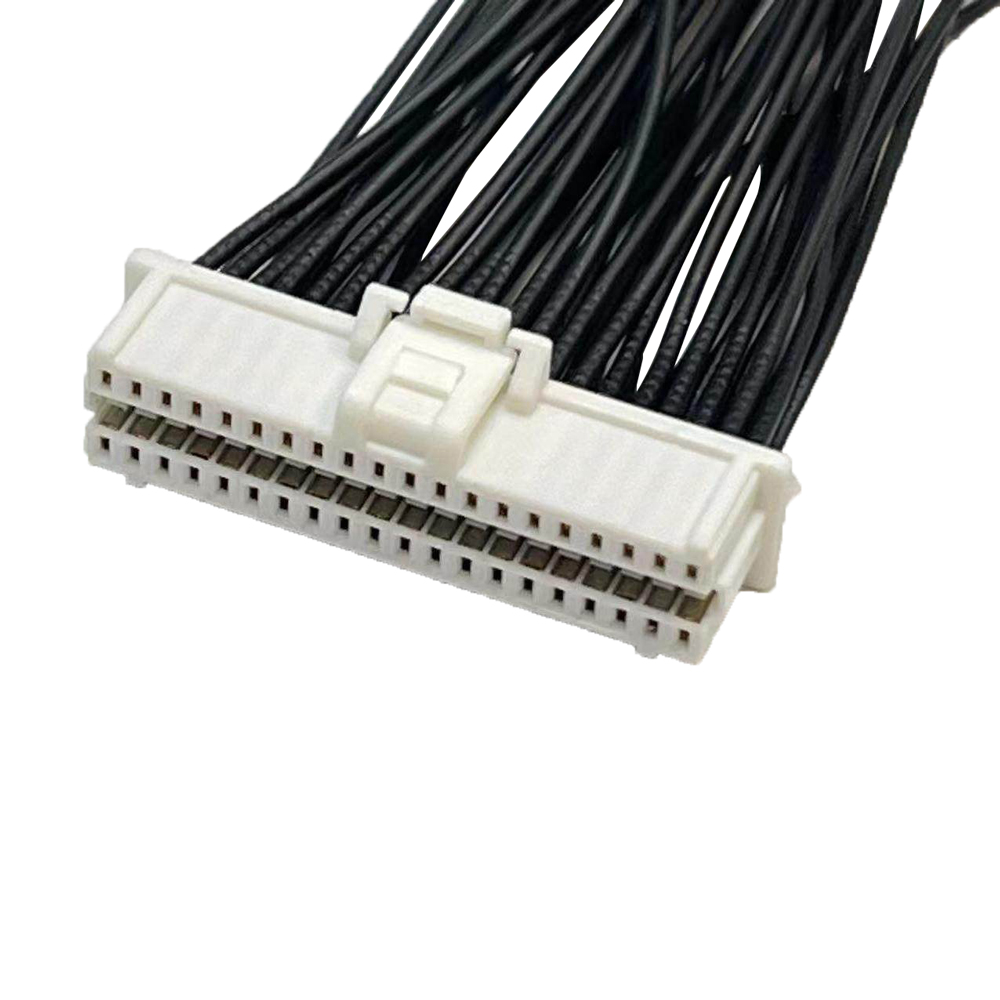

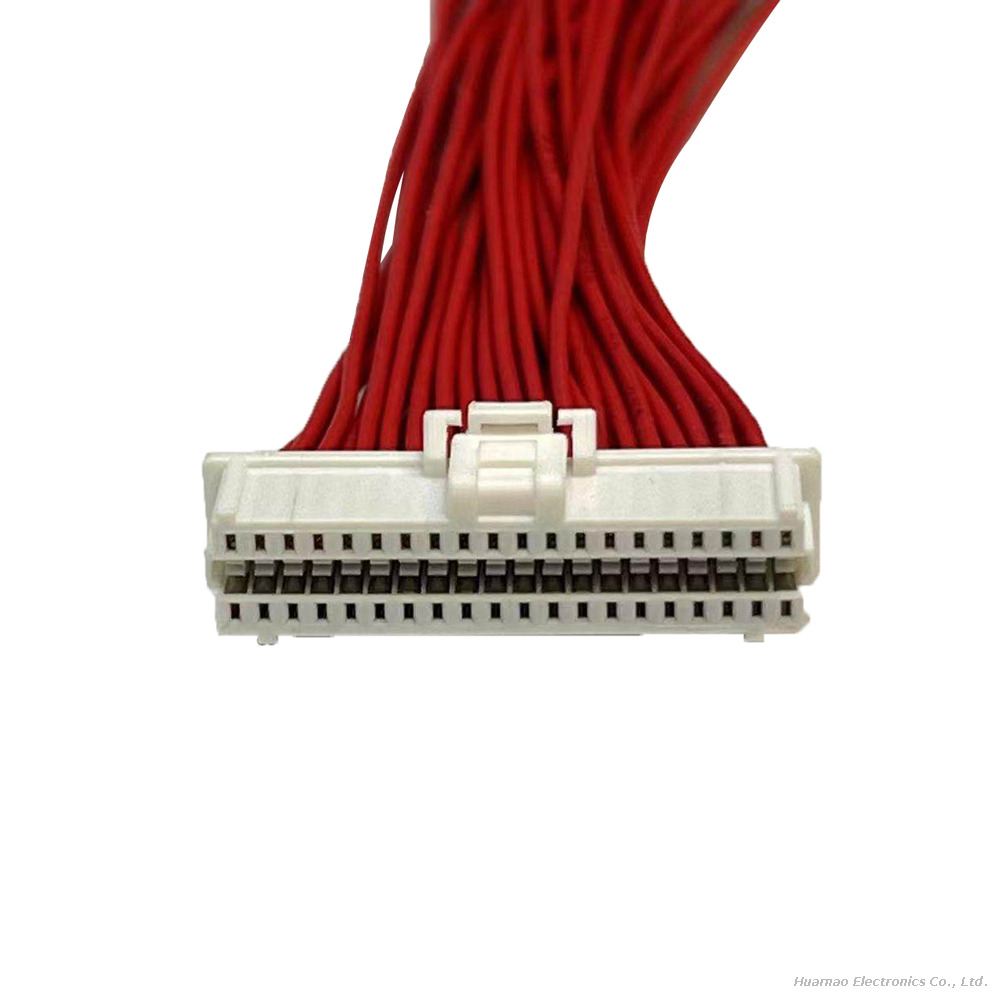

This professional cable assembly adopts authentic Molex 5011894010 precision connectors, paired with 1.0mm ultra-fine pitch structure, 40-pin layout and standard 28AWG high-quality copper terminal wires. Built for high-density internal connection and stable signal transmission, it is engineered to meet the miniaturization and high-precision wiring demands of sophisticated electronic equipment. The finished harness features precise crimping craftsmanship, reliable electrical conduction and compact structural design, widely applied in industrial control motherboards, precision medical devices, embedded intelligent systems and high-density PCB internal wiring scenarios.
Core Technical Specifications
Connector Model: Original Molex 5011894010 industrial precision connector
Pitch Dimension: Ultra-fine 1.0mm center spacing for space-saving installation
Pin Configuration: Full 40-position integrated wiring layout
Wire Gauge: Standard 28AWG stranded oxygen-free copper conductor wire
Contact Material: Tin-plated phosphor bronze terminals with excellent oxidation resistance and stable conductivity
Operating Temperature: -25°C to +85°C, adapting to most indoor and light industrial working environments
Safety Standard: Insulation meets UL certification requirements; all materials fully RoHS compliant
Key Product Advantages
✅ High-Density Miniaturization: 1.0mm fine pitch + 40P multi-channel design greatly saves PCB layout space, ideal for slim and compact electronic products
✅ Standard 28AWG Wiring: Flexible and bend-resistant wire structure, easy for routing inside narrow equipment without damage risk
✅ Authentic Molex Matching: Precise connector tolerance ensures smooth insertion and extraction, anti-misinsertion design avoids assembly errors
✅ Stable Signal Performance: Low-resistance terminal contact effectively reduces signal attenuation and interference for long-term continuous operation
✅ Premium Crimp Craftsmanship: Strict mechanical crimping process enhances pulling resistance, preventing loose connection or wire shedding under vibration conditions
Application & Custom Service

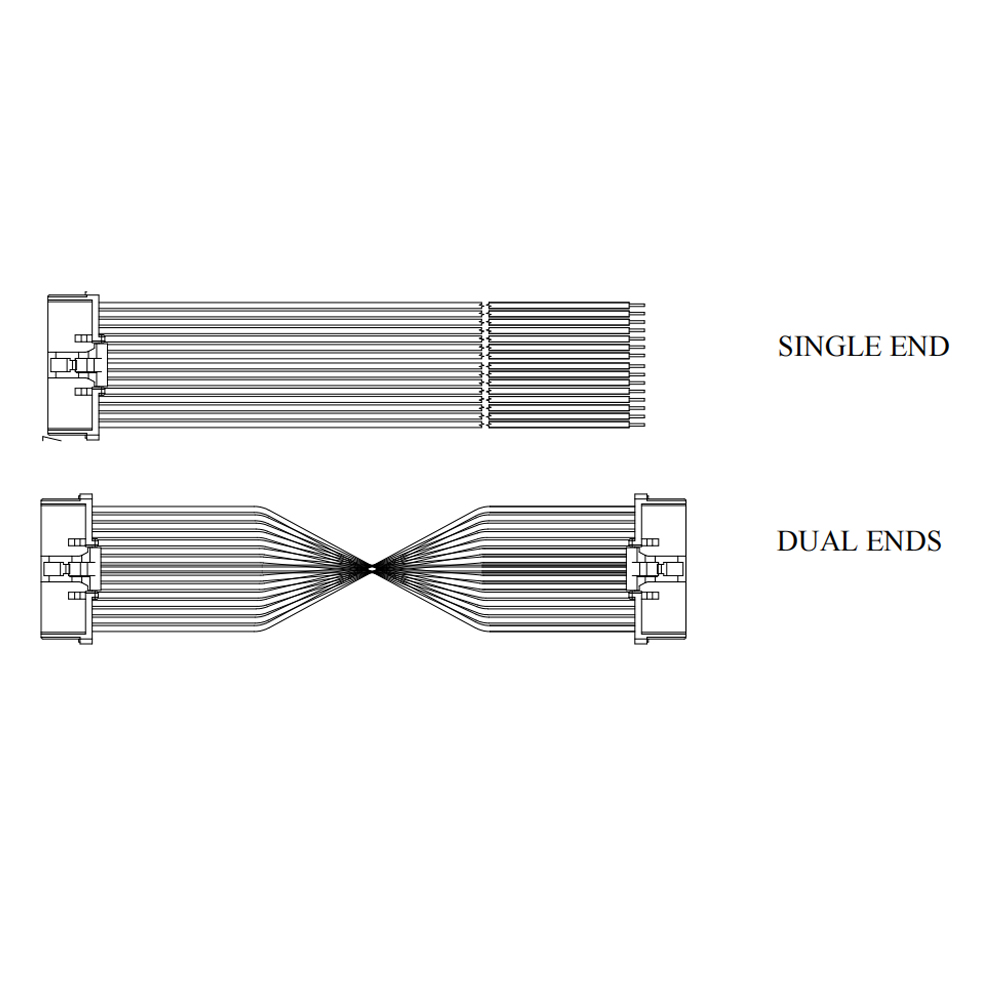

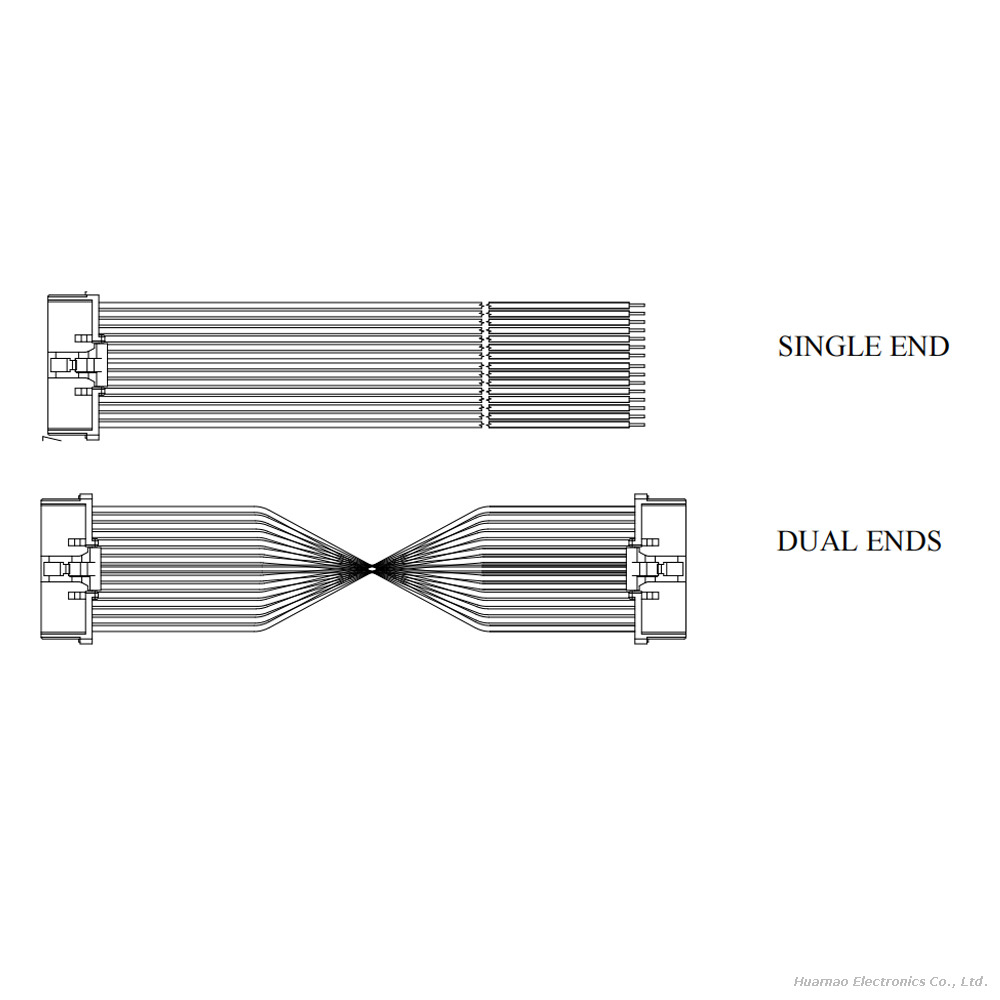

Perfect for precision medical instruments, industrial automation control modules, intelligent embedded hardware and high-density circuit interconnection projects. All assemblies undergo strict continuity testing and pulling force inspection before delivery. We support customized cable lengths, shielding structures and wiring sequences to satisfy diverse personalized industrial wiring requirements.
