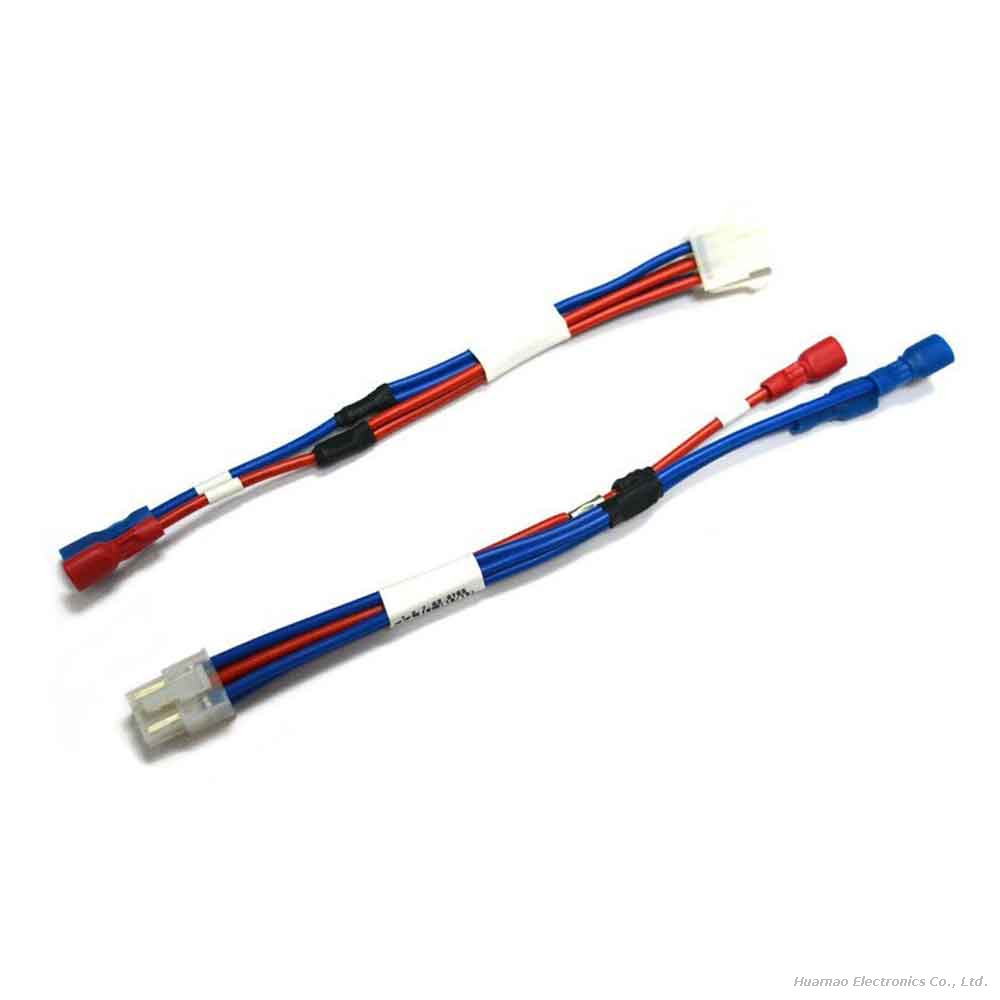

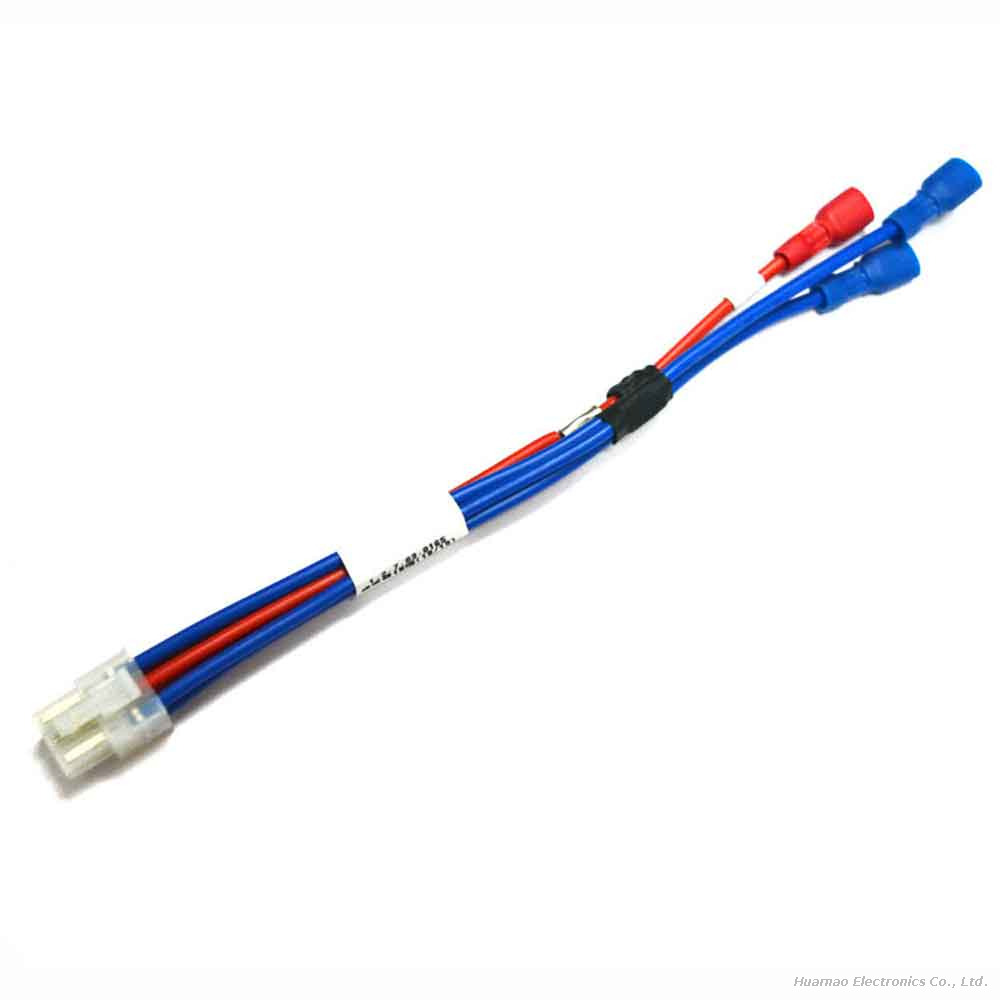

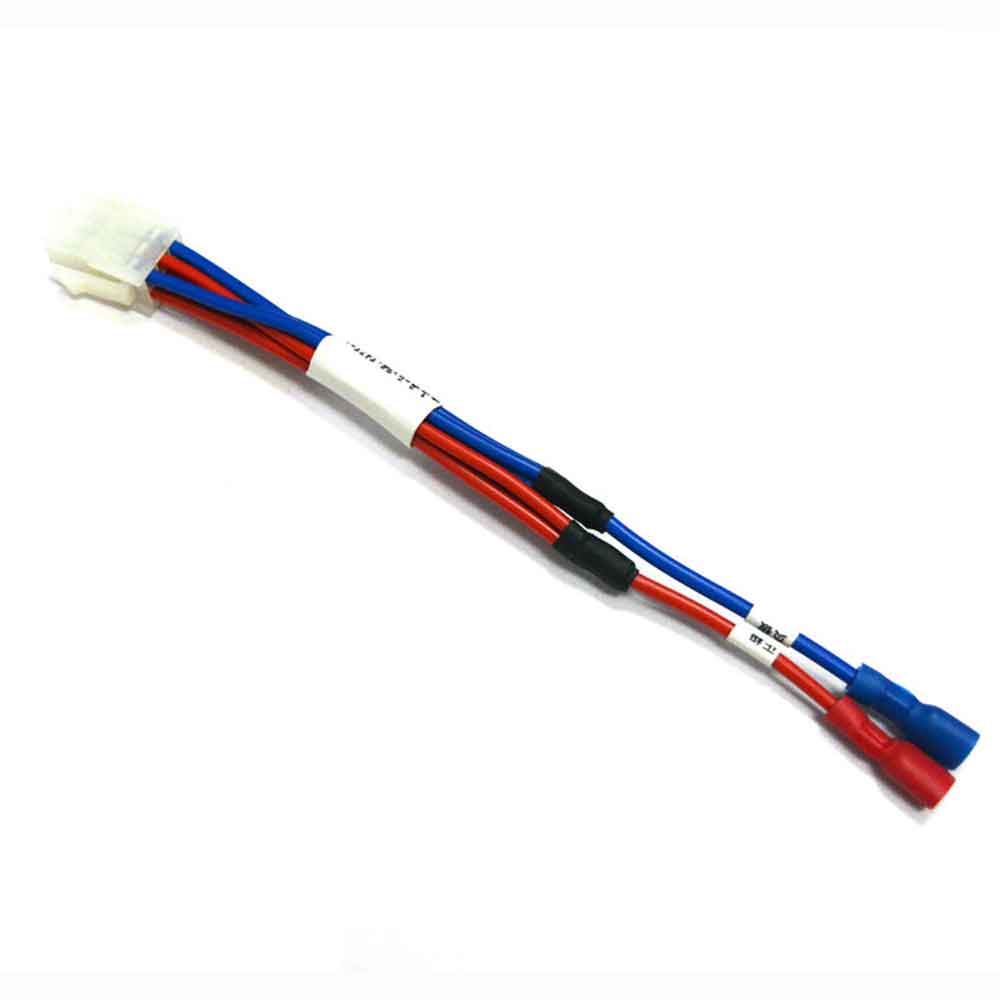

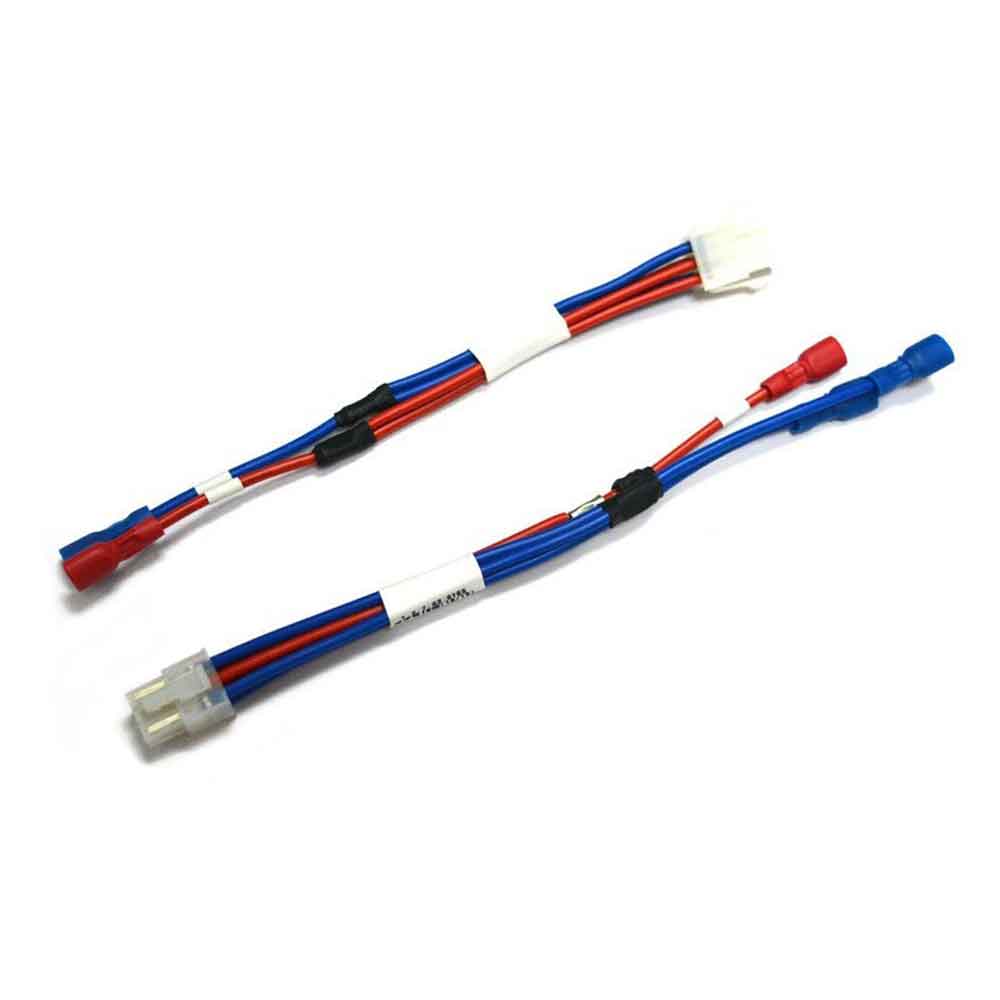

Engineered specifically for new energy power switch connections, the 5557-6P terminal wire harness integrates high-performance male-female connectors with precision wiring, delivering reliable power transmission for EV/HEV power control systems, energy storage devices, and industrial power switches. This 6-position (6P) solution features a 4.2mm industry-standard pitch, combining robust construction with optimized current-carrying capacity to meet the stringent requirements of new energy applications in high-voltage, high-vibration environments.
Core Features
✅ High-Power Transmission Capacity
9A rated current per contact (max 600V AC/DC) for demanding power switch applications
Supports 18-22AWG wires (0.32-0.82mm² cross-section) for flexible power distribution
Low contact resistance (≤20mΩ initial, ≤30mΩ after environmental testing) minimizes power loss
✅ New Energy-Grade Durability
PA66 nylon housing (UL94 V-2 flame-retardant) withstands -25℃ to 85℃ operating temperatures
Tin/gold-plated phosphor bronze contacts resist corrosion and ensure 500+ mating cycles
Vibration-resistant integrated locking mechanism prevents disconnection in vehicle/industrial environments
✅ Safety-Focused Design
Polarized housing with keyed alignment eliminates reverse connection risks for power switch systems
1500V AC withstand voltage (1 minute) ensures electrical safety in high-voltage new energy setups
Insulation resistance ≥1000MΩ prevents leakage and short-circuit hazards
✅ Seamless Integration & Installation
Wire-to-wire connection type compatible with standard 5557 series connectors and power switches
Color-coded wiring (red positive/black negative) simplifies polarity identification during assembly
Compact 4.2mm pitch design optimizes space utilization in power control cabinets
Application Scenarios
Ideal for new energy power switch connections in:
Electric Vehicles (EVs)/Hybrid EVs: Battery management system (BMS) switches, on-board charger (OBC) power controls
Energy Storage Systems: Solar inverter switches, battery pack power distribution, UPS systems
Industrial Equipment: Motor power switches, automation control panel interconnections, generator wiring
Automotive Electronics: Electric power steering switches, EV charging station power controls
Home Appliances: High-power smart appliance switches, energy-saving device power connections
Quality Assurance
100% continuity, insulation, and contact integrity tested before shipment
RoHS/REACH compliant (free of SVHC substances) for environmental safety
Resistant to oil, grease, and chemical exposure common in new energy environments
Compliant with automotive and industrial power transmission standards
Customization Options
Custom cable lengths (10cm-300cm) with precise cut-to-length processing
Shielded wire variant for EMI/RFI noise reduction in sensitive power systems
UL-certified wire options (e.g., UL1015, UL1569) for specific temperature requirements
Custom labeling and packaging for mass production lines
Count on the 5557-6P power switch connection cable for reliable, safe power transmission in new energy and industrial applications. Contact our technical team for compatibility verification, sample requests, or custom power-focused configurations.
