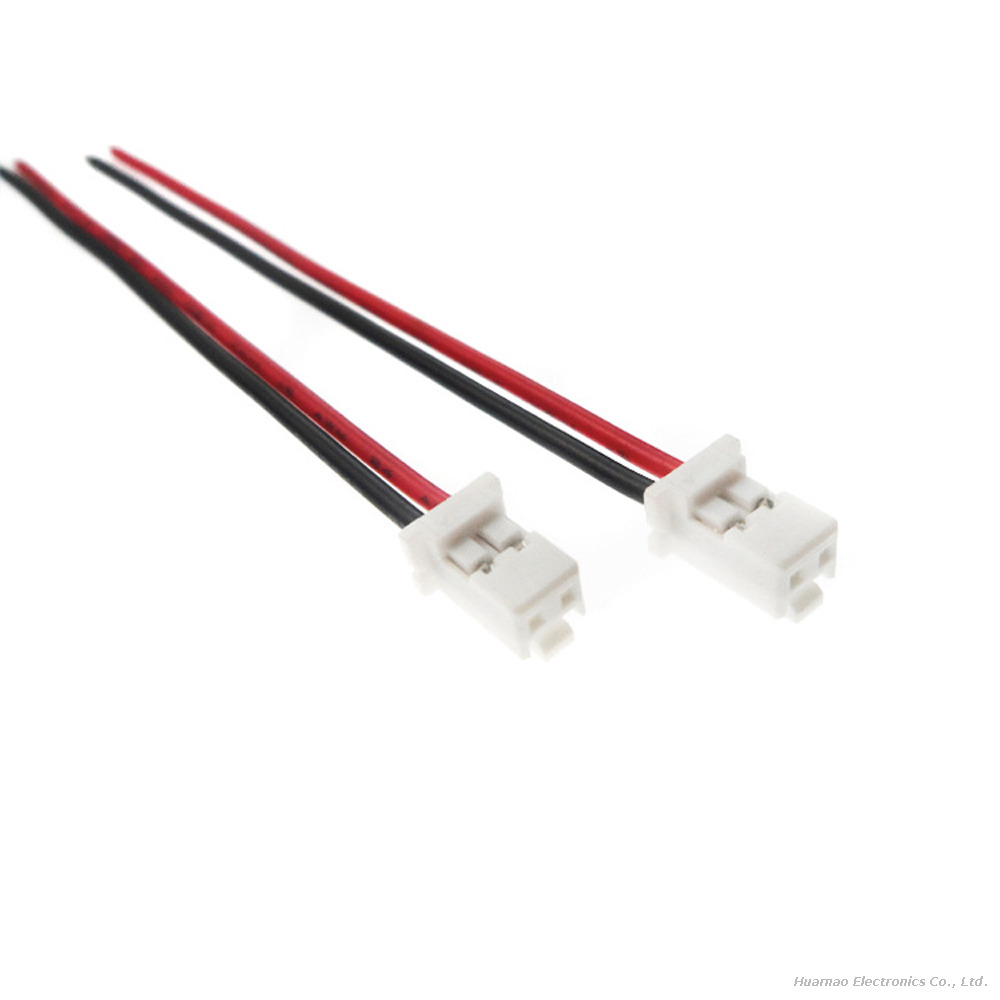

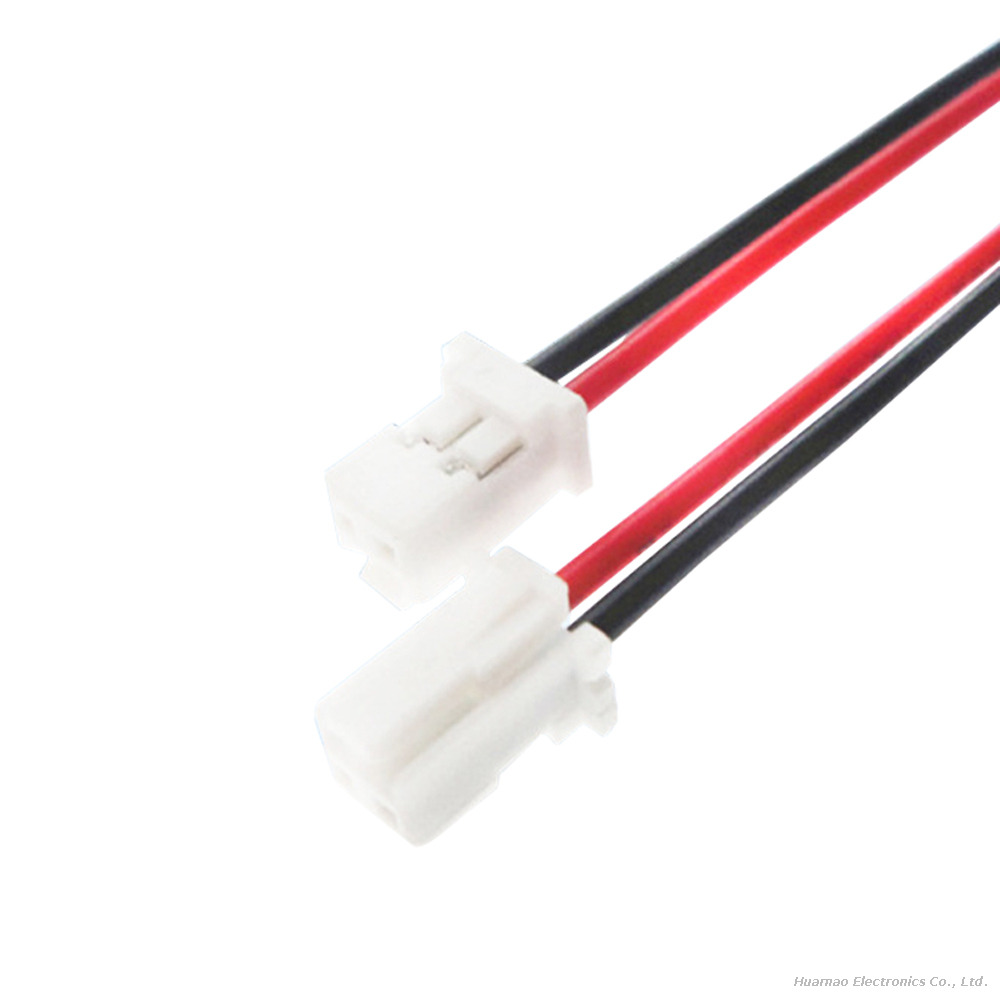

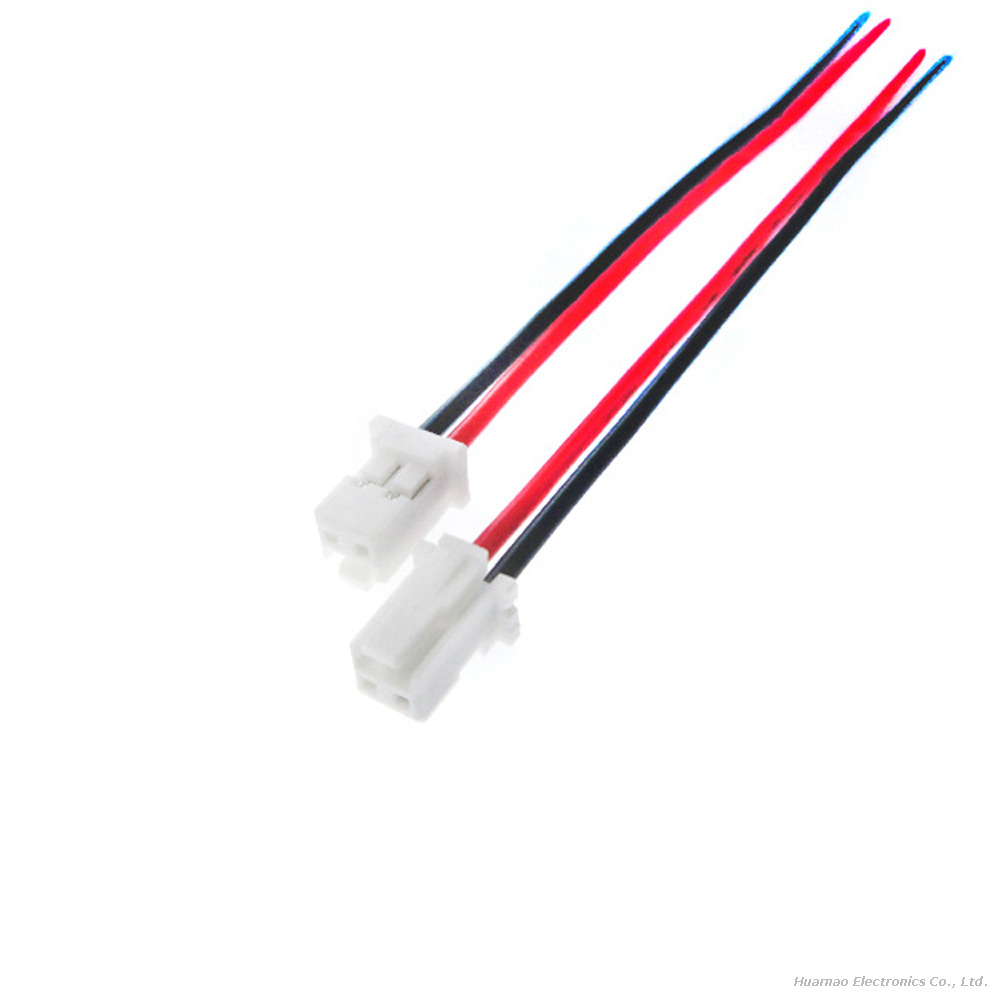

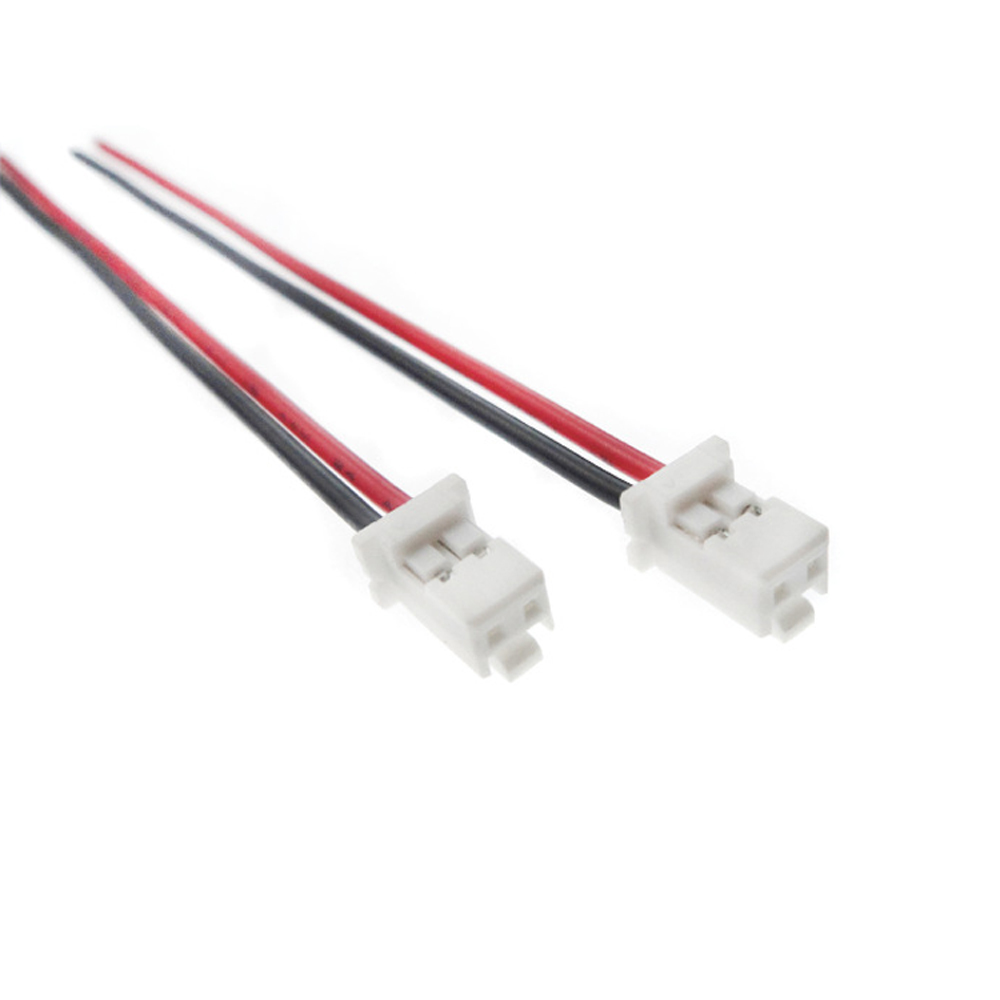

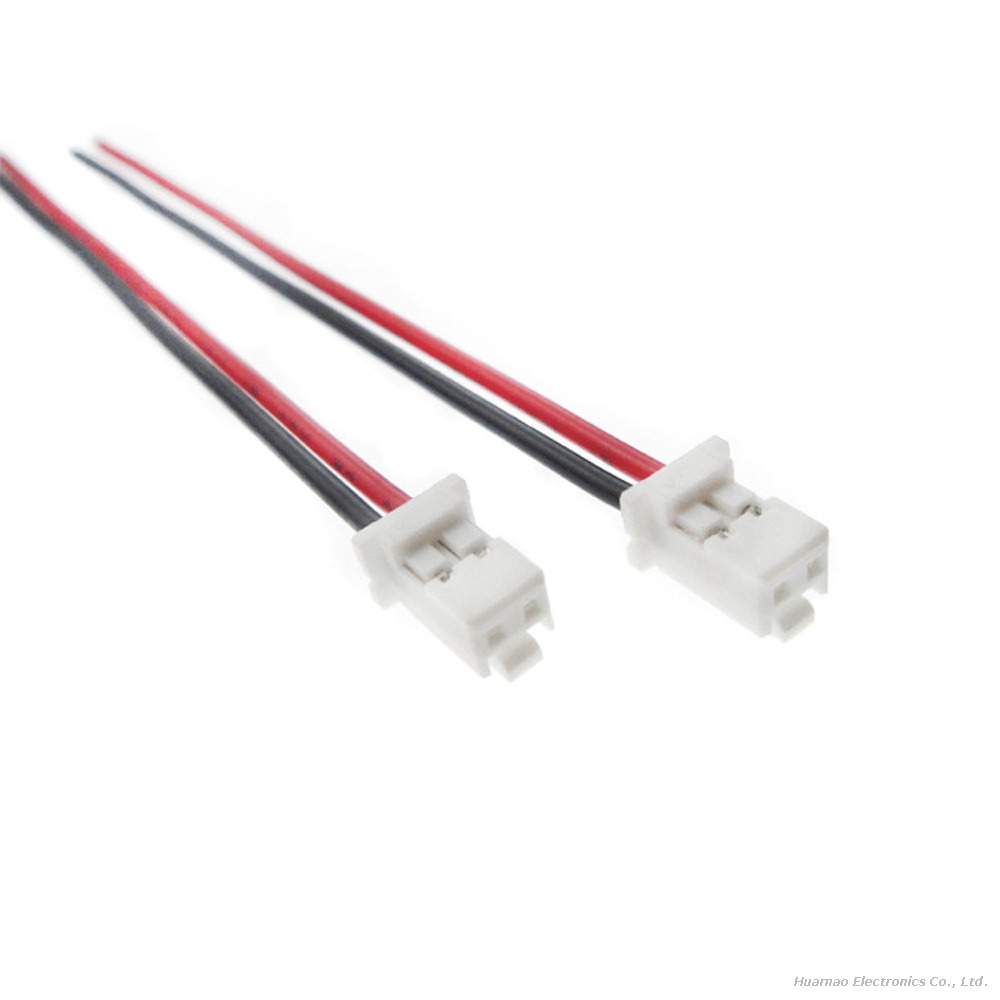

Engineered for high-fidelity audio transmission, the JST PAP-04V-S 2P speaker connection cable combines the reliable PAP-04V-S housing with SPHD-001T-P0.5 crimp terminals, delivering a premium 2.0mm pitch wiring solution for speakers, amplifiers, and audio equipment. This purpose-built harness ensures stable signal transfer with minimal loss, featuring JST's industry-proven connector technology to meet the demands of consumer electronics, automotive audio, and professional sound systems.
Core Features
✅ High-Fidelity Signal Transmission
3A rated current and 250V AC/DC voltage capacity for clear, distortion-free audio
Low contact resistance (≤20mΩ) minimizes signal attenuation, preserving sound quality
Phosphor bronze contacts with tin plating ensure consistent conductivity and reduce signal interference
✅ Secure & Anti-Misplug Design
Polarized housing with keyed alignment prevents reverse connection, protecting audio equipment from damage
Snug-fitting locking mechanism resists vibration (ideal for automotive or portable devices) and accidental disconnection
2P (2-position) configuration optimized for stereo speaker left/right channel or positive/negative wiring
✅ Durable & Wide-Range Compatibility
PA66 UL94 V-0 housing withstands -25℃ to 85℃ operating temperatures, adapting to harsh environments
Compatible with 22-28 AWG wires (max insulation diameter 1.5mm) for flexible routing in tight spaces
Matches JST PAP series housings and SPHD terminals, ensuring seamless integration with standard audio connectors
✅ Easy Installation & Longevity
Crimp termination compliant with IPC-A-620 standards for fast, tool-assisted assembly
Insulation resistance ≥1000MΩ prevents electrical leakage and ensures long-term reliability
Withstands 800V AC voltage for 1 minute, demonstrating robust electrical safety margins
Application Scenarios
Ideal for audio systems requiring reliable 2P connections:
Consumer Electronics: Home theater speakers, soundbars, portable amplifiers, Hi-Fi equipment
Automotive Audio: Car speakers, head units, subwoofers, in-vehicle entertainment systems
Professional Audio: Stage monitors, small PA systems, audio mixers, recording equipment
Industrial/Commercial: Public address systems, conference room speakers, retail audio displays
Quality Assurance
Authentic JST components with full traceability (batch code tracking)
100% continuity and contact integrity tested before shipment
RoHS/REACH compliant (free of SVHC substances)
Resistant to corrosion and environmental wear for long service life
Customization Options
Custom cable lengths (10cm-200cm) with precise cut-to-length processing
Color-coded wiring (red/black, white/black) for easy polarity identification
UL-certified wire options (e.g., UL1007, UL1015) for specific application requirements
Shielded cable variant available for noise-sensitive environments
Experience crystal-clear audio transmission with a harness built to JST's rigorous quality standards. Contact our technical team for compatibility verification, sample requests, or custom audio-specific configurations.
