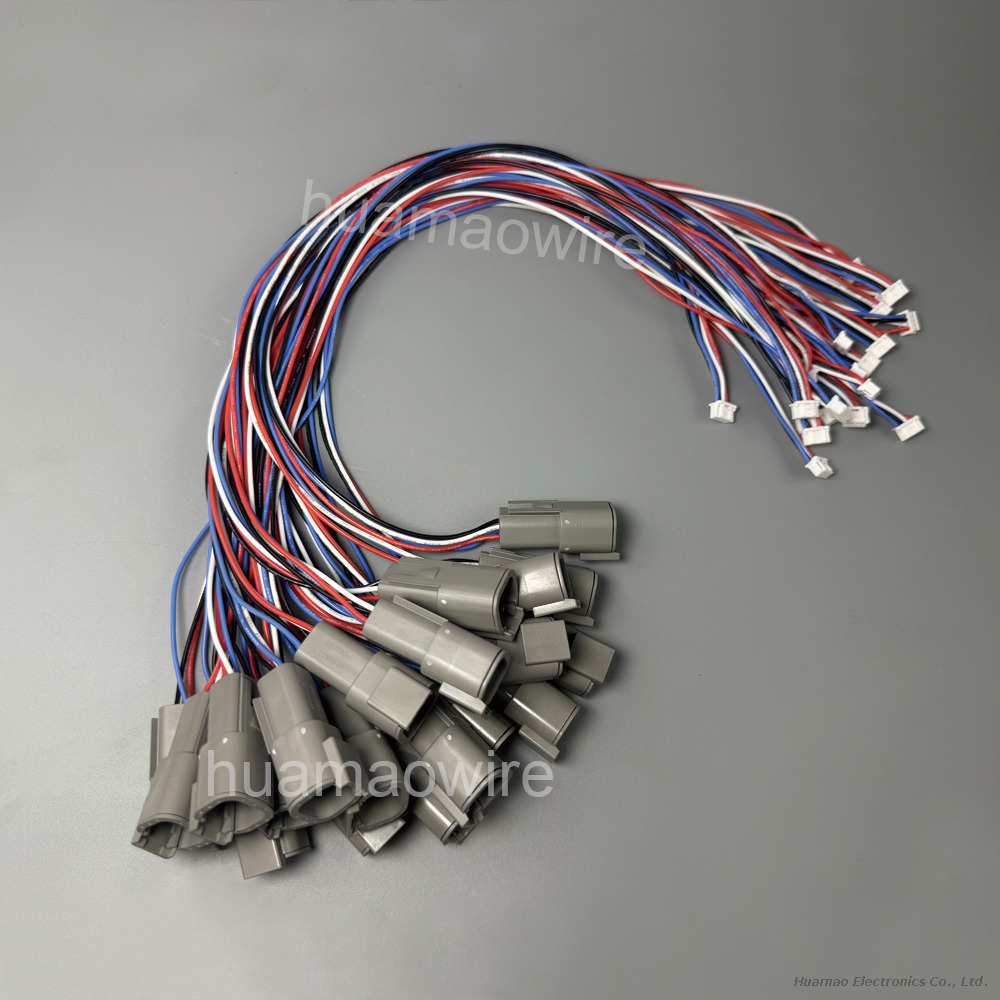

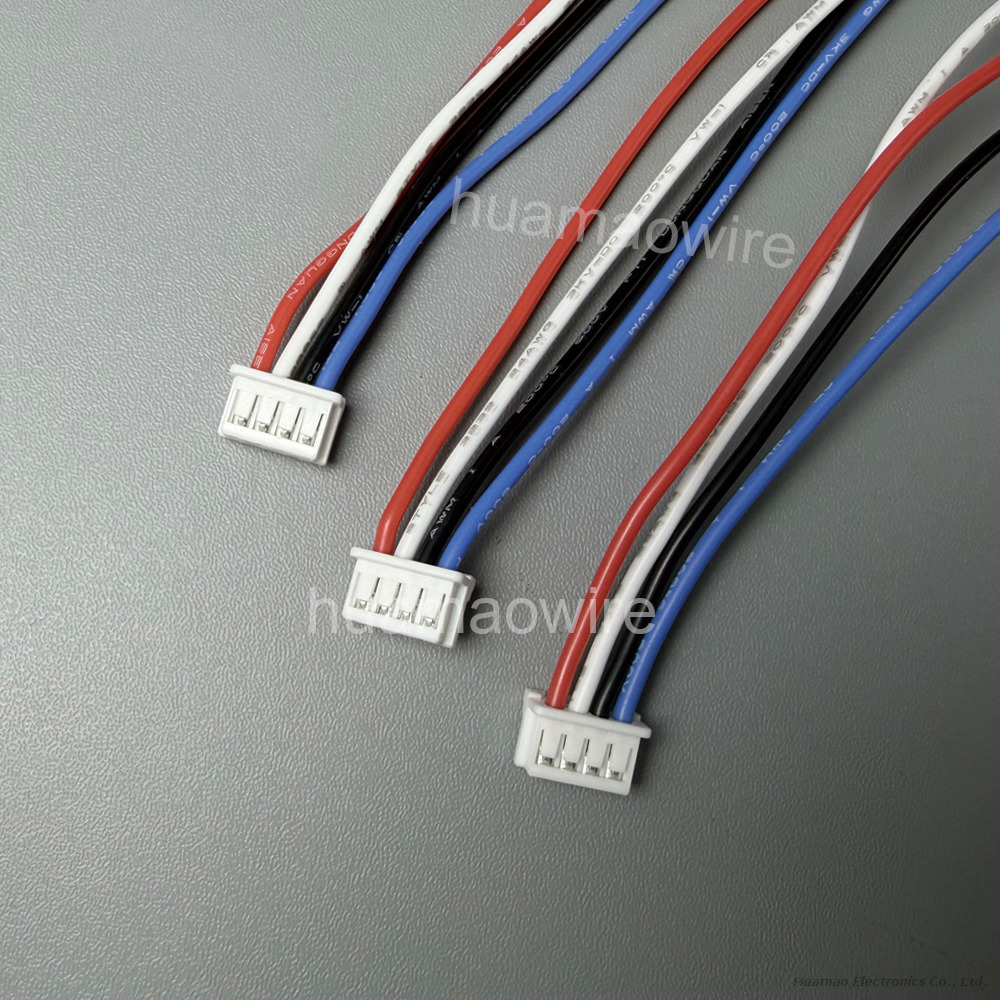

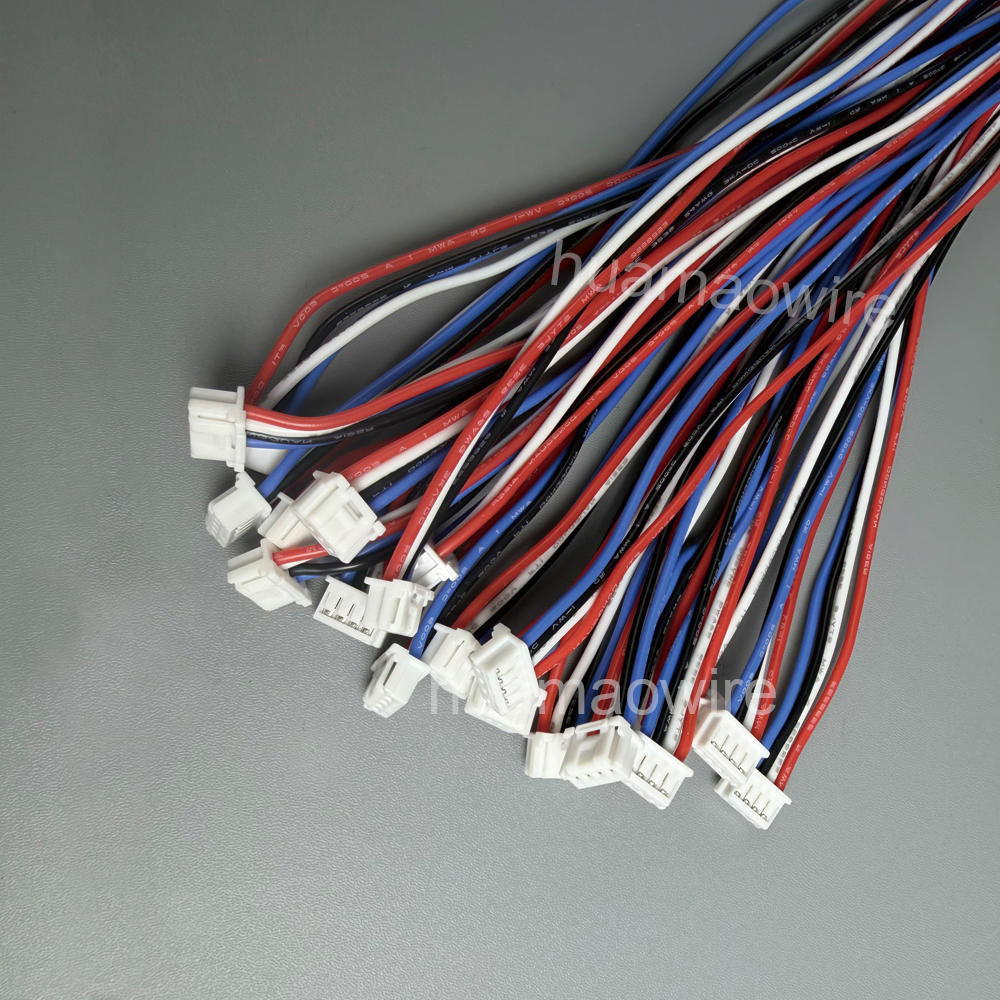

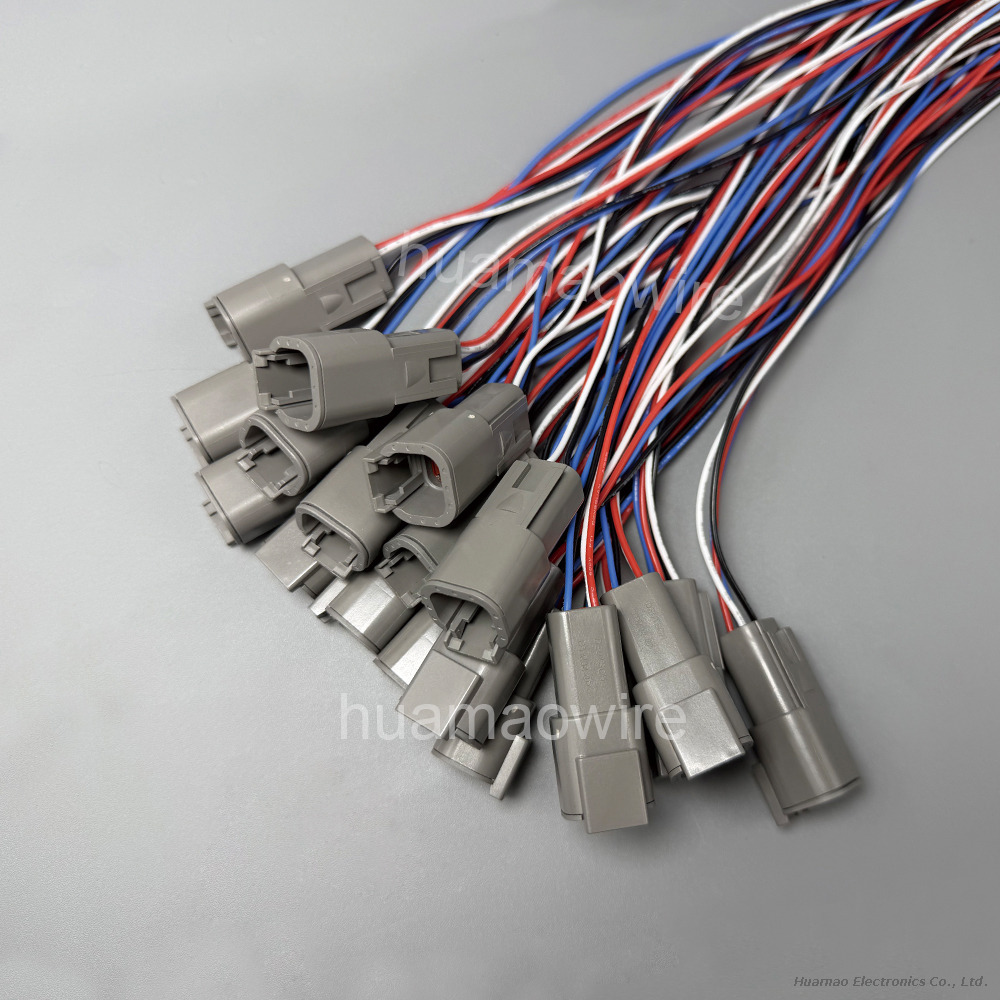

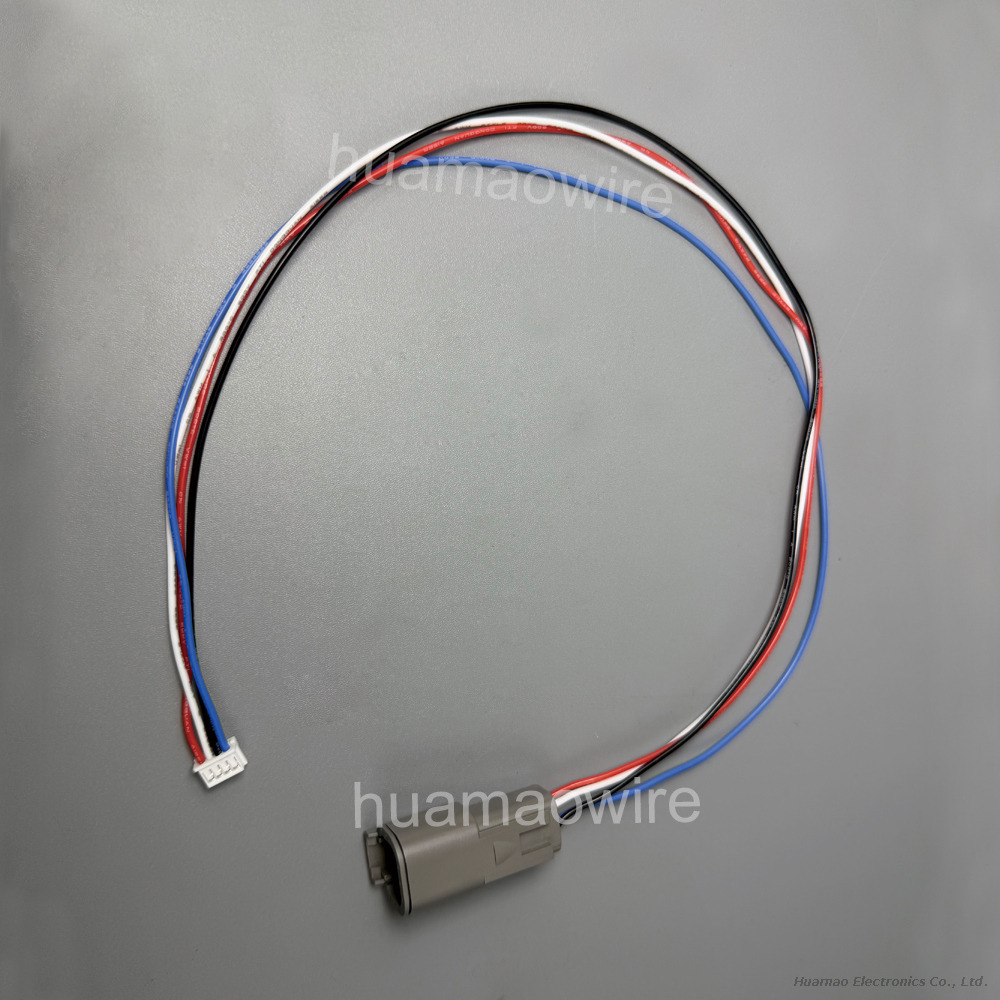

This customized cable assembly connects the 5023510400 2.0mm pitch wire-to-board female receptacle with TE Connectivity/Deutsch DTM04-4P 4-position sealed housing, using 1060-20-0122 automotive-grade terminals. It is designed for stable power and signal transmission between PCBs and discrete wire systems, performing well in automotive, industrial and harsh environments with secure connection, vibration resistance and wide temperature adaptability.
Key Features & Advantages
Secure Connection Structure
Positive-locking design provides audible mating confirmation and stable retention on PCB
Robust mechanical latch of Connector B effectively prevents loosening caused by extreme vibration
Polarized structure avoids wrong mating and protects electronic components from damage
Harsh-Environment Performance

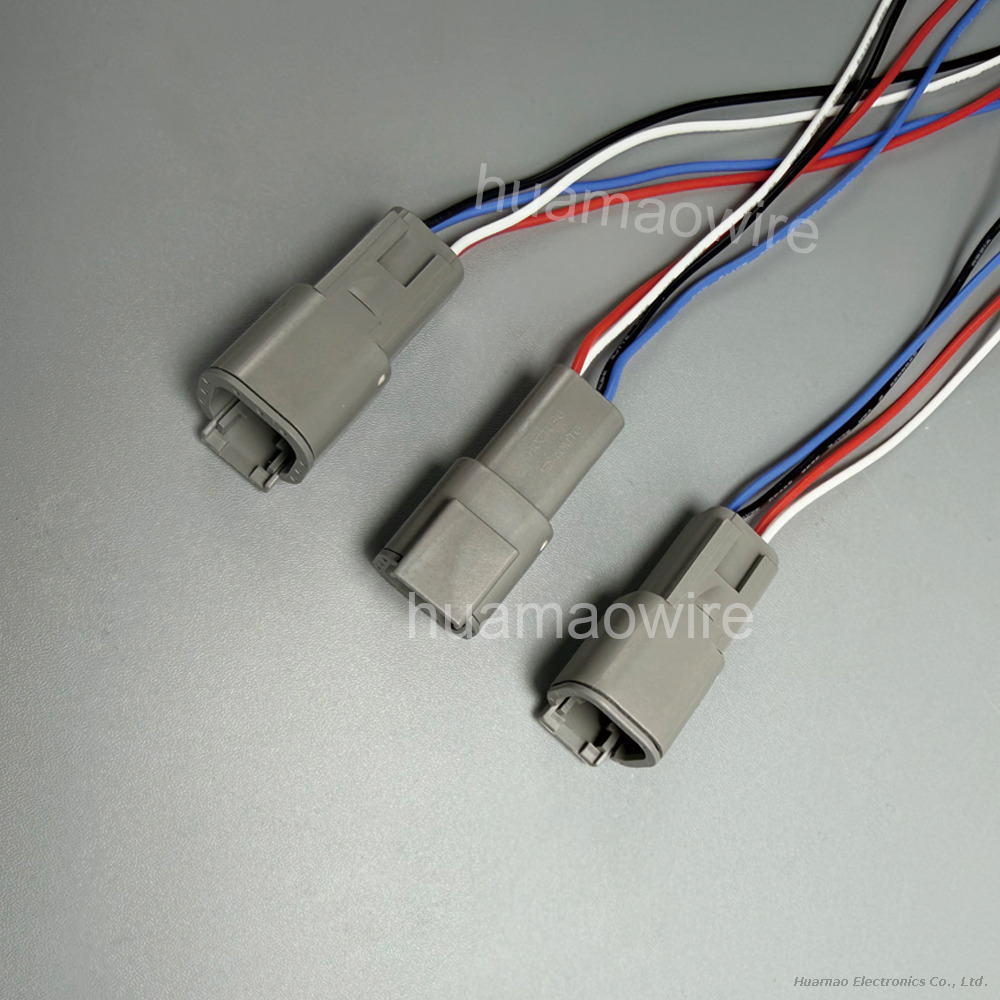

Connector B reaches IP67 sealing level to resist dust and water intrusion
Wide operating temperature range for stable performance in all weather conditions
Resistant to oils, fuels, solvents and common industrial chemicals
Automotive-Grade Reliability
1060-20-0122 terminals guarantee stable crimp quality and electrical performance
Stranded tinned copper conductors reduce oxidation and improve wiring flexibility
Suitable for 12V/24V vehicle systems and industrial control circuits
Customization Flexibility
Precise wire length with tight tolerance for accurate installation
Optional insulation materials including PVC, XLPE and TPE
Custom wire colors to match OEM wiring standards
Optional wire marks or heat-shrink labels for easier maintenance
Typical Applications
1.PCB to sensor wiring (ABS, parking assistance, temperature sensors)
2.Infotainment and navigation system connections
3.Interior and exterior lighting control modules
4.Battery management systems for new energy vehicles
1.PLC I/O signal connections
2.Low-power motor control units
3.Sensor to controller wiring
4.Testing and measuring equipment
1.Off-road vehicle electronic systems
2.Marine navigation and control devices
3.Agricultural machinery control circuits
4.Construction equipment monitoring modules
Quality Assurance & Customization Services
Rigorous Testing
100% electrical continuity and insulation resistance testing
Terminal pull-out force verification
Vibration testing in line with international standards
High and low temperature cycling tests
Salt spray test for corrosion resistance validation
Customization Options
Wire customization: gauge, insulation material, length, color and stripping length
Crimp quality inspection with professional testing methods
Custom keying design to avoid mismating of multiple connectors
Additional protection: heat-shrink tubing, EMI shielding, etc
