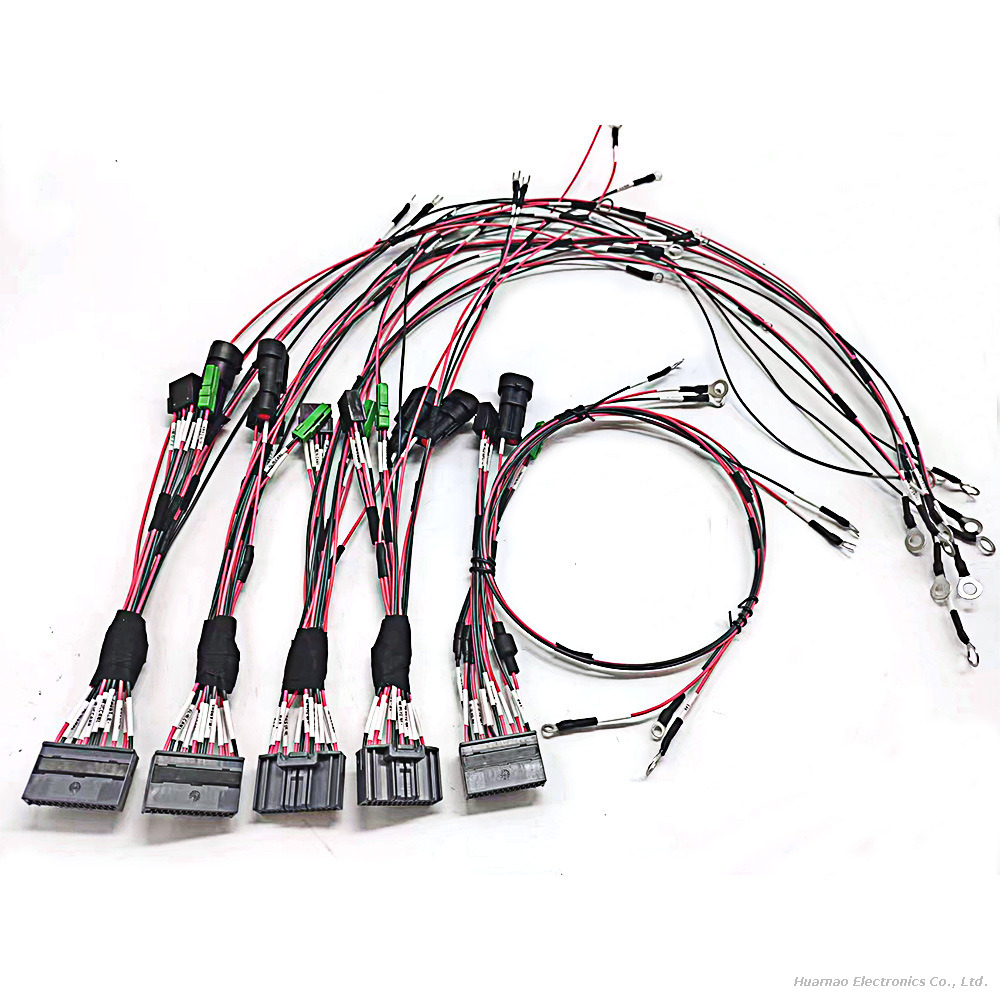

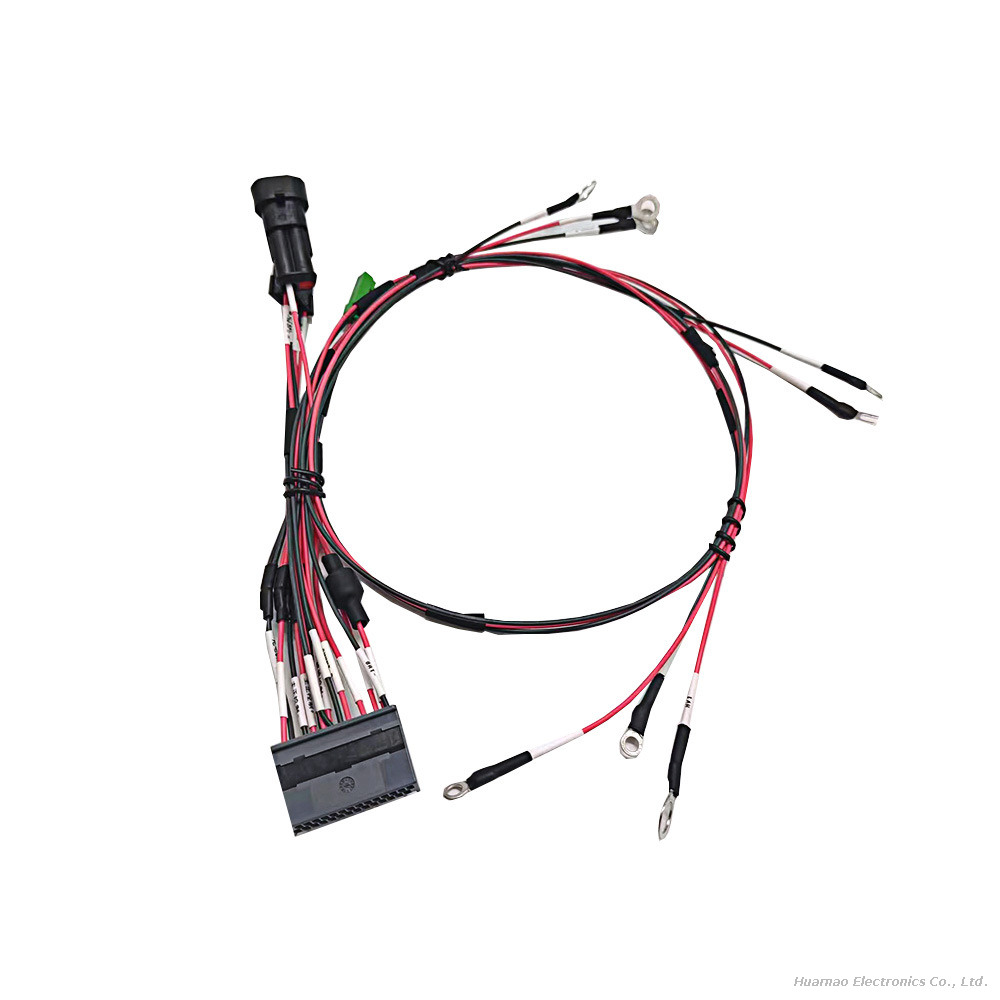

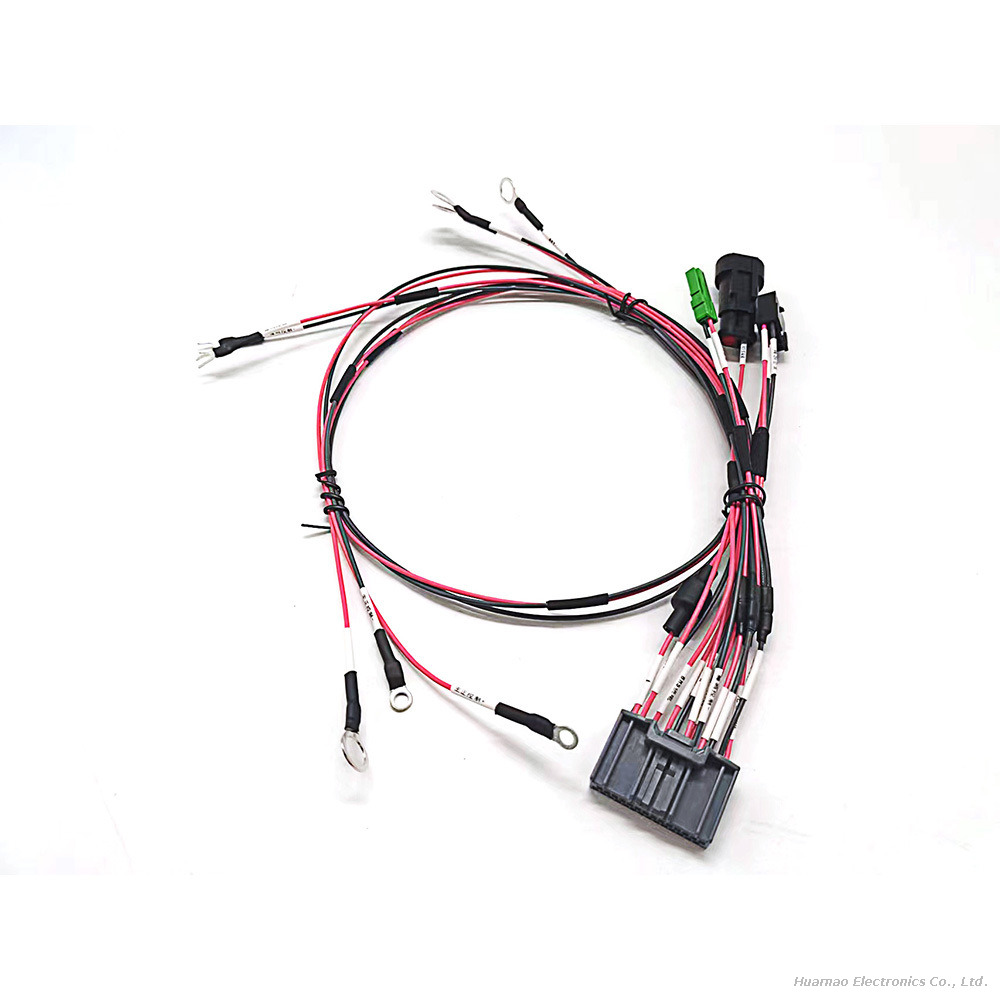

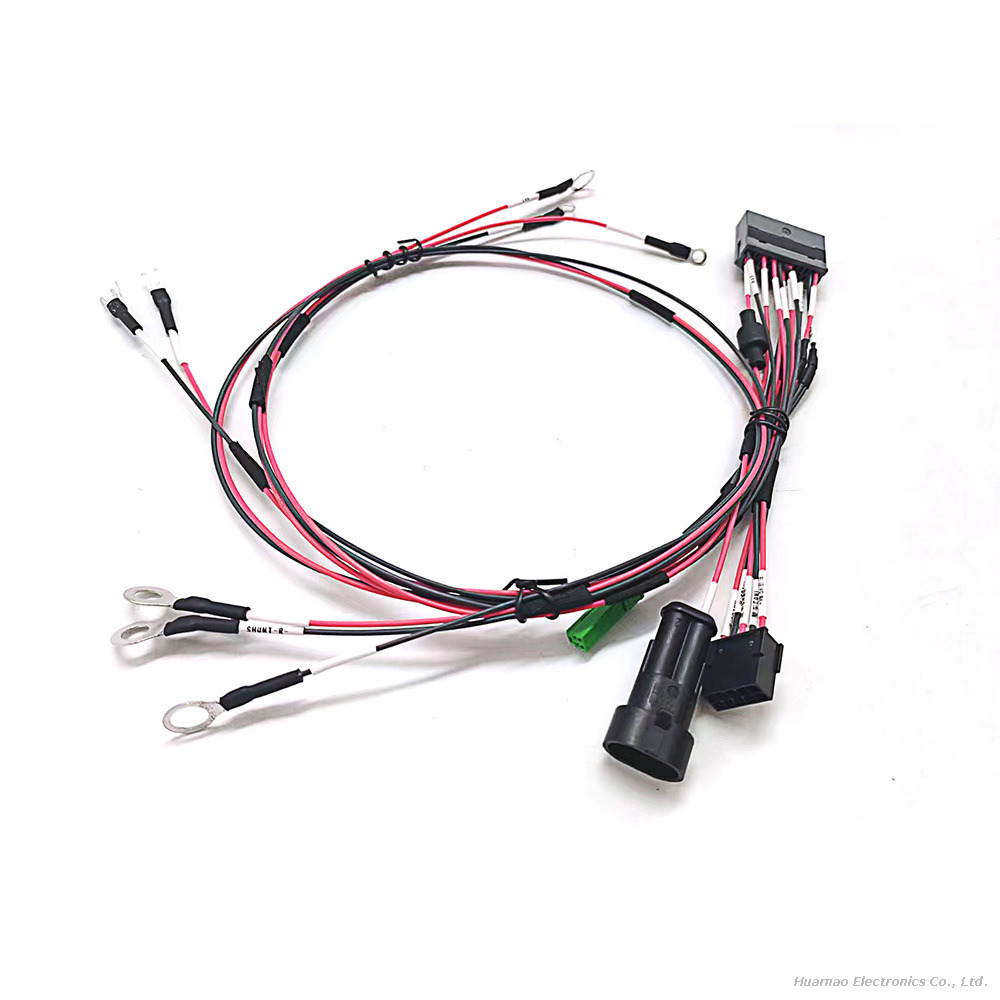

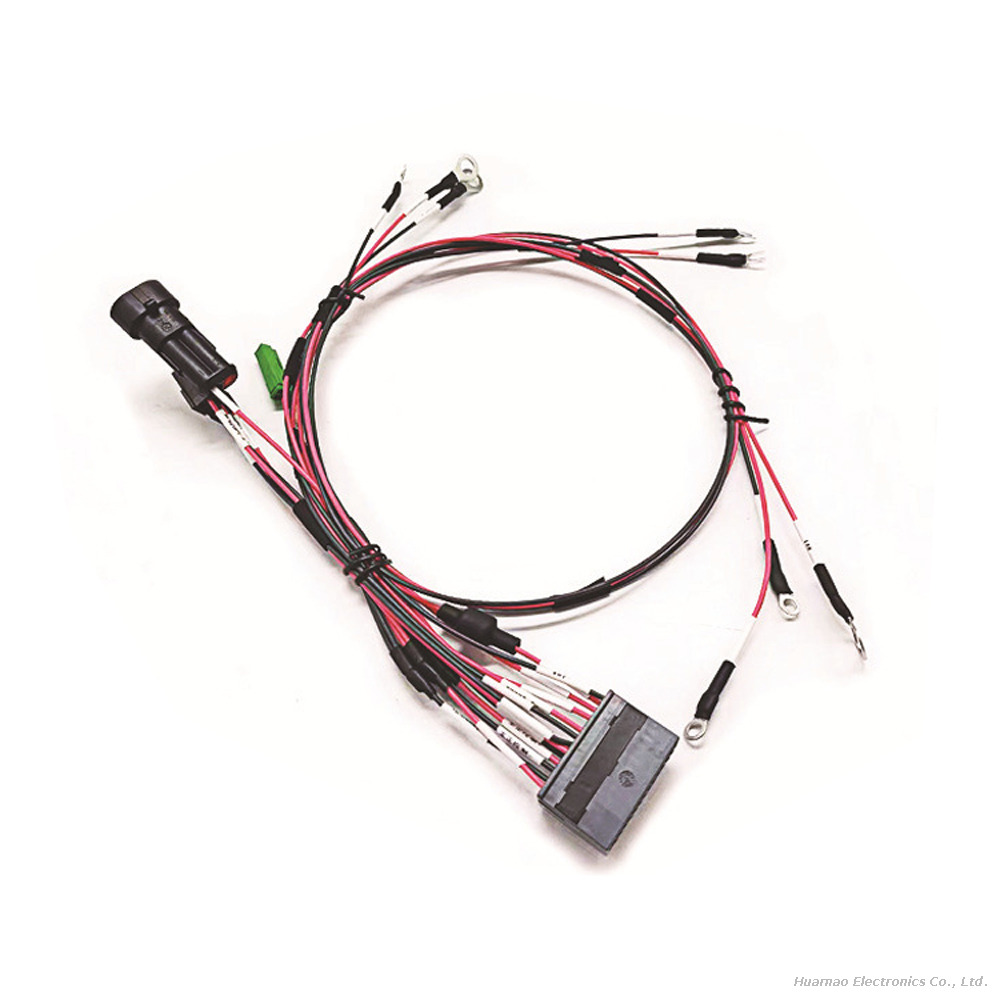

Molex34028sf1 Terminal Wire New Energy Collection Cable Assembly

High-Density Design: 28-pin dual-row configuration with 2.2mm pitch, optimizing space utilization in compact NEV electrical systems

Automotive-Grade Reliability: Operates in -40°C to +85°C temperature range, withstanding extreme thermal and vibration conditions (compliant with automotive industry durability requirements)

Secure Locking Mechanism: Integrated dual-lock structure with pre-installed retainer prevents accidental disconnection; incomplete insertion is visually detectable for assembly quality control

Robust Contact Performance: Tin-plated brass contacts (5mA max contact resistance) ensure low electrical impedance and corrosion resistance for long-term reliability

Enhanced Mechanical Protection: Box-type pin socket design resists external forces and torsion; contact protection bridge shields terminals from mechanical damage

Efficient Assembly: Crimp termination supports automated manufacturing, reducing production time while maintaining connection stability

High Electrical Ratings: 3.0A per contact current capacity and 1000V dielectric strength, suitable for NEV power collection and signal transmission

RoHS Compliant: Lead-free construction meets global environmental standards for automotive electronics

NEV Battery Management Systems (BMS): Power collection and cell balancing signal transmission between battery modules and BMS controllers

Automotive ECU Connections: Body chassis ECUs, power distribution units (PDUs), and electronic switch interfaces

New Energy Power Collection: High-density wiring for electric vehicle powertrains, including motor controllers and inverter systems

Auxiliary Power Systems: On-board charger (OBC) and DC/DC converter wiring harnesses

Automotive Sensor Networks: Signal transmission for NEV battery temperature, voltage, and current sensors

Electric Vehicle Wiring Harnesses: Compact interconnections in battery packs, powertrain systems, and electronic control modulesfrom
