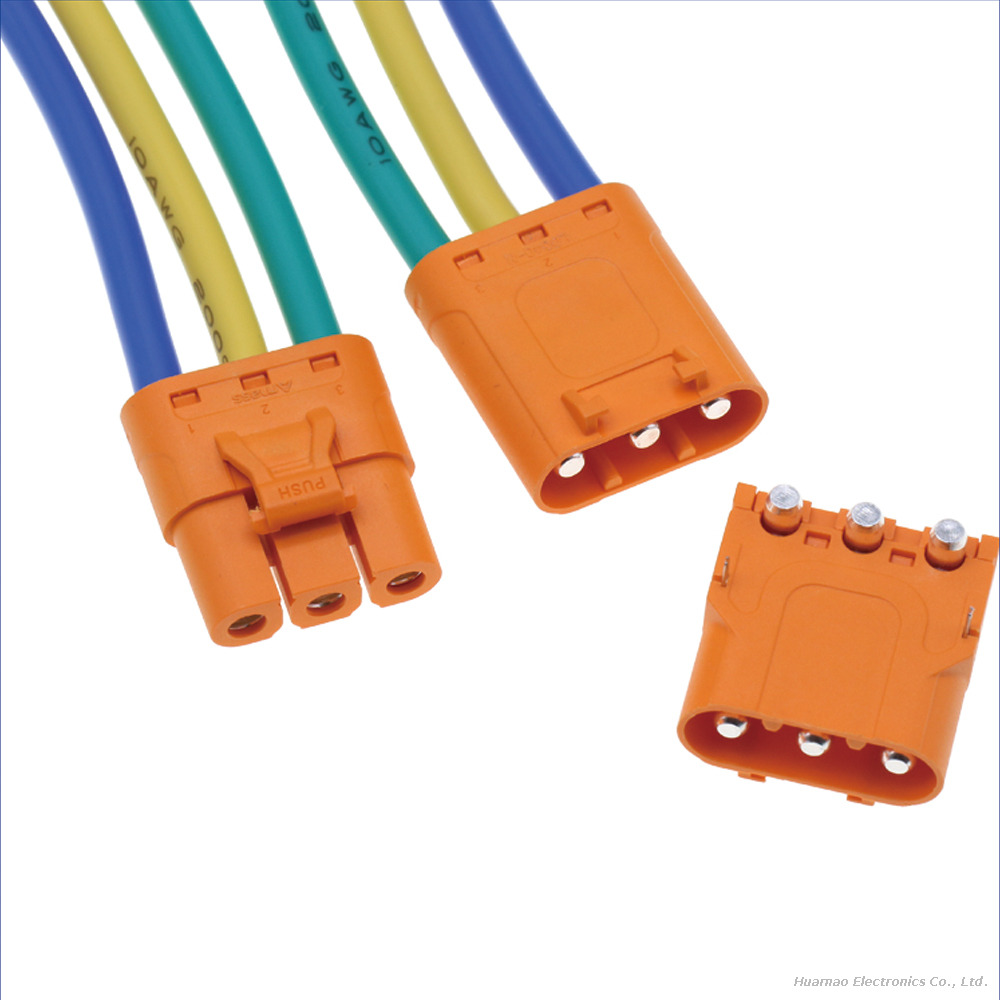

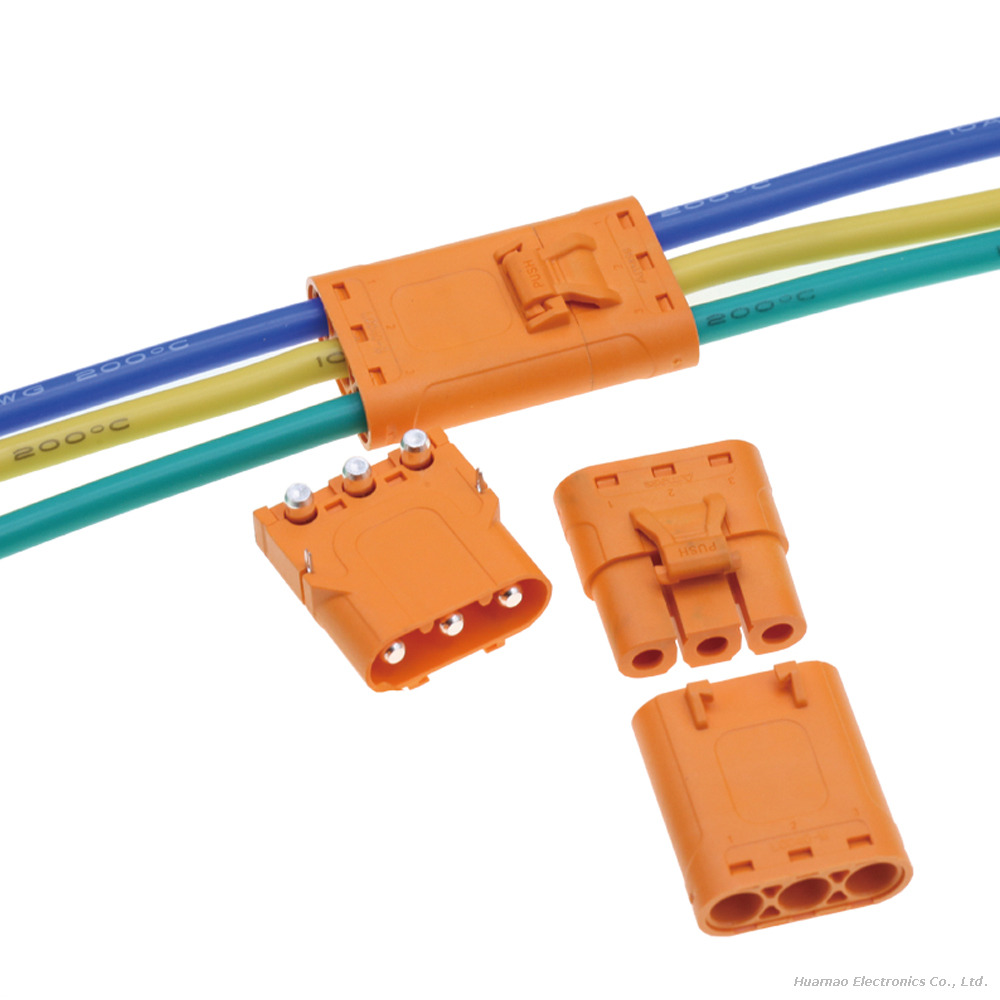

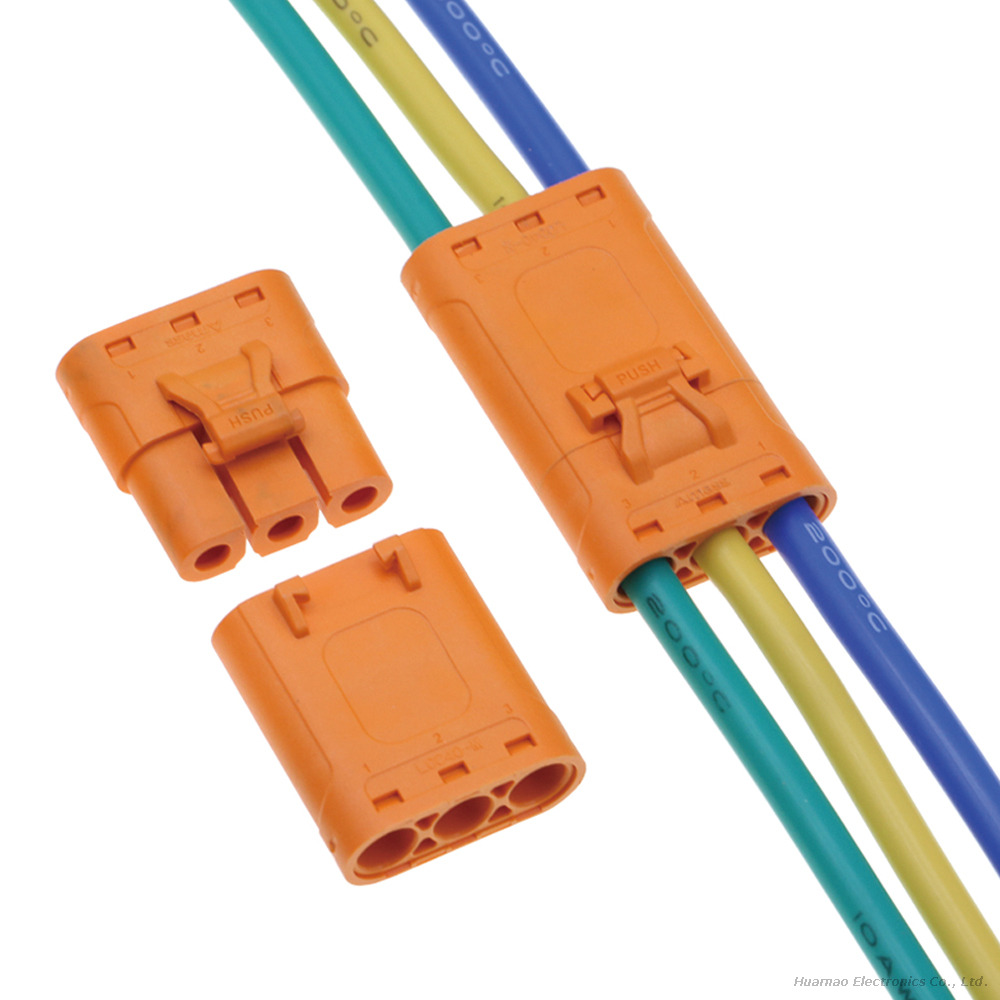

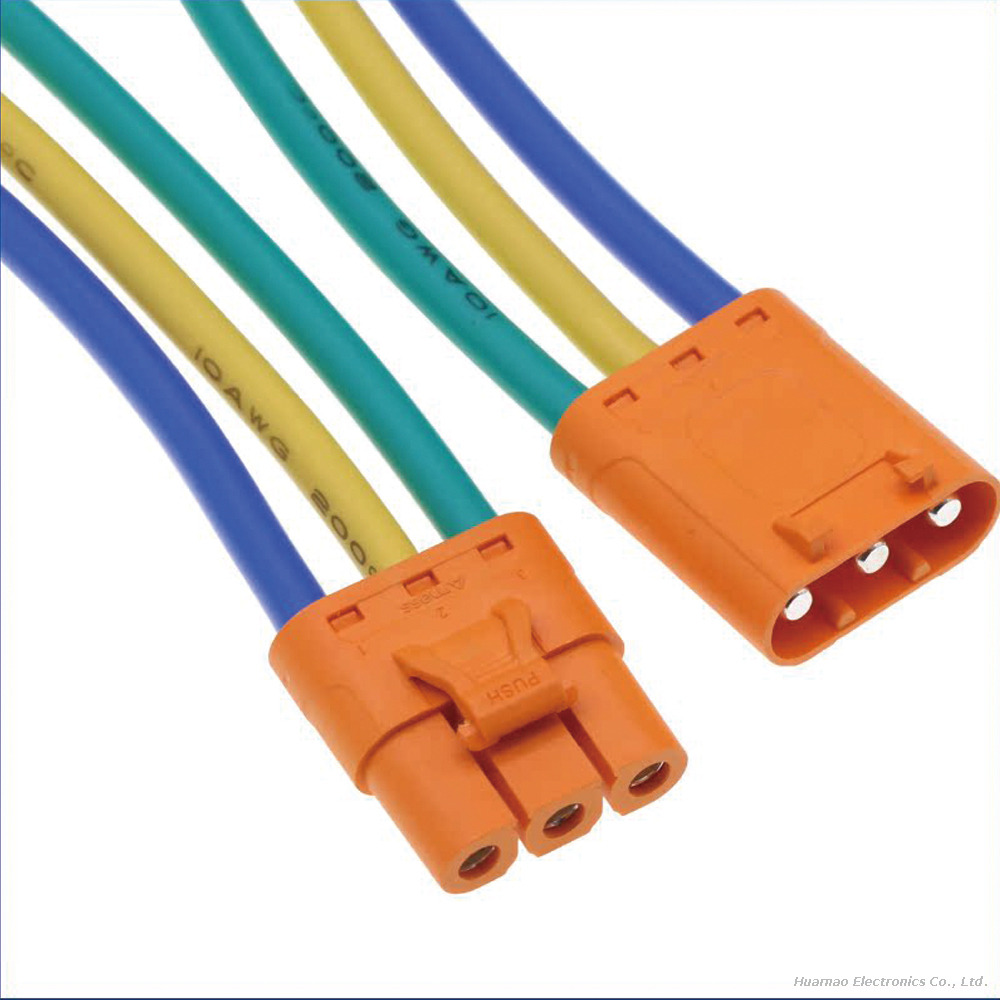

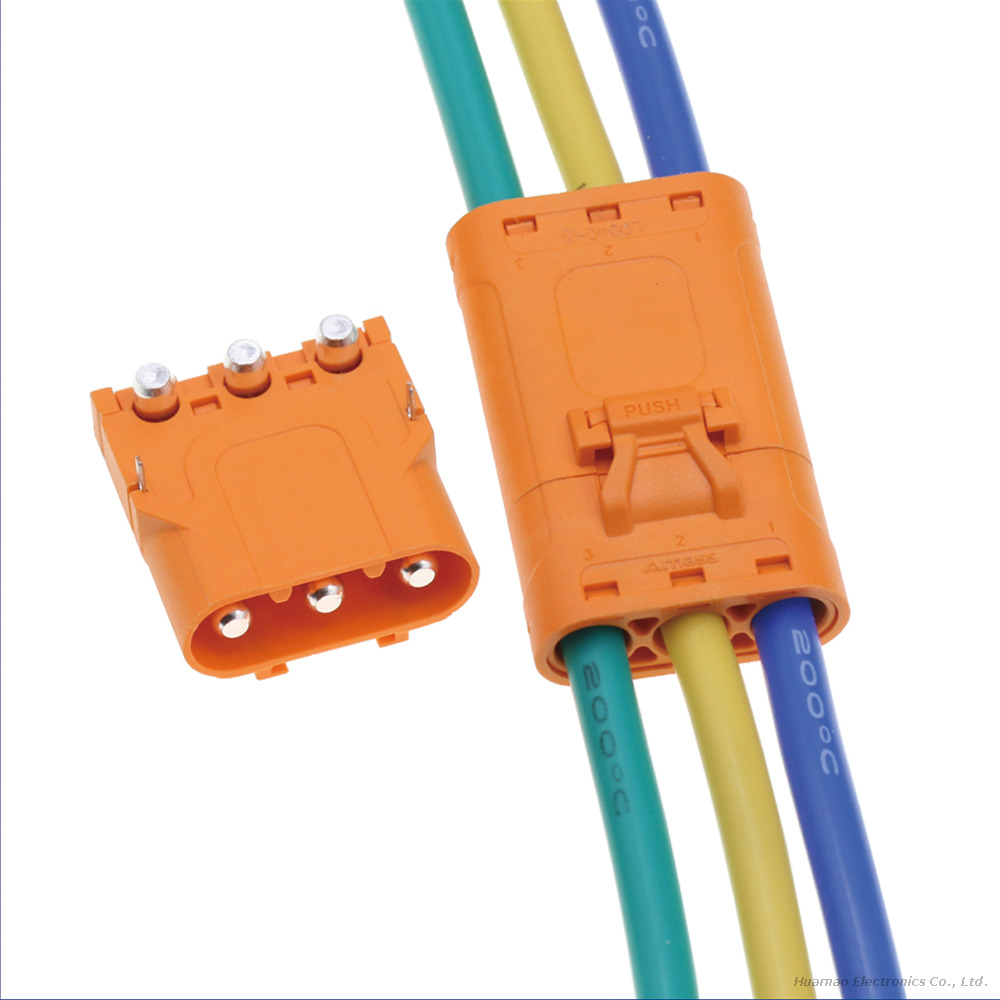

LCC40 F/M Plug Lock Connector Wire Battery Connection Cable

Core Features & Specifications

Outstanding Electrical Performance

The connector boasts impressive electrical stability with a DC voltage resistance of 1000V, guaranteeing safe power transmission even in high - voltage working conditions. Its insulation resistance is no less than 2000MΩ, which minimizes energy loss during power transmission and effectively prevents potential short - circuit risks. It is well - suited for 12 AWG crimp wires and 10 AWG wires, enabling versatile adaptation to different power transmission requirements from high - power equipment to low - voltage installations.

Superior Durability

Constructed with a PBT (Polybutylene Terephthalate) housing, the LCC40 connector exhibits excellent resistance to corrosion, chemicals, and extreme temperatures ranging from - 40°C to 120°C. It can withstand up to 100 mating and unmating cycles, making it highly reliable for scenarios that require frequent installation and disassembly. Additionally, it has passed a 48 - hour salt spray test, proving its strong corrosion resistance and suitability for long - term use in outdoor or humid environments.

Top - tier Safety Assurance

Safety is a core design priority of this connector. It holds a UL 94 V - 0 flame - retardant rating, which can effectively control the spread of fire in case of unexpected electrical faults, reducing potential hazards. The robust structural design and high - quality material selection also prevent issues such as overheating and wire detachment, ensuring the overall safety of the electrical connection system.

Application Scenarios

The Amass LCC40 wired connector is highly versatile and applicable to a wide range of fields:

Automotive and transportation: Suitable for power connections in electric vehicles, engineering vehicles, and ship electrical systems.

Renewable energy: Ideal for connecting components in solar power generation systems and wind energy equipment.

Industrial machinery: Applicable to power transmission in production lines, industrial control equipment, and heavy - duty machinery.

General electronics: Can be used in home lighting systems, high - power household appliances, and communication equipment that require stable high - current connections.
