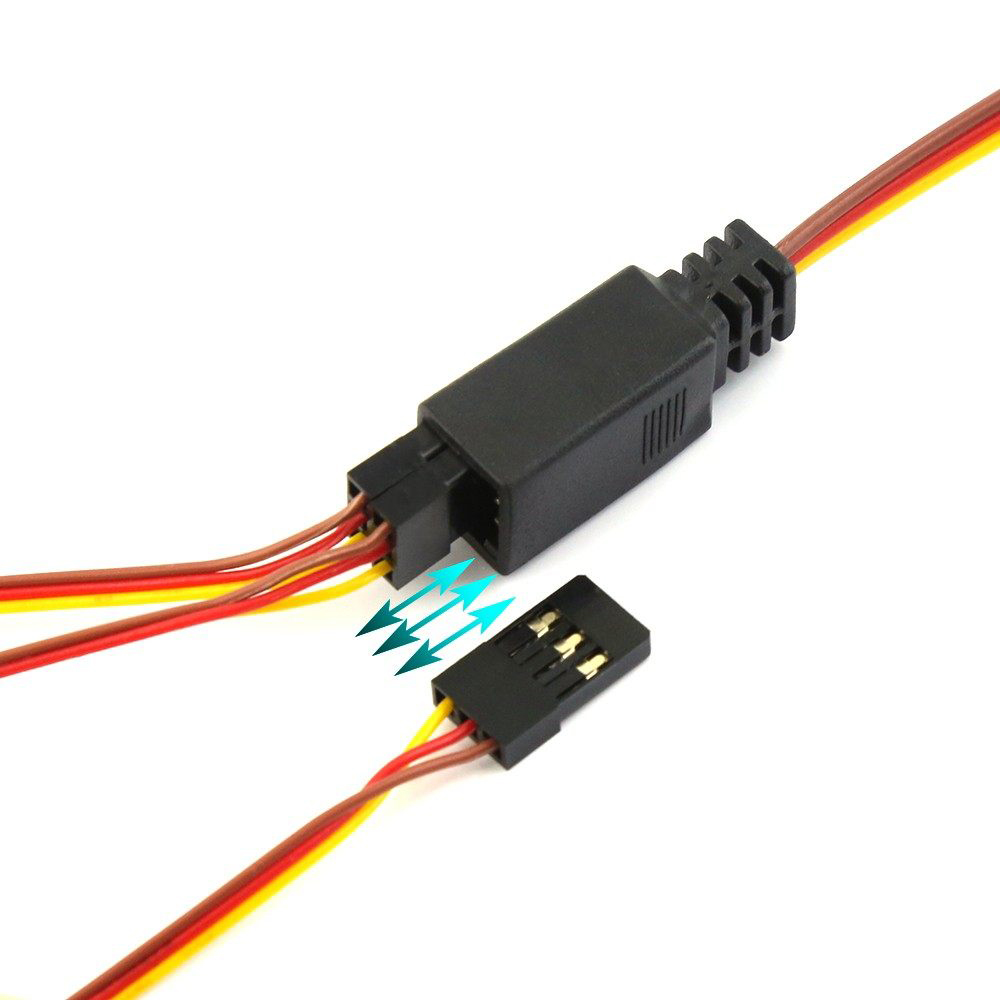

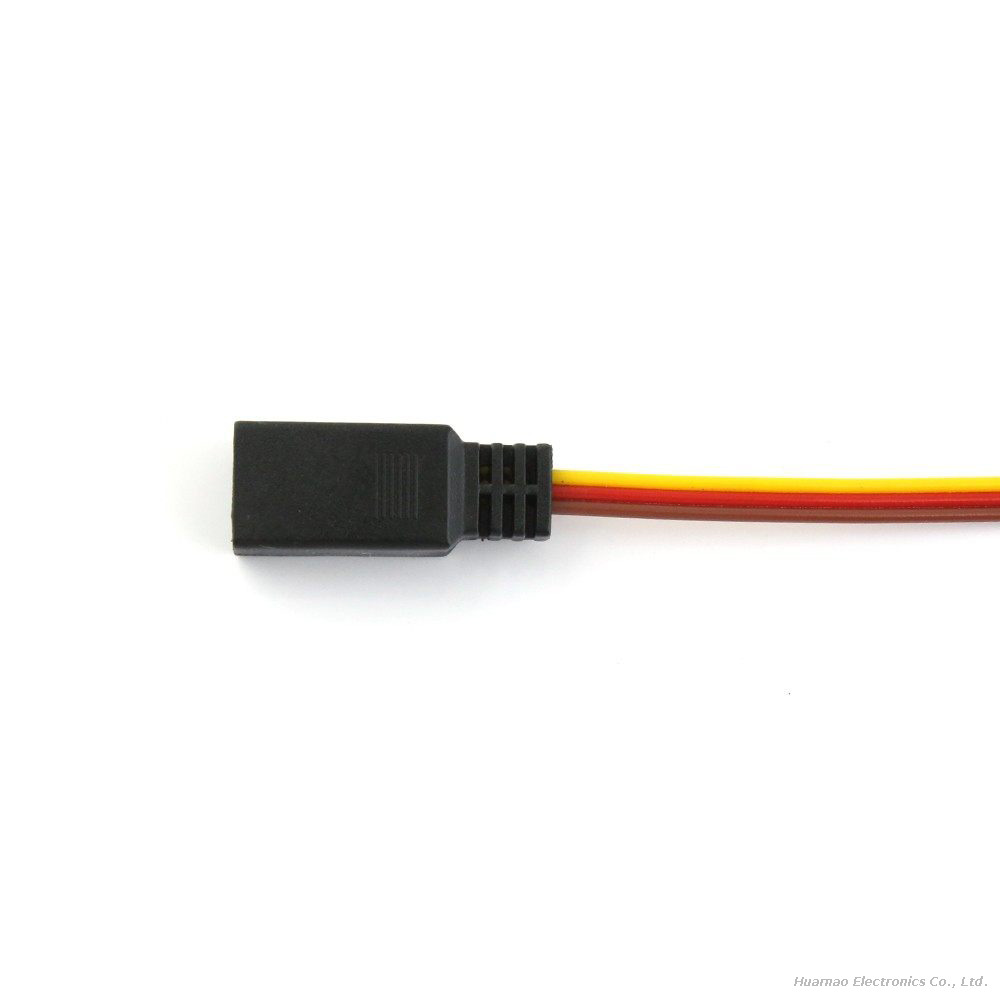

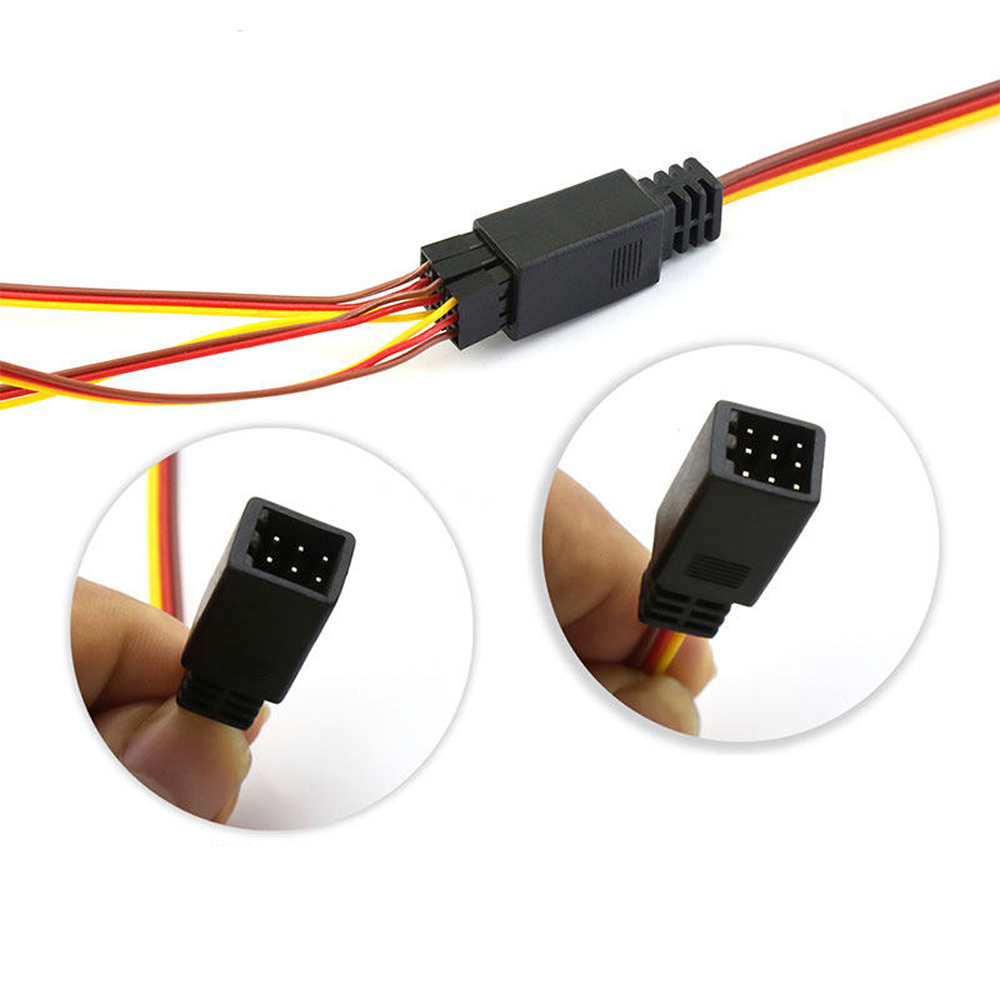

This R88 connection Y-shaped servo extension cable is specifically designed for RS Red Spider model aircraft, enabling one receiver channel to control multiple servos simultaneously. It provides a reliable, low-resistance connection for precise signal transmission between the flight controller/receiver and servo motors, essential for smooth control surface operation during flight.
Product Features
R88 Standard Connection: 3-pin (power/ground/signal) configuration with secure locking mechanism for anti-loose performance during high-vibration flight conditions

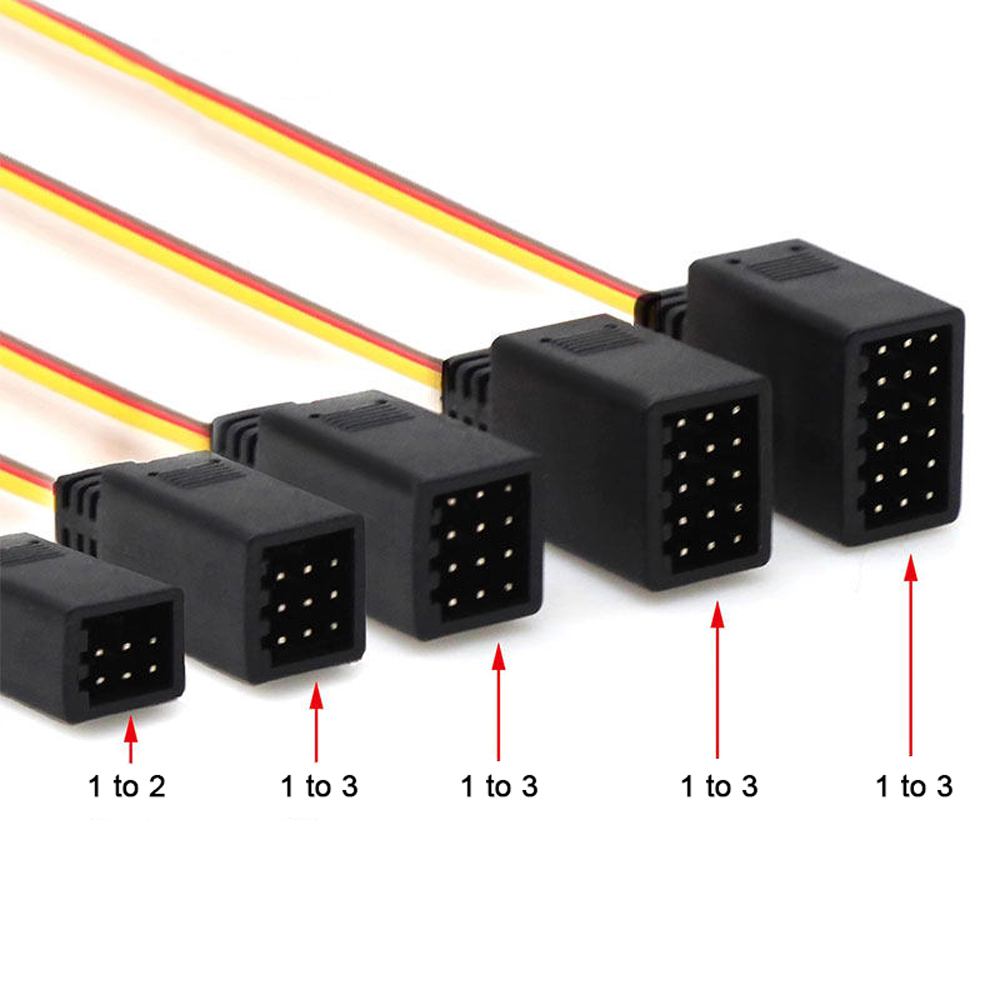

Y-Wire Splitter Design: 1 female to 2/3 male connector layout, allowing one receiver port to drive multiple servos (e.g., dual ailerons, elevators)
High-Quality Conductors: 22-24 AWG multi-strand copper core with silicone insulation for flexibility, high conductivity, and resistance to temperature extremes (-40°C to +120°C)
Gold-Plated Contacts: Ensures low contact resistance (<50mΩ), corrosion resistance, and stable signal transmission even in harsh environments
Precision Crimping: Factory-crimped terminals for maximum pull strength and consistent electrical performance
Flexible Length Options: Available in various custom lengths (typically 150mm-500mm) to suit different model aircraft configurations
Lightweight Construction: Minimal added weight to maintain optimal flight performance of RS Red Spider model aircraft
Color-Coded Wires: Standard servo wire colors (red: power, black/brown: ground, yellow/orange: signal) for easy installation and troubleshooting
Applications
RS Red Spider model aircraft control surface wiring (ailerons, elevators, rudders, flaps)

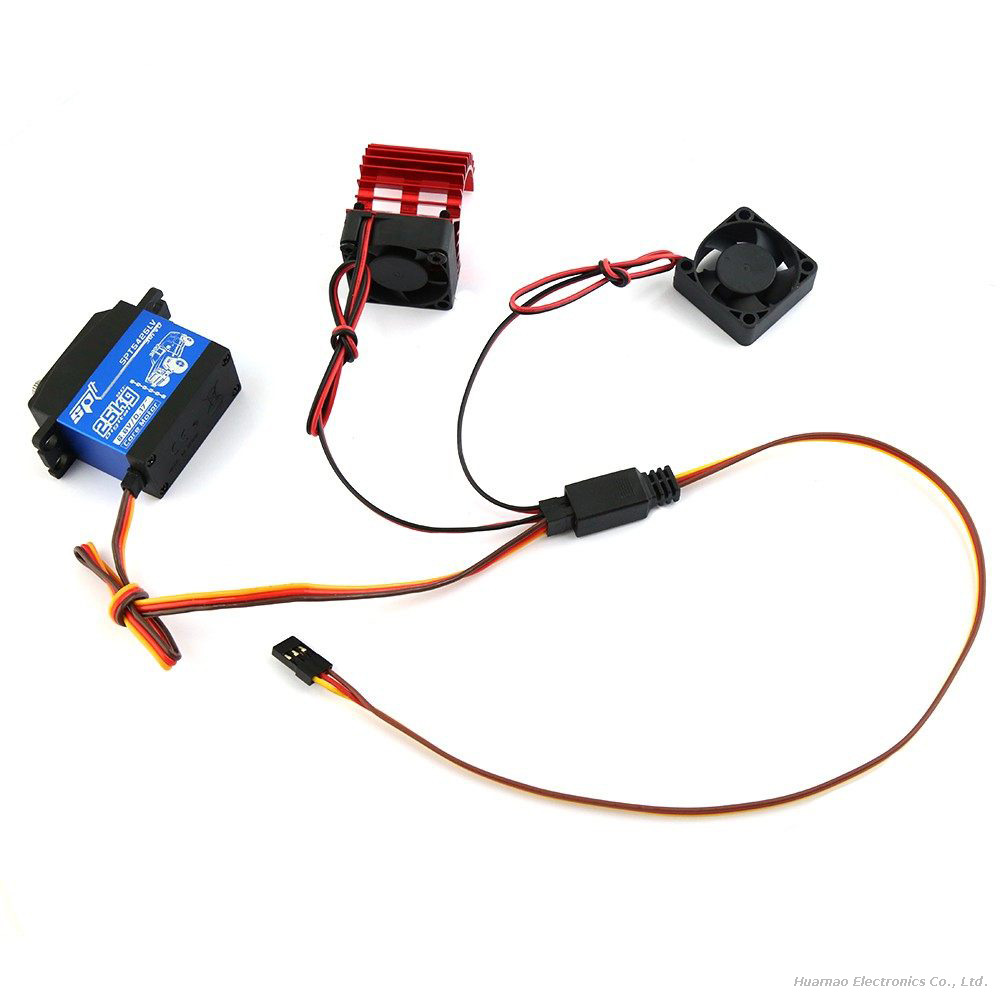

Multi-servo configuration for synchronized movement of control surfaces
Extending servo reach in larger model aircraft designs
Custom RC aircraft projects requiring Y-splitter servo connections
General RC model servo signal distribution and extension applications
