Molex50579402 To DB15P Plug Connection Cable JST Connector Printed Transmission Motor Wire Harness

Molex50579402 To DB15P Plug Connection Cable JST Connector Printed Transmission Motor Wire Harness

Connector Configuration:Molex 50579402 to DB15P to JST

Wire Gauge:24AWG

Operating Temperature:-40℃ to105℃

Model:
Molex50579402
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon Buy at Aliexpress

Molex50579402 plug connector cable DB15P Plug Connection Cable JST Connector Wire Motor wire harness Water stop valve connection wire

Product Description

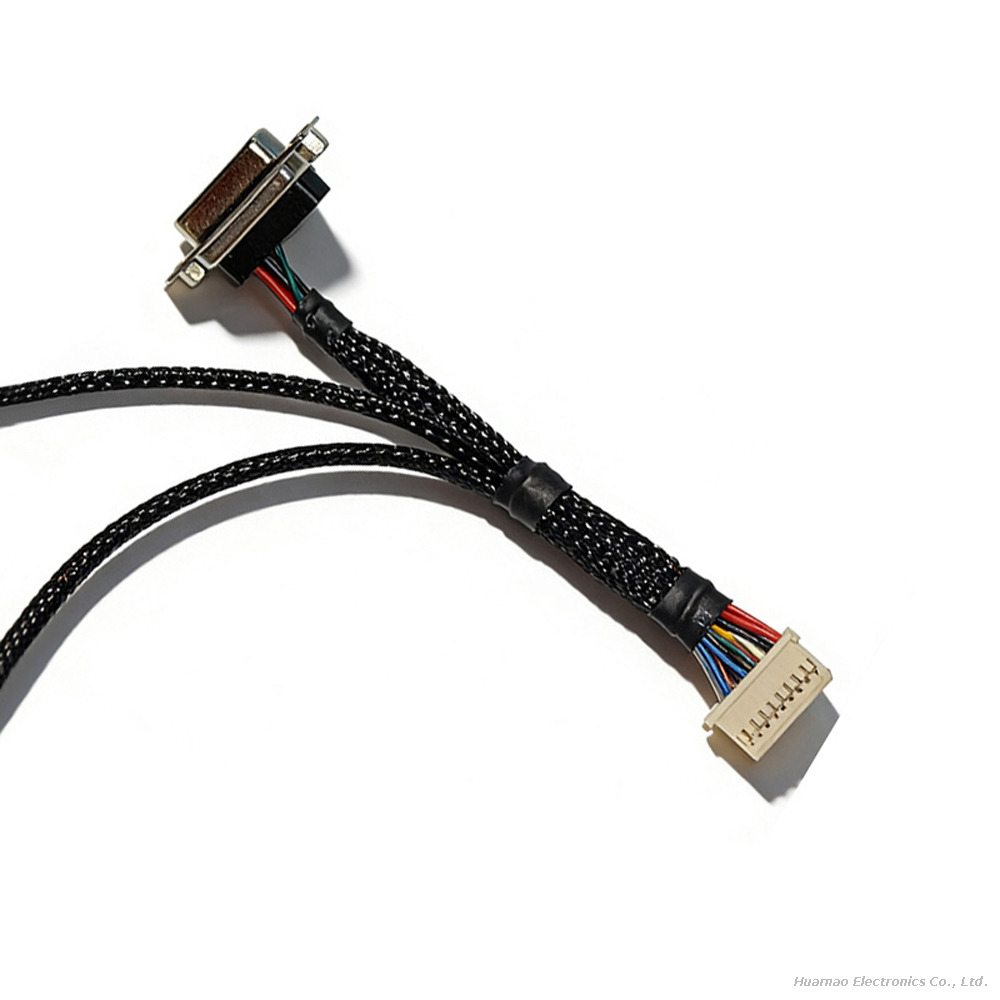

Engineered for reliable motor signal transmission and printed circuit interconnection, this multi-interface wire harness bridges Molex 50579402 SL series connectors, DB15P (15-pin D-sub) plugs, and JST compatible terminals. Designed for industrial automation, motor control systems, and electronic equipment, it integrates precision-engineered connectors with high-conductivity wiring to ensure stable signal transfer between control modules, motors, and printed circuit boards (PCBs) in demanding operational environments.

Core Features

✅ Tri-Interface Compatibility

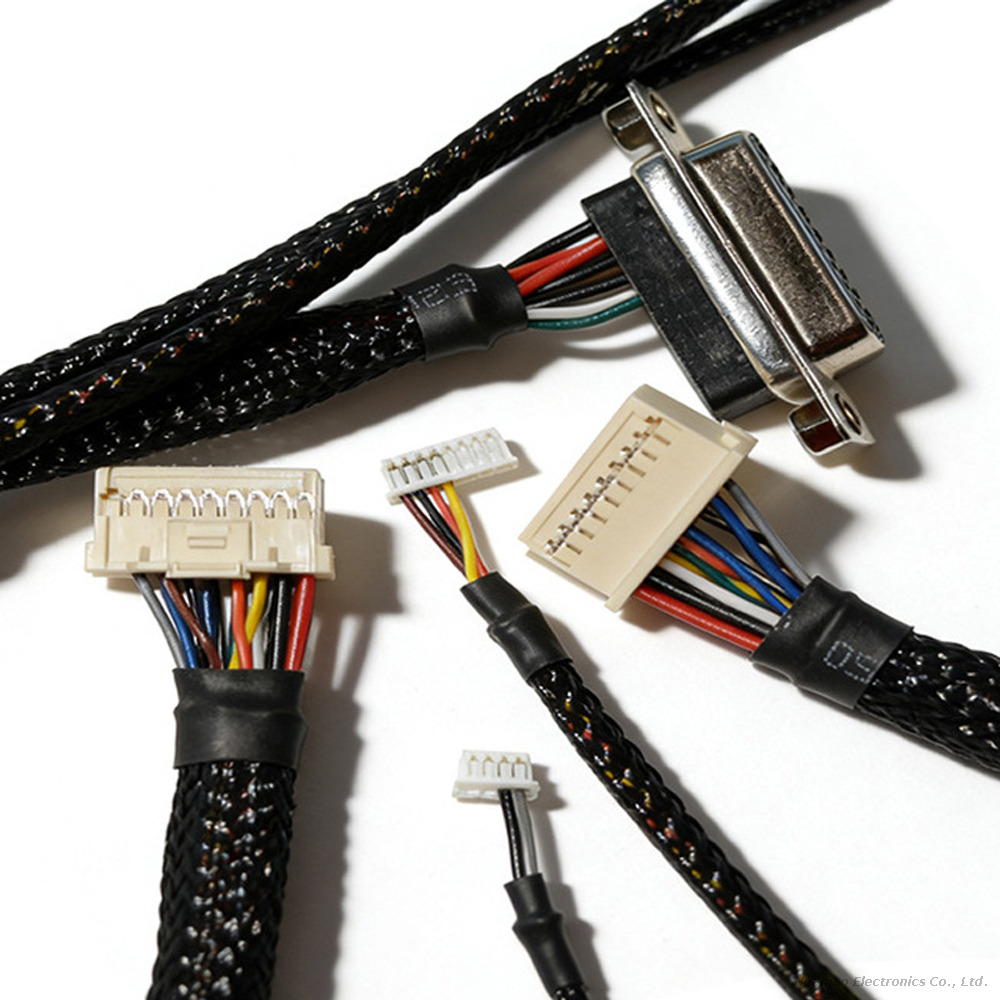

Molex 50579402: 2-position (2P) female crimp housing with 2.54mm pitch, compatible with SL series terminals for wire-to-board connections

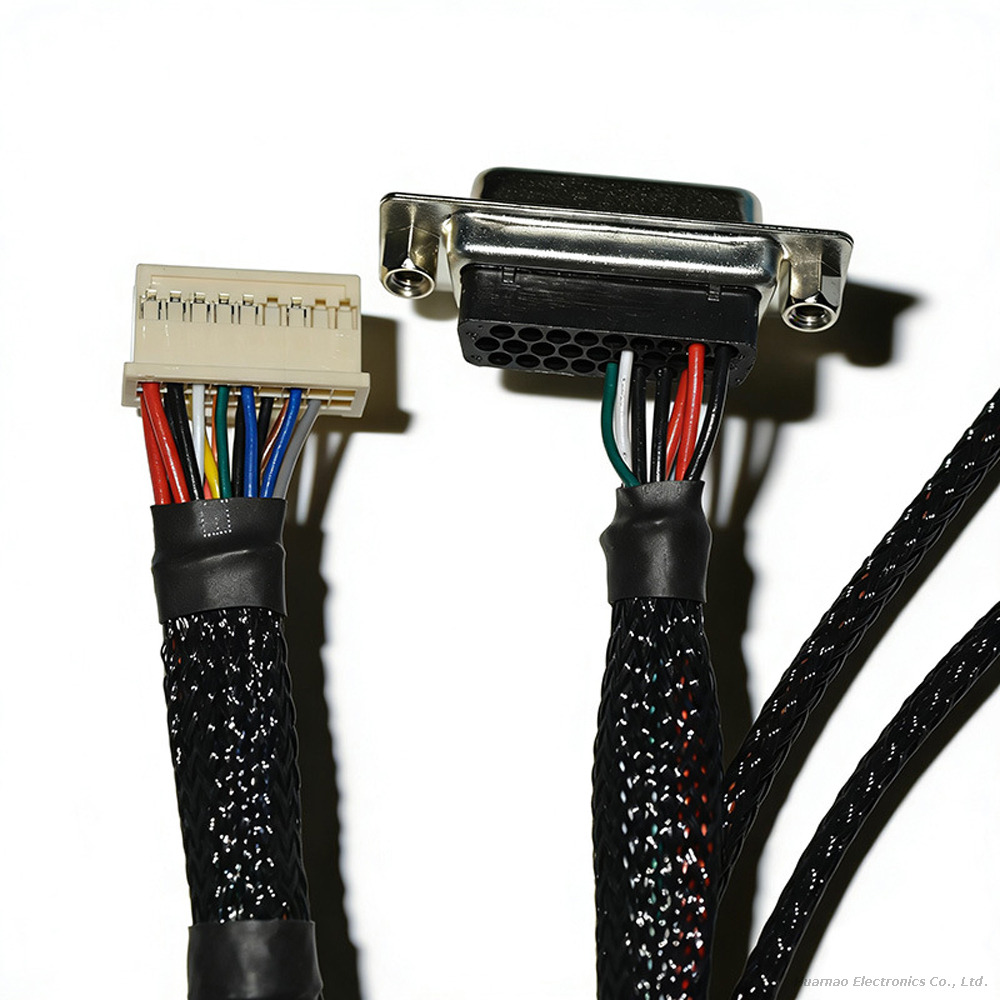

DB15P male plug: 2-row 15-pin D-sub connector with Thread locking (4-40 screws) for secure mating in vibration-prone motor systems

JST compatible terminal: Precision crimp design for seamless integration with JST-equipped motor sensors and control units

✅ Industrial-Grade Signal Integrity

24AWG stranded copper wire (0.20mm² cross-section) minimizes signal attenuation (dB/m at 1MHz)
Tin-plated copper contacts (Molex/DB15P) ensure low contact resistance (≤15mΩ) and corrosion resistance
Shielded cable option (aluminum foil + braid) reduces EMI/RFI interference in motor control environments

✅ Robust & Secure Design

Molex 50579402 polyester housing (UL94 V-0) withstands -40℃ to 105℃ operating temperatures
DB15P PBT+GF housing with IP67 waterproof option (sealed variant) for harsh industrial conditions
Positive latch on Molex connector and Thread locking on DB15P prevent accidental disconnection (15N min retention force)

✅ Easy Integration & Versatility

Color-coded wiring and pin mapping diagram simplify PCB and motor terminal connection
Standard 50cm (19.7inch) length with custom options (10cm-300cm) for flexible layout adaptation
Supports 3A continuous current and 250V AC/DC voltage (Molex segment) for low-power motor signal transmission

Application Scenarios

Ideal for motor signal transmission and industrial interconnects:

Industrial Automation: PLCs, servo motor control systems, stepper motor drivers, robotics
Electronic Equipment: PCB-to-motor signal transmission, test instruments, data acquisition devices
Automotive & Transportation: Electric vehicle auxiliary motors, commercial vehicle control modules
Consumer & Industrial Motors: HVAC motors, appliance motors, industrial fan motor controllers
Medical Devices: Precision motor-driven equipment (e.g., diagnostic scanners, surgical tools)

Quality Assurance

100% continuity, insulation resistance (≥1000MΩ), and contact integrity tested
RoHS/REACH compliant (no SVHC substances) for environmental safety
Resistant to vibration (10-55-10Hz, 15Gs) and mechanical stress in motor operating environments
Authentic Molex components with full traceability (batch code tracking)

Customization Options

Cable length: 10cm-300cm with precise cut-to-length and stripping (5mm exposed leads)
Wire type: Unshielded, foil-shielded, or braid-shielded for EMI-sensitive applications
Connector variants: DB15P female, Molex 50579402 male, or JST pin/header modifications
Pin configuration: Custom pin mapping for specific motor control and PCB interface requirements
Labeling: Heat-shrink identification tags or printed pinout labels for industrial assembly

Trust this multi-interface wire harness for reliable motor signal transmission and seamless interconnection between Molex, DB15P, and JST-equipped systems. Contact our technical team for compatibility verification, custom pinout design, or bulk ordering support.
