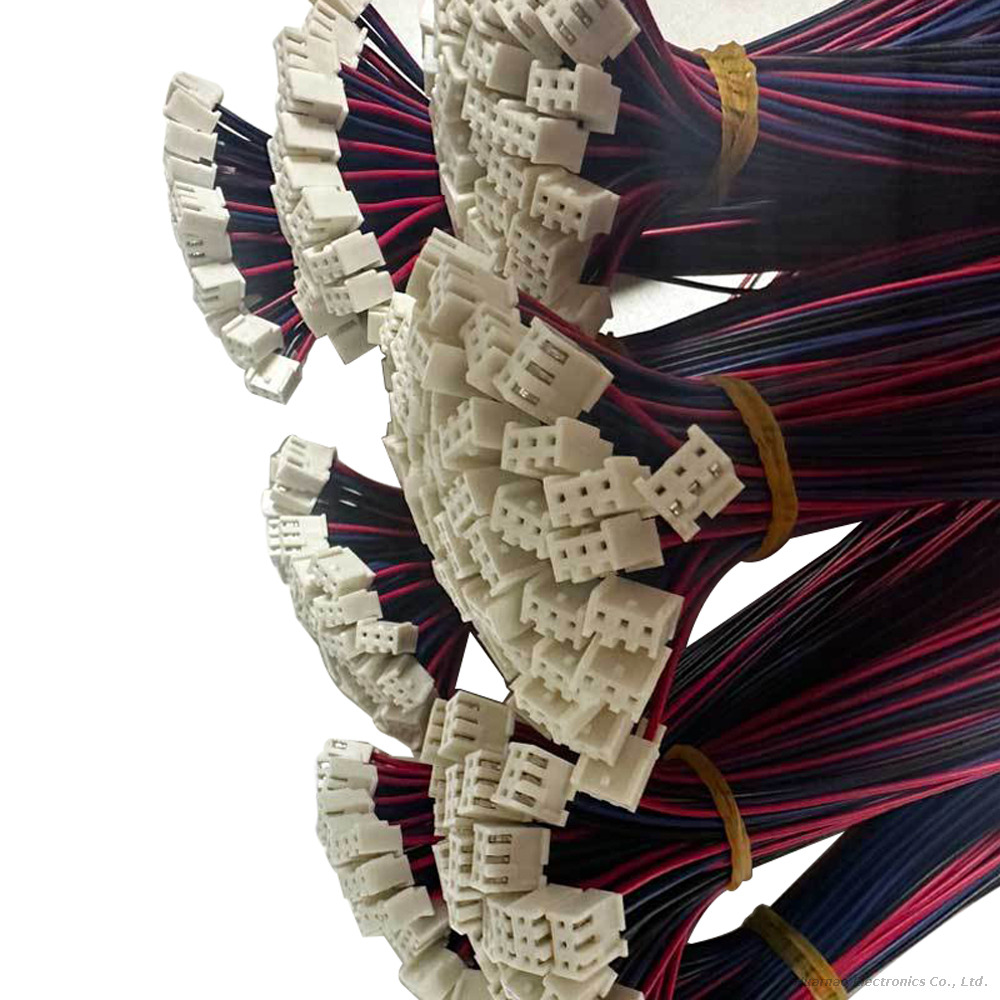

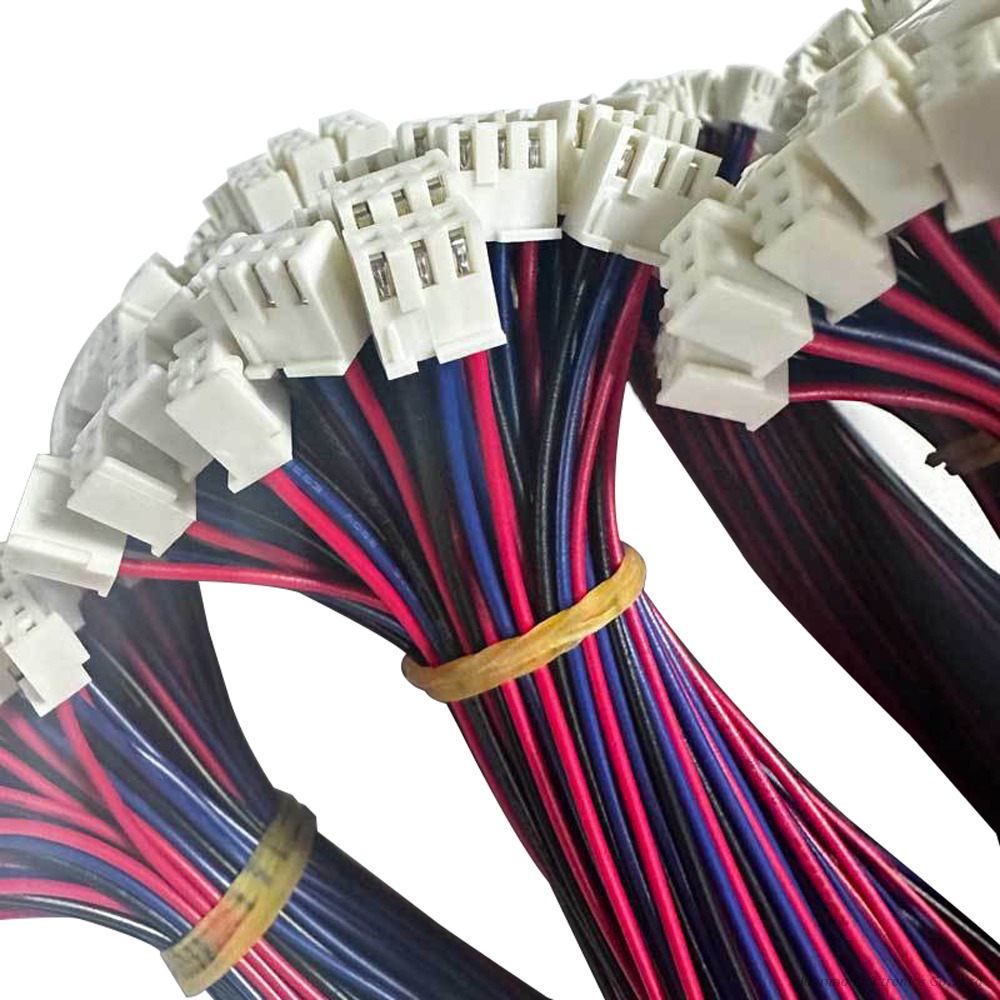

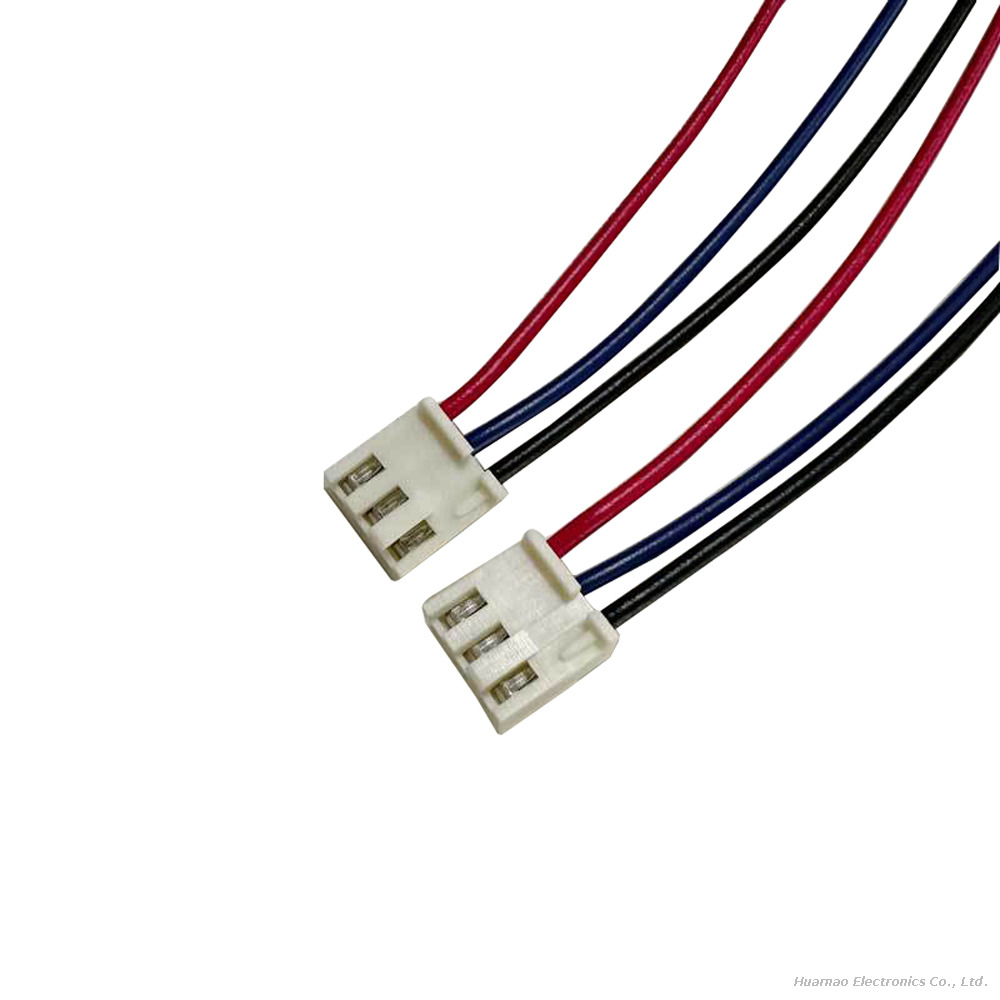

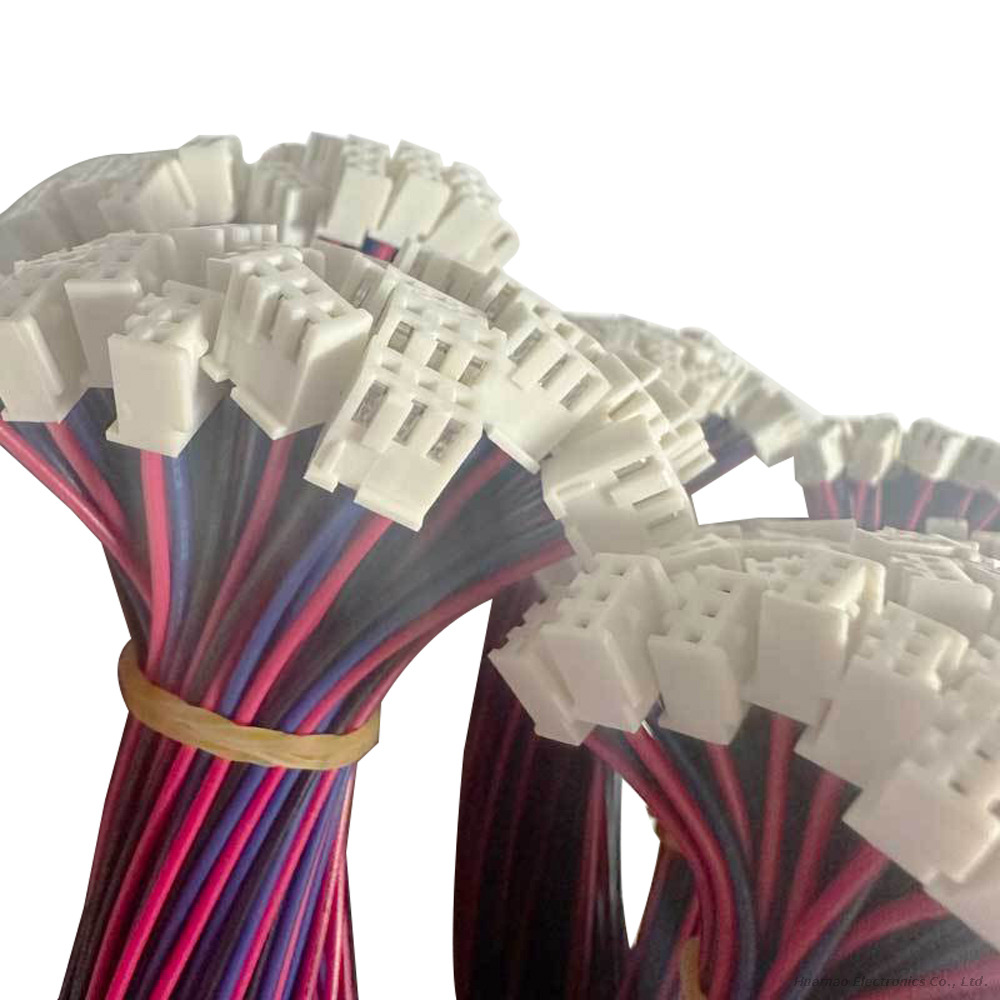

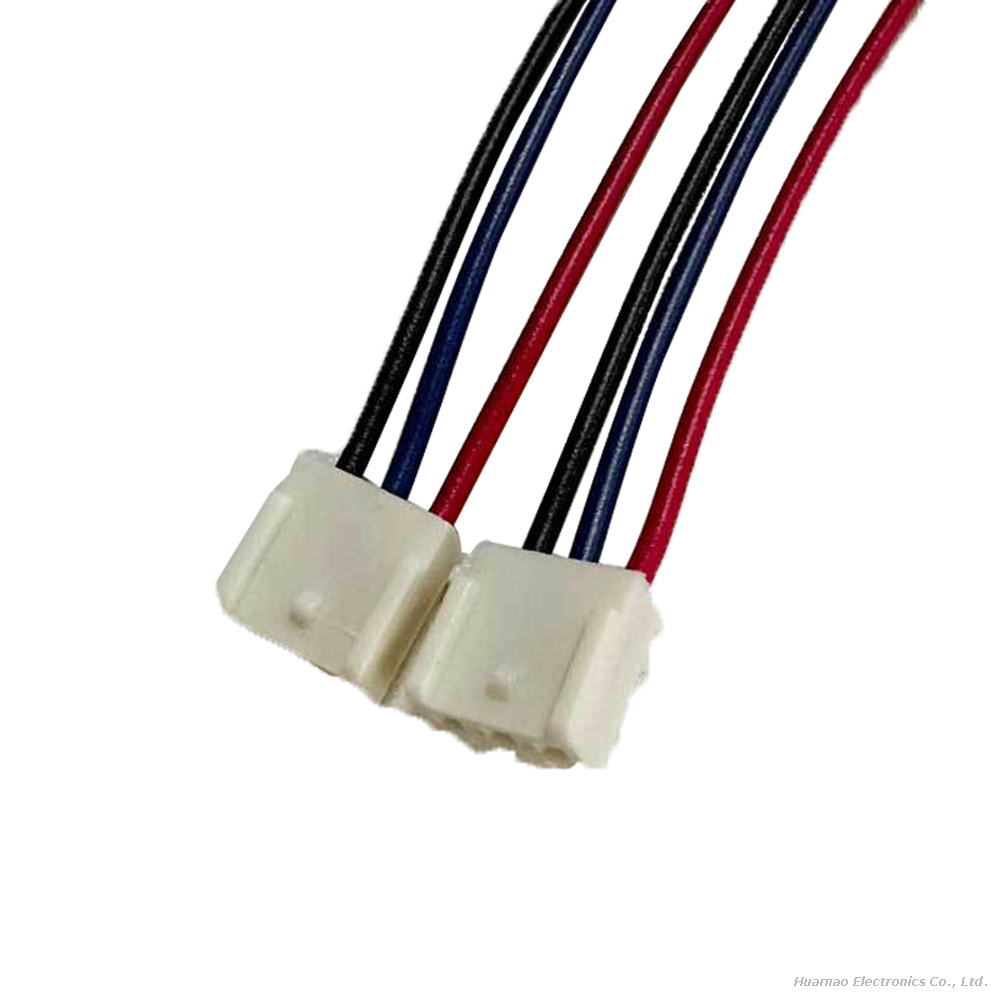

TJC9-3Y 2.5mm Wire To Board Motor Connector Cable Tjc9-3p Vehicle-to-Everything Connector Wire

This TJC9 series cable assembly features TJC9-3Y (wire-side) and TJC9-3P (board-side) 3-pin connectors with a 2.5mm pitch, designed for reliable power and signal transmission in motor control systems and vehicle-to-everything (V2X) applications. It provides a secure, plug-and-play connection between wires and PCBs, ideal for new energy vehicles, industrial automation, and smart mobility systems requiring stable, low-resistance performance.

Product Features

• TJC9-3Y/3P 3-Pin Design: 2.5mm pitch wire-to-board connector set for seamless interface between motor wiring and control boards

• Robust Electrical Performance: Rated for 3A AC/DC current and 250V AC/DC voltage, with ≤20mΩ contact resistance and ≥1000MΩ insulation resistance for reliable power/signal transfer

• High-Quality Construction: Phosphor bronze contacts with gold-over-nickel plating for corrosion resistance and long-term durability; PA66 housing with UL 94V-0 flame rating

• Secure Locking Mechanism: Integrated friction lock prevents accidental disconnection in high-vibration environments (common in automotive and industrial settings)

• Flexible Wiring Options: Compatible with AWG#28~#22 multi-strand copper wires (0.08mm²~0.34mm²) for versatile installation

• Wide Temperature Tolerance: Operates reliably from -25°C to +85°C (extended range options available up to -40°C to +105°C) for harsh operating conditions

• Precision Crimping: Factory-crimped terminals ensure consistent electrical performance, maximum pull strength, and resistance to environmental stress

• RoHS Compliant: Meets EU environmental standards for lead-free, mercury-free manufacturing

• V2X-Optimized: Engineered for vehicle-to-vehicle (V2V), vehicle-to-infrastructure (V2I), and vehicle-to-network (V2N) communication systems requiring stable data transmission

Applications

• New energy vehicle motor control systems and powertrain wiring

• Vehicle-to-everything (V2X) communication modules and sensor connections

• Industrial motor drives, robotics, and automation equipment

• Electric vehicle (EV) BMS (Battery Management System) and charging infrastructure

• Smart mobility solutions, connected car telematics, and ADAS (Advanced Driver Assistance Systems)

• General PCB-to-wire connections in automotive electronics and industrial control panels

• Agricultural machinery and off-highway vehicle electrical systems requiring vibration resistance

FAQ

Q1: Can I start a sample order first before ordering more?

A: Sure, Goochain provide free samples if we have stock, sample customized should be charged some set up cost. We appreciate you to order sample from us to check our quality.



Q2: What payment methods do you accept?

A: PayPal, T/T, Bank Transfer, Western Union and L/C

Q3: How does your factory do regarding quality control?

A: Quality is priority. QC department with professional quality assurance specialist attach great importance to quality controlling from the very beginning to the very end. Our factory has gained FDA Registered,Rohs, SGS, CE FCC,ISO9001:2008 ISO13485authentication. Etc

Q4: Factory? Yes! Can I customize items I like, such as to print our own logo, or to alter the design?

A: Yes, we are a factory with more than 100 employees. We offer OEM/ODM service. Please contact us or our sales representative to check with the details.

Q5: Delivery time and warranty? Which shipping service you will use for my goods?

A: Our lead time is around 2-4 weeks, and we can provide 12 months warranty since delivery. We used DHL,Fedex,UPS,TNT,EMS as customer like.
