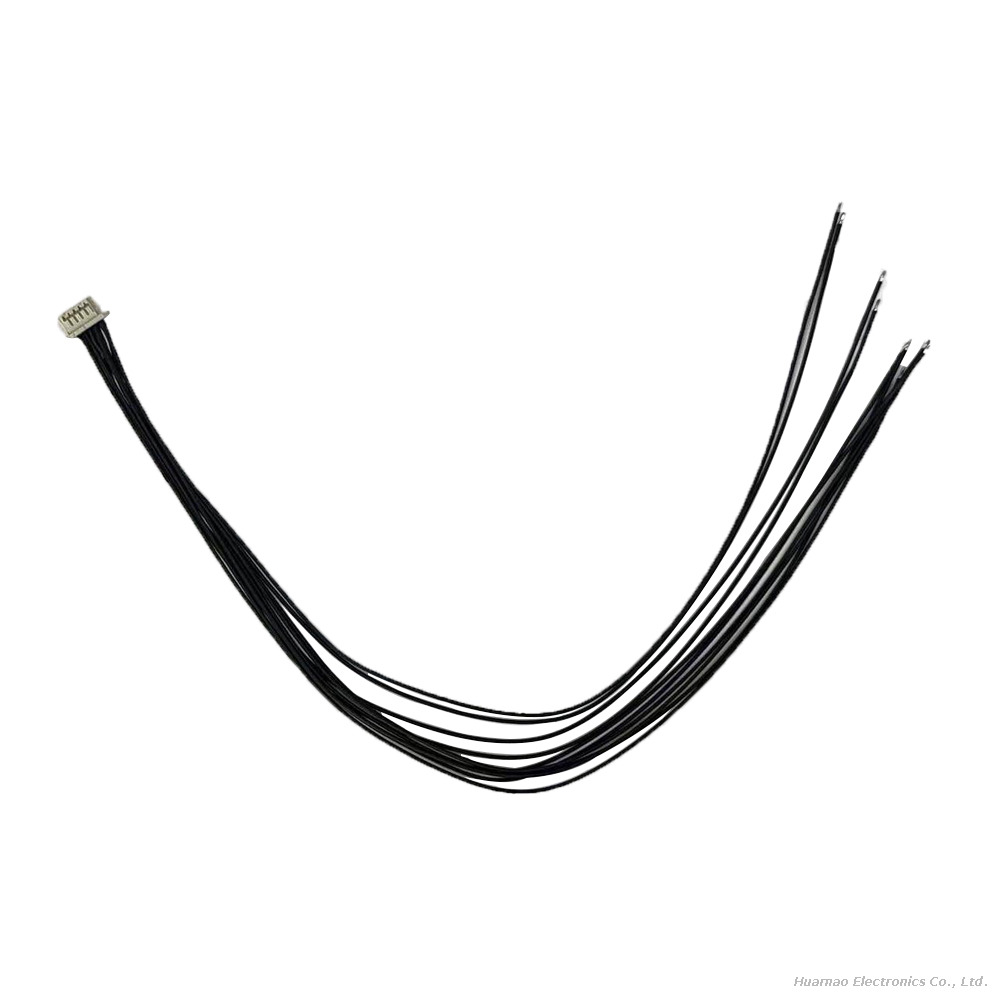

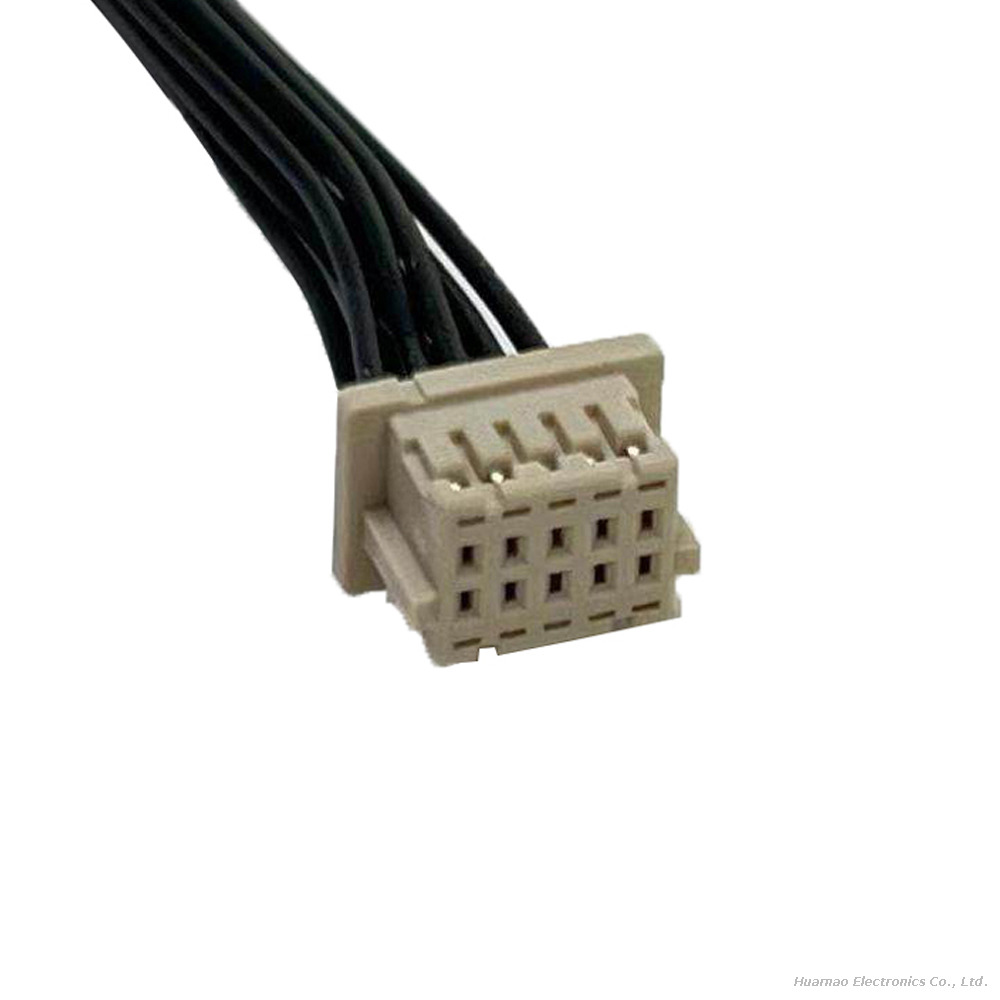

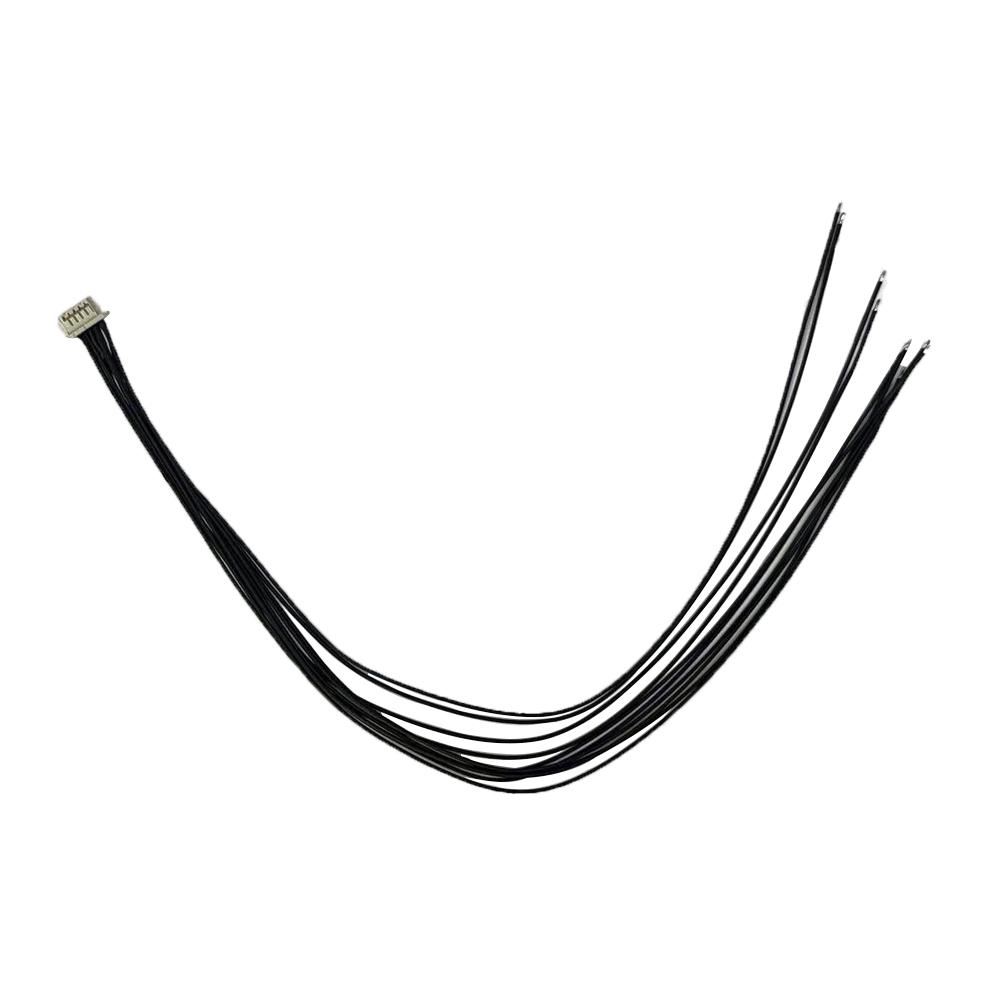

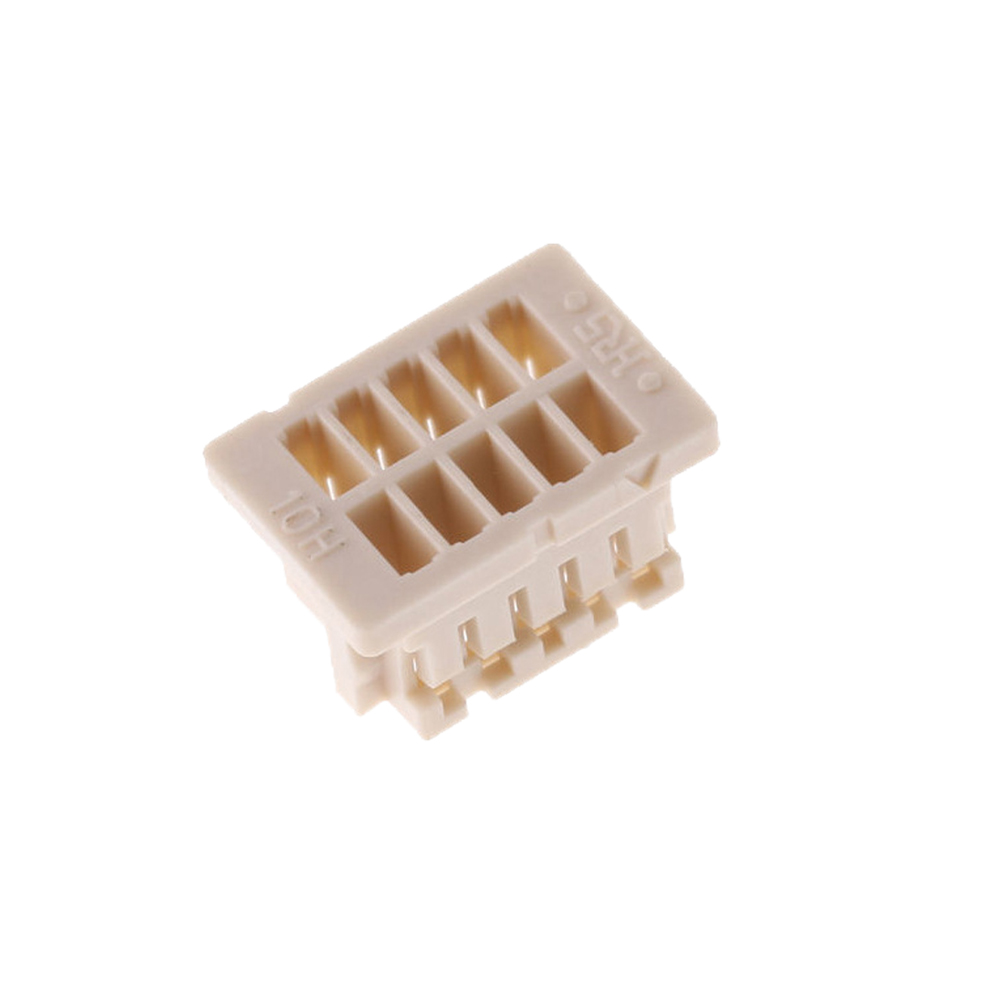

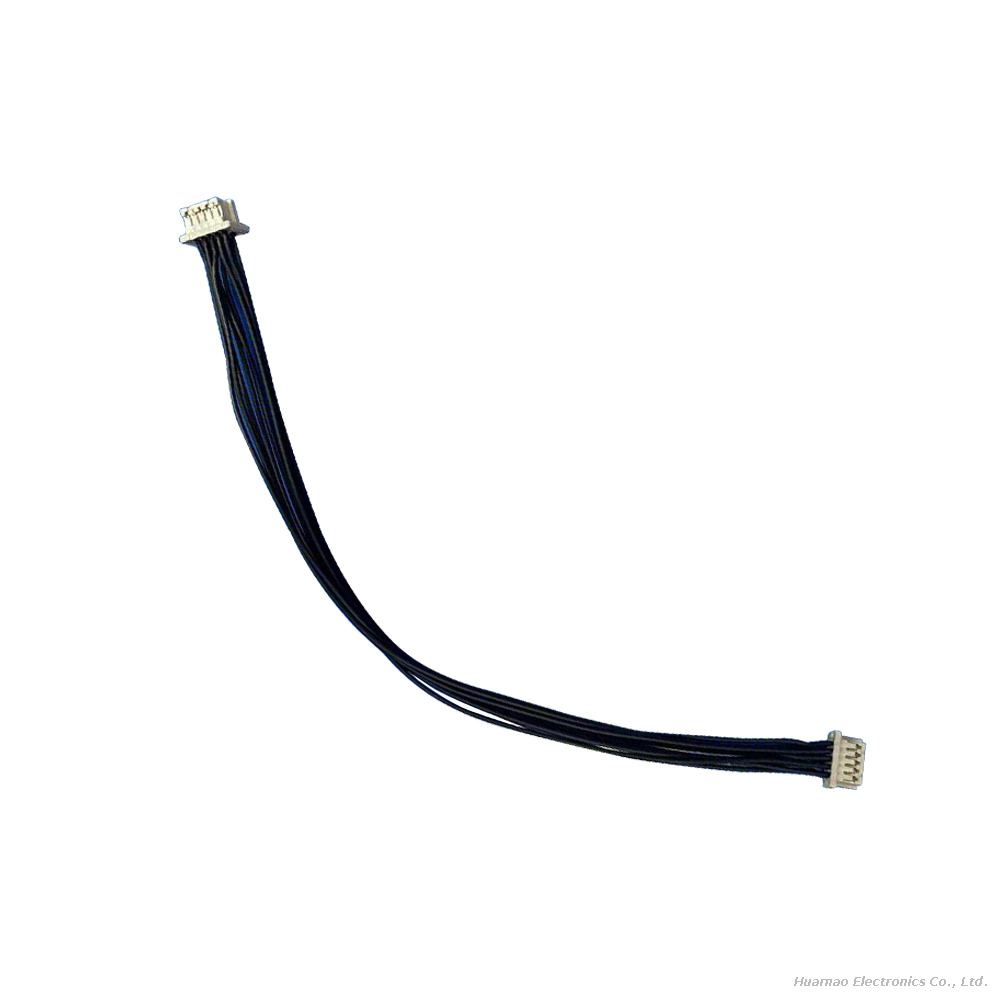

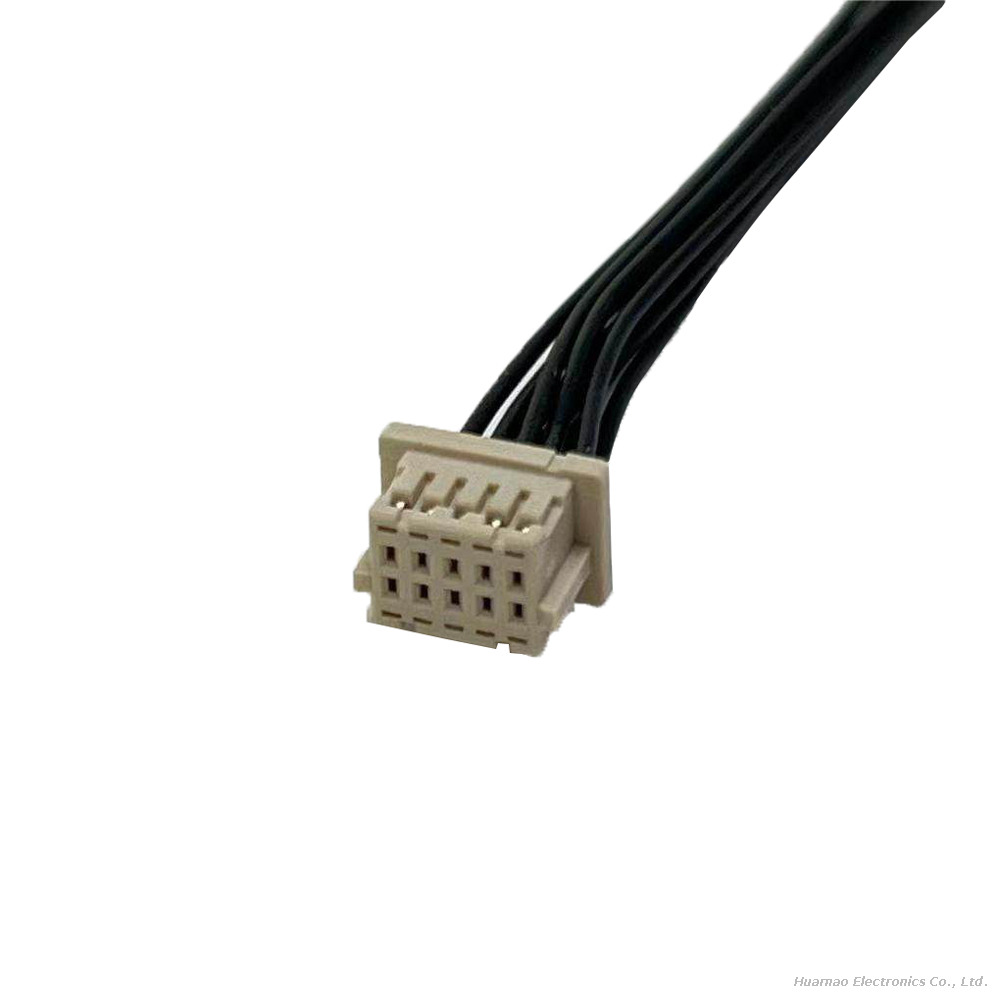

This high-performance Wire-to-Board (WTB) connector cable features the Hirose DF20A-10DS-1C 10-position double-row socket housing and DF20F-2830SCFA gold-plated crimp terminals, designed for reliable 1.0mm pitch connections in compact electronic devices. It delivers secure signal and power transmission between PCBs and internal wiring systems, ideal for space-constrained applications requiring low-profile, high-density interconnect solutions.
Key Advantages
Low-Profile DesignUltra-slim 5.8mm mating height and compact housing enable installation in height-restricted spaces, perfect for thin electronic devices.
Secure Connection SystemDouble-row 1.0mm pitch contacts with gold-plated phosphor bronze terminals ensure stable conductivity and corrosion resistance for long-term reliability.
Misinsertion PreventionBuilt-in polarization features prevent reverse connection, safeguarding sensitive electronic components from damage during assembly.
High-Density Interconnection10-position double-row configuration maximizes PCB space utilization, supporting more connections in smaller footprints.
Easy IntegrationDF20F-2830SCFA crimp terminals enable fast, reliable wire termination without soldering, while the DF20A-10DS-1C housing features a flat platform for vacuum pick-and-place assembly.
Applications
Notebook PCs, ultrabooks and tablet internal wiring
Small office automation equipment (printers, scanners)
Portable consumer electronics (wearables, digital cameras)
Medical devices and diagnostic equipment
Industrial control systems and embedded modules
High-density PCB interconnections in compact enclosures
Quality Assurance & Customization
100% continuity and mating testing before shipment
Customizable cable length (10cm–200cm) and wire colors
High-strength crimping process for vibration-resistant connections
Gold-plated contacts for enhanced durability and signal integrity
Vacuum pick-up compatible housing for automated assembly
RoHS compliant materials for environmental safety
Why Choose This Connector Cable?
The Hirose DF20 series connector cable combines precision engineering with reliable performance, addressing the challenges of modern compact electronics design. Its low-profile form factor, high-density configuration, and gold-plated contacts make it an excellent choice for engineers seeking robust interconnect solutions in space-constrained applications requiring both performance and reliability.
