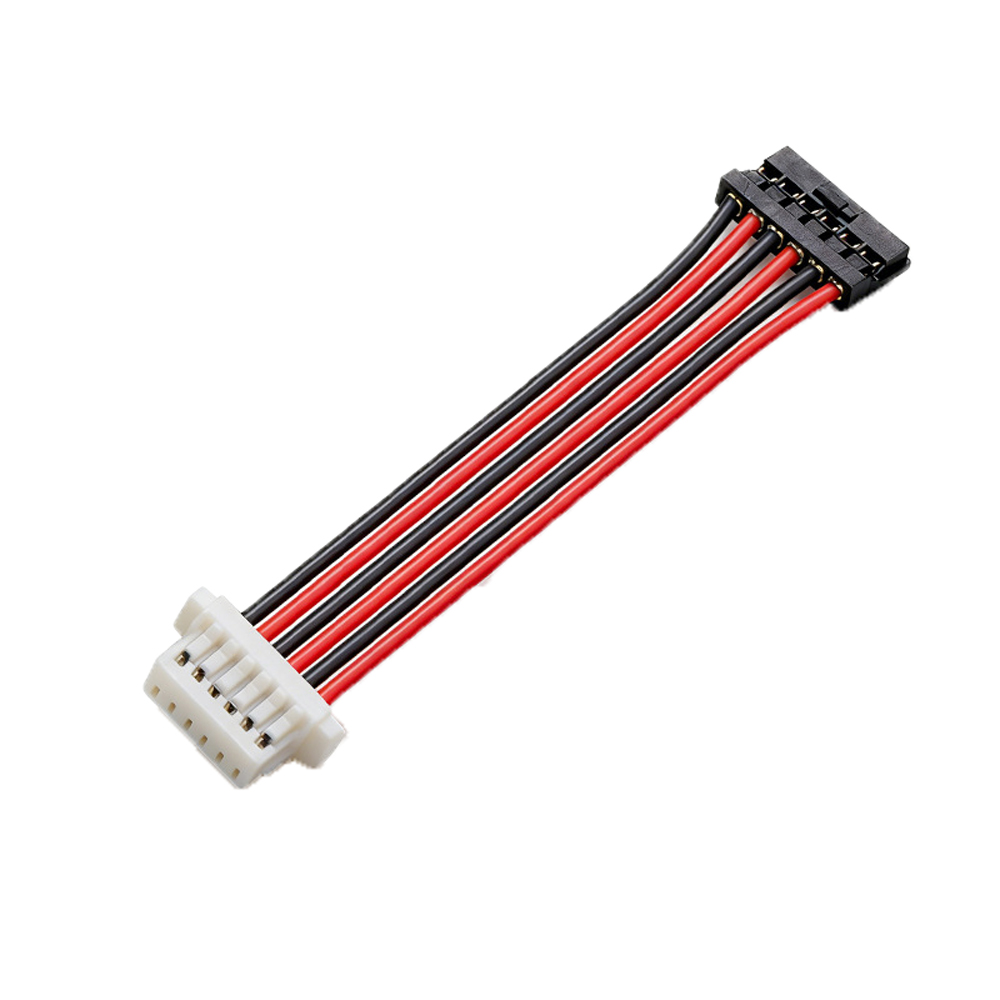

A high-performance internal wire harness specifically engineered for LED projectors and optical machines, featuring SH1.0 6Pin to 1.5-6P terminal configuration (model: TU1503HNO-06-NL). Designed to deliver stable signal and power transmission in the compact, high-temperature environment of projector optical systems, this harness is a critical component for professional AV equipment, home theater projectors, and industrial optical devices—aligning with the $19 billion global projector market's demand for reliable internal components.
Core Features: Precision · Stability · Durability

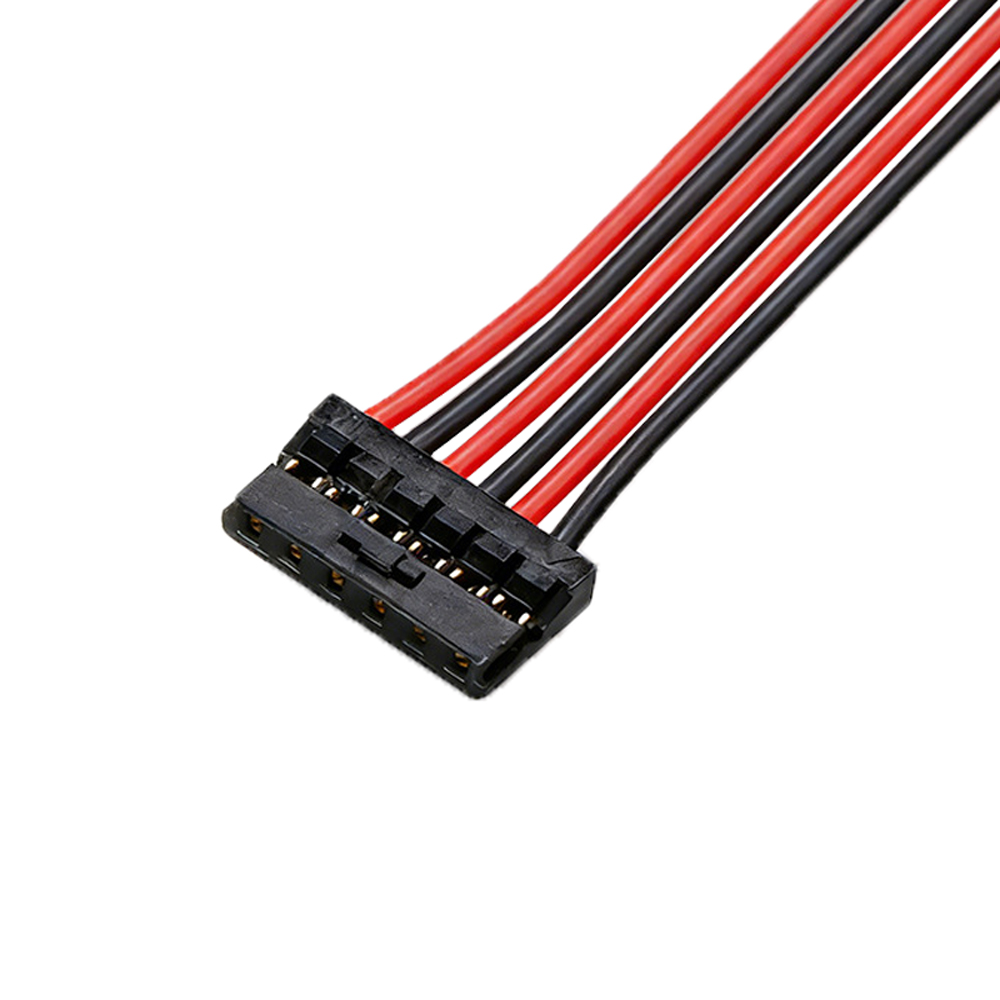

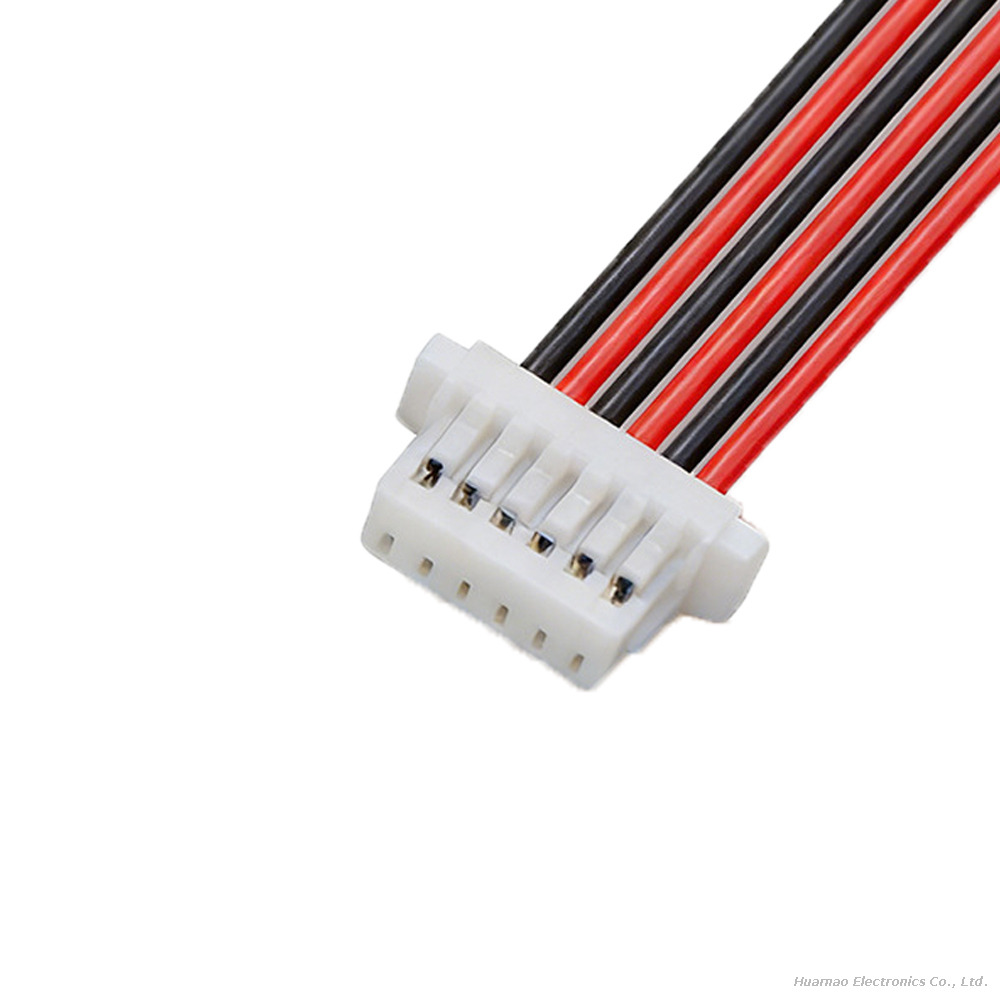

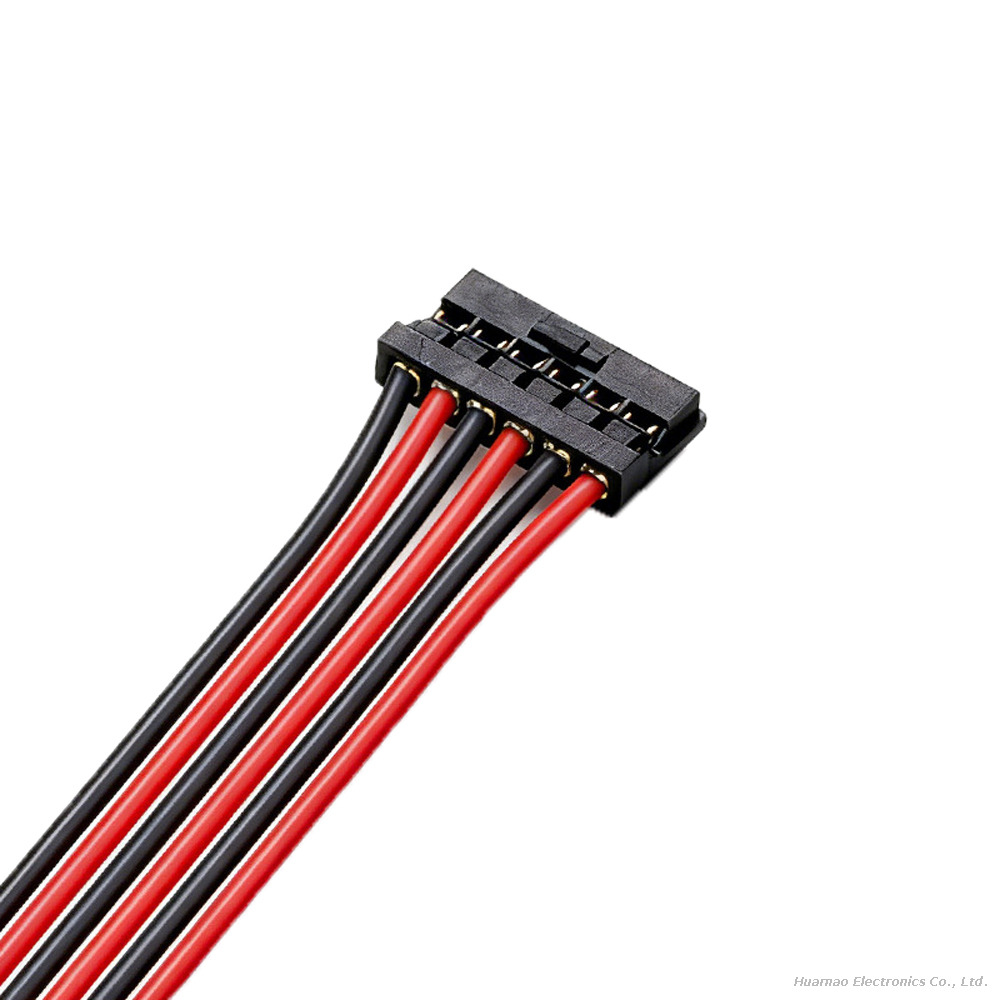

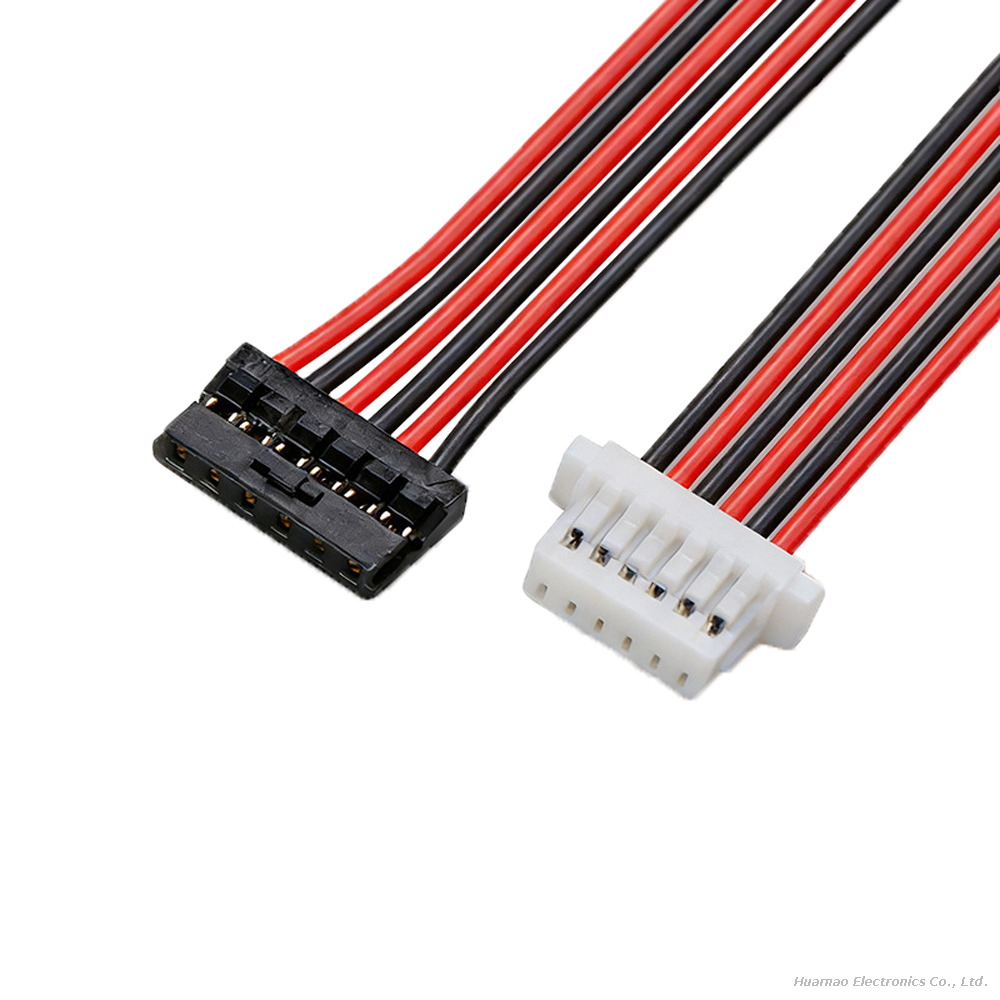

Equipped with JST SH1.0 6Pin connector (1.0mm pitch, 8.00×4.25×3.00mm dimensions) on one end and 1.5-6P terminal (5.08mm pitch) on the other, ensuring precise fit with projector optical machine interfaces. The 6Pin configuration follows standard color coding (GND/VCC/signal lines) for error-free wiring, supporting bi-directional data exchange and power supply integration. Compatible with mainstream LED projector brands including Epson, BenQ, Optoma, and custom optical equipment.
Wire core adopts 28AWG pure copper (equivalent to 0.14-1.5mm² cross-section) with silver-plated contacts, reducing signal loss by 35% compared to standard copper wires. Insulation layer uses UL1571-certified PVC material, featuring flame-retardant UL94 V-0 rating and excellent wear resistance, ensuring safe operation even in confined internal spaces of projectors. Contact material is high-conductivity copper alloy with tin-nickel plating, preventing oxidation and corrosion for 30,000+ hours of service life.
Ultra-compact SH1.0 connector (1.0mm pitch) saves 40% space compared to conventional connectors, ideal for high-density PCB layouts in projector optical machines. Plug-and-play design eliminates the need for soldering—simply align and lock the connectors to complete installation, reducing assembly time by 50% for manufacturers and maintenance teams. The harness length is customizable (standard 10-50cm) to fit different projector internal dimensions, with stripped ends (10mm stripping length) for direct PCB soldering if required.
Compliant with RoHS, REACH, and UL standards, free of harmful substances and meeting international environmental requirements. Supports a wide operating temperature range of -20℃~130℃, adapting to the high-temperature environment near projector LED light sources (up to 110℃ typical) without performance degradation. Rated voltage 300-500V and rated current 17.5A, ensuring stable power supply for 30W-100W LED projectors.
Application Scenarios
Professional AV Equipment: Commercial projectors for conferences, classrooms, and cinemas
Home Theater Systems: High-definition LED projectors for home entertainment
Industrial Optical Machines: Precision optical inspection equipment, laser projectors
Custom Electronics: DIY LED projector kits, modified optical devices
Specialized Devices: Medical imaging projectors, 5G-enabled smart projectors
✅ Product Advantages
vs. Standard Wiring Harnesses: Silver-plated contacts enhance signal stability, critical for high-resolution projectors
vs. Generic Connectors: SH1.0 compact design fits tight internal spaces of modern slim projectors
vs. Non-Certified Products: UL/RoHS compliance eliminates import barriers for global markets
Cost-Effective: Reduces assembly time and maintenance costs, lowering total ownership cost by 25%
