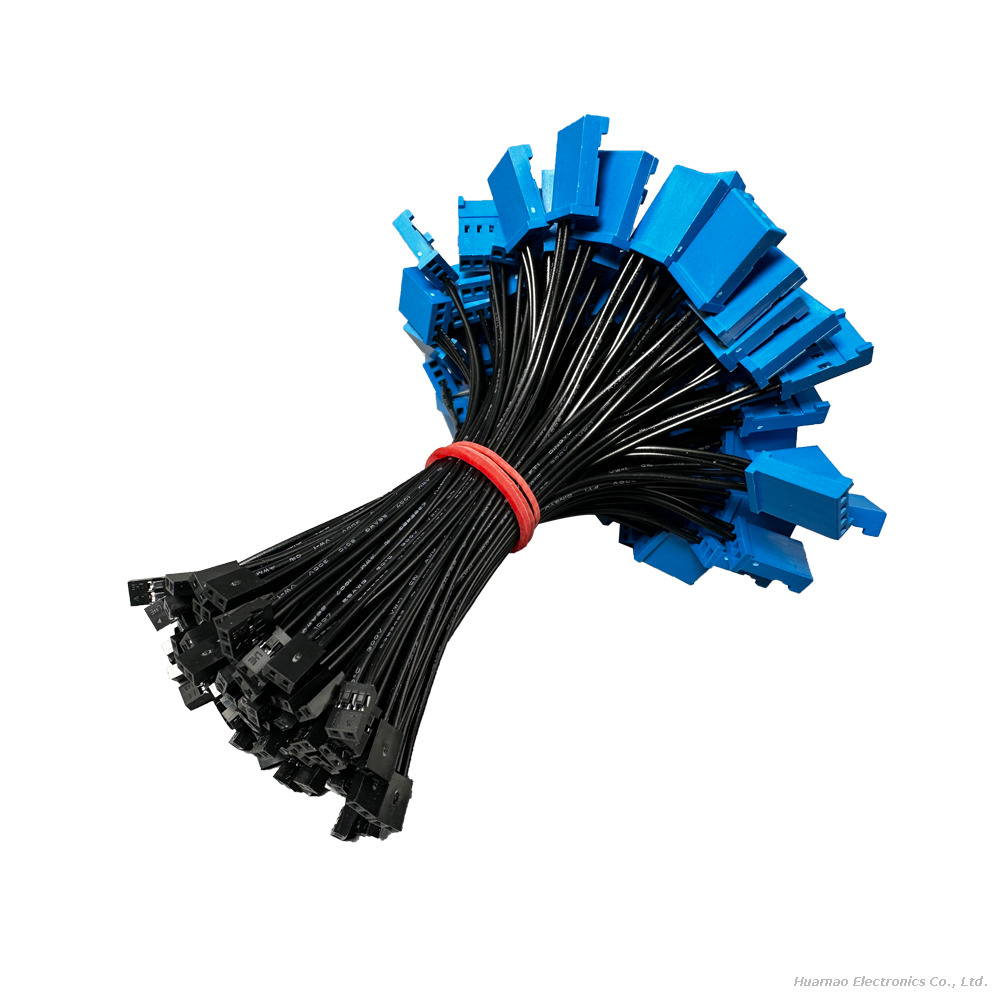

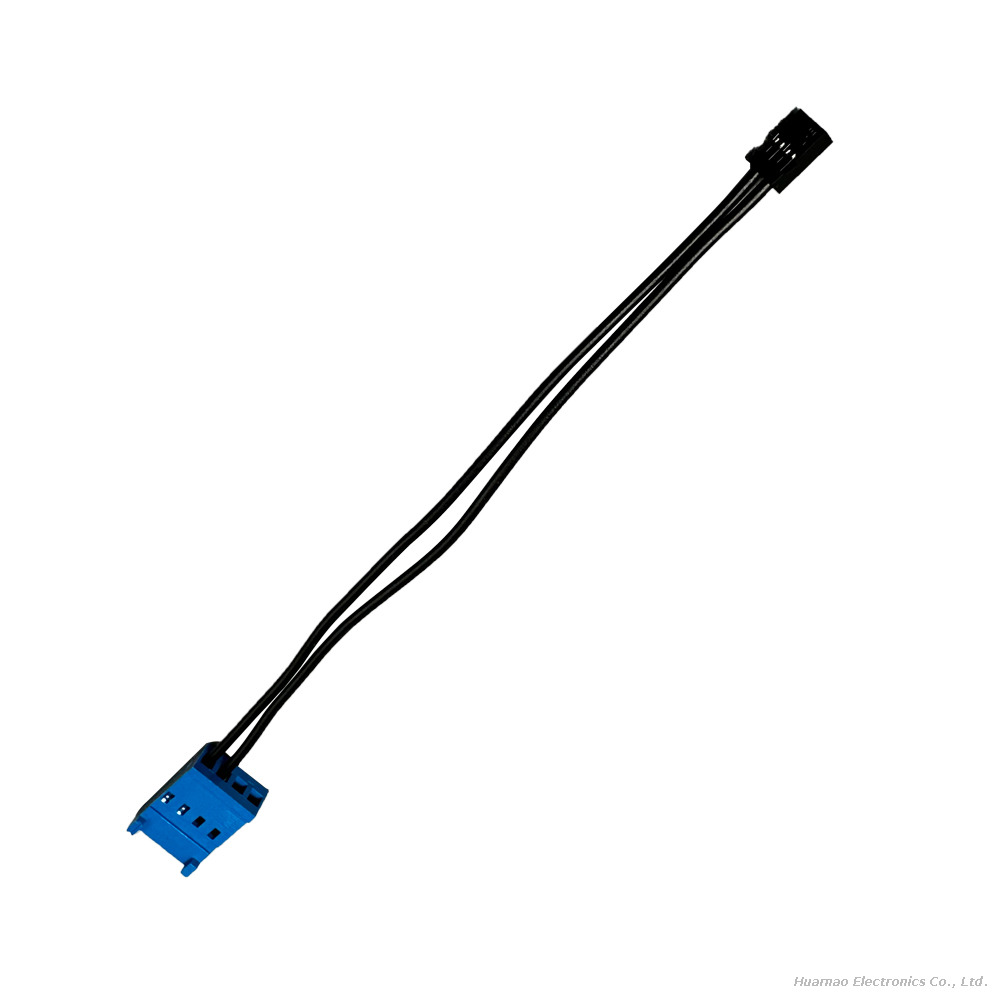

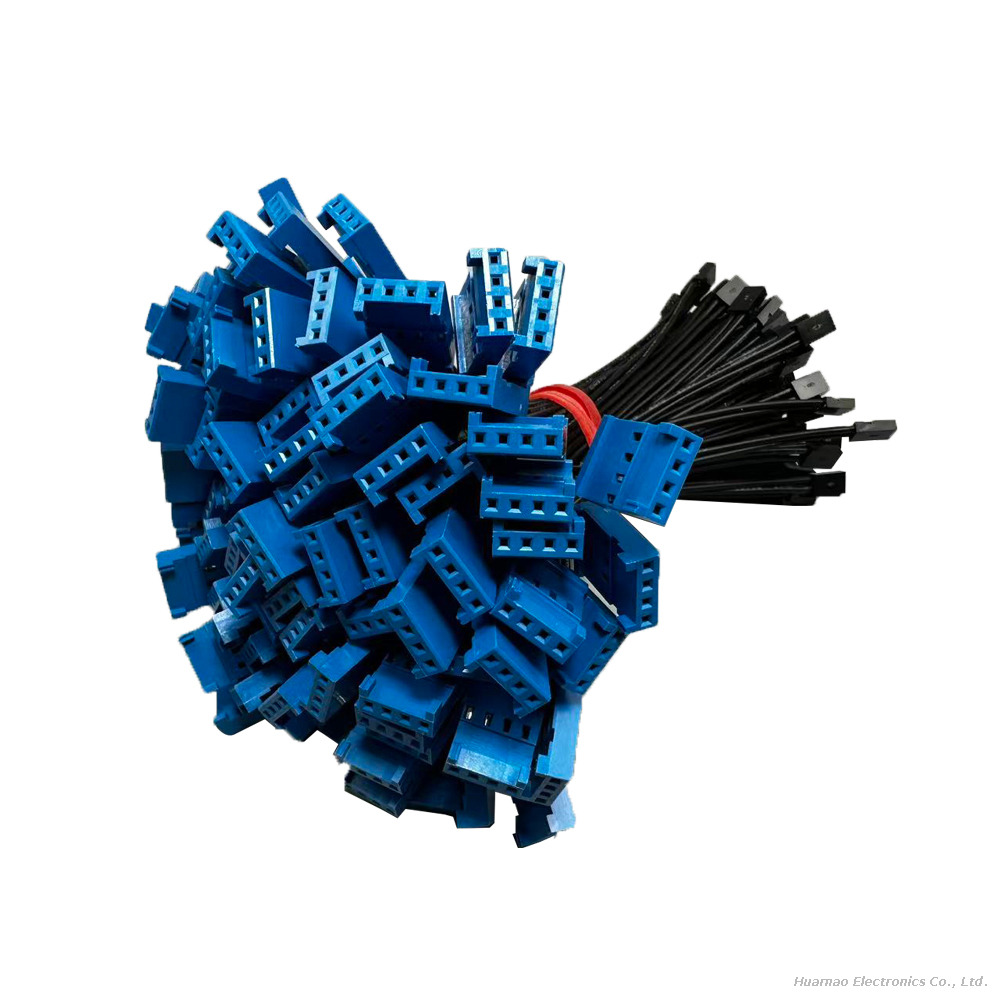

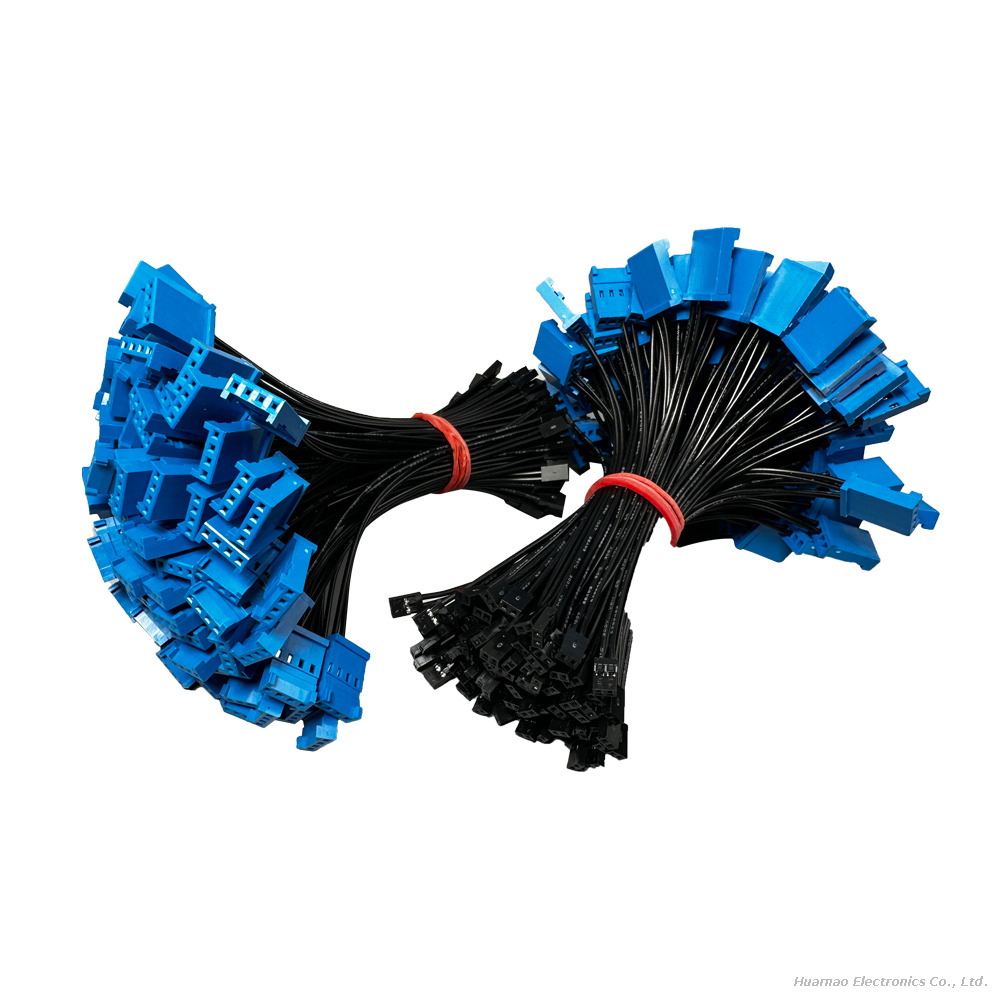

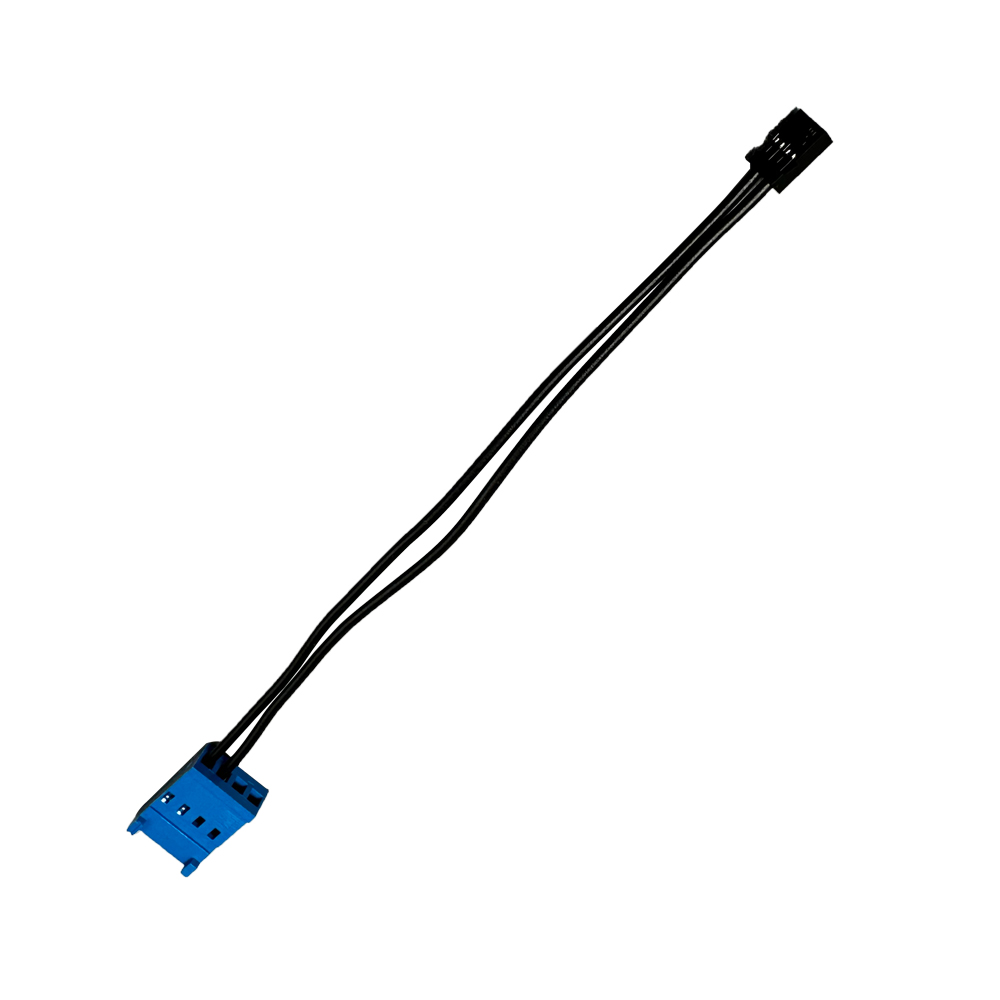

This custom cross-brand conversion wiring harness features a standard 2.54mm pitch connection housing, professionally assembled with authentic TE connectivity terminals (281838-4 and 188744-1) on one end and Harwin M22 female connectors (M22-30102200 & 3050046) on the opposite side. Engineered for high-precision electronic interconnection scenarios, it bridges TE and Harwin interface specifications perfectly while maintaining stable signal transmission and secure mechanical locking. Every joint adopts precision industrial crimping and integrated molding craftsmanship, delivering outstanding durability and compatibility for sophisticated internal wiring of premium industrial and electronic equipment.
Core Technical Specifications
Pitch Standard: Universal 2.54mm spacing housing structure, compatible with mainstream PCB layout designs
Connector Configuration: Input end with original TE 281838-4 + 188744-1 terminals; output end with Harwin M22-30102200 & 3050046 female connectors
Conductor Material: Tinned oxygen-free copper wire core with ultra-low resistance, ensuring lossless signal conduction
Insulation Grade: UL94 V-0 flame-retardant insulating material, anti-aging and resistant to long-term temperature fluctuation
Working Environment: Stable performance from -25°C to +85°C, suitable for indoor industrial and precision electronic operating conditions
Craftsmanship: Reinforced crimping process enhances pull resistance and anti-vibration performance for continuous equipment operation
Compliance: Fully RoHS compliant with all raw materials meeting international electronic safety standards
Key Product Advantages
✅ Cross-Brand Perfect Adaptation: Custom tailored to connect TE classic terminal models and Harwin M22 series female connectors to solve cross-interface matching difficulties
✅ 2.54mm Universal Housing Design: Standard pitch layout fits most control circuit boards, saving design space and simplifying wiring arrangement
✅ Premium Original Connector Performance: Authentic TE and Harwin components guarantee precise mating tolerance and long-term connection reliability
✅ Vibration & Loosening Resistance: Enhanced crimp structure prevents terminal detachment under mechanical vibration during equipment operation
✅ Stable Anti-Interference Transmission: Optimized internal wiring layout reduces signal crosstalk for high-precision data and power connection needs
Application & Custom Service
Ideal for precision industrial instrumentation, embedded control systems, high-end automation modules, testing equipment and electronic devices requiring cross-brand connector conversion wiring. All harnesses undergo strict conductivity testing and tensile inspection before shipment. Custom cable lengths, wire gauges and pin arrangement sequences are available to meet your exclusive interconnection customization demands.
