I-PEX 20473-030T TO 20346-030T Micro Coaxial Cable HD EDP Screen Wire

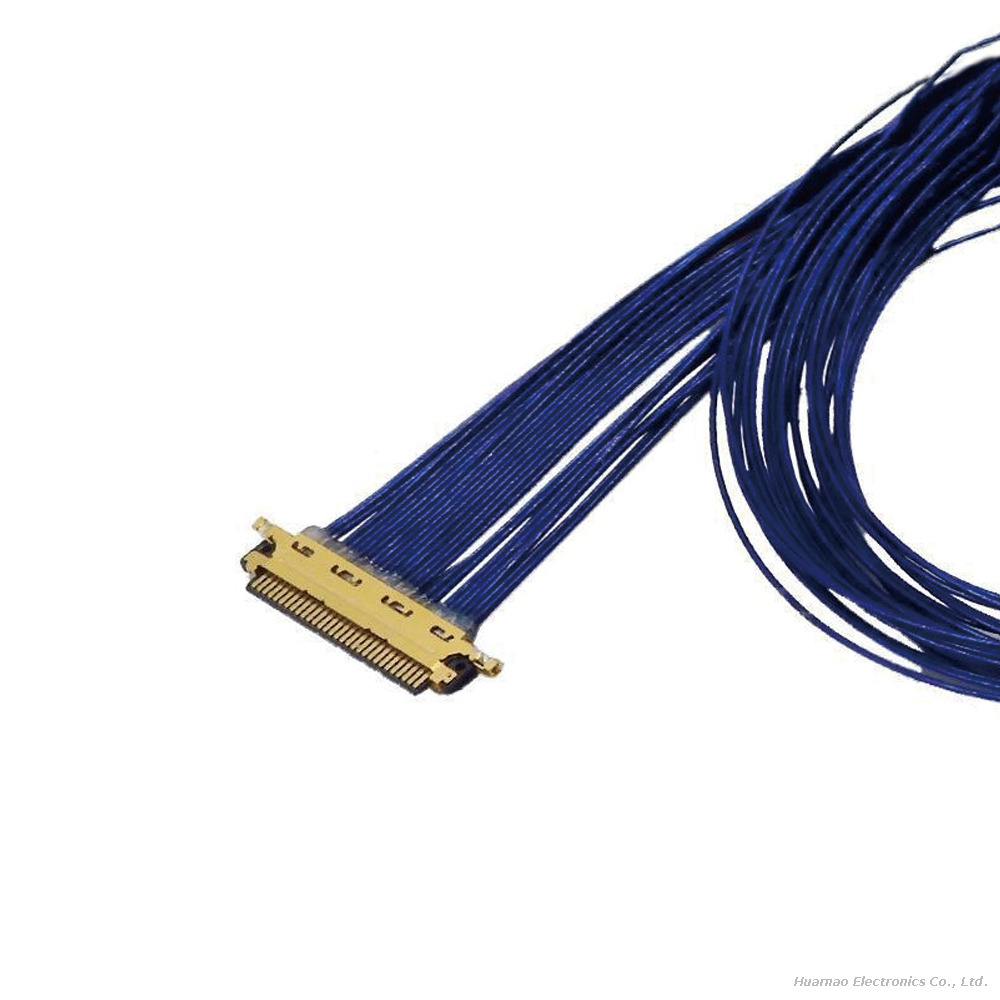

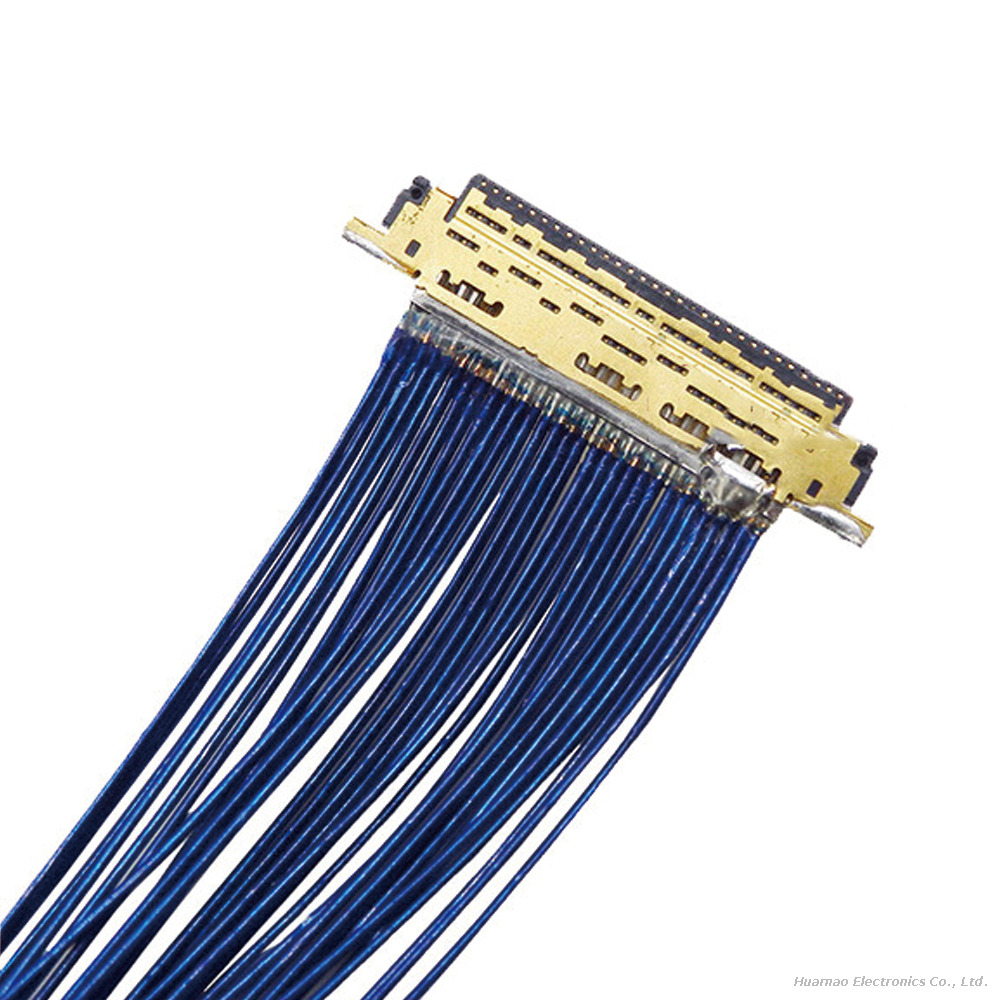

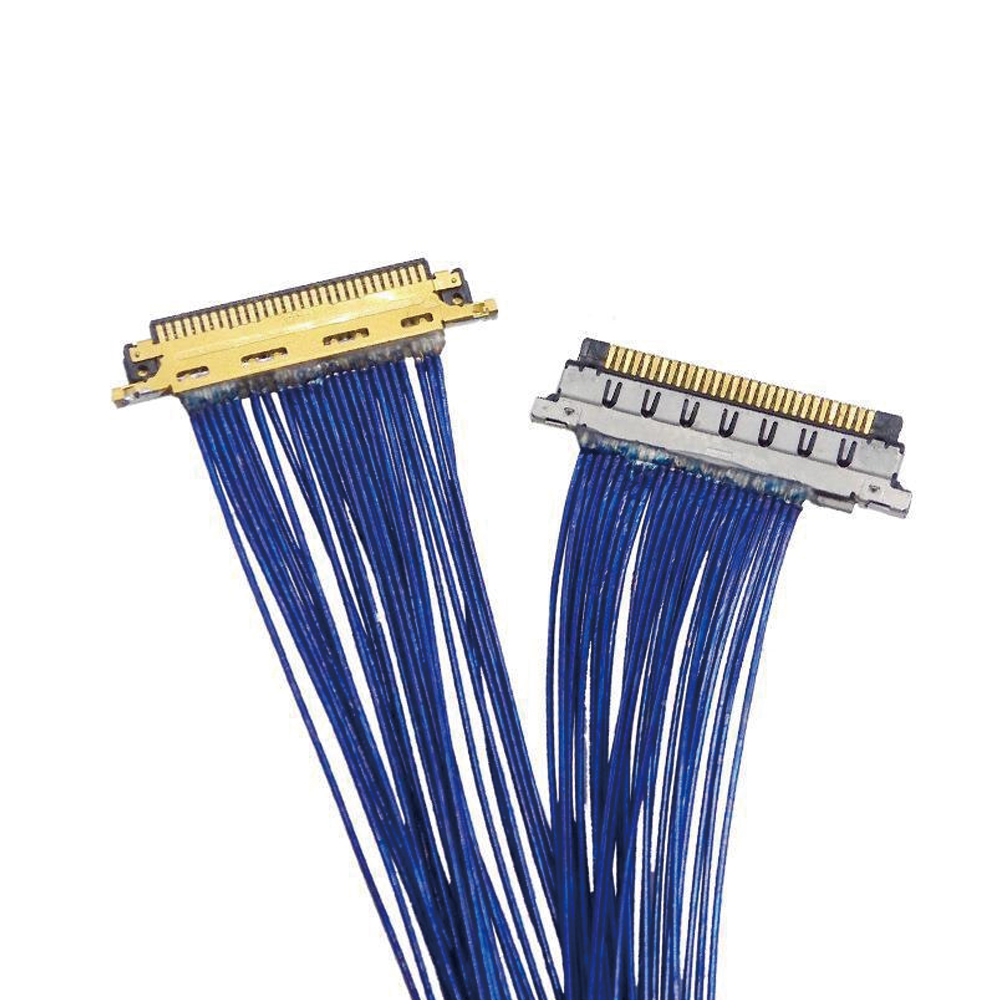

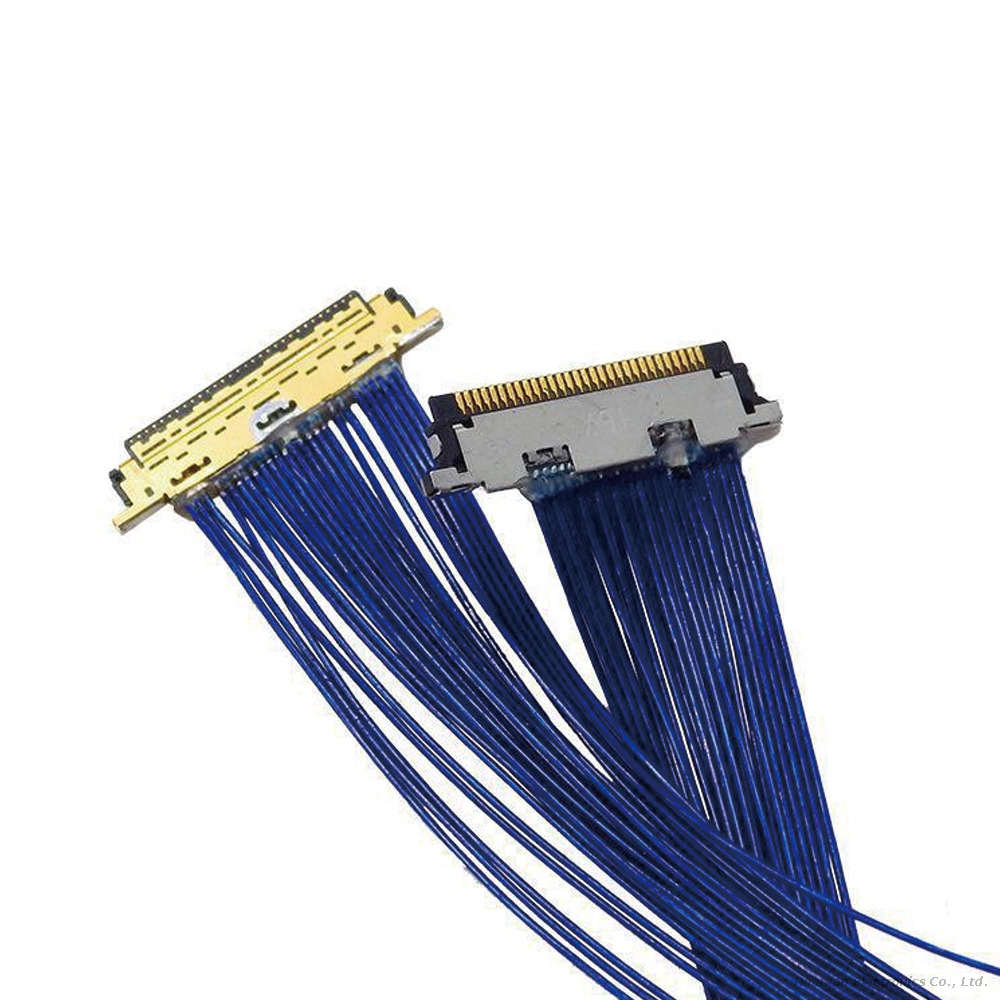

The I-PEX 20473 - 030T is a key plug housing part for 30 - pin ultra - fine coaxial cable assemblies. It is widely used in ultra - fine coaxial connections such as high - definition screen cables and EDP (Embedded DisplayPort) cables, and often forms matching cable assemblies with relevant accessories like the 2618 plug shell and 2619 latch bar. It also has alternative part numbers such as TH8 - 473 - 030H - LS for diverse application scenarios.

Core Performance and Specifications

Data Transmission Capacity: It supports high - data - rate transfer up to 20 Gbps per lane, which can perfectly meet the signal transmission needs of high - speed communication protocols and is suitable for high - definition display and other high - performance electronic equipment scenarios.

Mechanical Structure: It adopts a horizontal mating method and is equipped with a mechanical locking bar. This locking bar can only be locked when the plug is fully mated with the socket, effectively preventing incomplete mating and the plug from backing out or unmating, thus ensuring stable connection reliability.

Dimension Parameters: The contact pitch is 0.4 mm, and the maximum mating height is 0.98 mm. The compact size design helps save space for circuit board layouts, which is very suitable for miniaturized electronic devices.

Cable Compatibility: It is compatible with a variety of ultra - fine coaxial cables, including AWG 40, AWG 42, AWG 44, and AWG 46 specifications, meeting different current and transmission requirement scenarios.

Shielding and Grounding: It features an EMI (Electromagnetic Interference) shielding and multi - point grounding design. The wire shield, ground bar, plug shell, cover shell, and receptacle shell as well as the PCB form an effective grounding loop, which can significantly reduce electromagnetic interference and ensure the stability and integrity of signal transmission.

Application and Compliance

This component is widely used in 3C electronics, such as laptops, tablets, and high - definition displays, for LVDS (Low - Voltage Differential Signaling) and EDP signal transmission. It complies with multiple international standards and certifications, including RoHS and REACH. Meanwhile, it also meets PFAS - free and Pb - free environmental requirements, adapting to the environmental protection demands of the global electronics industry. It also supports customized processing of cable
