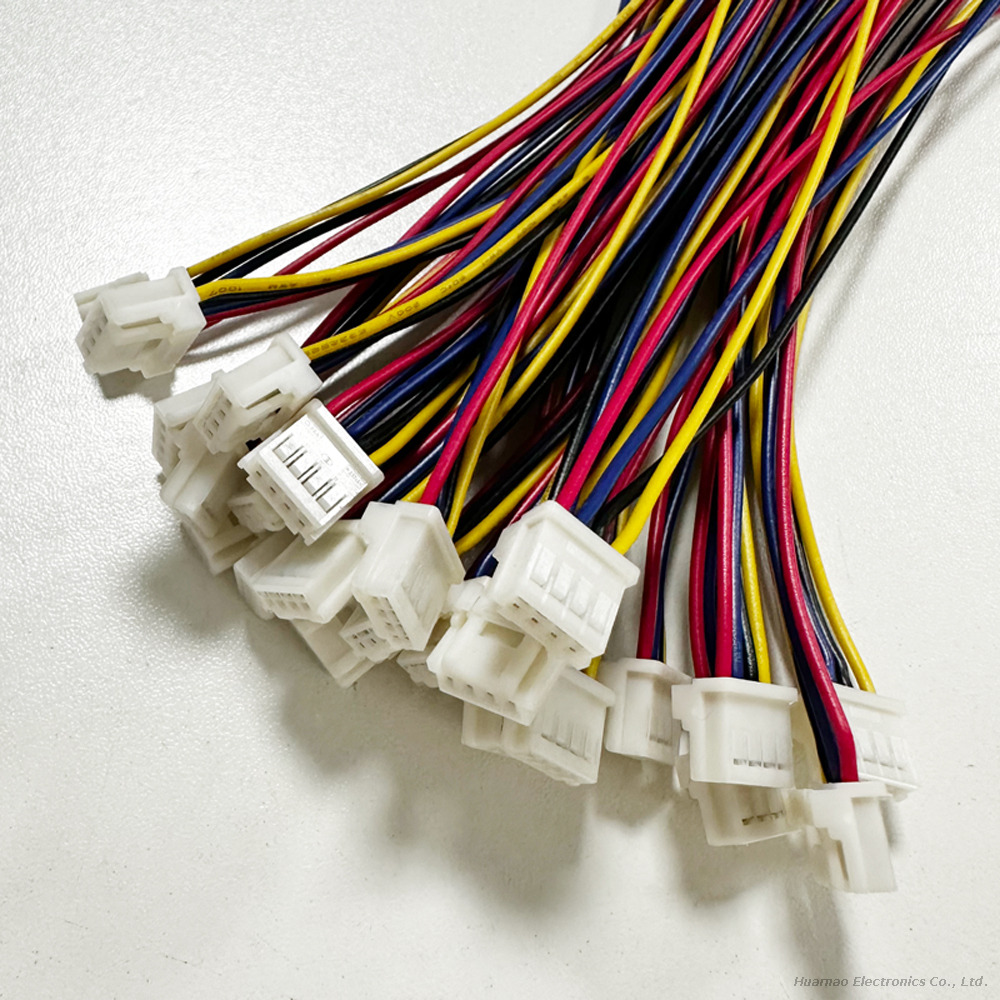

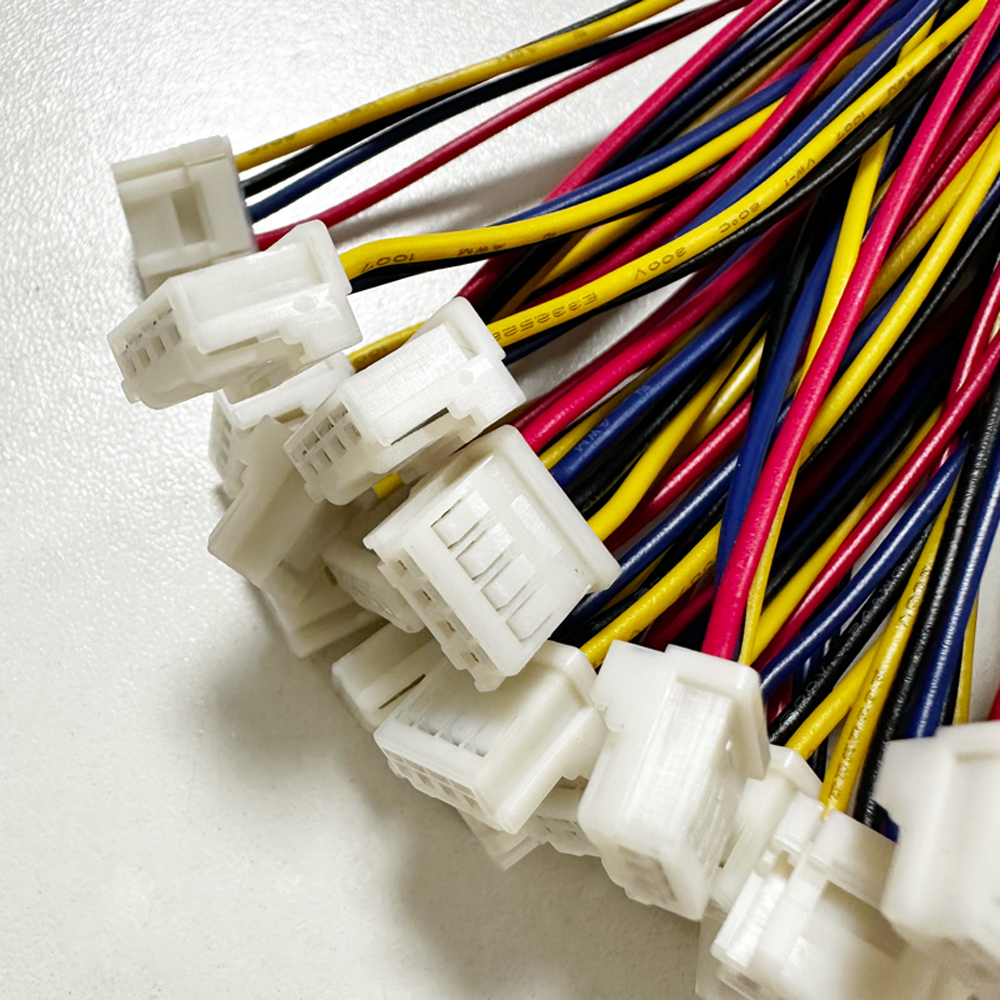

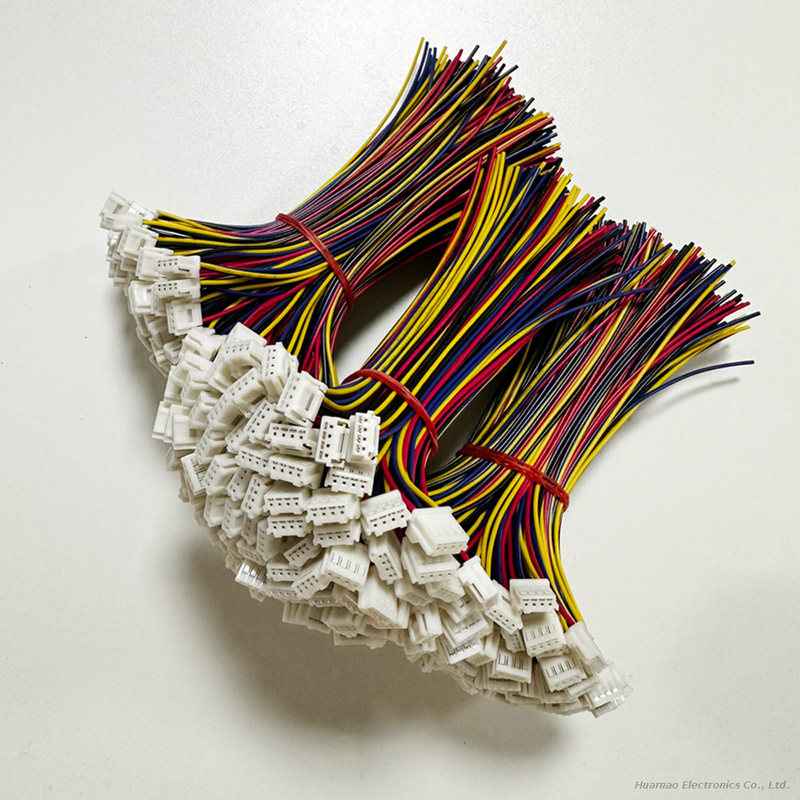

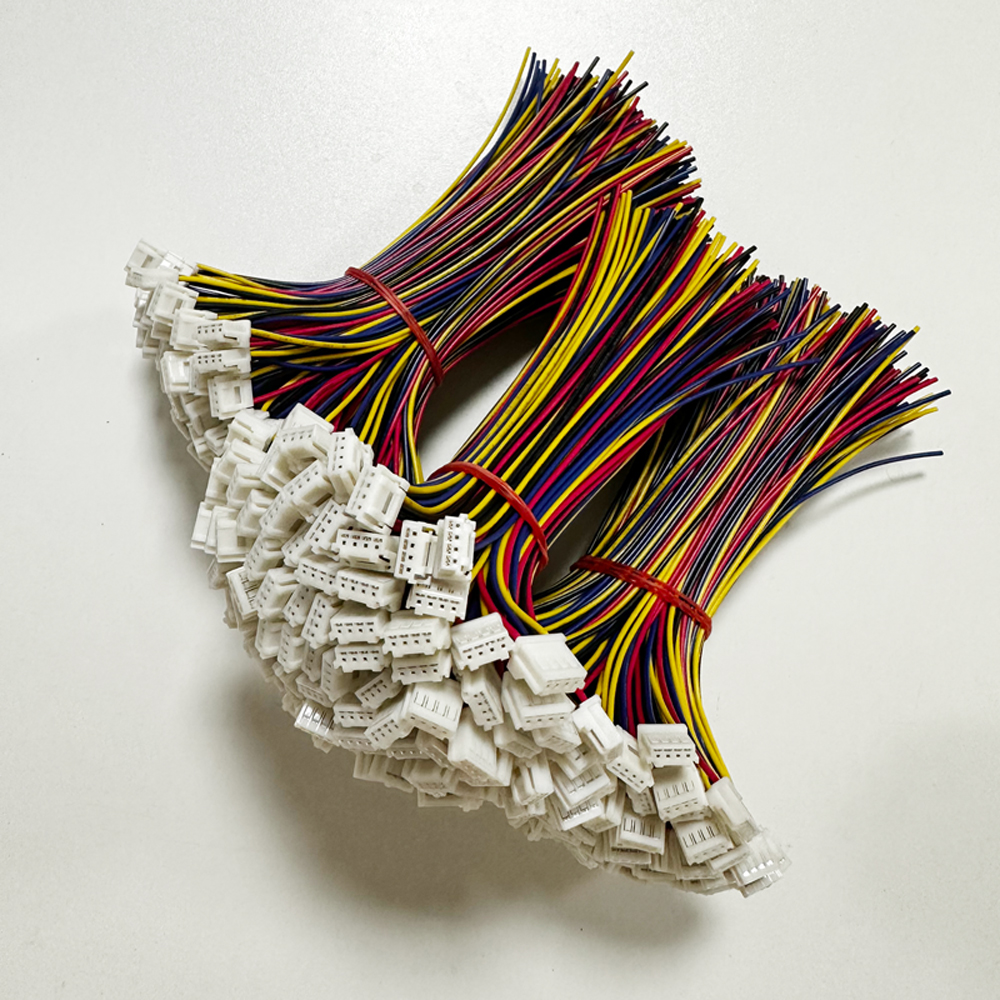

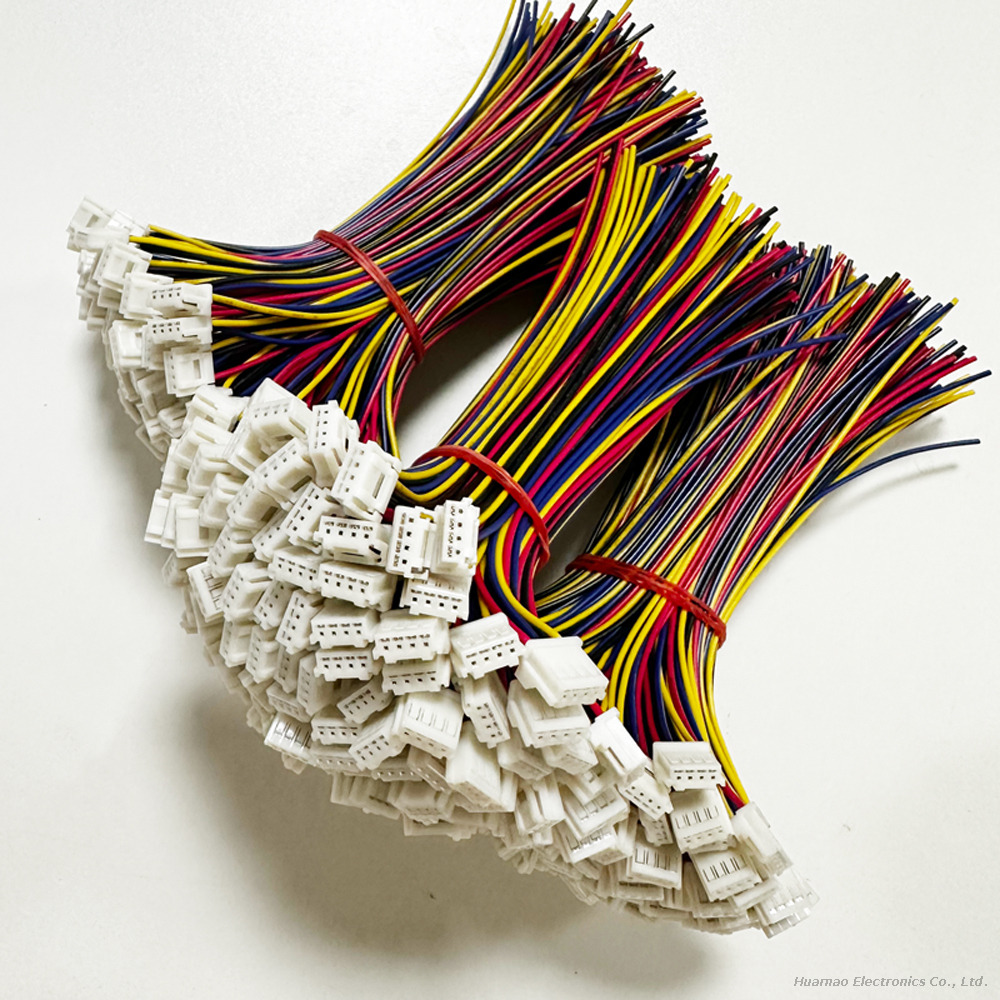

This Yeonho 20071HR-H04E wire-to-board terminal cable features a 2.0mm pitch with a secure locking mechanism, specifically designed for automotive electrical wiring applications. It serves as a reliable interconnect solution for power and signal transmission between PCBs and electrical components in vehicles, offering excellent vibration resistance, secure mating, and stable electrical performance in harsh automotive environments. The 4-circuit (4P) configuration with pre-crimped terminals ensures quick and error-free assembly in automotive wiring harnesses.
Key Features & Advantages
Secure Locking MechanismIntegrated buckle design prevents accidental disconnection caused by vehicle vibration, ensuring stable connections in dynamic automotive environments.
2.0mm Pitch Compact DesignSpace-saving layout ideal for high-density automotive electronic systems, supporting 4-circuit (4P) power and signal transmission.
Automotive-Grade DurabilityPVC insulation and tin-plated copper conductors offer excellent resistance to heat, chemicals, and corrosion commonly found in vehicle applications.
Reliable Electrical Performance17/0.16mm stranded copper construction provides optimal conductivity with flexibility to withstand repeated movement and vibration.
Plug-and-Play AssemblyPre-crimped terminals eliminate the need for manual crimping, reducing installation time and ensuring consistent connection quality.
Wire-to-Board VersatilityCompatible with both vertical and horizontal PCB mounting orientations, offering design flexibility for various automotive electrical layouts.
Typical Applications
Automotive dashboard and instrument cluster wiring
Infotainment system and navigation module connections
Lighting control modules (interior/exterior lights)
HVAC system control wiring
Sensor and actuator interconnections
Power window and mirror adjustment mechanisms
Automotive ECU (Engine Control Unit) peripheral connections
Battery management system (BMS) auxiliary wiring
Commercial vehicle and electric vehicle (EV) low-voltage electrical systems
Quality Assurance & Customization
100% electrical continuity and insulation resistance testing before shipment
Customizable cable length to meet specific automotive wiring harness requirements
Optional wire color coding for easy circuit identification
Reinforced terminal crimping for higher pull-out resistance and durability
RoHS compliant materials suitable for automotive mass production
OEM and ODM services available for specialized automotive applications
