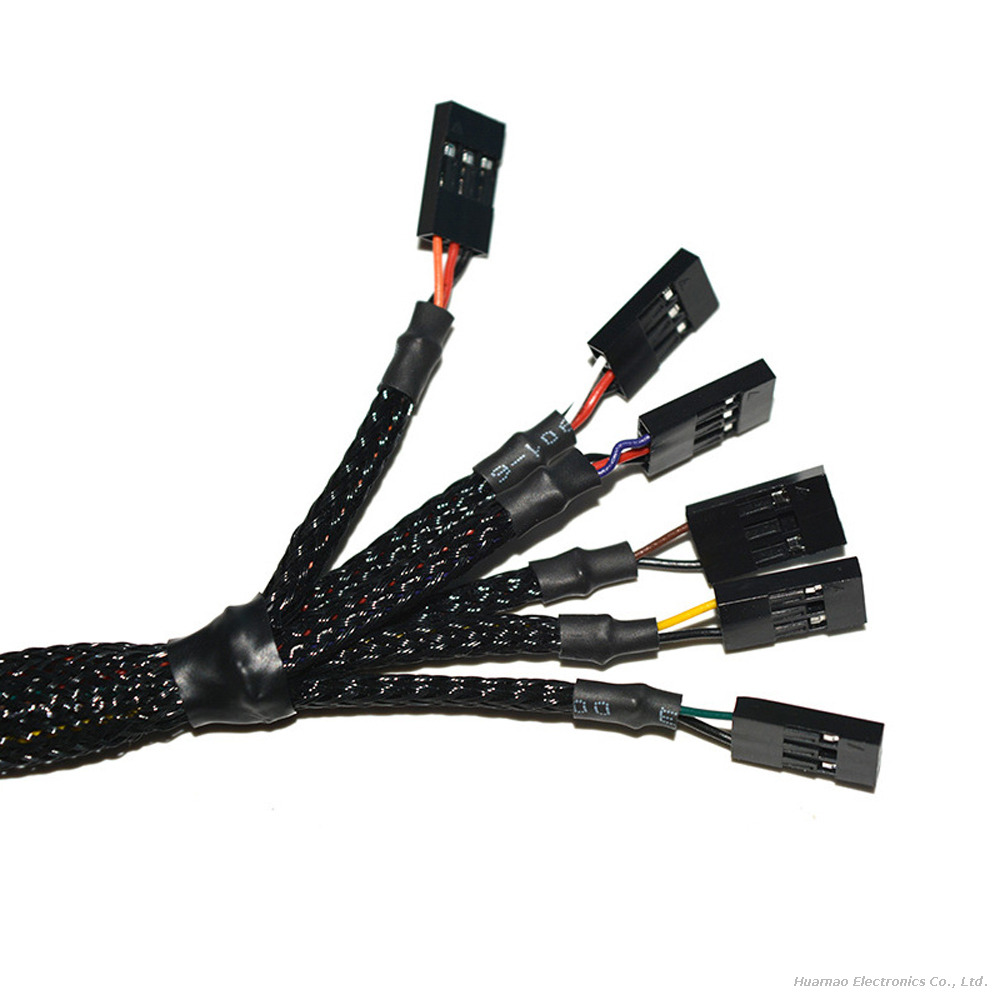

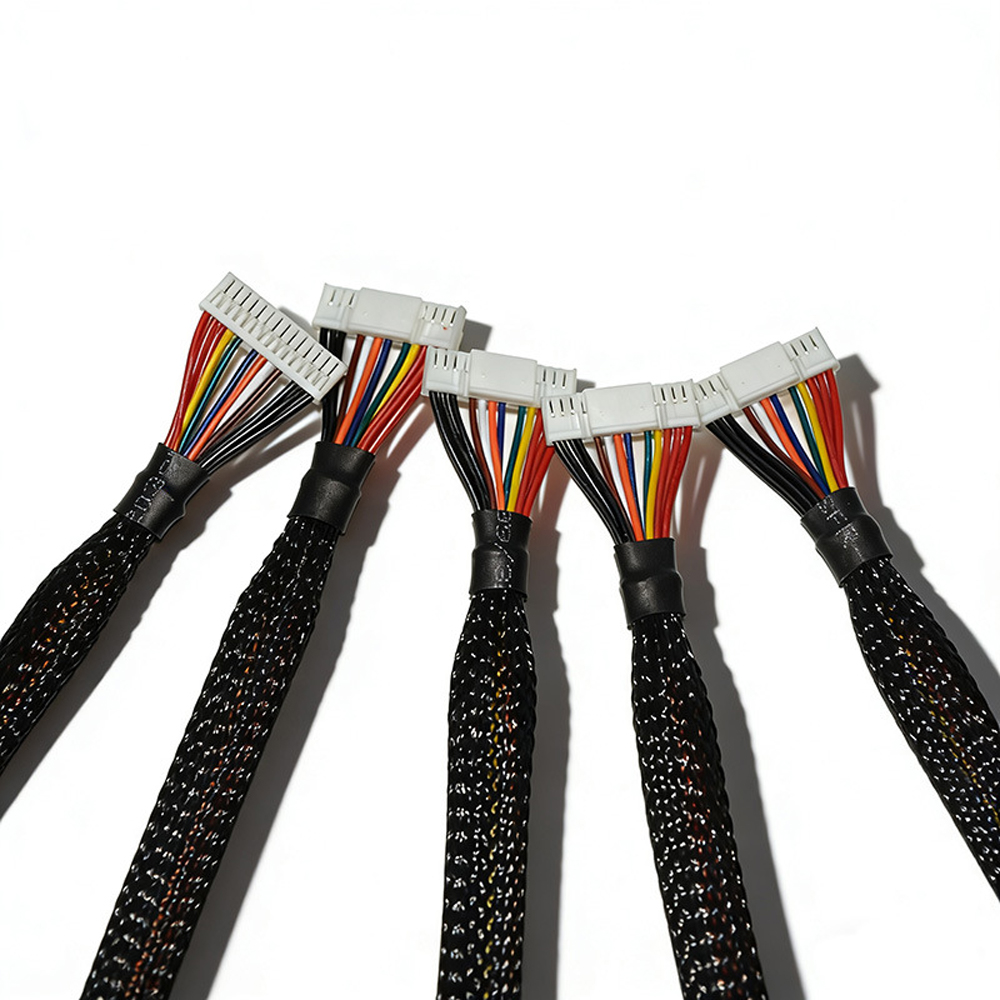

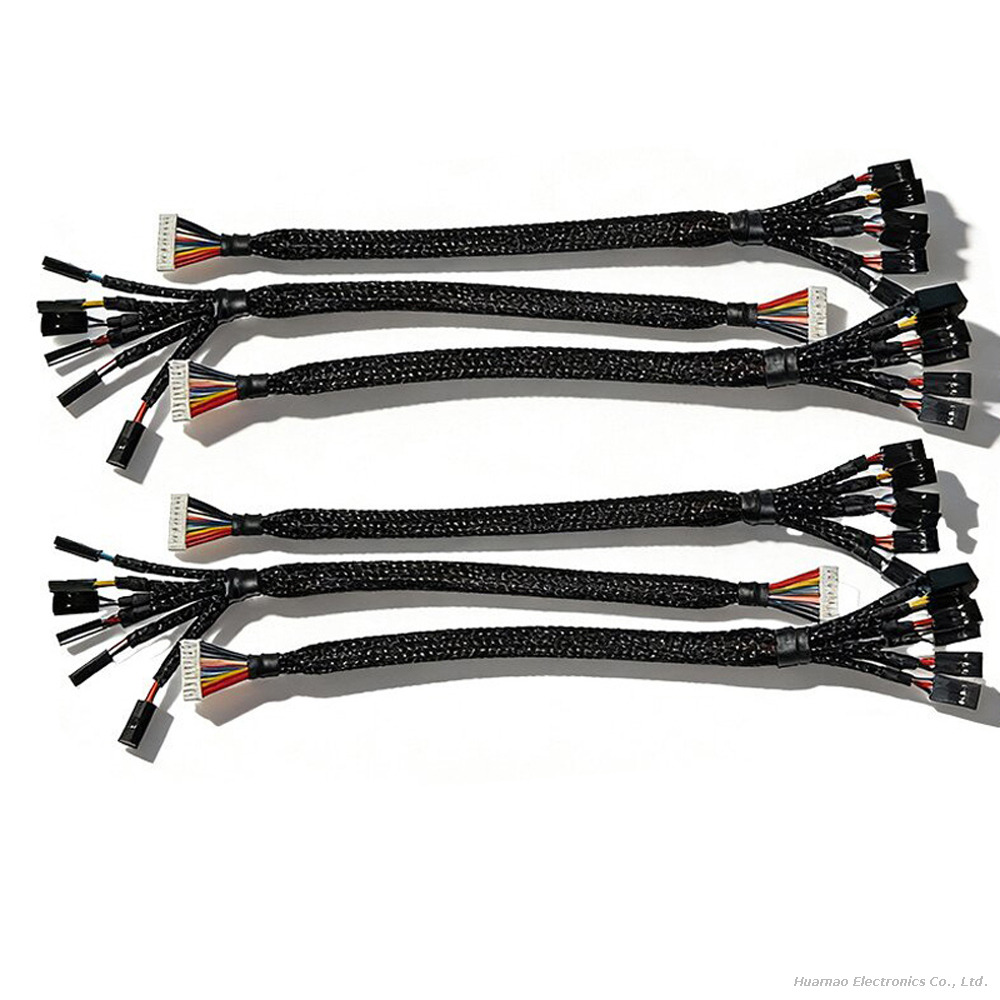

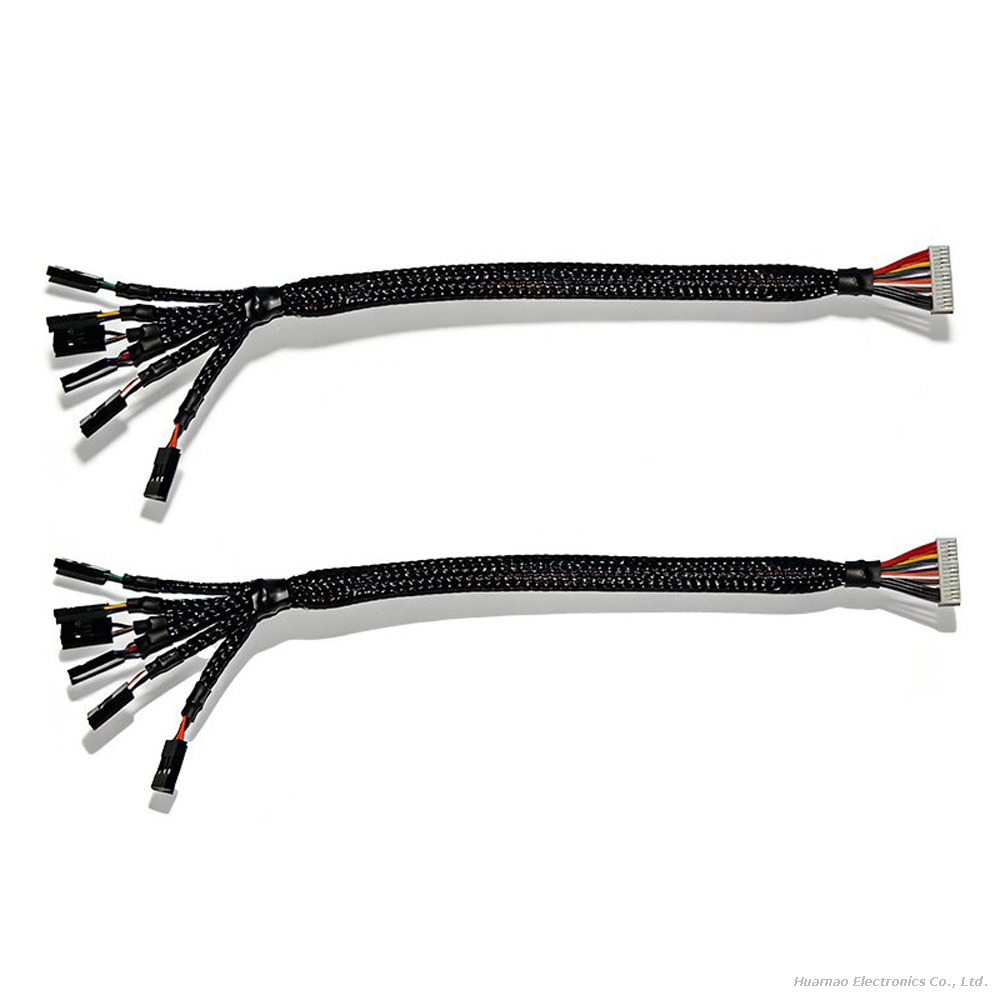

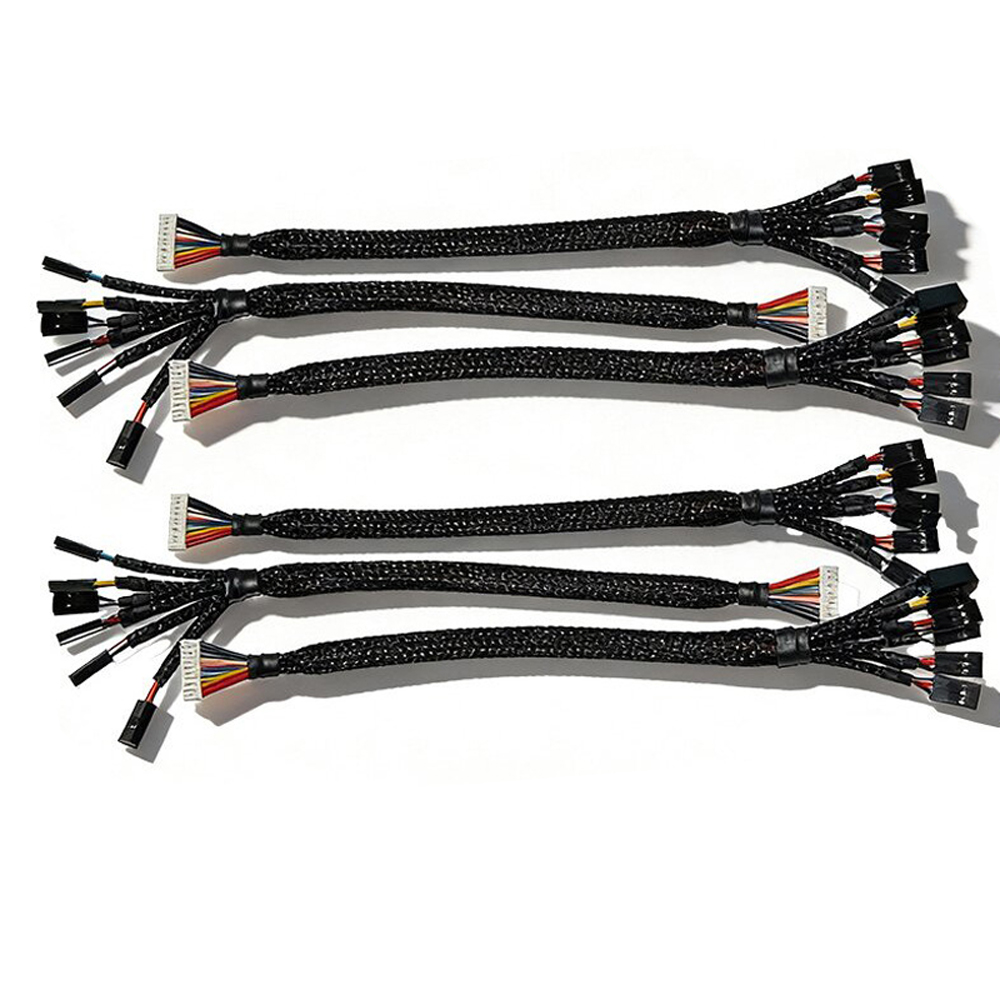

This fully customizable wiring harness integrates standard Dupont 2.54mm 20-pin connectors and reliable MX3.0 terminal ends, professionally engineered for motherboard power supply connection and motor signal transmission. Tailored to bridge main control boards and drive motors in integrated electronic systems, it delivers stable power output and consistent signal interaction all in one assembly. With precision crimping craftsmanship and a durable structural design, this custom cable solves cross-interface wiring needs perfectly, ensuring safe and smooth operation for automated hardware and intelligent control equipment.
Core Technical Specifications
Connector Configuration: Dupont 2.54mm pitch 20P pin header interface on one end; MX3.0 locking terminal connector on the other end
Functional Design: Dual-purpose layout for motherboard power input and motor drive signal transmission integration
Conductor Material: High-purity tinned copper strands with low resistance, minimizing power loss and signal attenuation
Outer Insulation: Flexible flame-retardant PVC jacket, resistant to bending, abrasion and daily equipment vibration
Assembly Craft: Industrial precision crimp processing enhances pull resistance and prevents loose contact during long-term operation
Compliance Standard: All raw materials follow RoHS environmental guidelines and international electronic safety regulations
Key Product Advantages
✅ Fully Customizable Design: Adjustable cable length, wiring sequence and wire gauge to match unique motherboard and motor installation layouts
✅ Dual Interface Compatibility: Combines widely used Dupont 2.54 20P and MX3.0 terminals for seamless cross-component connection
✅ Stable Power & Signal Performance: Optimized internal structure reduces interference, protecting motherboard power stability and motor control accuracy
✅ Secure Locking Structure: MX3.0 built-in anti-drop buckle avoids disconnection caused by equipment movement and mechanical vibration
✅ Easy On-site Installation: Plug-and-play design eliminates complex soldering, greatly improving assembly efficiency for production and maintenance
Application & Custom Service
Ideal for industrial control motherboards, servo motor drive modules, automation machinery, smart device internal power wiring and embedded system connection projects. Each harness undergoes strict continuity and tensile testing before shipment. We support full customization of wire colors, lengths, pin definitions and shielding structures to meet your exclusive wiring requirements.
