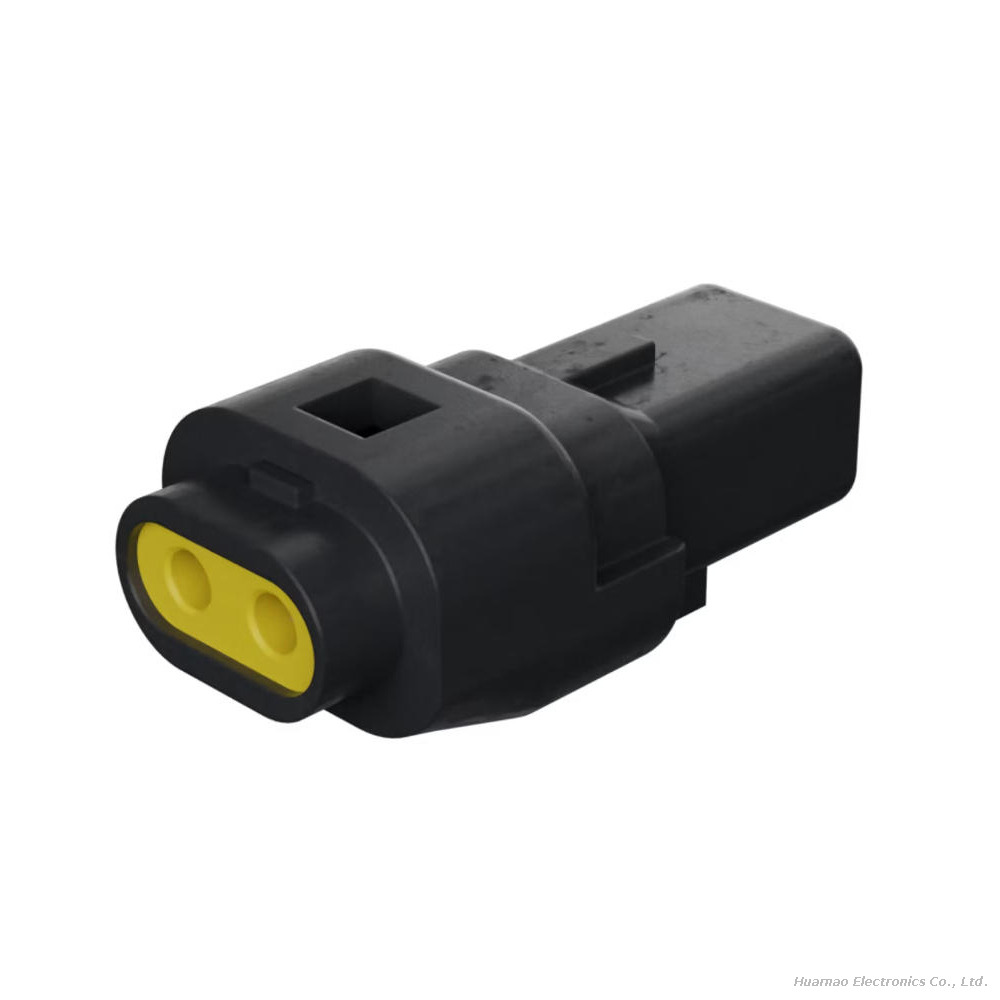

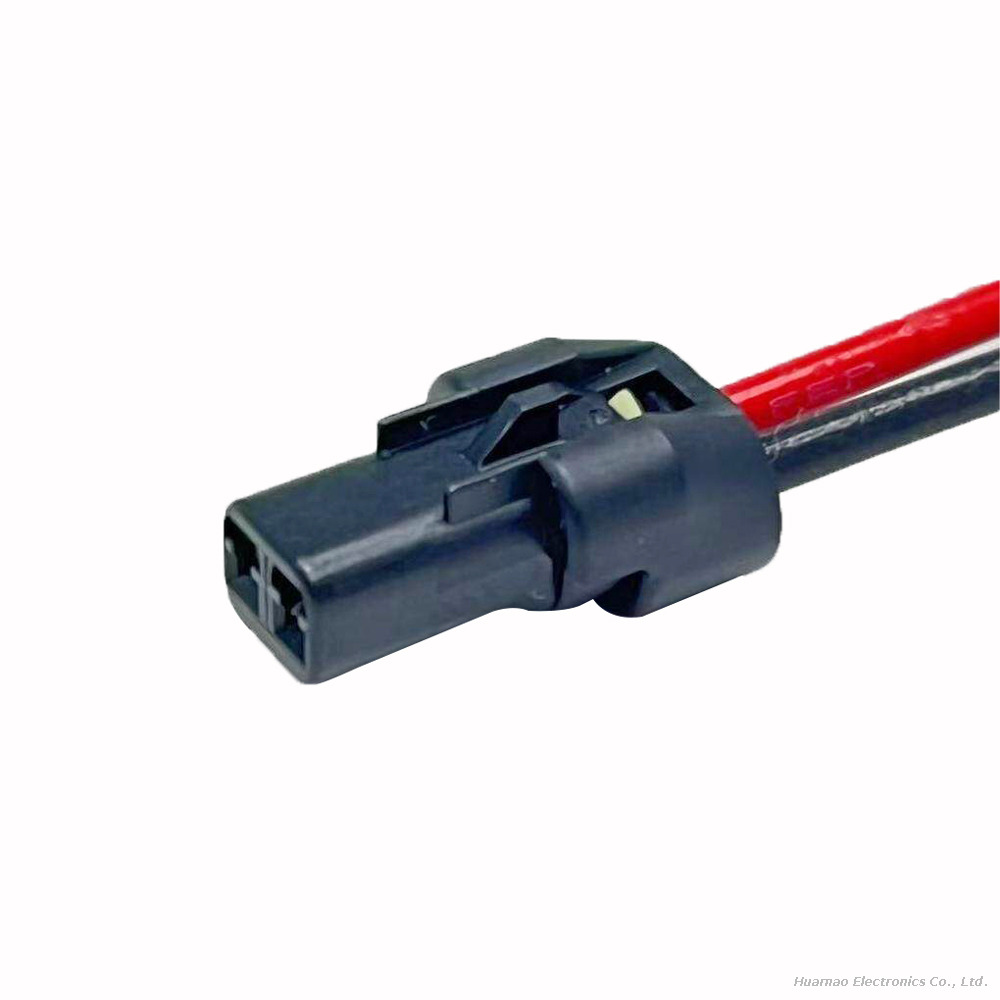

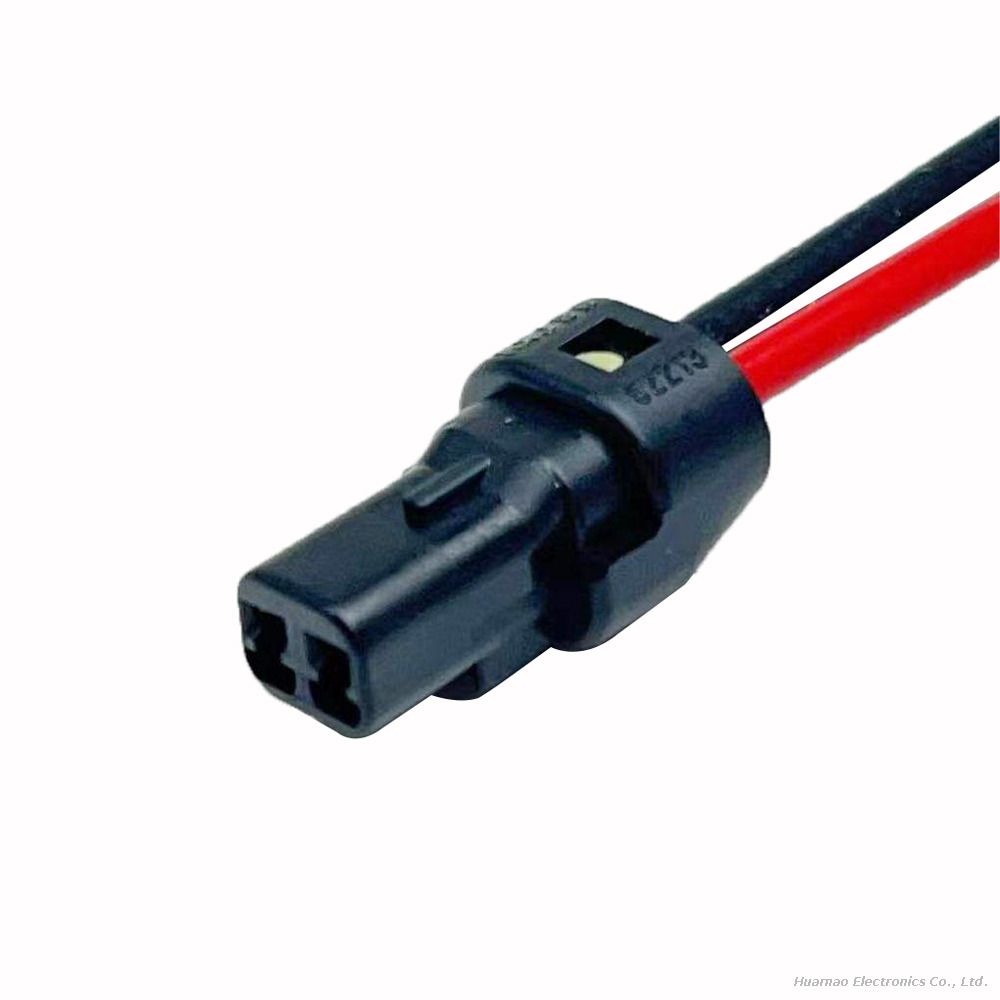

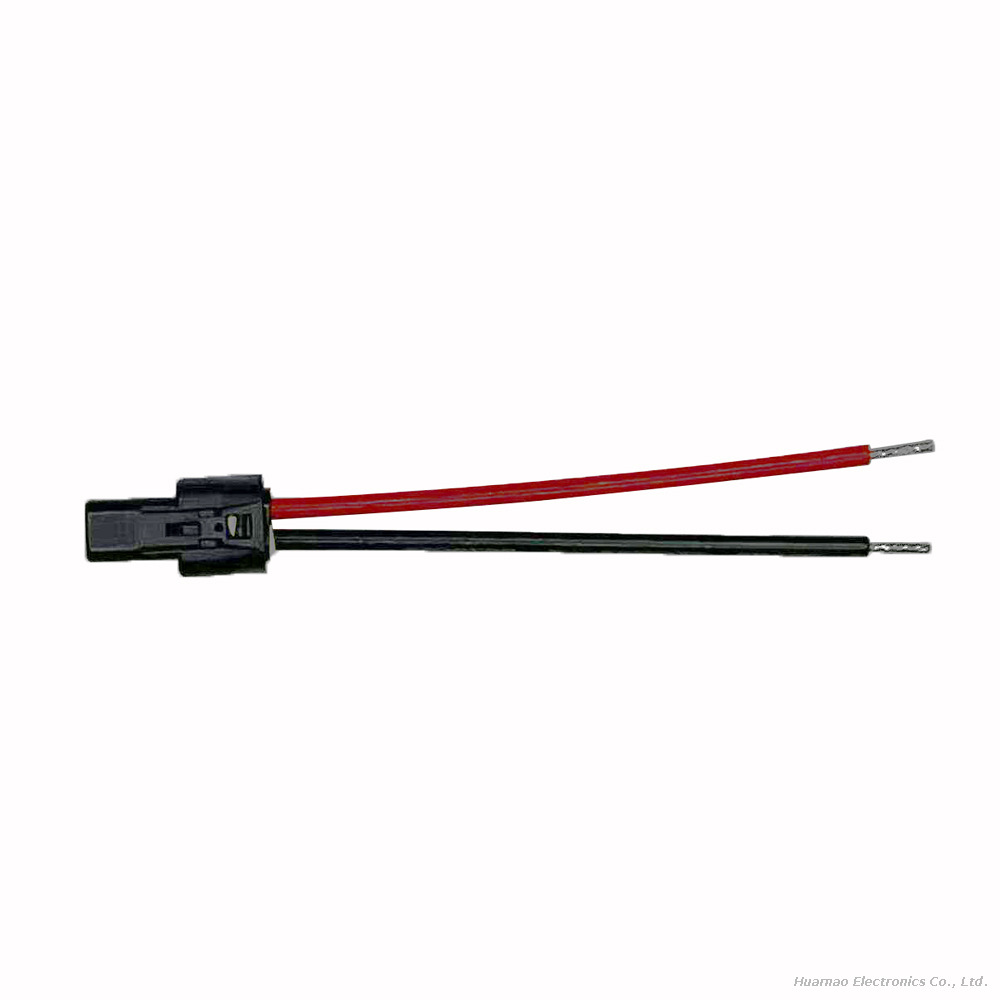

Engineered exclusively for outdoor illumination, this rugged assembly pairs the Molex 522130211 Mizu-P25™ waterproof housing with 501488000 crimp terminals—delivering reliable power and signal transmission for street lights, parking lot fixtures, and smart city lighting networks. Its IP67-rated sealing and UV-resistant construction ensure long-term performance in extreme outdoor conditions.
Core Features & Advantages
✅ IP67 Waterproof Protection: Sealed design blocks dust, moisture, and splashes—ideal for outdoor street light installations exposed to rain, snow, and humidity
✅ Outdoor Durability: UV-stabilized polyamide housing resists sunlight degradation, while wide operating temperature range (-40°C to +105°C) withstands seasonal temperature fluctuations
✅ High Current Capacity: Supports 4A maximum current (20 AWG) and 125V AC/DC voltage—perfect for powering LED street light modules and control systems
✅ Error-Proof Mating: Polarized housing and positive latching mechanism prevent misalignment and accidental disconnection, even in high-vibration pole-mounted applications
✅ Eco-Friendly Compliance: RoHS 2 (2015/863/EU) certified, free of hazardous substances for sustainable urban infrastructure
Street Light-Specific Applications
Optimized for:
Urban main roads, highways, and parking lot lighting systems
Power module and control unit connections in LED street lights
Signal transmission for smart street light sensors (brightness detection, motion sensing)
Outdoor landscape lighting and municipal engineering lighting networks
Seamlessly mates with Molex Mizu-P25™ plug housings (52266 series) for complete waterproof connectivity
Installation & Quality Assurance
Secure Termination: Compatible with standard crimp tools, featuring minimum 49N wire pull-out force (22 AWG) to resist wind-induced vibration
Rugged Construction: Impact-resistant housing (UL 94V-0) and sealed cable entry prevent water ingress at the wire-housing interface
Long-Term Reliability: Dielectric withstand voltage of 500V AC (1 minute) ensures safe operation in wet outdoor environments
Molex Legacy: Backed by Molex’s proven expertise in harsh-environment connectors, trusted by municipal engineering and lighting OEMs worldwide
