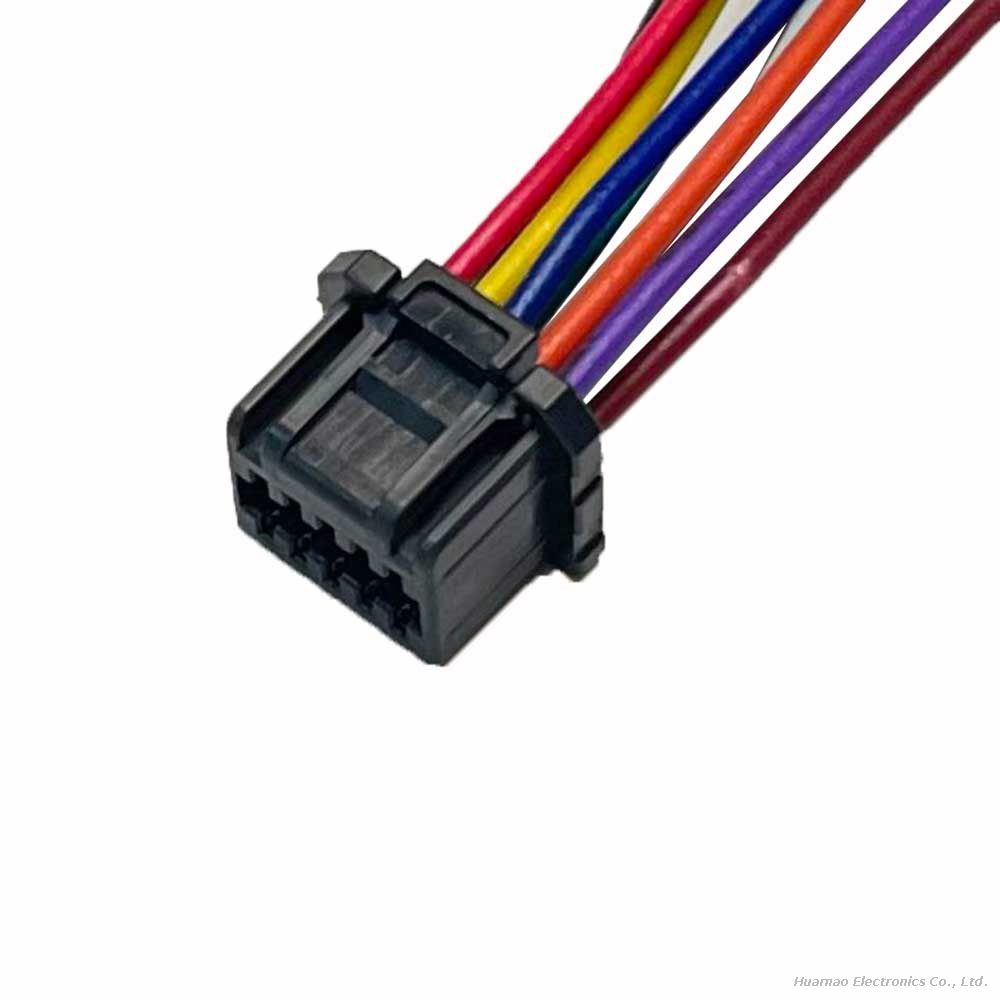

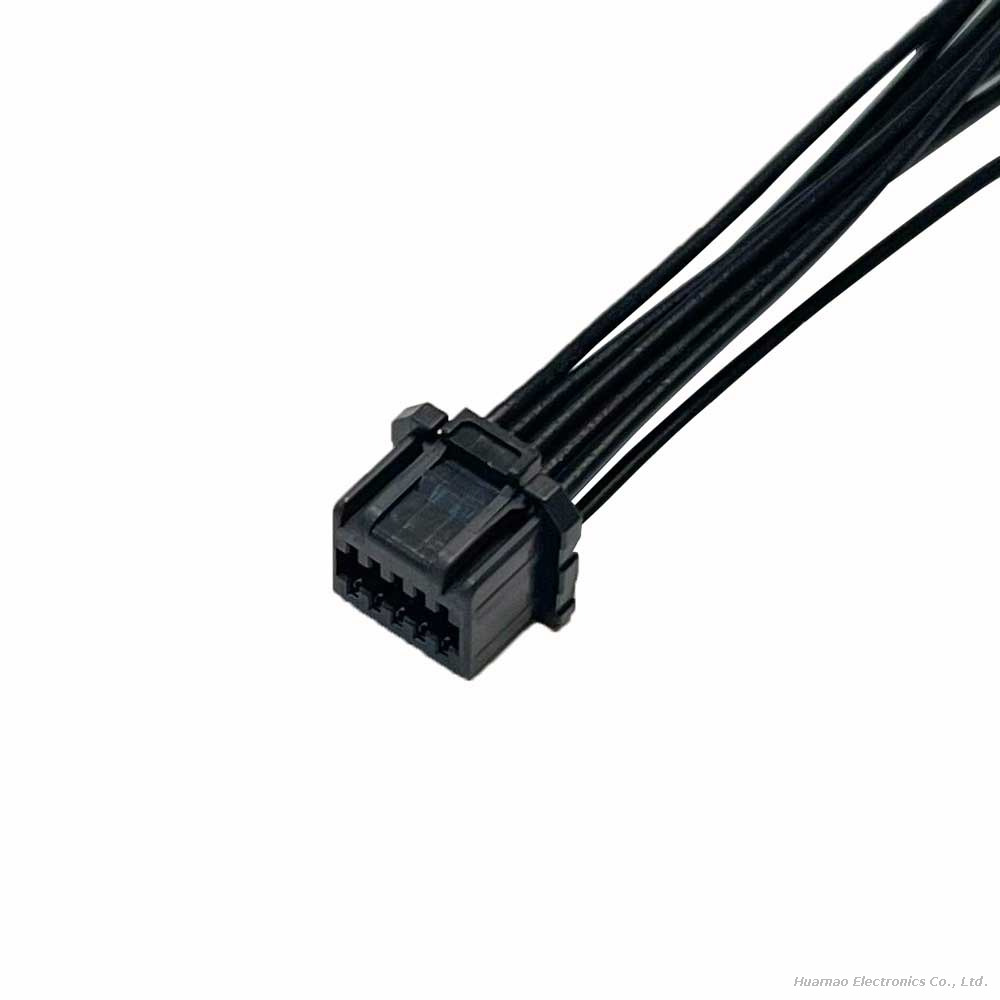

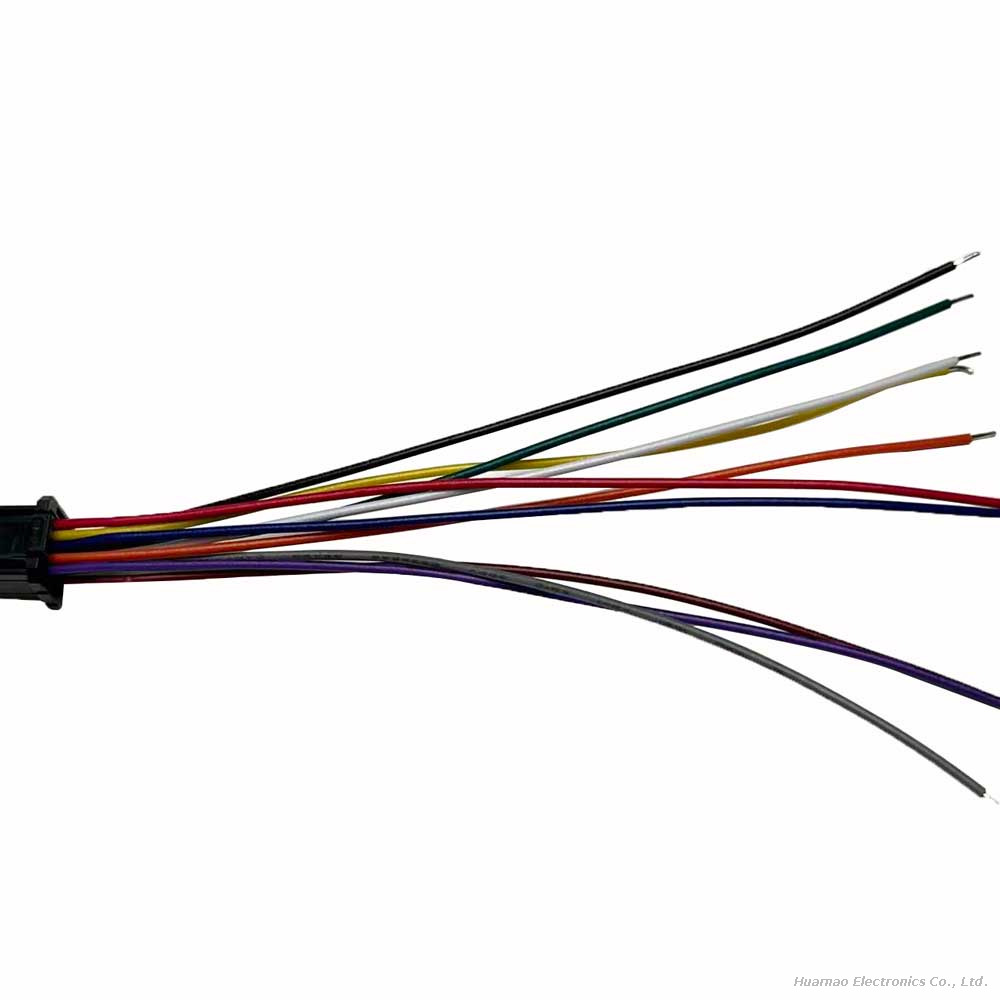

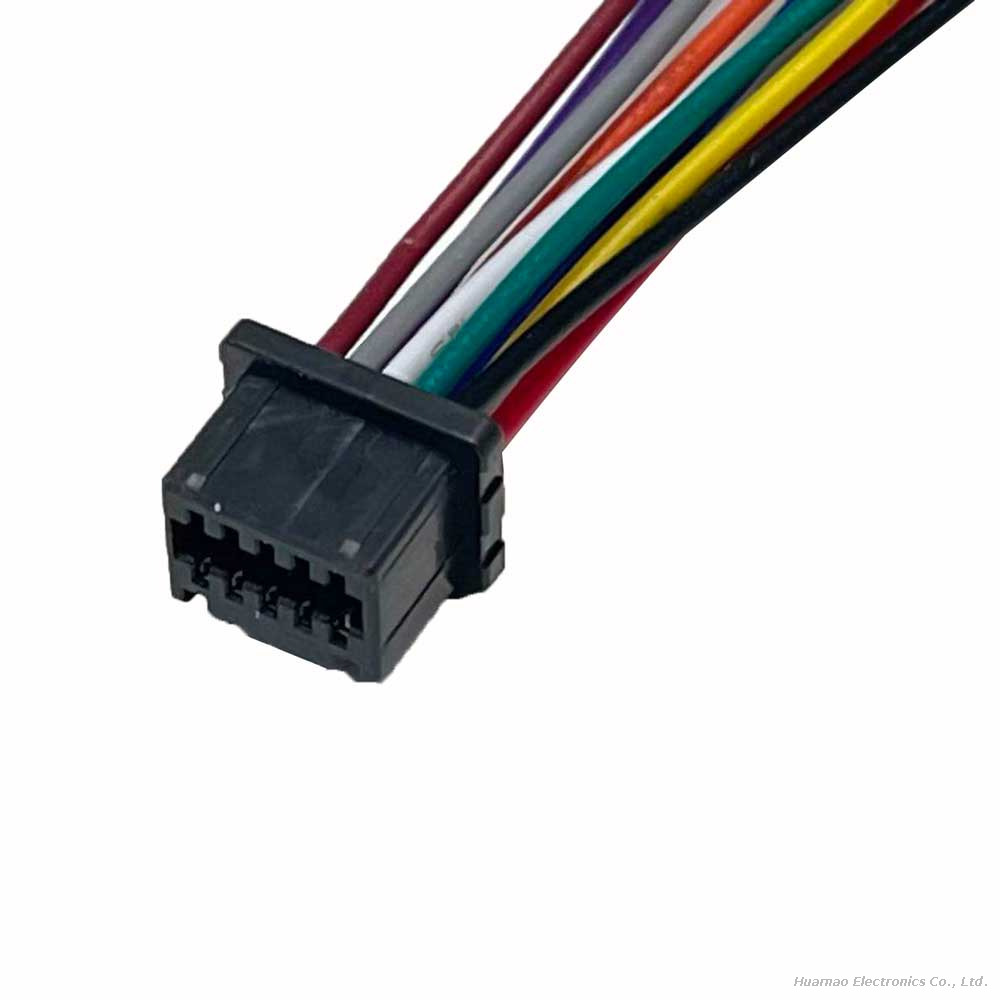

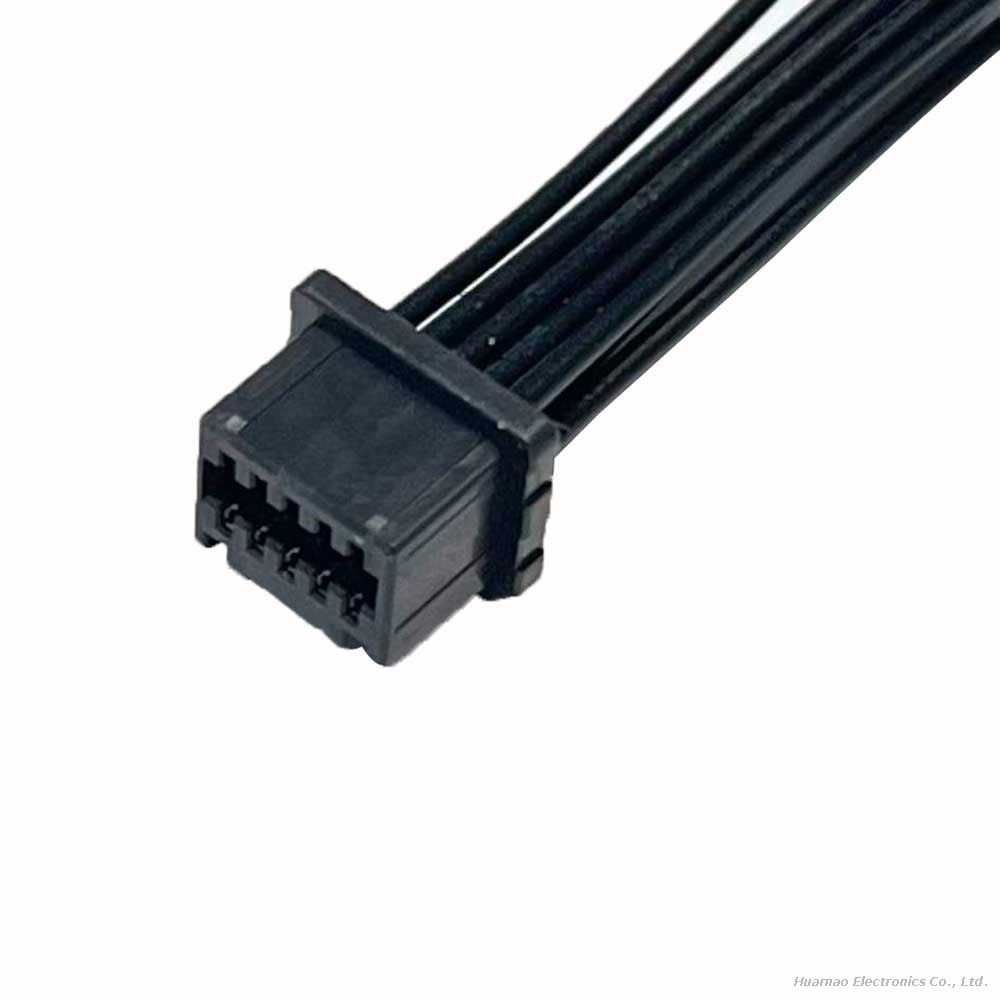

Engineered for compact and reliable wire-to-board connections, this 10-pin wire harness features female housing and crimp terminals, creating a robust 1.25mm pitch double-row interconnection solution. Designed to meet the demands of high-density electronic applications, it delivers secure electrical performance with a positive locking mechanism that ensures proper mating every time.
Key Features
Authentic connector components for guaranteed compatibility and performance
Secure positive latch system: features a wide positive locking mechanism that produces an audible "click" to confirm full mating, eliminating connection uncertainty in compact applications
1.25mm double row design: precision-engineered 1.25mm pitch double-row configuration maximizes space efficiency while maintaining excellent electrical conductivity for 10-circuit applications
High-temperature performance: withstands wide operating temperatures, making it suitable for demanding environments including industrial and automotive applications
Dual-contact terminal construction: ensures reliable contact retention and stable electrical transmission even in vibration-prone settings
Durable tin-plated conductors: minimize corrosion and maximize conductivity for long-term performance
RoHS compliant: meets international environmental standards for global market acceptance
Typical Applications
This versatile wire harness excels in various compact electronic systems:
Consumer Electronics: Cameras, printers, home appliances, and audio equipment
Automotive: In-cabin electronics, lighting systems, mirror controls, and steering wheel modules
Industrial Automation: Control panels, sensors, robotics, and machinery interfaces
Medical Devices: Wearable technology, diagnostic equipment, and monitoring systems
Telecommunications: Routers, switches, servers, and network equipment
LED Lighting: High-density LED strips, signage, and architectural lighting systems
Quality Assurance & Customization
100% factory-tested for continuity, insulation resistance, and proper mating before shipment
Constructed with high-quality components to ensure compatibility with original equipment
Available in custom lengths from 10cm to 5m to suit specific installation requirements
Bulk packaging options for production lines and large-scale projects
12-month warranty against manufacturing defects
Professional technical support for application guidance and troubleshooting
