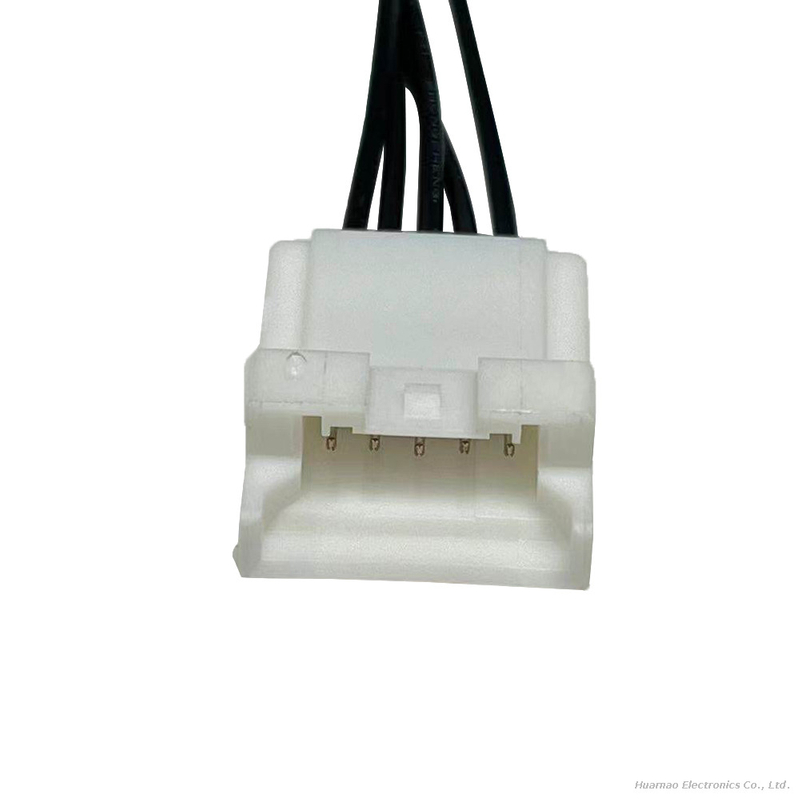

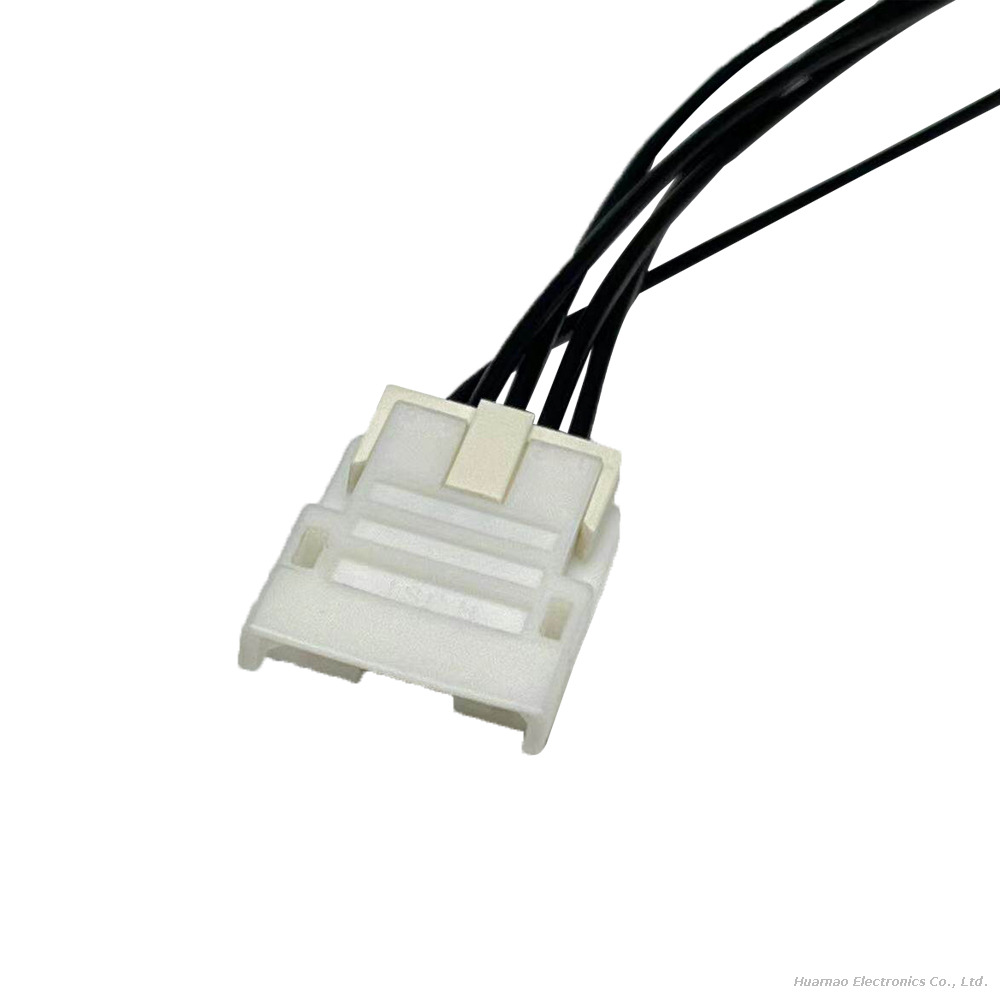

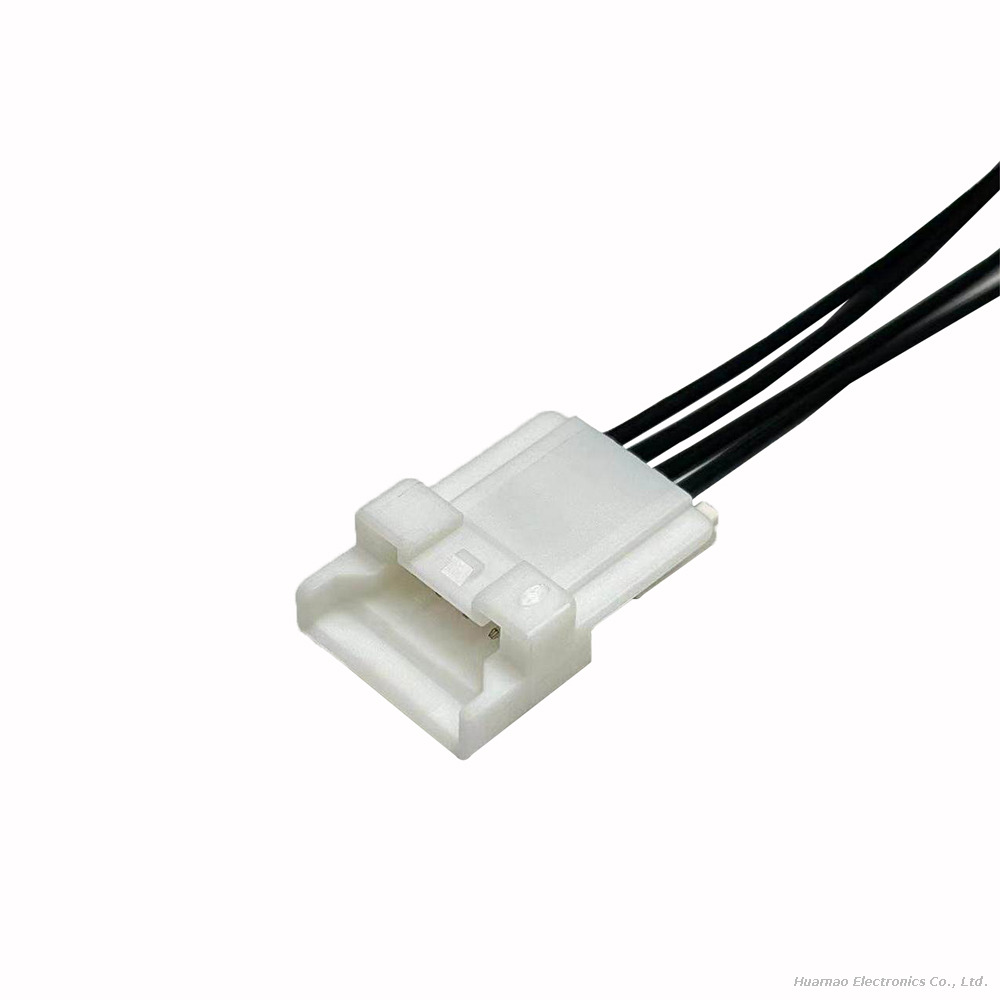

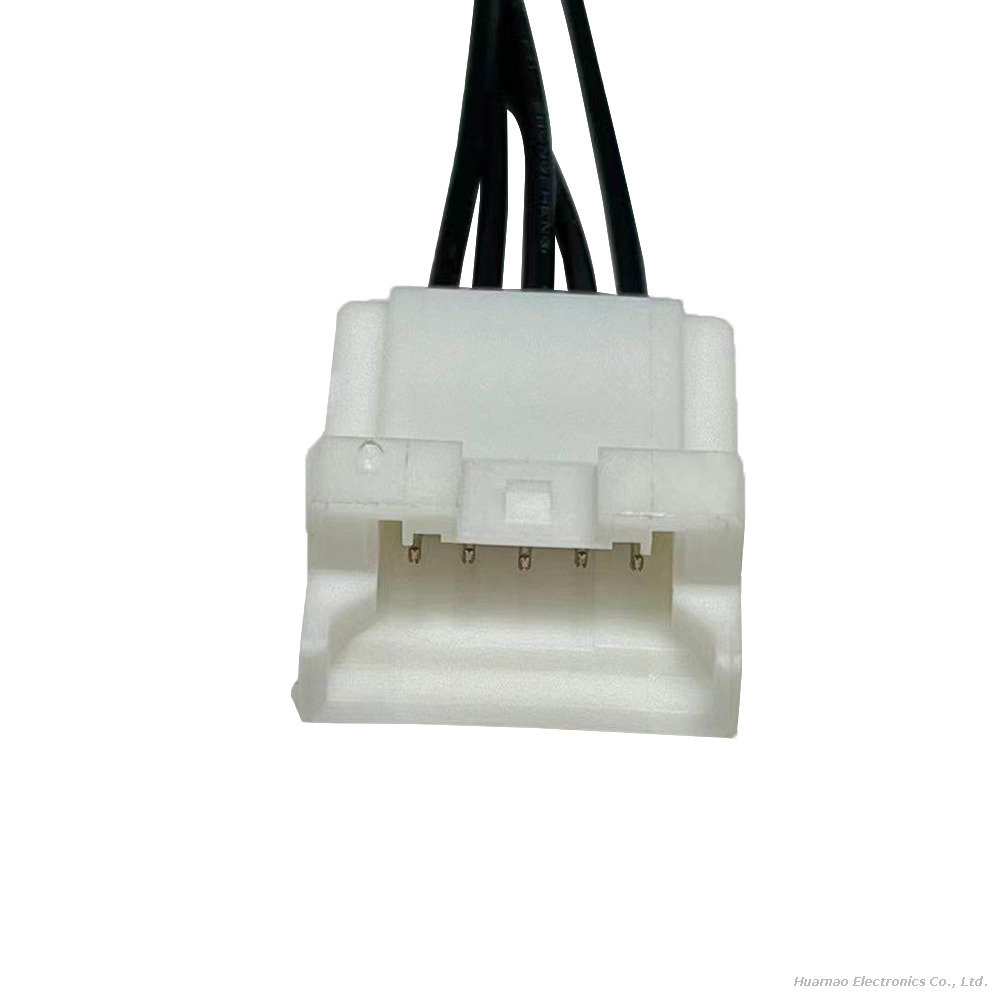

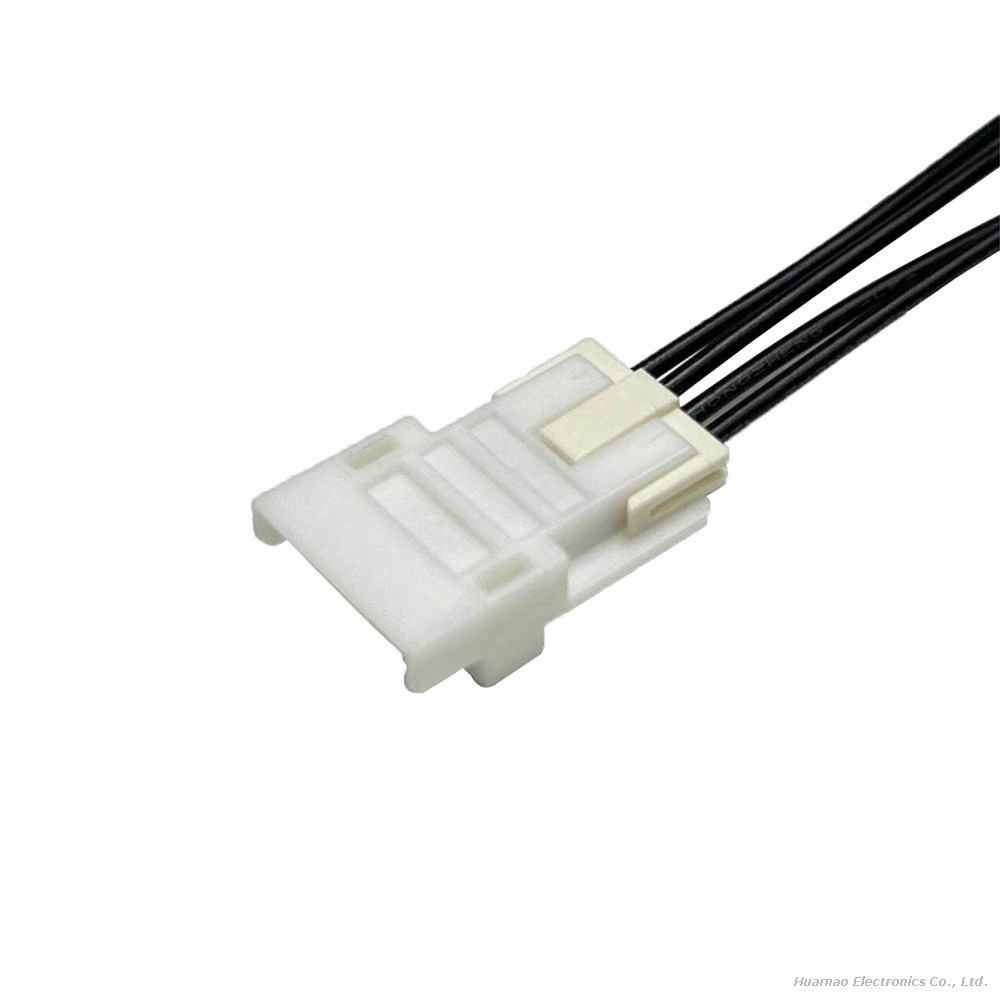

JST Original PAL Series High-Reliability Wire-to-Wire Connector Cable – featuring the PALR-05VF housing paired with SPAL-001T-P0.5 terminals – is engineered for stable signal transmission in precision electronic devices. Adopting a 2.0mm standard pitch design, it integrates JST’s patented locking technology and high-quality conductive materials, making it ideal for demanding applications across automotive electronics, industrial control, medical equipment, and more. This connector cable delivers a superior interconnect solution that balances performance and safety.
Core Advantages
Dual Locking Mechanism: Equipped with a safety latch slide and Secondary Lock (TPA) design, effectively preventing accidental disconnection under vibration and ensuring long-term mating durability and connection stability.
Precision Conductivity: SPAL-001T-P0.5 terminals feature tinned phosphor bronze contacts, compatible with 22-26AWG wires (0.3mm² conductor cross-section). Crimp-style termination ensures low contact resistance and efficient signal transmission.
Environmentally Resistant Materials: PA66 flame-retardant housing (UL94V-0 rated) and temperature-resistant insulated wires support a wide operating temperature range of -25℃ to +85℃, withstanding harsh industrial and automotive electronic environments.

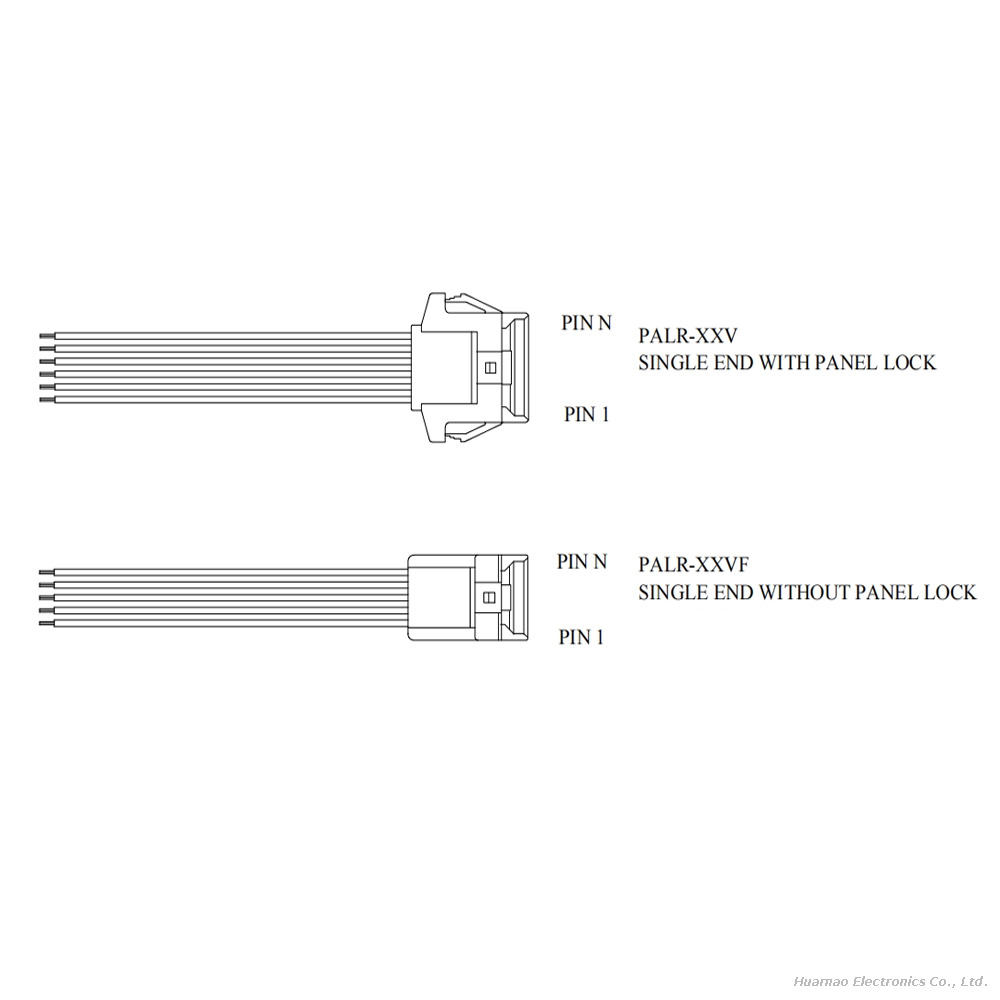

Flexible Compatibility: 1×5P pin configuration enables direct wire-to-wire connection, interchangeable with other JST PAL Series connectors of the same pitch, supporting both crimp and IDC termination methods.
Compliance & Certification: Fully RoHS-compliant (lead-free) and certified to UL E60389 and CSA LR 28012 standards, meeting global environmental and safety requirements for electronic equipment.
Application Scenarios
✅ Automotive Electronics: Navigation systems, sensor harnesses, in-vehicle entertainment equipment
✅ Industrial Control: PLC modules, sensor interconnections, automated equipment wiring
✅ Medical Devices: Monitoring instruments, diagnostic equipment signal cables
✅ Communication Equipment: Router/switch internal connection harnesses
✅ Consumer Electronics: Smart home controllers, audio-visual equipment
Customization Services
We offer custom wire lengths (starting from 150mm standard), terminal configuration optimization, and insulation color customization. Complete technical datasheets and installation guides are available. For sample testing or bulk procurement solutions, contact our engineering team for tailored support.
