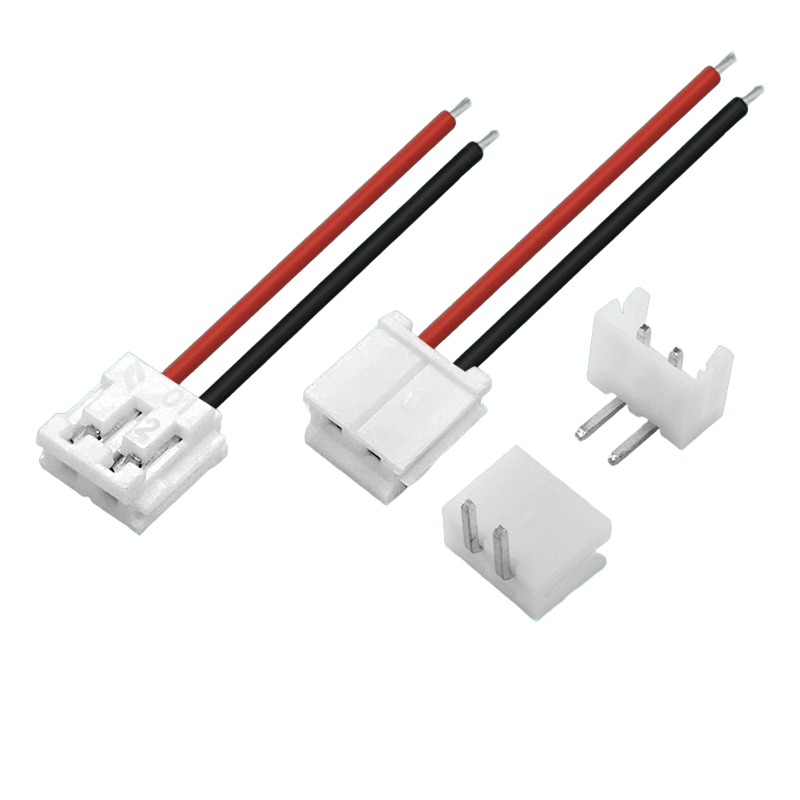

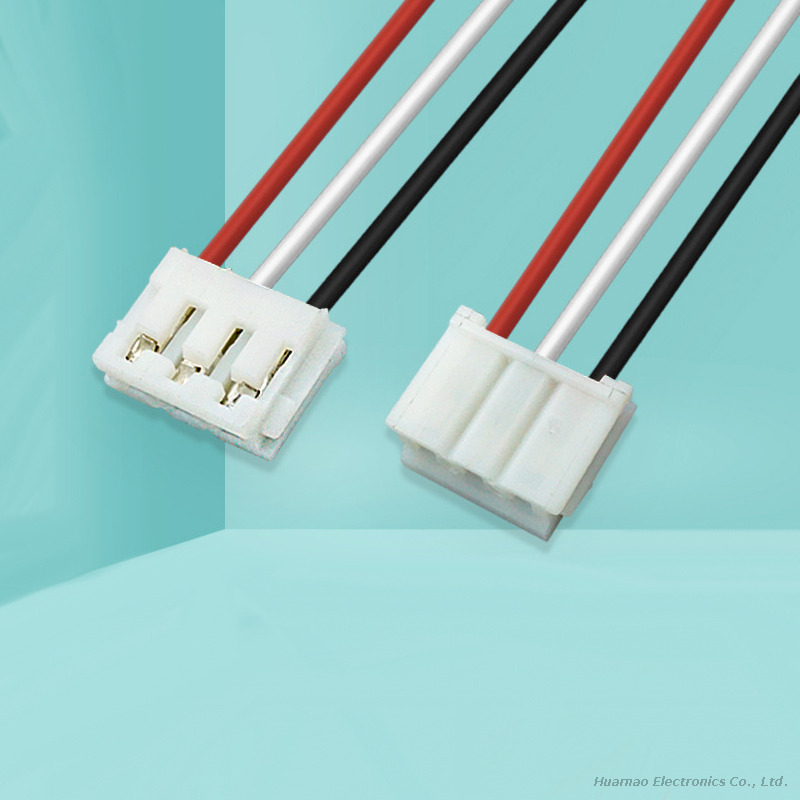

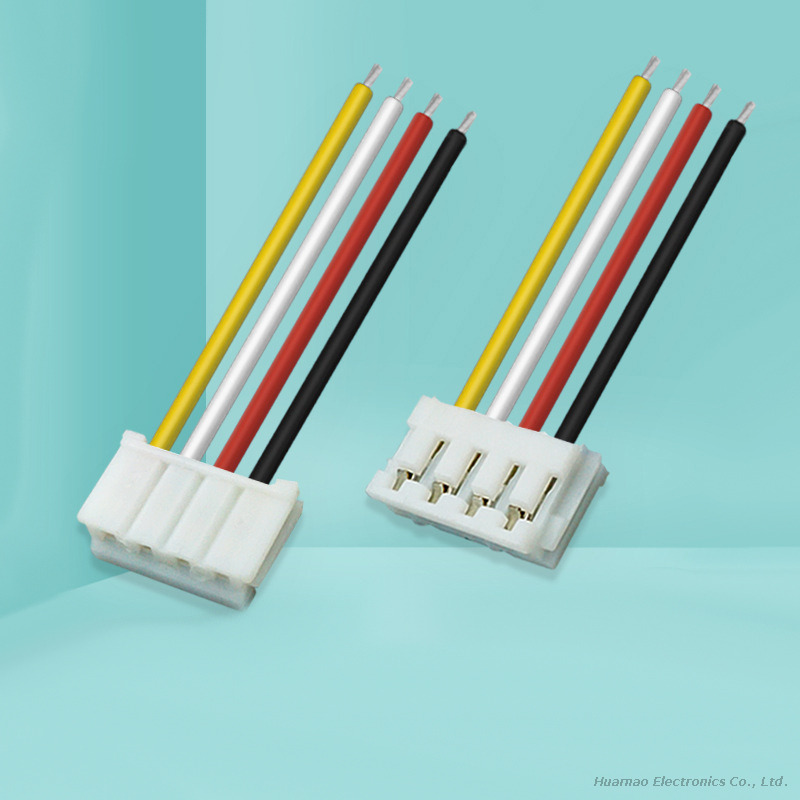

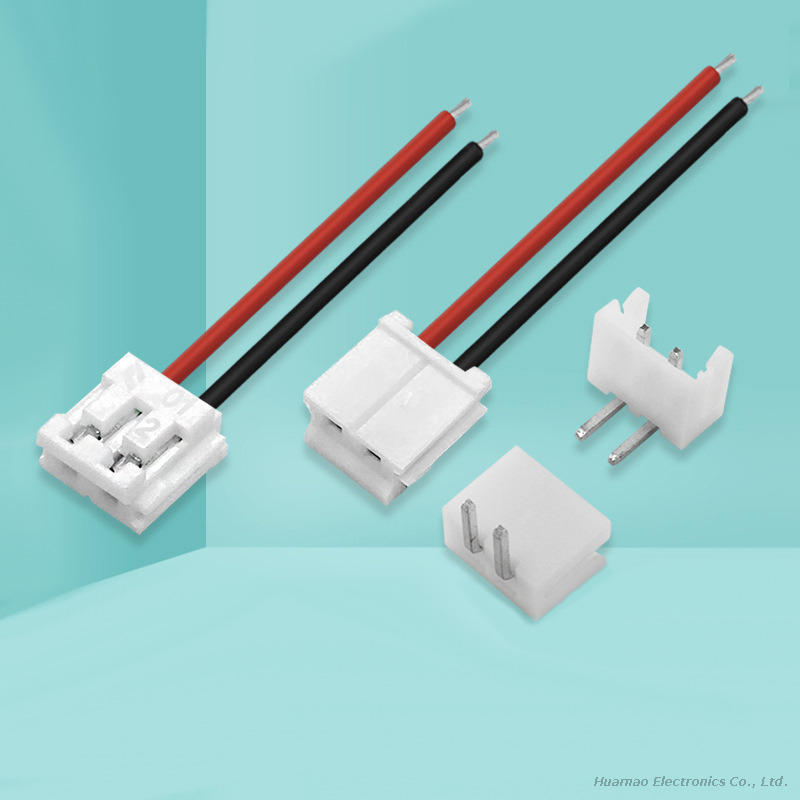

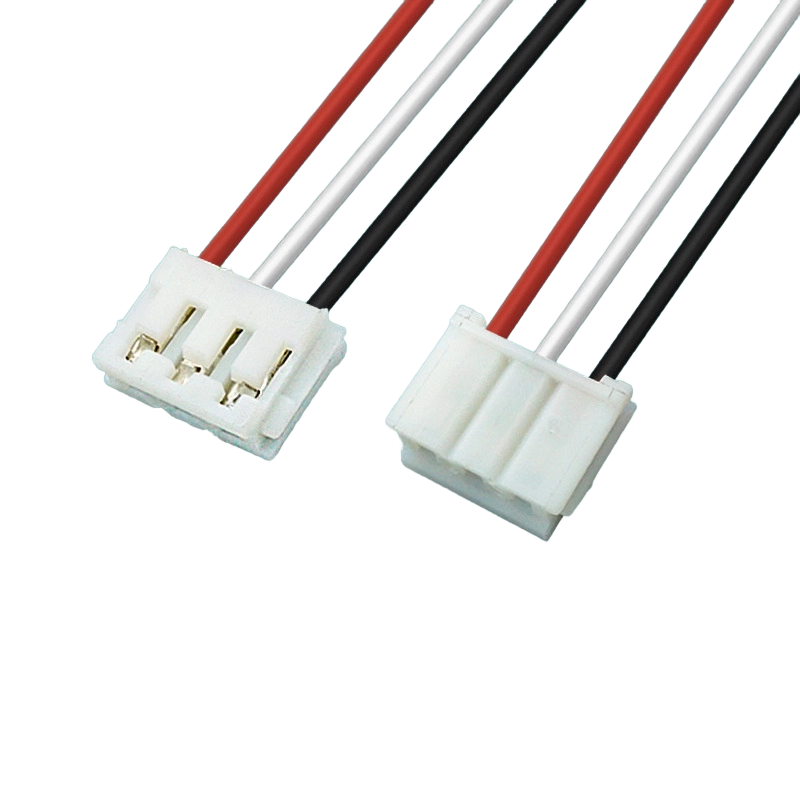

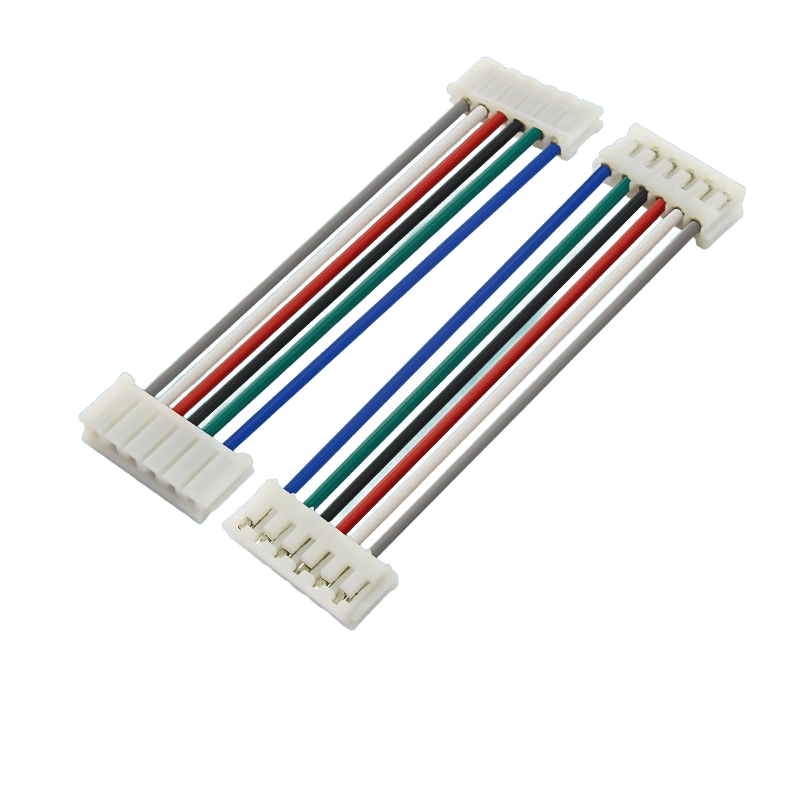

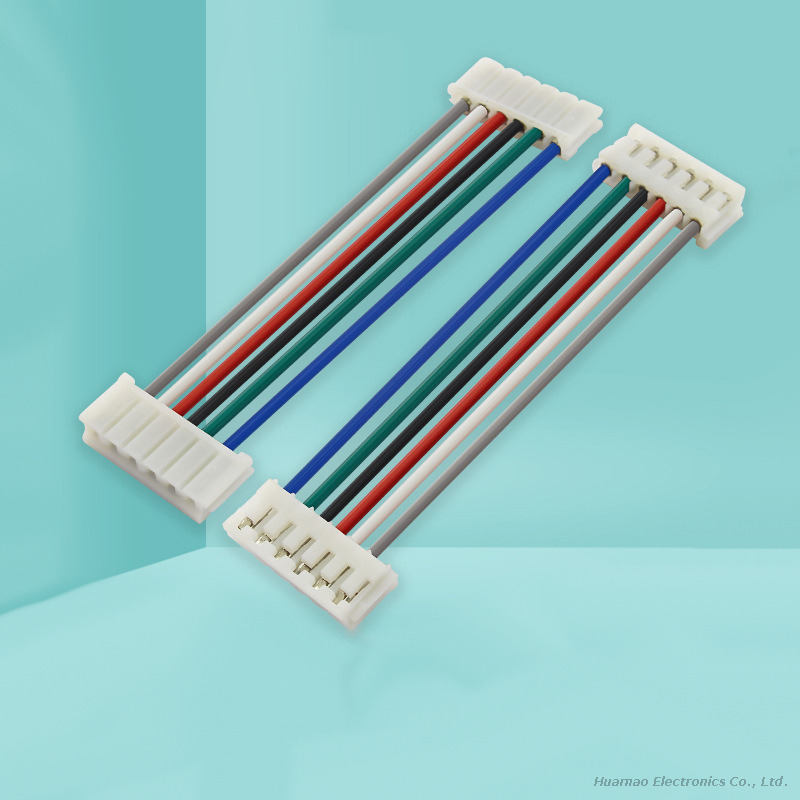

JST EH Series 2-15P Single-head Double-head 2.54mm Pitch Connection Cable Desk Lamp Terminal Cable

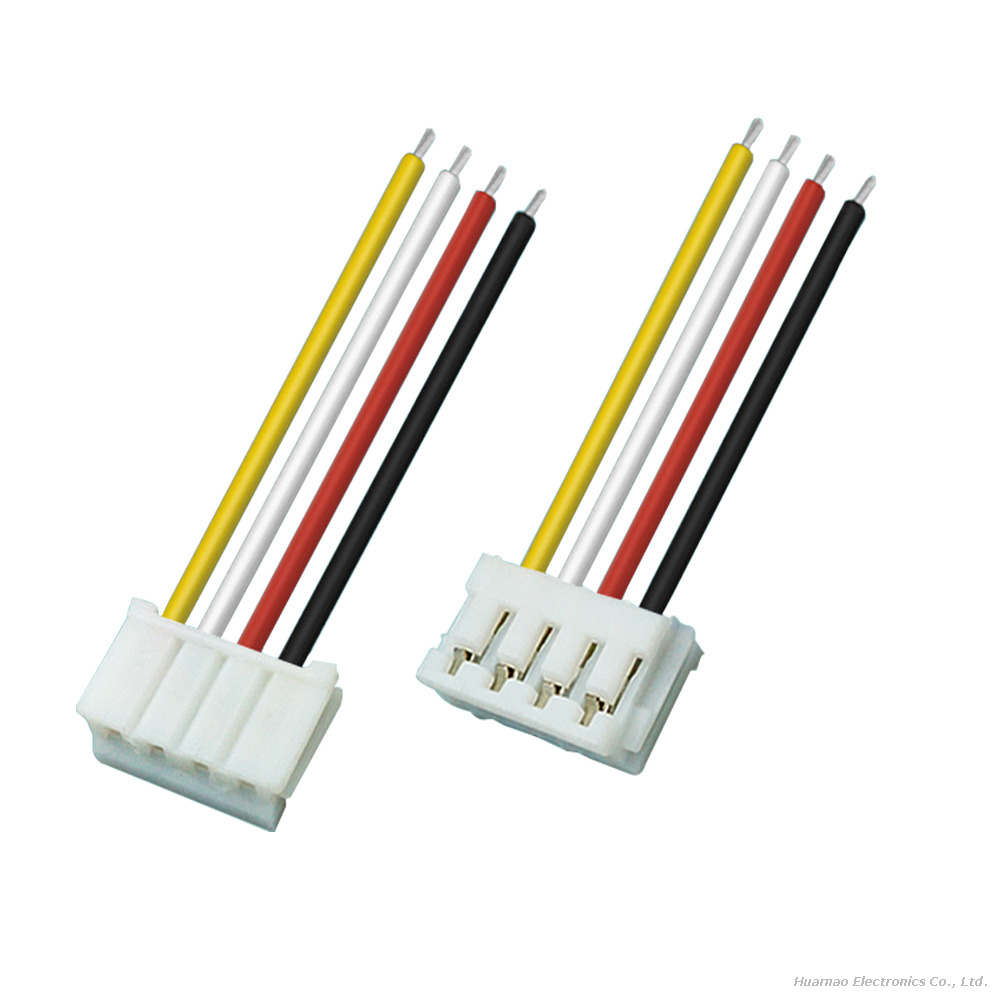

JST EH Series 2-15P Single-head Double-head 2.54mm Pitch Connection Cable Desk Lamp Terminal Cable

Product Profile
Series: EH connector
Category: Crimp Style Connectors (Wire-to-Board type)
PC boardmounting: Through-hole
Matingdirection: Side entry, Top entry
Array(Insertion part): Single-row
Lock: Friction lock
Connectionvariations: Compatible IDC connector available, Compatible crimp connector available
Standard: CSA, TÜV, UL

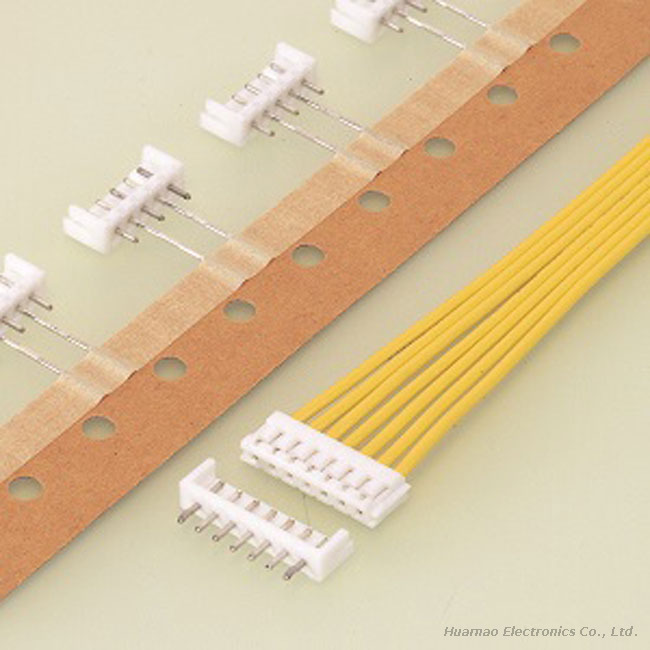

Others: Radial taping

Model:
Jst EH Series
Brand:
Jst
Code:
HM10941A

Availability:

Quantity:



Inquire Add to Basket

Jst EH Series Jst 2.5mm Pitch Connector Desk Lamp Terminal Cable Crimp Style Connectors Wire-to-Board type Connectors

Product Description

Specification

This is a 2.5 mm pitch low-profile, wire-to-board connector that meets the needs of high density PCB requirements and provides design flexibility in all sorts of electronic devices. The top entry type is 3.8 mm in thickness and 8.1 mm in height. The low profile design helps to save space. The contact design provides a high-reliability connection. The EH series also offers excellent harness workability and is easy to mate and unmate.

Pitch	2.5mm
Circuit	2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Current rating	3 A AC/DC (AWG #22)
Voltage rating	250 V AC/DC
Temperature range	-25℃ to +85℃
Insulation resistance	1,000MΩ min.
Withstanding voltage	There shall be no breakdown or flashover while applying 800 VAC for one minute.
Conductor size	AWG #32,#30,#28,#26,#24,#22 0.032mm² to 0.33mm²
Insulation O.D.	φ0.5mm to φ1.9mm
Remarks	Compatible connectors available (Crimp-style / IDC-style HR connector)

Parameter	Value
Certification	CE, ISO 9001, RoHS
Storage Case Size	9.00cm × 11.00cm × 14.00cm
Package Weight	0.500kg
Application	GM Vehicle Terminal Testing
Interface Type	HDR Compatible
Production Capacity	10M sets/year
MOQ	Sample Testing Kit Available
Lead Time	15 working days
Quality Control	Full Testing Report Included
Warranty	12-month Replacement
Standards	YUV, MSDS certified
Payment Terms	L/C, T/T, PayPal
Shipping Options	Global Express Available
