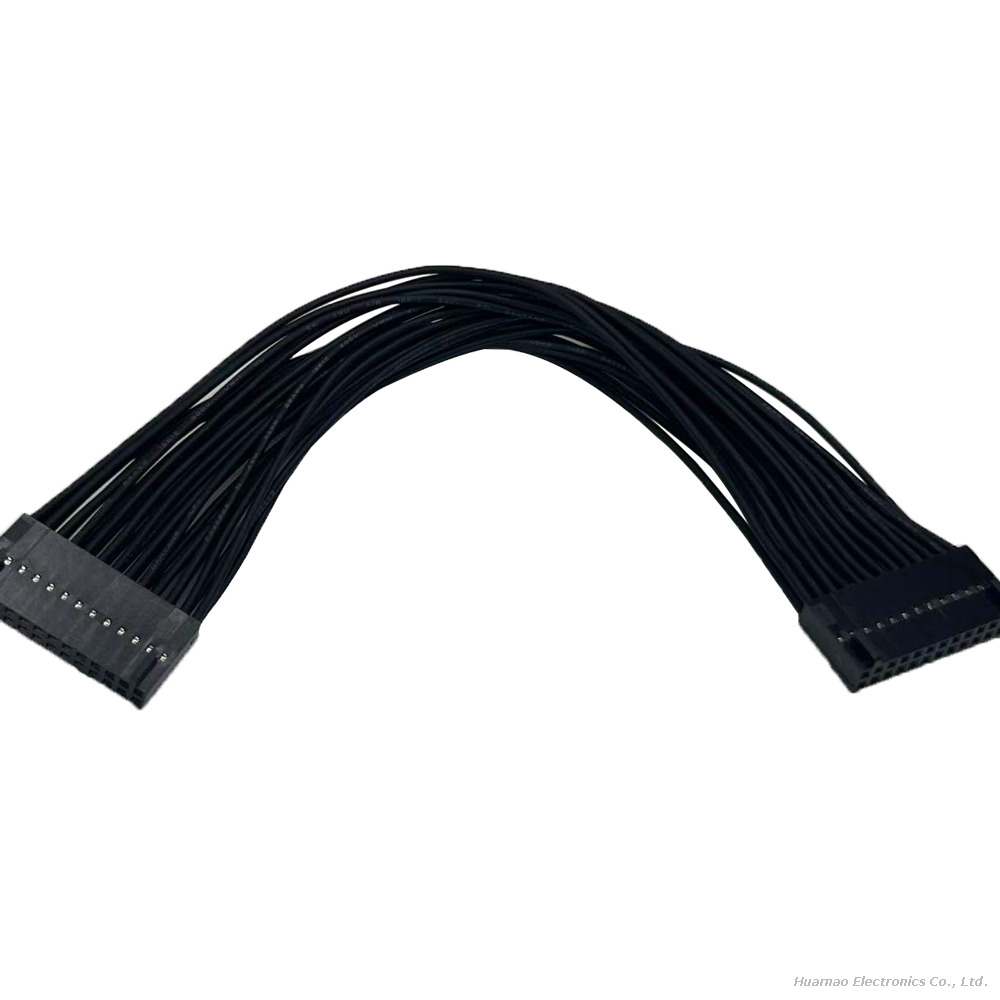

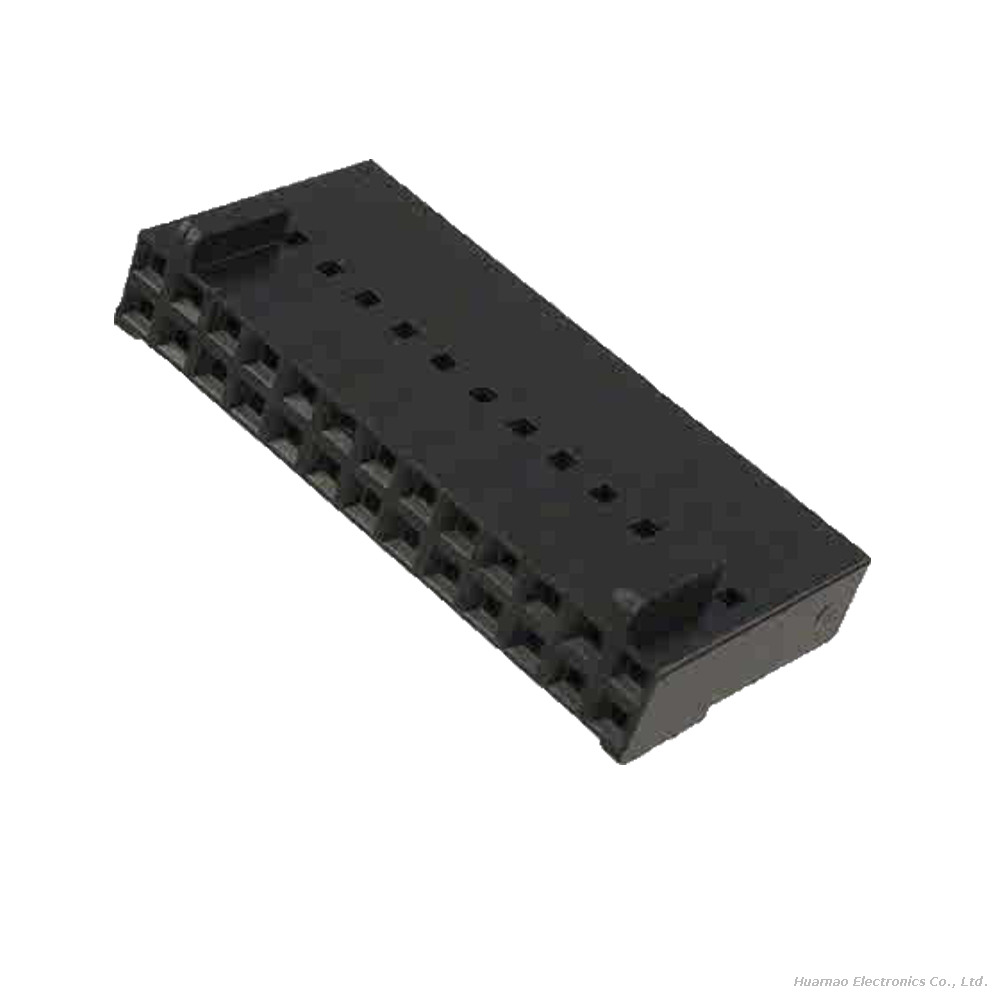

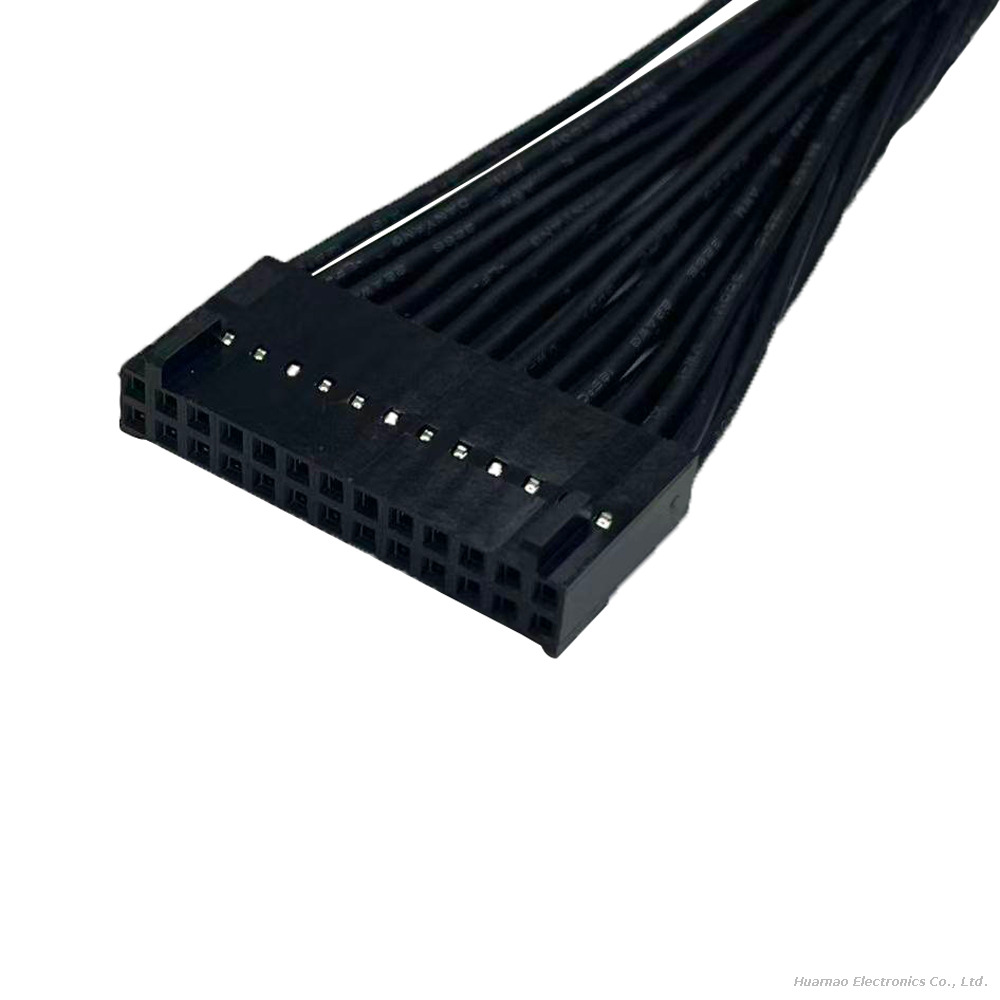

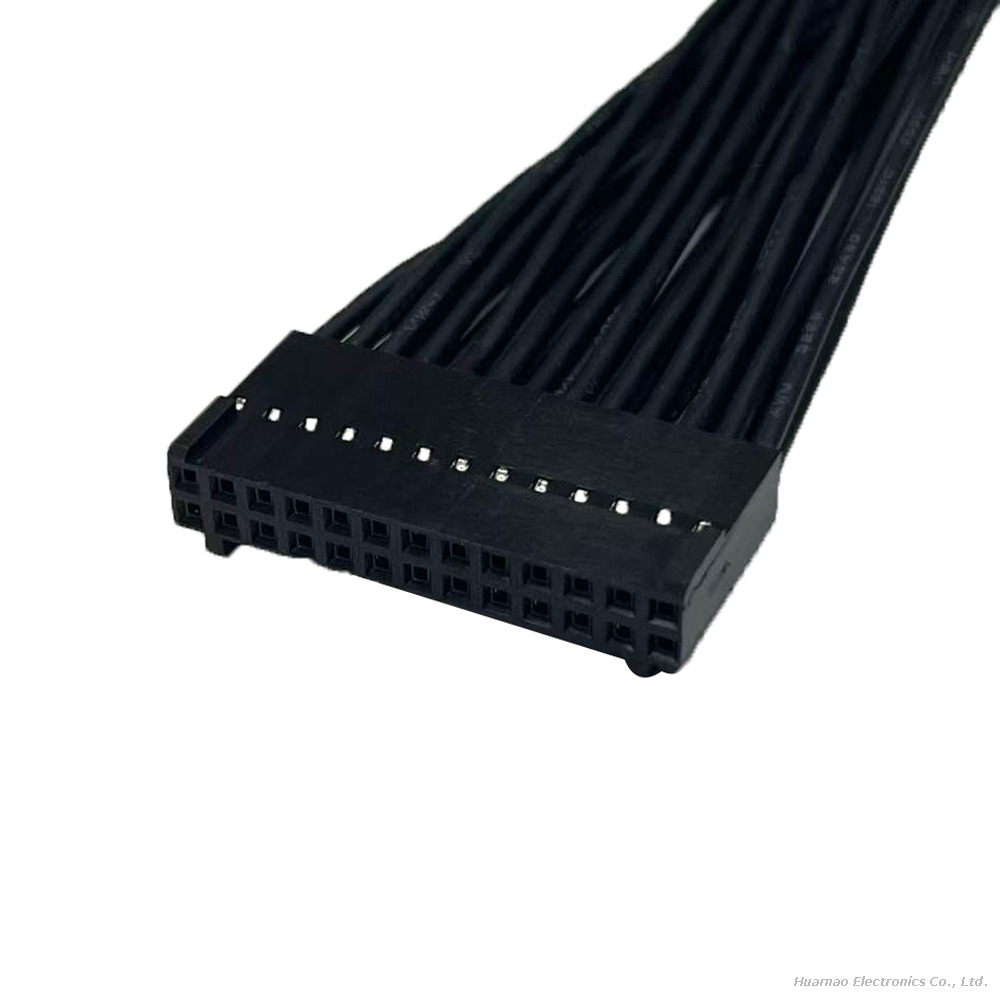

This wire assembly is equipped with a dual-row 26-pin crimp housing (model 22566267) with a standard 2.54mm pitch, paired with matching crimp terminals. It is intended for signal transmission and low-current power connection inside electronic equipment, featuring high-density layout, anti-misinsertion structure and reliable anti-vibration performance, widely used in industrial control, automotive electronics, communication devices and consumer electronics.
Key Features & Advantages
2.54mm Standard High-Density Design
Dual-row arrangement greatly saves PCB and internal space, suitable for miniaturized and high-integration equipment design.
Stable Crimp Connection
Professional crimping structure ensures high pull-out force and low contact resistance, maintaining long-term stable transmission.
Anti-Misplug Polarization
Asymmetric keyed design prevents wrong insertion and reverse mating, effectively protecting circuit boards and electronic components.
Wide Temperature Adaptability
Withstands high and low temperature changes, meeting the requirements of automotive cabins and industrial working environments.
Flexible Wiring Performance
Compatible with thin-gauge wires, offering good flexibility for routing in narrow and complex equipment interiors.
Typical Applications
Internal signal connection for industrial control boards and PLC modules
Board-to-board wiring for communication equipment and network devices
Automotive interior electronic control units and sensor signal harnesses
Consumer electronics such as monitors, printers and smart appliances
Instrumentation and testing equipment internal wiring
Quality Assurance & Customization
100% electrical continuity and insulation resistance testing before shipment

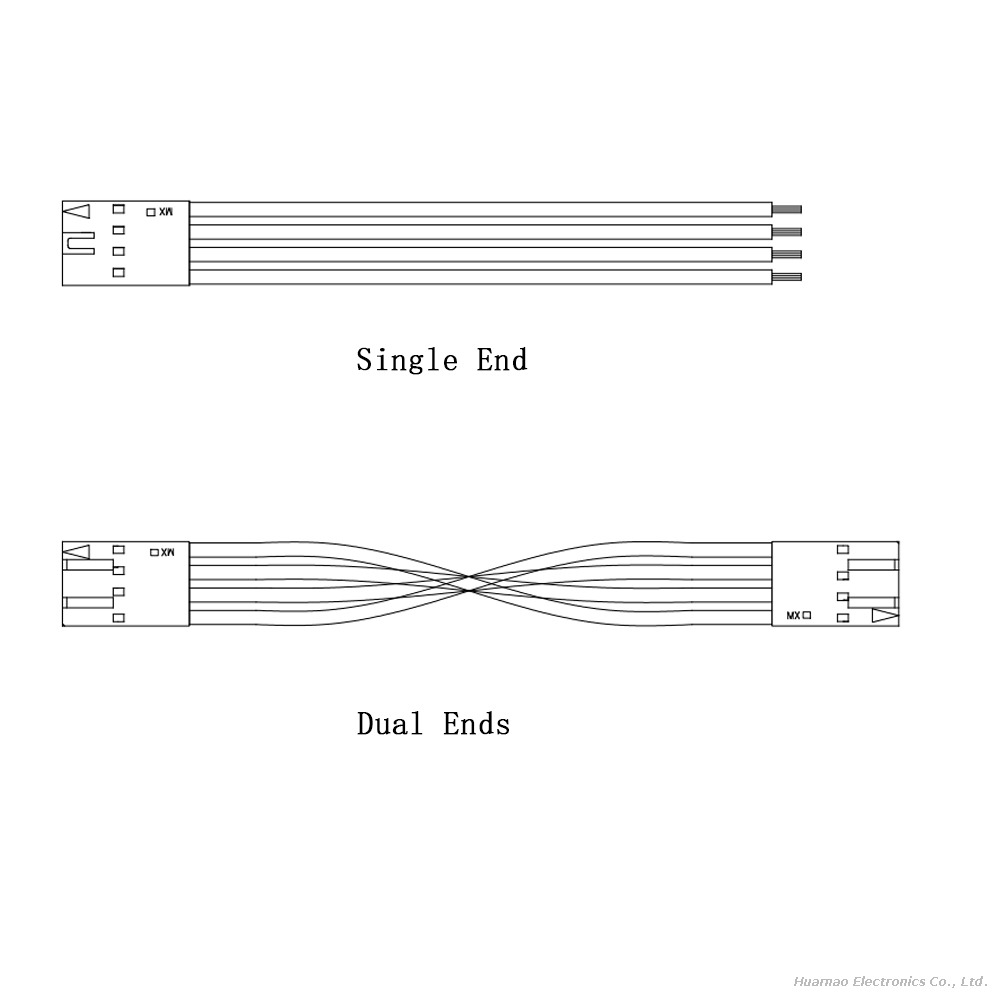

Customizable cable length, wire color and pin arrangement
Optional heat-shrink tubing for strain relief at terminal ends
Suitable for automated assembly and mass production of electronic equipment
