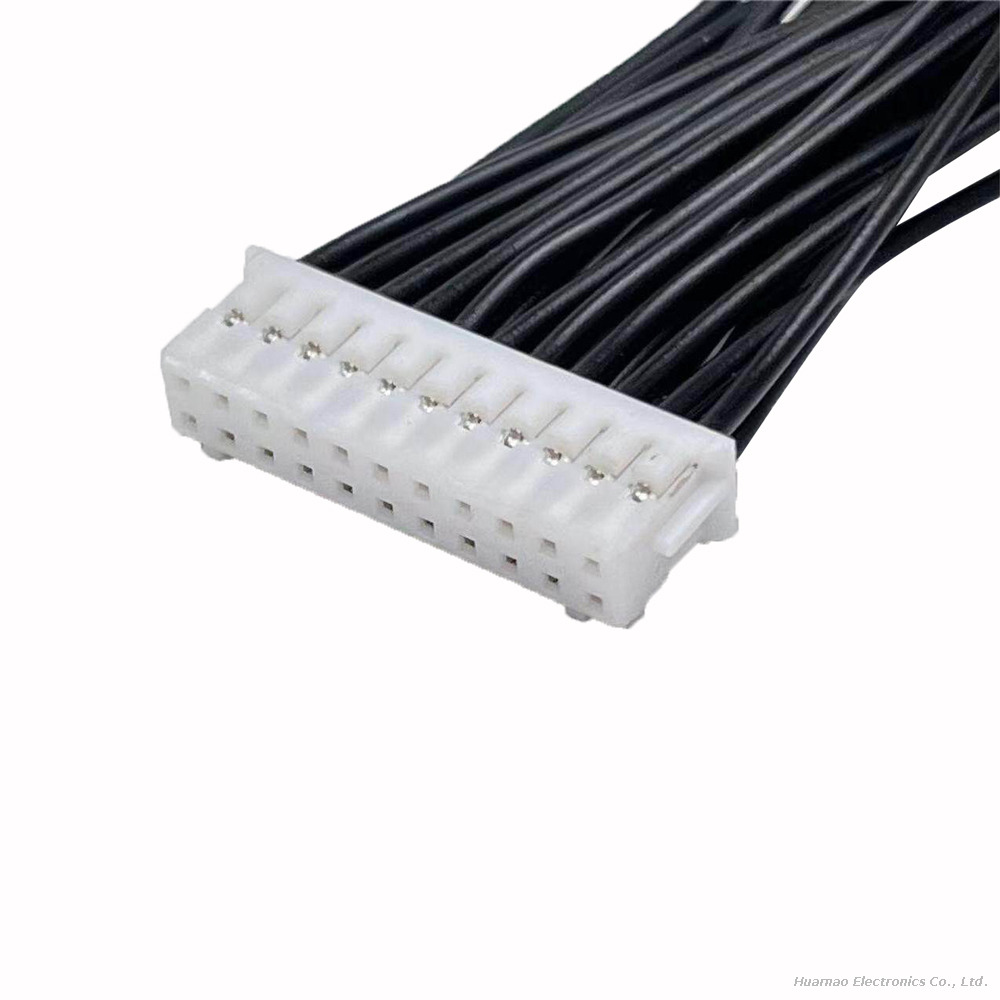

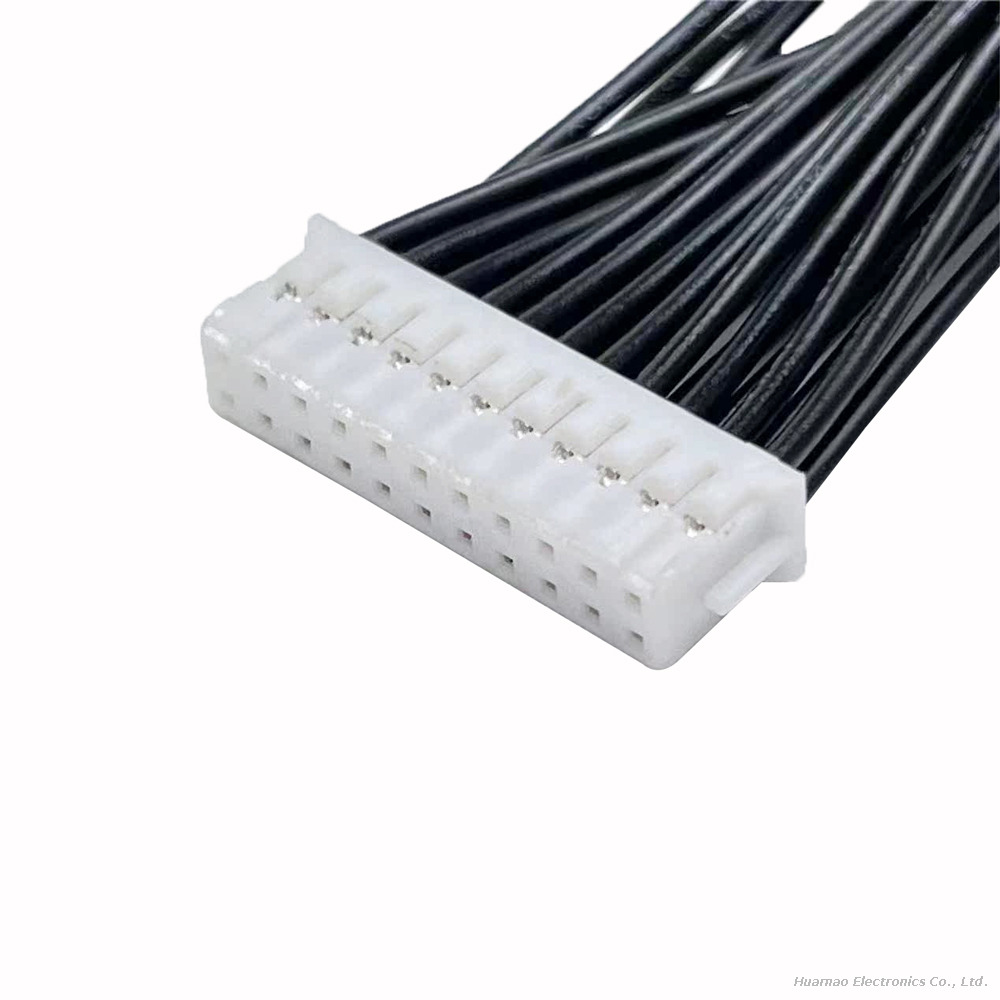

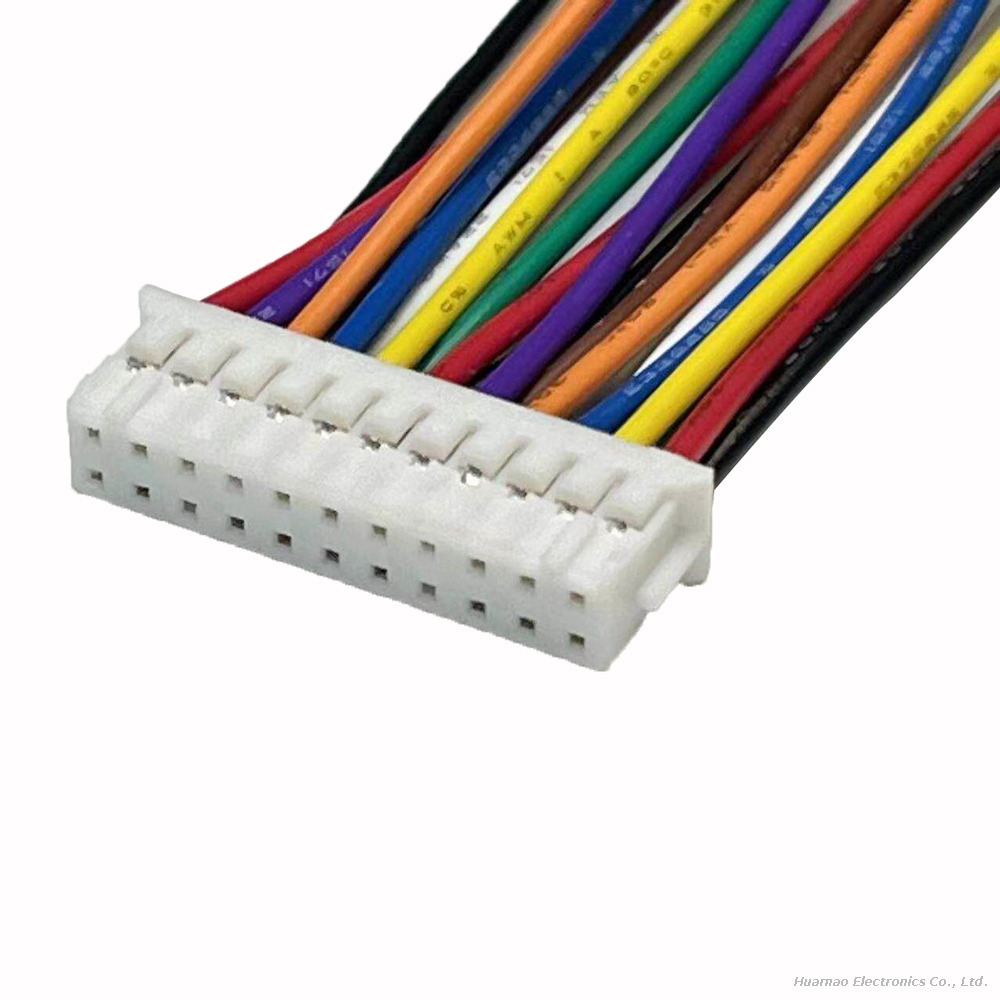

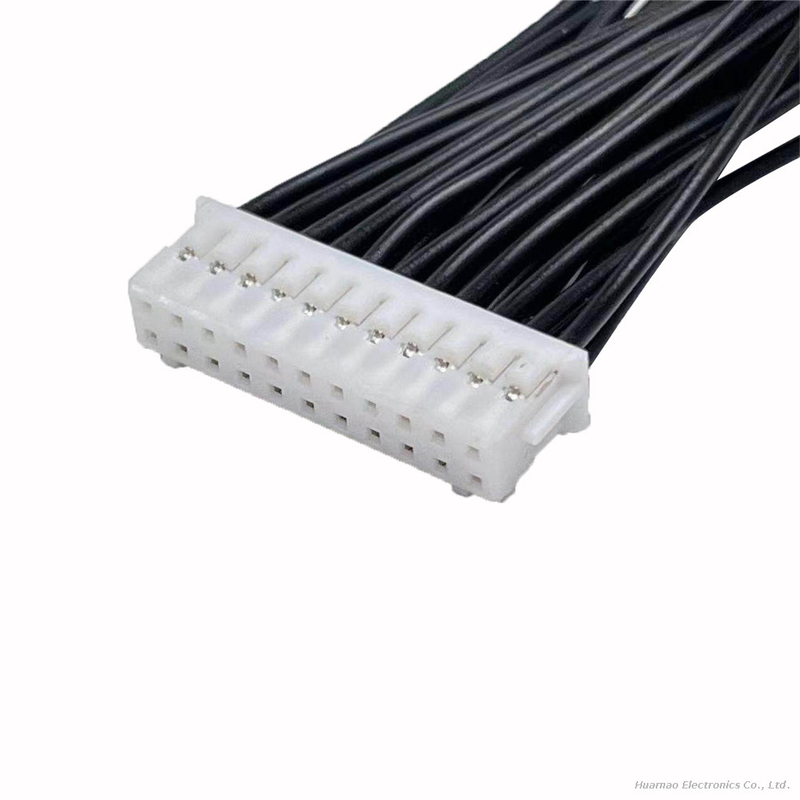

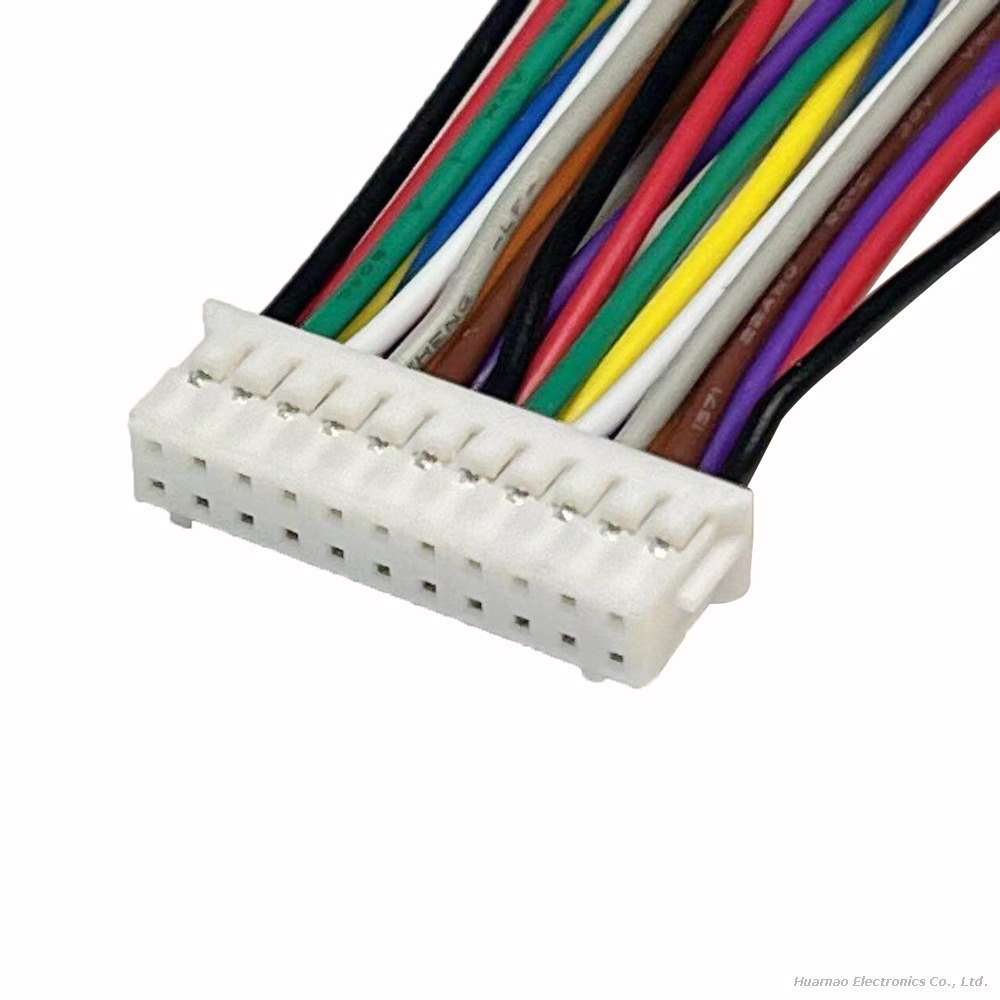

JST Original PHD Series High-Density Double-Row Connector Cable – featuring the PHDR-22VS female housing paired with SPHD-001T-P0.5 precision terminals – is engineered for space-saving wire-to-board connections in compact electronic devices. Adopting a 2.0mm (0.079") standard pitch design with dual-row 22-position configuration, it integrates JST’s advanced crimp termination technology and high-performance conductive materials, making it ideal for high-density, low-profile applications across consumer electronics, industrial automation, medical equipment, and more. This connector cable delivers a reliable interconnect solution that balances miniaturization and performance.
Core Advantages
High-Density Space-Saving Design: 2.0mm pitch double-row layout with only 8.8mm mounting height and 5.0mm width, maximizing PCB real estate utilization for compact device designs.
Secure Locking Mechanism: Equipped with positive locking latches for secure mating and anti-vibration performance, preventing accidental disconnection in dynamic operating environments.
Precision Conductivity: SPHD-001T-P0.5 tinned phosphor bronze terminals with long contact dimples ensure stable electrical performance, compatible with 22-26AWG wires (0.3-0.34mm² conductor cross-section). Crimp-style termination guarantees low contact resistance and efficient signal transmission.
Environmentally Resistant Materials: PA66 flame-retardant housing (UL94V-0 rated) and temperature-resistant insulated wires support a wide operating temperature range of -25℃ to +85℃, withstanding harsh industrial and consumer electronic environments.
Dual-Row Versatility: 22-position (2×11) configuration enables simultaneous power and signal transmission, reducing the need for multiple connectors in high-channel-count applications.
Compliance & Certification: Fully RoHS-compliant (lead-free) and certified to UL E60389 and CSA LR standards, meeting global environmental and safety requirements for electronic equipment.
Custom wire lengths (starting from 100mm standard) with insulation color matching
Terminal configuration optimization for specific power/signal requirements
Value-added services: pre-assembled harnesses, labeling, and kitting solutions
Complete technical documentation: datasheets, 3D models, and installation guides
Application Scenarios
✅ Consumer Electronics: Smartphones, tablets, wearable devices, and digital cameras
✅ Industrial Automation: PLC modules, sensor networks, and automated equipment control systems
✅ Medical Devices: Diagnostic instruments, patient monitoring systems, and portable medical equipment
✅ Communication Equipment: Router/switch internal connection harnesses, base station components
✅ Automotive Electronics: Infotainment systems, sensor modules, and interior electronic controls
Customization Services
We offer comprehensive customization options for the JST PHDR-22VS cable assembly, including:
For sample testing, bulk pricing, or application-specific engineering support, contact our technical sales team to develop a tailored interconnect solution that meets your exact requirements.
Quality Assurance
All JST PHDR-22VS assemblies undergo rigorous testing to ensure compliance with industry standards, including:
High-potential voltage testing for insulation integrity
Temperature cycling and vibration resistance verification
Contact resistance and insertion/extraction force validation
RoHS-compliant manufacturing processes with lead-free terminations
Trust JST’s legacy of engineering excellence for your high-density wire-to-board interconnect needs with the PHDR-22VS double-row connector cable assembly featuring SPHD-001T-P0.5 precision terminals
