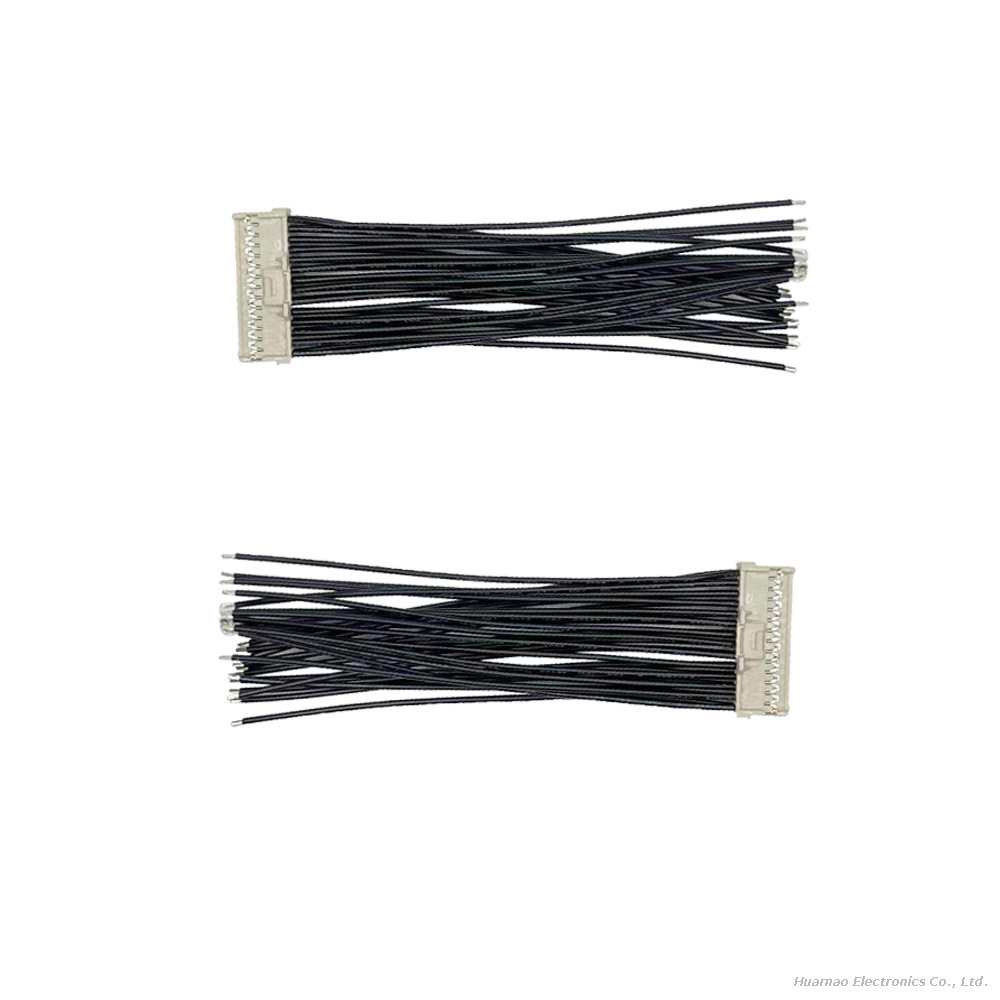

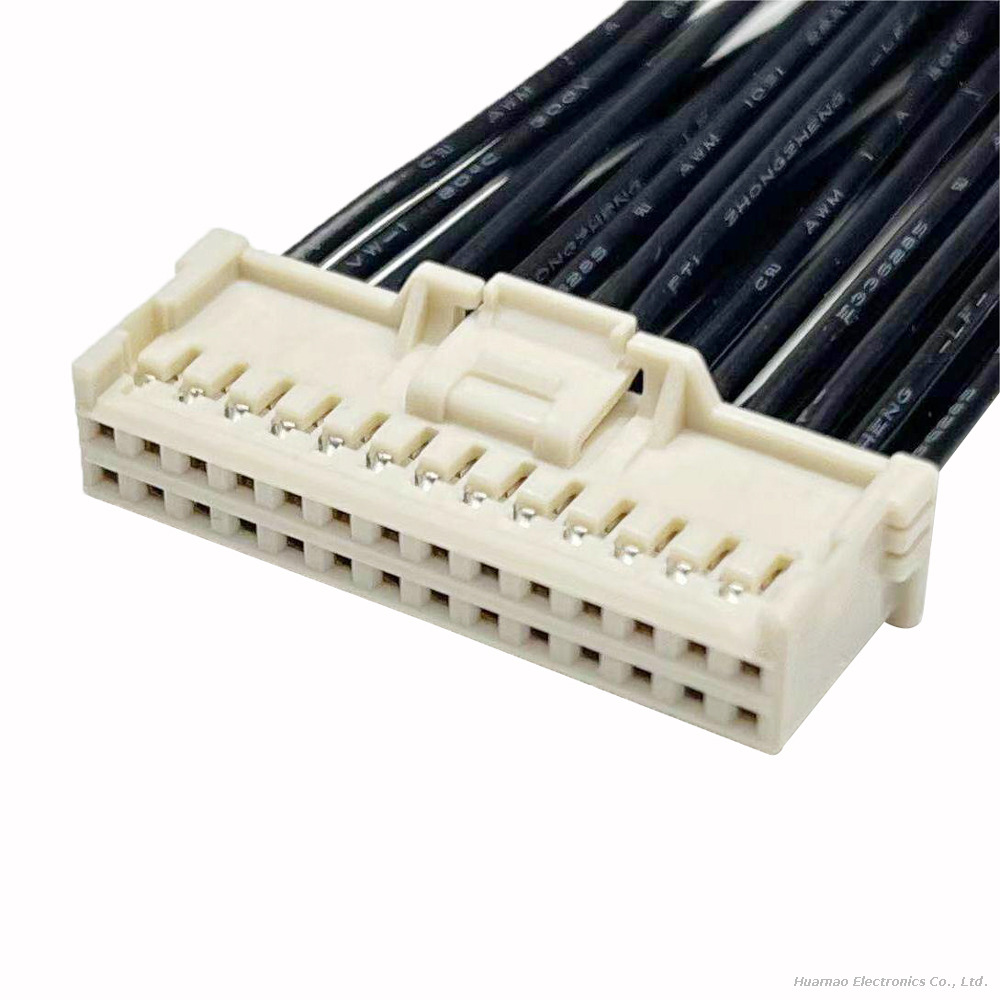

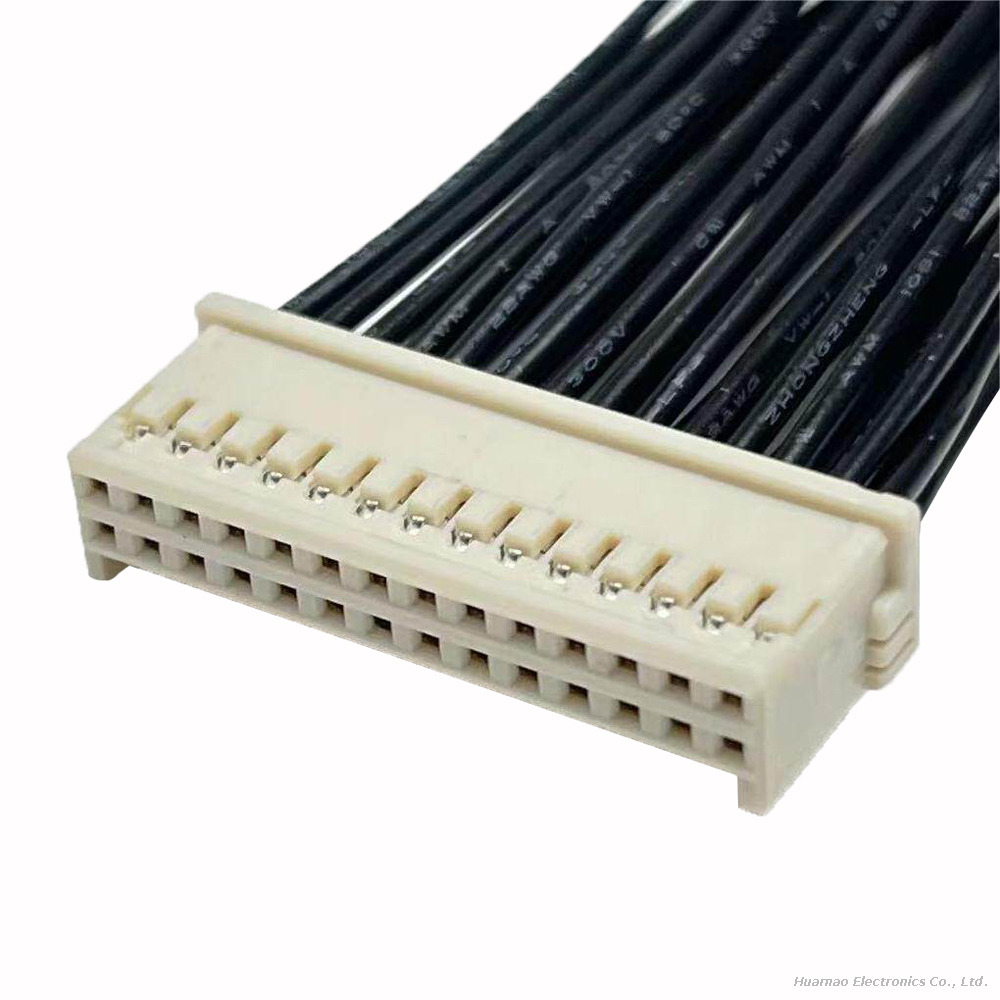

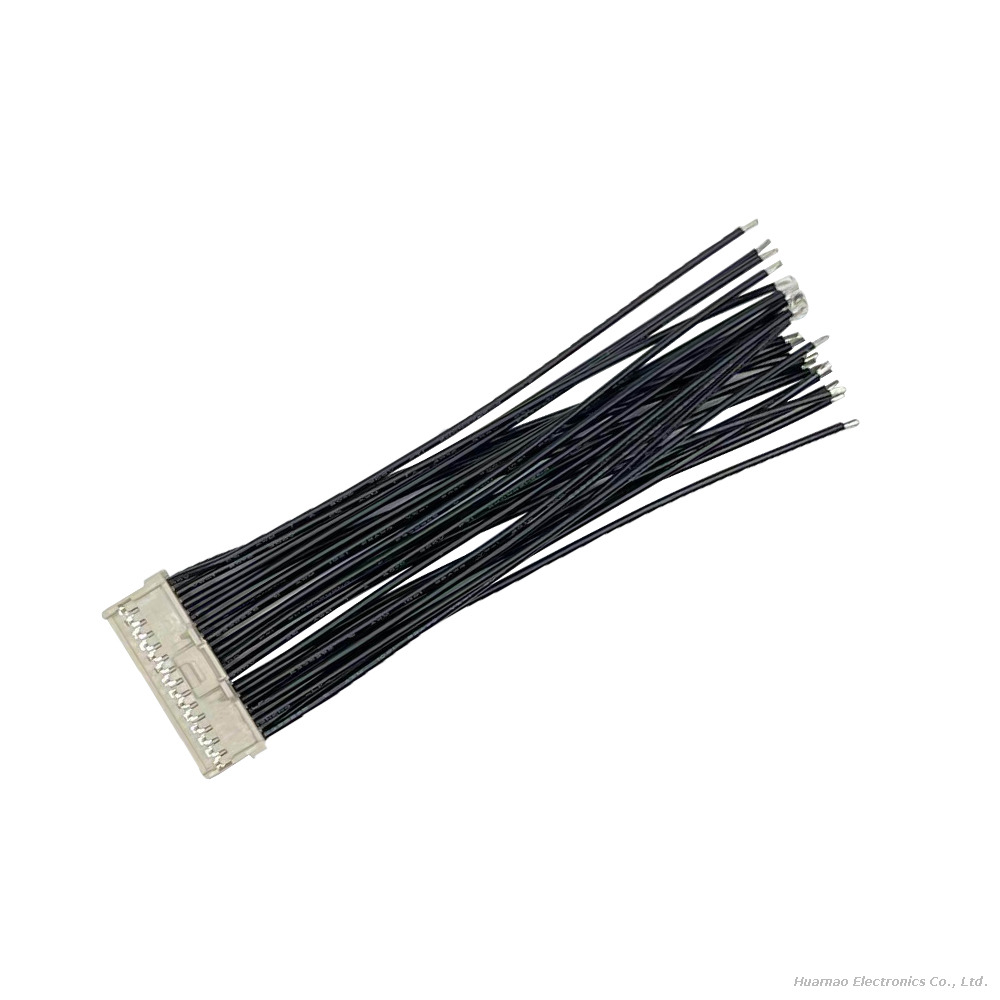

This wiring harness is built with Molex IGRID 2.0mm pitch dual-row connectors, featuring 501646-2800 receptacle housing and 501647-1000 terminals for 28-position (28P) connections. It provides a high-density, reliable wire-to-board connection solution for industrial, appliance, and consumer electronics applications, ensuring stable signal and power transmission with robust mechanical performance and secure locking mechanism.
Key Features & Advantages
High-Density IGRID 2.0mm Pitch DesignDual-row 28-position configuration saves PCB space while maintaining reliable connections, ideal for compact electronic devices.
Secure Internal Positive LockUnique internal locking mechanism prevents wire snagging beneath the latch, provides audible confirmation when fully mated, and allows easy unmating without damage.
Error-Proof Polarization System10-color coding options eliminate mismating risks, ensuring correct connection in high-volume production environments.
Robust Terminal ProtectionHigh header housing walls offer terminal protection and precise mating guidance, enhancing durability against mechanical stress.
Excellent Conductivity & DurabilityTin-plated phosphor bronze terminals ensure low contact resistance and corrosion resistance; stranded copper wire provides flexibility and vibration resistance.
Plug-and-Play InstallationPre-crimped terminals enable quick assembly without soldering, improving production efficiency and reducing labor costs.
Typical Applications
Industrial control systems, PLC modules, and automation equipment
Home appliances, HVAC systems, and white goods control panels
Consumer electronics, set-top boxes, and display devices
Medical equipment, testing instruments, and diagnostic devices
Automotive electronics, infotainment systems, and sensor connections
LED lighting controls, smart home devices, and IoT modules
Quality Assurance & Customization
100% continuity and insulation resistance testing before shipment
Customizable wire length, gauge, and terminal plating (tin/gold)
Support for custom wire colors, marking, and special packaging requirements
RoHS and REACH compliant materials meet global environmental standards
Compatible with Molex IGRID headers for seamless integration into existing designs
