Molex 5031493200 Connector Cable 5025790000 1.5mm Wire Harness Double Row 32P

Molex 5031493200 Connector Cable 5025790000 1.5mm Wire Harness Double Row 32P

Name: Molex 5031493200 Connector Cable 5025790000 1.5mm Wire Harness Double Row 32P
Brand: molex
Rating: 5.0 (97 reviews)

Model:
Molex 5031493200
Brand:
molex

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

Molex 5031493200 Connector Cable molex5025790000 terminal wire 1.5mm terminal wire Double Row Wire Harness 32p connector cable UL1061 electrical cable 24AWG Electrical Cable molex clik mate series

Product Description

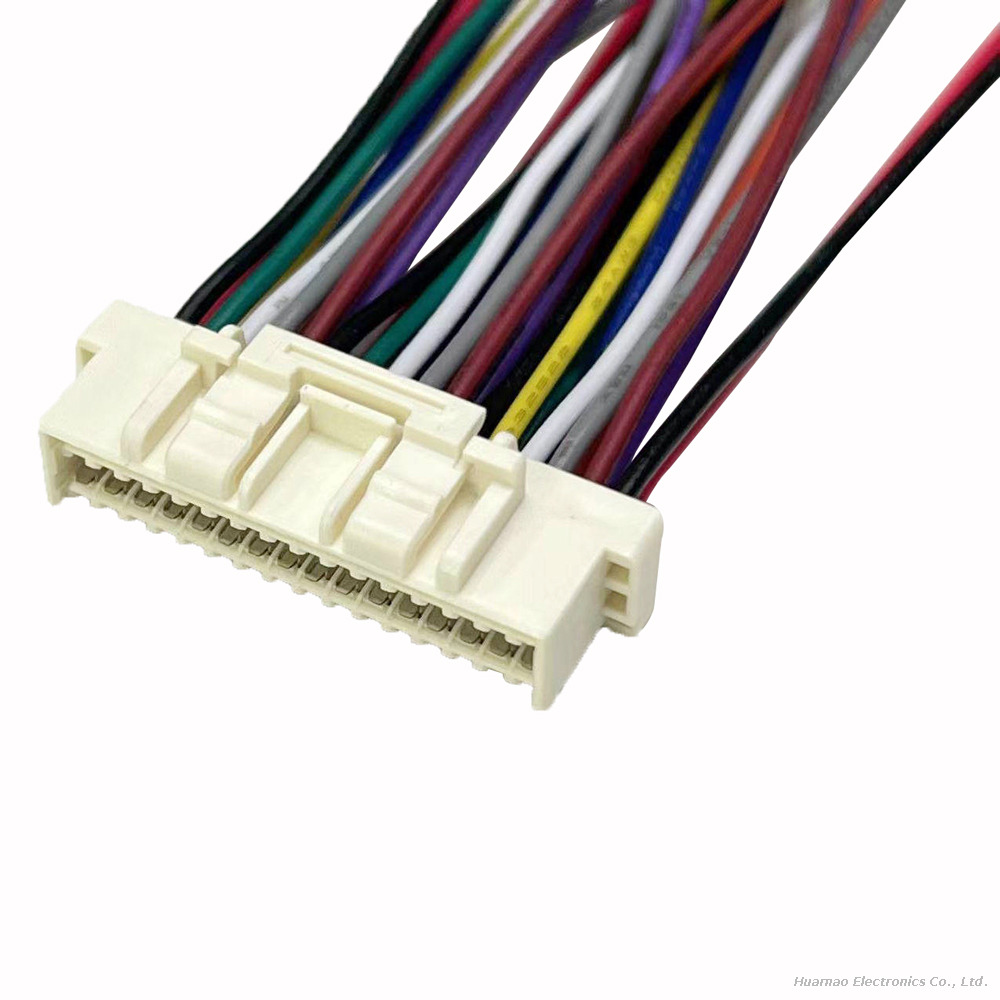

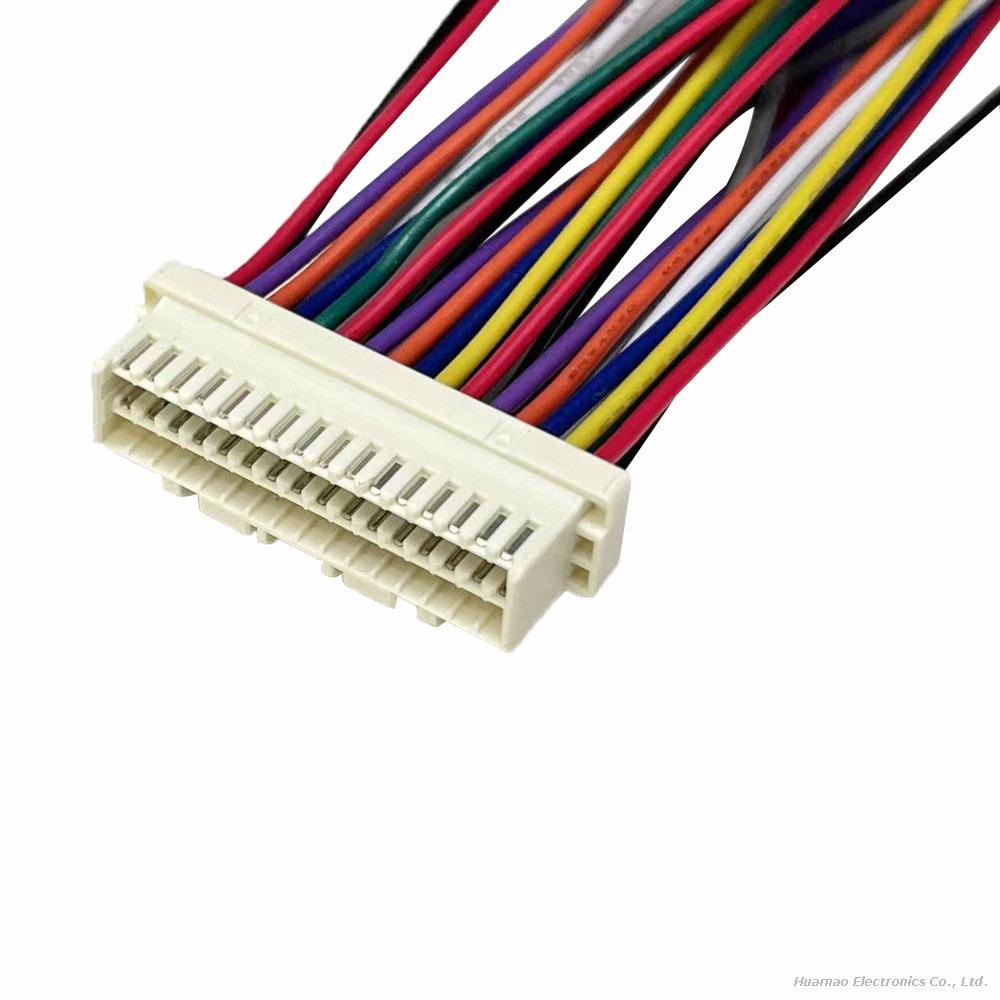

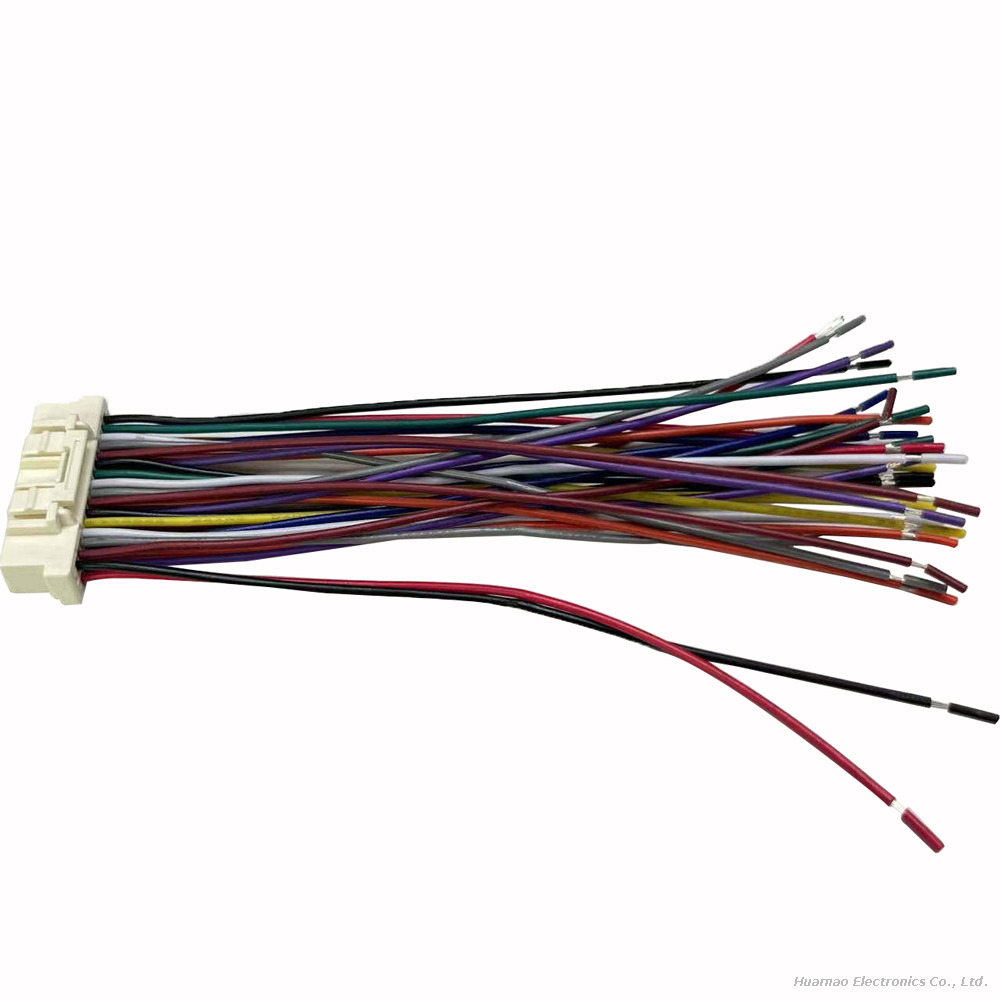

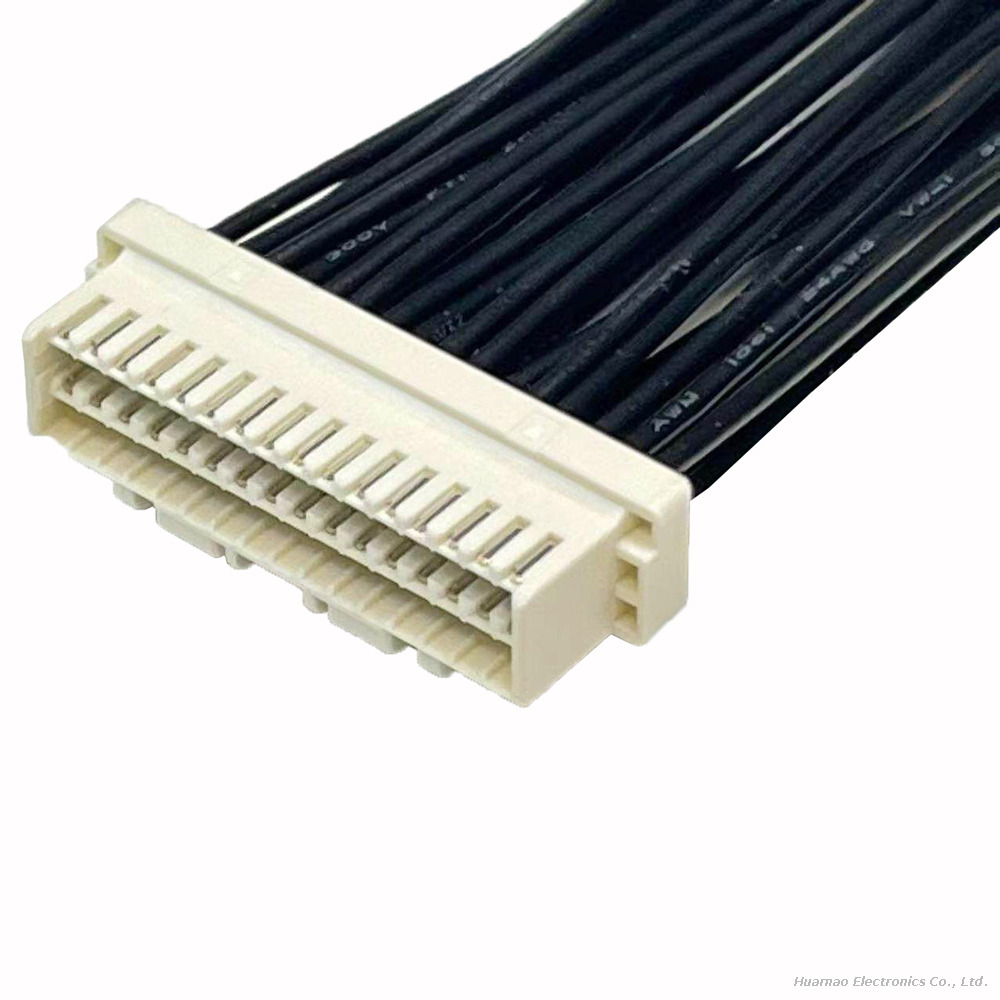

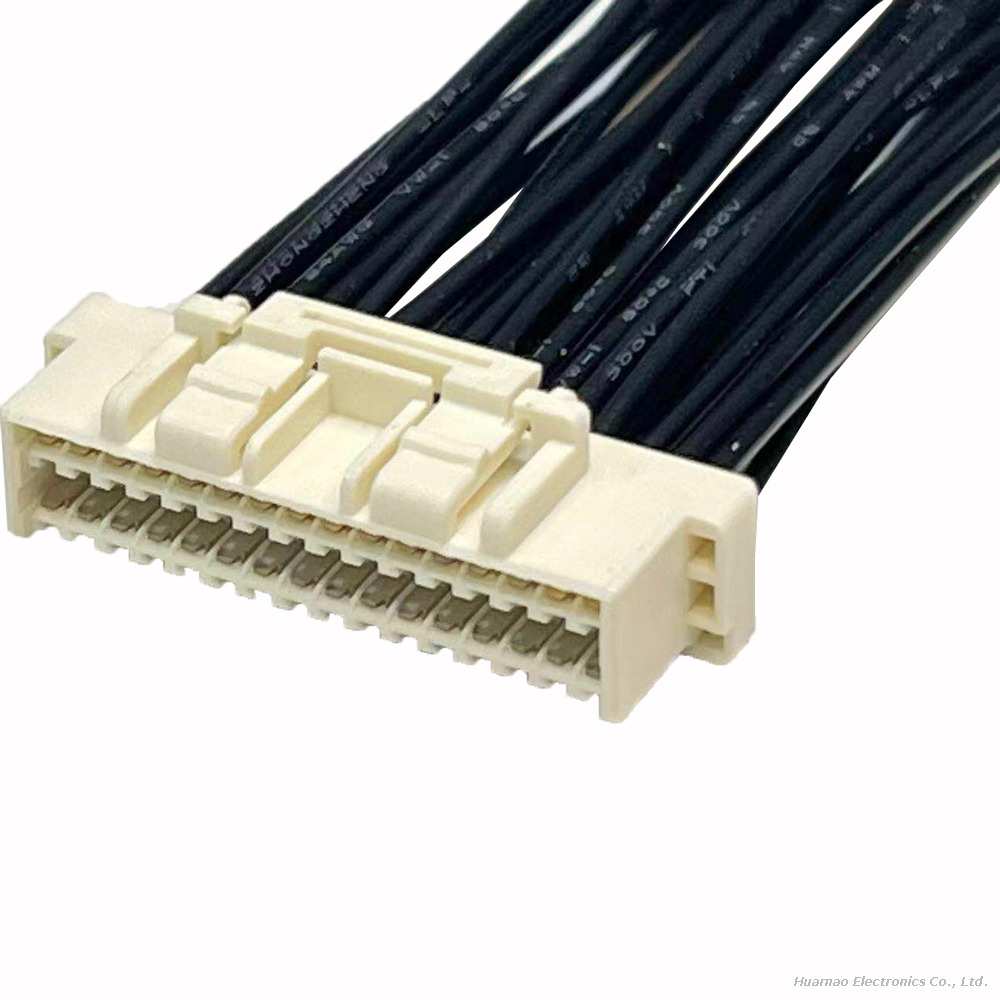

Molex CLIK-Mate Series High-Density Wire-to-Board Connector Cable Assembly – featuring the 5031493200 32-position double-row plug housing paired with 5025790000 precision crimp terminals – delivers a compact, reliable interconnect solution for space-constrained electronic devices. Engineered with a 1.50mm (0.059") pitch dual-row design (2×16 configuration), this assembly combines Molex’s advanced CLIK-Mate locking technology with high-performance conductive materials, making it ideal for high-channel-count, low-profile applications across consumer electronics, industrial automation, medical devices, and more. The beige PA66 housing with integrated positive locking latches ensures secure mating and exceptional durability in demanding operating environments.

Core Advantages

Ultra-Compact High-Density Design: 1.5mm pitch double-row layout with only 6.5mm mounting height and 7.2mm width, maximizing PCB real estate utilization for miniaturized device designs
Secure CLIK-Mate Locking Mechanism: Positive locking latches provide audible confirmation of secure mating and superior anti-vibration performance, preventing accidental disconnection in dynamic applications
Precision Crimp Termination: 5025790000 tin-plated copper alloy terminals with long contact dimples ensure stable electrical performance, compatible with 24-28 AWG wires (0.12-0.20mm² conductor cross-section). Crimp-style termination guarantees low contact resistance (≤20mΩ) and efficient signal transmission
Environmentally Resistant Construction: PA66 flame-retardant housing (UL94V-0 rated) and temperature-resistant insulated wires support a wide operating temperature range of -40°C to +105°C, withstanding harsh industrial and consumer electronic environments
32-Position Versatility: 2×16 dual-row configuration enables simultaneous power and signal transmission, reducing the need for multiple connectors in high-I/O applications
Global Compliance: Fully RoHS-compliant (lead-free) and certified to UL E124778 and CSA LR standards, meeting global environmental and safety requirements for electronic equipment
Tooling Compatibility: Designed for use with Molex’s 63811-8200 crimp tool, ensuring consistent, high-quality terminations for volume production applications

Application Scenarios

✅ Consumer Electronics: Smartphones, tablets, wearable devices, digital cameras, and portable gaming consoles

✅ Industrial Automation: PLC modules, sensor networks, automated equipment control systems, and IoT edge devices

✅ Medical Devices: Diagnostic instruments, patient monitoring systems, and portable medical equipment requiring high reliability

✅ Communication Equipment: Router/switch internal connection harnesses, base station components, and fiber optic transceivers

✅ Automotive Electronics: Infotainment systems, sensor modules, and interior electronic controls (non-critical circuits)

✅ Home Appliances: Smart home devices, small kitchen appliances, and personal care electronics

Customization Services

We offer comprehensive customization options for the Molex 5031493200 assembly, including:

Custom wire lengths (standard 150mm 起) with insulation color matching (black, red, blue, yellow, green, white)
Terminal configuration optimization (pin/socket mix for specific power/signal requirements)
Value-added services: pre-assembled harnesses with strain relief, labeling (heat-shrink or adhesive), and kitting solutions
Complete technical documentation: datasheets, 3D models (STEP/IGES), and installation guides
Custom packaging options for automated assembly lines or inventory management

For sample testing, bulk pricing, or application-specific engineering support, contact our technical sales team to develop a tailored interconnect solution that meets your exact requirements.

Quality Assurance

All Molex 5031493200 assemblies undergo rigorous testing to ensure compliance with industry standards, including:

High-potential voltage testing (1000V AC for 1 minute) for insulation integrity
Temperature cycling (-40°C to +105°C) and vibration resistance verification (10-500Hz, 1.5mm amplitude)
Contact resistance (≤20mΩ) and insertion/extraction force validation (3-8N per contact)
RoHS-compliant manufacturing processes with lead-free terminations and halogen-free insulation options
100% visual inspection of crimp quality and housing integrity before final packaging

Trust Molex’s 80+ years of engineering excellence for your high-density wire-to-board interconnect needs with the 5031493200 CLIK-Mate connector cable assembly featuring 5025790000 precision terminals.
