In the intricate world of electronics, where every component relies on seamless connectivity to function, wire-to-board (W2B) connectors stand out as one of the most indispensable components. These connectors serve as the critical bridge between individual wires or cables and printed circuit boards (PCBs), enabling the reliable transmission of power, signals, and data. From household appliances to industrial machinery, their presence is ubiquitous yet often overlooked. This article delves into the core aspects of wire-to-board connectors and their pivotal role in driving the stability of electronic devices.
Basic Definition and Core Structure

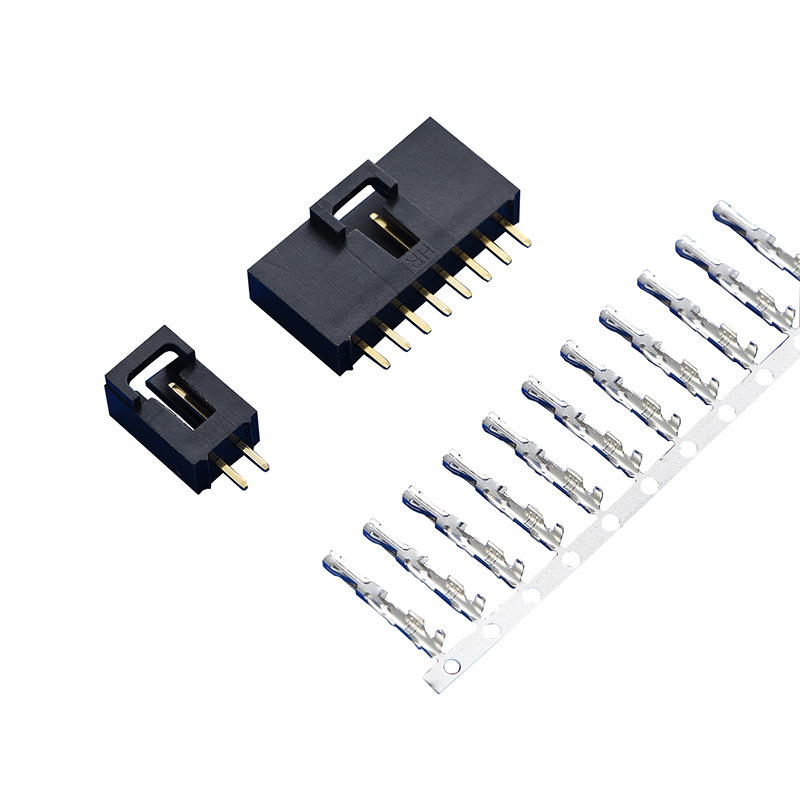

A wire-to-board connector is a specialized electrical component designed to establish a secure and detachable connection between wires/cables and PCBs. Unlike permanent soldering, which fixes wires directly to circuit boards, these connectors offer flexibility while maintaining robust electrical performance. Typically, they consist of two complementary components that work in tandem.The first component is the header, a male part mounted on the PCB. Headers are usually equipped with multiple metal pins arranged in single-row, double-row, or multi-row configurations, depending on the number of connections required. The second component is the housing or terminal, the female part attached to the wires. Wires are often crimped or soldered to metal contacts inside this housing, which then mates with the header’s pins to form a stable electrical path. The plastic or metal casing of both components not only protects the internal contacts from physical damage and dust but also provides mechanical support to prevent loose connections.
Key Advantages Driving Wide Adoption
The popularity of wire-to-board connectors in the electronics industry stems from their multiple practical advantages that streamline production and maintenance processes.Firstly, they simplify assembly and reduce labor costs. For mass-produced electronic products, using W2B connectors eliminates the need for technicians to solder each wire to the PCB individually—a time-consuming and error-prone task. This modular design allows for automated assembly, significantly boosting production efficiency and reducing the risk of welding defects.Secondly, they facilitate easy maintenance and upgrades. When an electronic device malfunctions, technicians can quickly disconnect the connector to inspect or replace faulty wires or circuit boards without damaging the entire system. This not only shortens repair time but also extends the service life of the device, aligning with the growing demand for sustainable and serviceable electronic products.Additionally, they enhance design flexibility. Electronic devices vary greatly in size, voltage requirements, and space constraints. Wire-to-board connectors come in diverse specifications, such as different contact pitches and pin counts. Designers can select the most suitable connectors based on the specific needs of their products, whether it is a compact smartphone or a large industrial control panel.
Diverse Applications Across Industries
The versatility of wire-to-board connectors enables their application across a wide range of industries, adapting to different working environments and performance requirements.In the consumer electronics sector, they are a staple in devices like smartphones, laptops, and home appliances. For example, the connectors inside LED TV power supplies and refrigerator control modules use W2B connectors to link external power cables to internal PCBs, ensuring stable energy supply.The automotive industry also relies heavily on these connectors. Modern vehicles are equipped with numerous electronic systems, including infotainment, engine control, and safety sensors. Wire-to-board connectors in these systems must withstand high temperatures, vibration, and electromagnetic interference, and their reliability directly affects driving safety.In the medical equipment field, precision and stability are paramount. Devices such as patient monitors and diagnostic instruments use W2B connectors to transmit sensitive biological signals and power. These connectors are designed to meet strict medical standards to avoid signal distortion that could lead to misdiagnosis.Furthermore, in industrial automation, wire-to-board connectors are widely used in programmable logic controllers (PLCs) and robotic arms. They cope with harsh factory environments, ensuring uninterrupted communication between control circuits and execution components, which is essential for the smooth operation of production lines.
Future Trends and Innovations
As electronics continue to evolve toward miniaturization, high-speed transmission, and intelligence, wire-to-board connectors are also undergoing continuous innovation. One notable trend is the development of micro-connectors with smaller pitches. With the shrinking size of wearable devices and IoT sensors, connectors with pitches as small as 0.3mm are becoming more common, allowing more contacts to be integrated into limited space.Another trend is the improvement of environmental resistance. Manufacturers are using advanced materials such as high-temperature-resistant plastics and corrosion-proof metal contacts to enhance the connectors’ performance in extreme conditions like high humidity and chemical exposure. Additionally, efforts are being made to optimize the connectors’ electrical performance to support faster data transmission speeds, meeting the needs of 5G and high-definition data processing systems.
In conclusion, wire-to-board connectors may not be the most eye-catching components in electronic devices, but they are undoubtedly the backbone of reliable connectivity. Their ability to balance flexibility, stability, and efficiency makes them irreplaceable in modern electronics. As technology advances, these connectors will continue to evolve, supporting the development of more innovative and high-performance electronic products across industries.
