Author: Huamao Electronics Publish Time: 2026-03-31 Origin: Dongguan Huamao Electronics Co.,Ltd.
| Component | Function | Critical Industry Details |
|---|---|---|
| Conductors | Transmit current/signals | Oxygen-free copper (OFC) for conductivity; gauge (AWG) dictates current capacity (18AWG for low-power, 4AWG for EVs). Complies with IPC/WHMA-A-620. |
| Insulation | Protects wires | PVC (consumer electronics), XLPE (industrial), Teflon (aerospace/medical); temperature range (-40°C to 200°C+) and UL94 V-0 flame retardancy. |
| Terminals | Connect wires to components | Brass/phosphor bronze; tin/gold/silver plating. USCAR-21 compliant for automotive. |
| Connectors | Secure component mating | IP67/IP68 (outdoor/industrial) for environmental resistance; RF-shielded for high-speed data. |
| Protective Parts | Defend against damage | Heat shrink tubing, braided sleeves, and grommets for abrasion/vibration resistance. |
Automotive & EVs: A typical car has 50+ harnesses; EVs require 400V-800V high-voltage designs for batteries/powertrains, and shielded harnesses for ADAS sensor data.
Industrial Automation: Shielded, high-flex harnesses (10M+ bending cycles) for robots and conveyors; oil/chemical-resistant insulation for harsh factory environments.
Medical Devices: ISO 10993 biocompatible materials; sterilization-resistant (autoclave/ETFE gas) for life-saving equipment; miniaturized 0.35mm pitch designs for wearables.
Consumer Electronics: Ultra-thin, high-density harnesses for smartphones/laptops—supporting fast charging and high-speed data transfer.
Custom Design Capabilities: Look for in-house CAD/MBSE teams with industry-specific experience (EV, medical, industrial) to tailor harnesses to your needs.

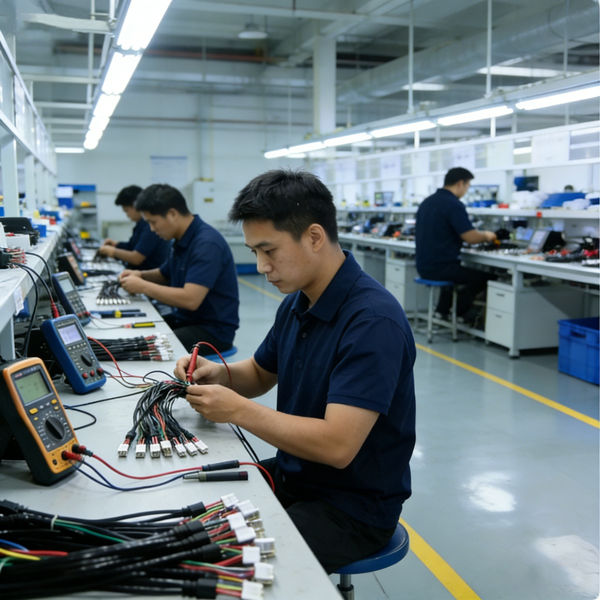

Quality & Certifications: Prioritize IPC/WHMA-A-620, ISO 9001, UL/CSA, and RoHS compliance; in-house testing (continuity, hi-pot, environmental cycling) is a must.
Efficiency & Lead Times: Automated production lines ensure consistency; transparent lead times (2-3 weeks standard, 4-6 weeks custom) and scalable output.
After-Sales Support: Technical assistance for installation/troubleshooting and long-term design updates aligned with industry trends.
A high-quality terminal wire harness isn’t just a wiring solution—it’s a strategic investment in your product’s success. Cutting corners leads to costly failures; partnering with a certified, industry-savvy manufacturer ensures reliability and profitability.
