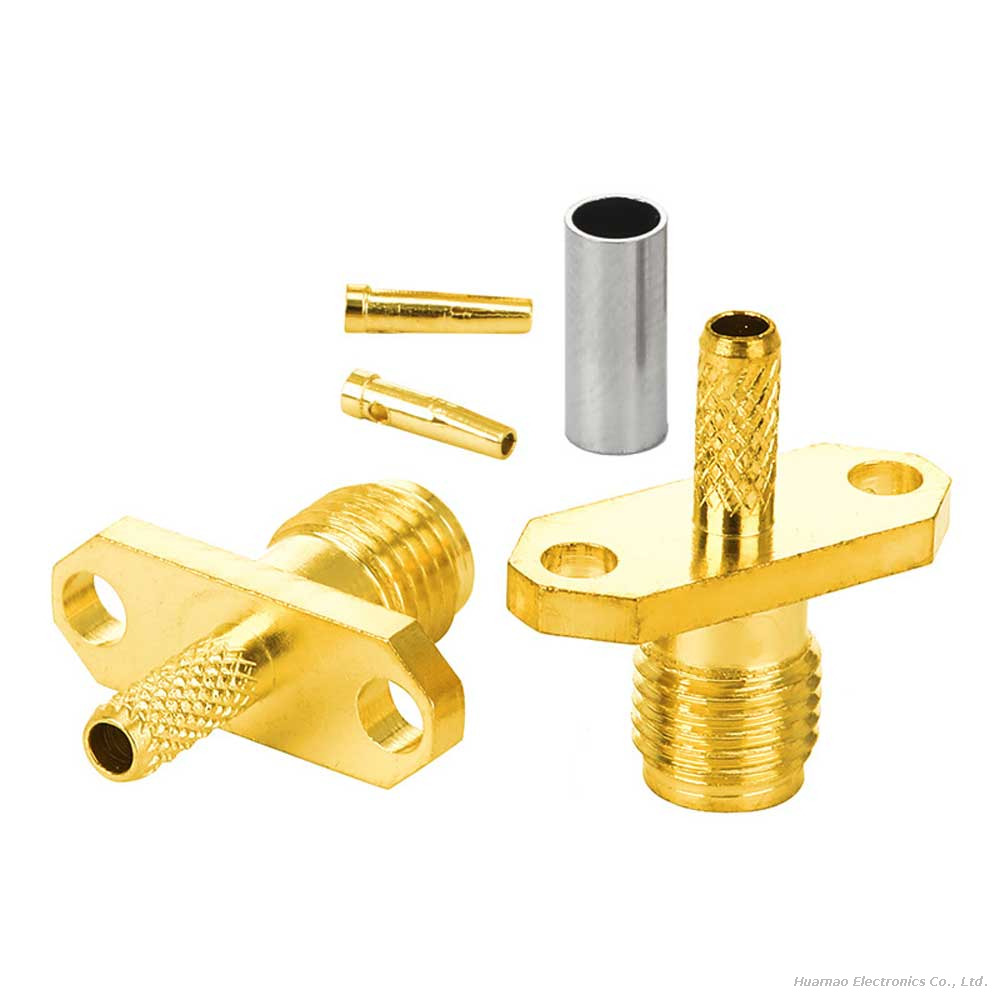

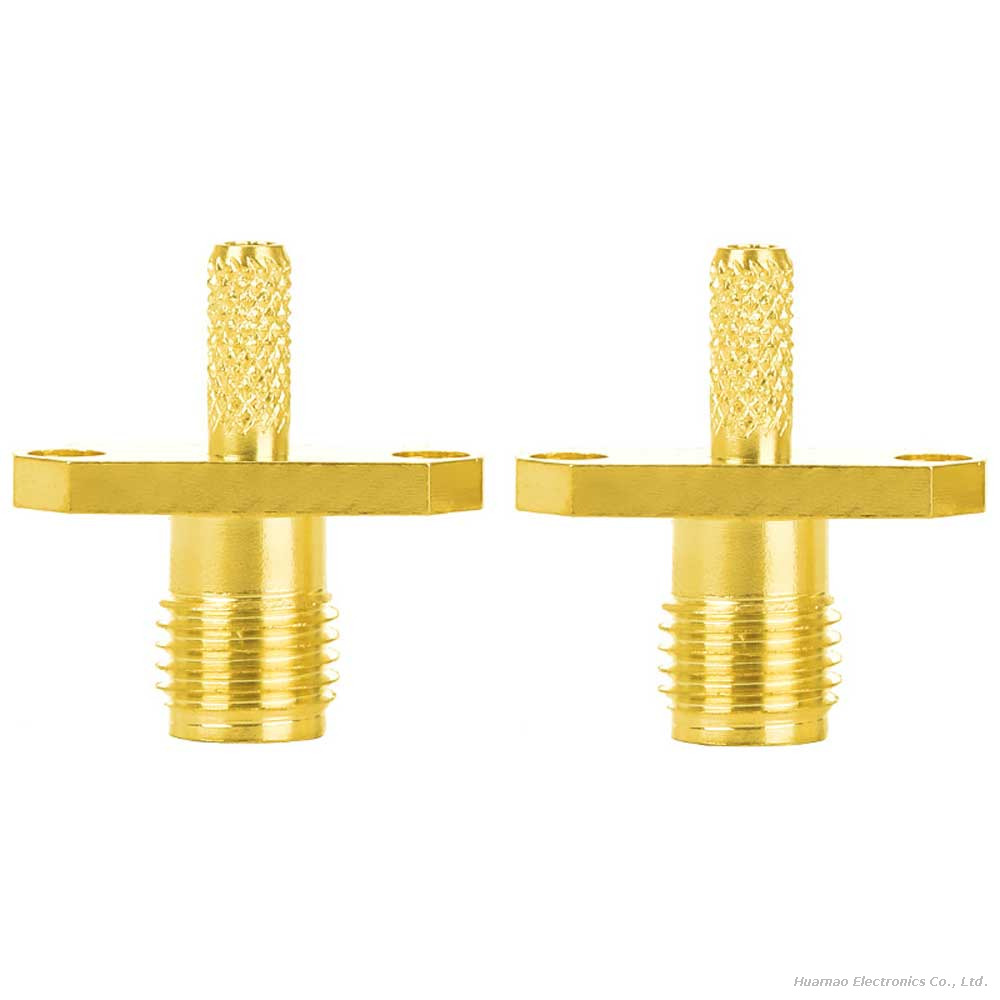

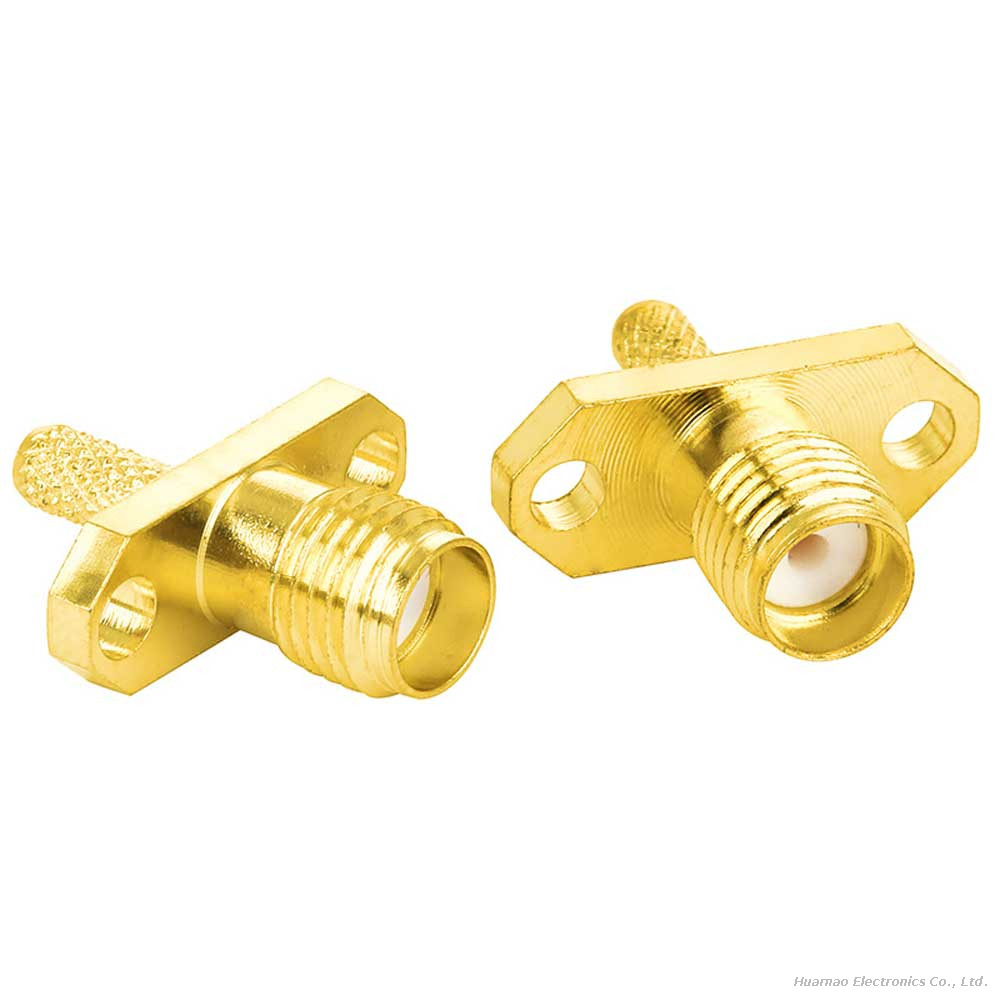

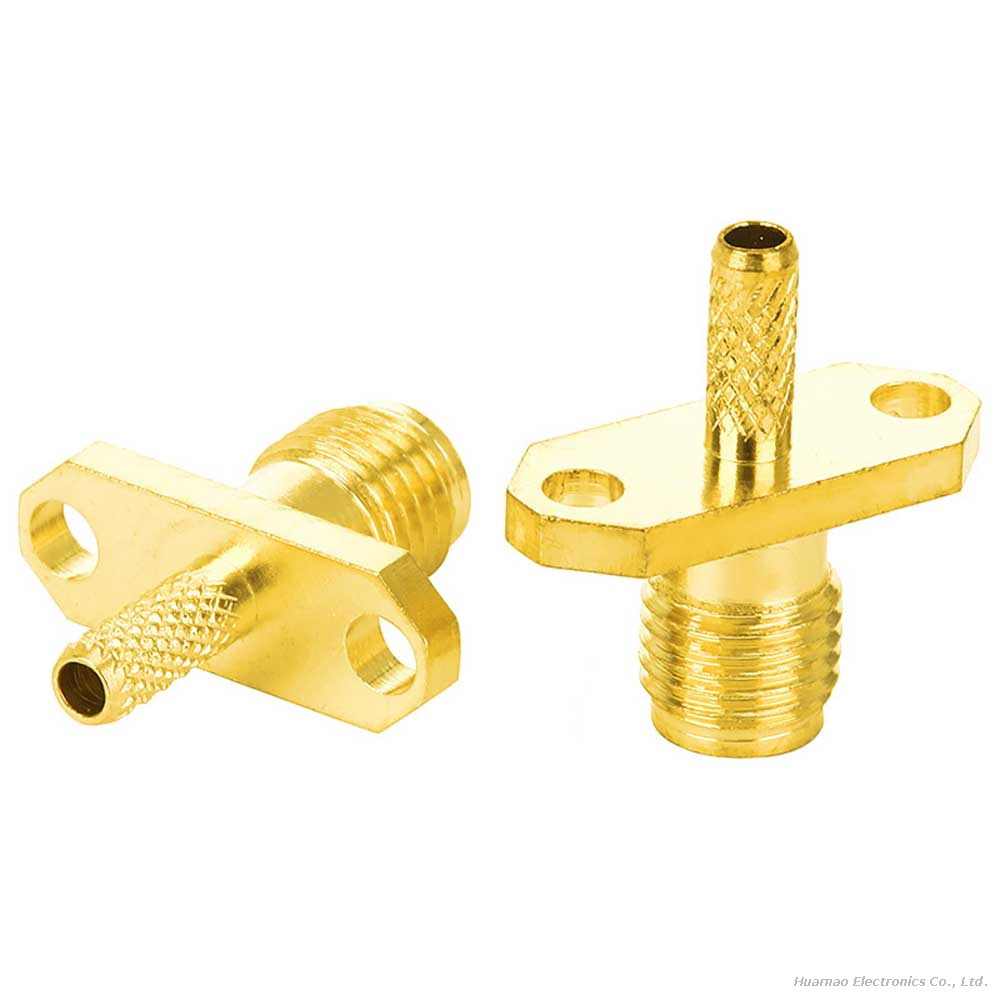

The SMA-KF-1.5 is a high-precision RF coaxial connector designed for professional RF cable assembly and panel/PCB mounting. Featuring a 2-hole diamond flange mount, SMA female (jack) interface with external thread & inner hole, and full brass gold-plated construction, this crimp & solder type connector delivers ultra-low signal loss, excellent impedance matching, and long-term reliability for high-frequency applications up to 18GHz. It is fully compatible with RG316, RG174, and 0.086" semi-flexible cables (1.5mm outer diameter), making it the ideal choice for RF cable processing, antenna connection, and microwave communication systems.
Key Features
✅
Full Brass Gold-Plated ConstructionMachined from high-purity brass with thick gold plating, the connector provides superior electrical conductivity, low contact resistance, and excellent corrosion/oxidation resistance, ensuring stable signal transmission and long service life in harsh environments.
✅
SMA-KF-1.5 Standard SMA Female InterfaceFully compliant with SMA international standards, featuring an
external thread & inner hole (SMA female jack) design for secure, vibration-resistant mating with SMA male connectors. The standard SMA interface ensures universal compatibility with all SMA-equipped RF devices.
✅
2-Hole Diamond Flange Mount DesignThe compact 2-hole diamond flange enables easy, secure panel or PCB mounting, providing stable mechanical fixation and excellent anti-vibration performance for fixed installations in control cabinets, equipment enclosures, and communication devices.
✅

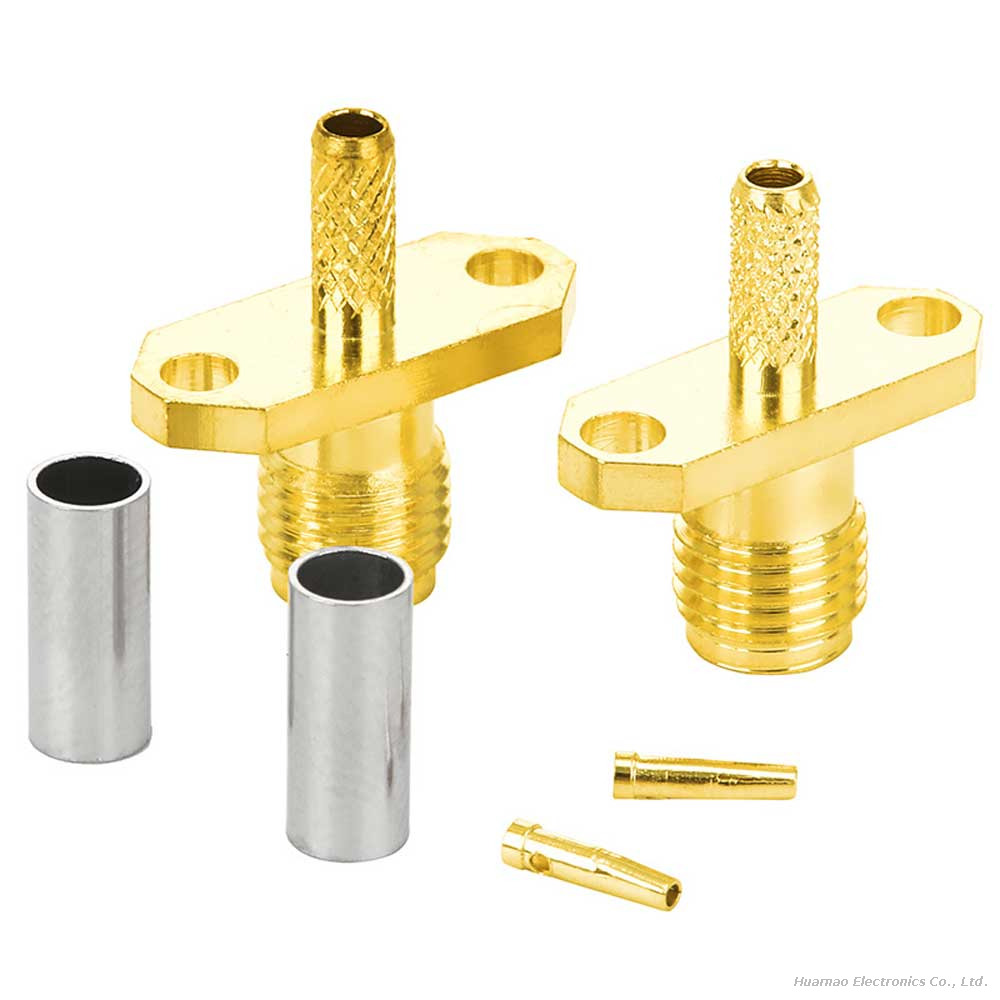

Dual Crimp & Solder TerminationDesigned for crimping + soldering termination, it creates a dual-secure connection with RG316/RG174 cables, eliminating signal loosening and ensuring consistent RF performance even under mechanical stress or thermal cycling.
✅
50Ω Impedance & High Frequency CompatibilityEngineered for strict 50Ω impedance matching, supporting a wide frequency range from DC to 18GHz with low VSWR (≤1.2) and minimal insertion loss, making it suitable for microwave, 5G, WiFi, and high-speed RF applications.
✅
Industrial-Grade DurabilityHigh-temperature PTFE insulator and brass housing withstand extreme operating temperatures (-65°C to +165°C), mechanical shock, and vibration, meeting the requirements of industrial, aerospace, and defense applications.
Common Applications
RF Cable Assembly & Custom RF Cable Processing
Microwave Communication & 5G Base Station Systems
WiFi/Bluetooth Routers, IoT Wireless Modules
Antenna Connection & Signal Transmission Systems
RF Test & Measurement Instruments
Aerospace, Defense & Industrial RF Equipment
PCB/Panel Mount for Communication Devices
Ham Radio & Amateur Radio Systems
Why Choose This SMA-KF-1.5 Connector?
Premium Material: Full brass gold-plated construction ensures high conductivity, corrosion resistance, and long-term reliability.
Secure Mounting: 2-hole diamond flange provides stable, vibration-resistant panel/PCB installation.
Dual Termination: Crimp + solder design creates a permanent, low-loss connection for RF cables.
Wide Compatibility: Fits standard RG316/RG174 cables and all SMA male connectors, ideal for cable assembly projects.
High Frequency Performance: Optimized for DC-18GHz, suitable for microwave and high-speed RF applications.
Industrial Grade: Wide operating temperature range and rugged construction for harsh environments.
Customization Options
We offer flexible customization solutions to meet your project requirements:
Flange Configurations: 4-hole, round, or custom flange sizes for different mounting needs
Cable Compatibility: Custom termination for RG58, RG402, LMR-400, and other cable types
Plating Options: Thickened gold plating, nickel plating, or other surface treatments
Bulk OEM/ODM: Private labeling, custom packaging, and technical support for large-scale production
Connector Combinations: Custom SMA to other RF connector adapter assemblies
