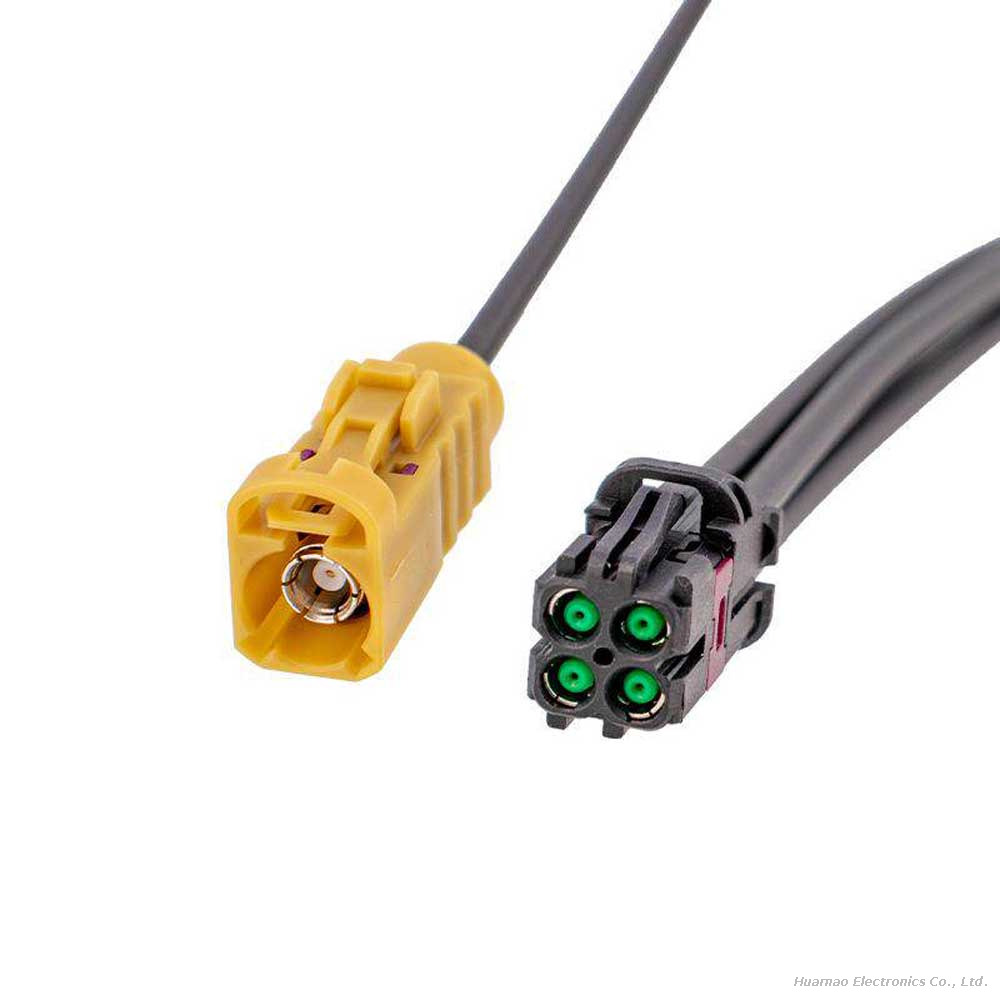

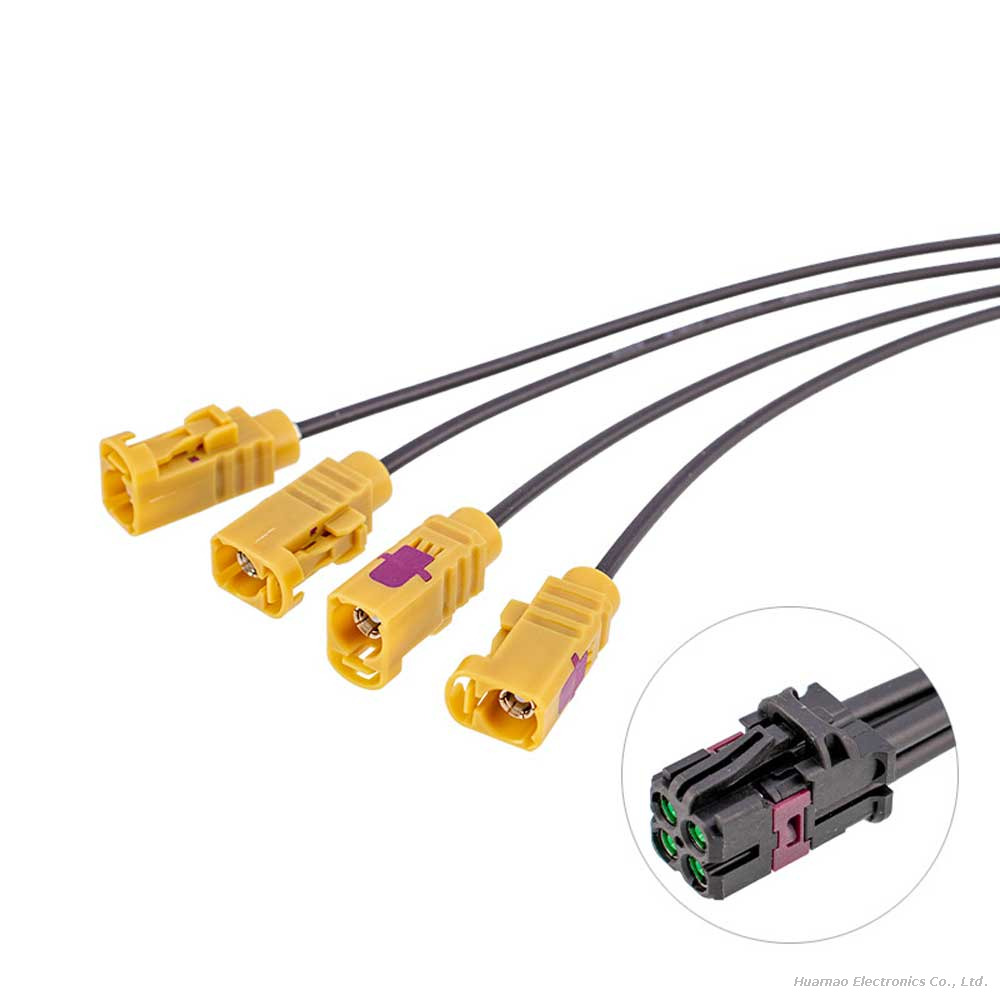

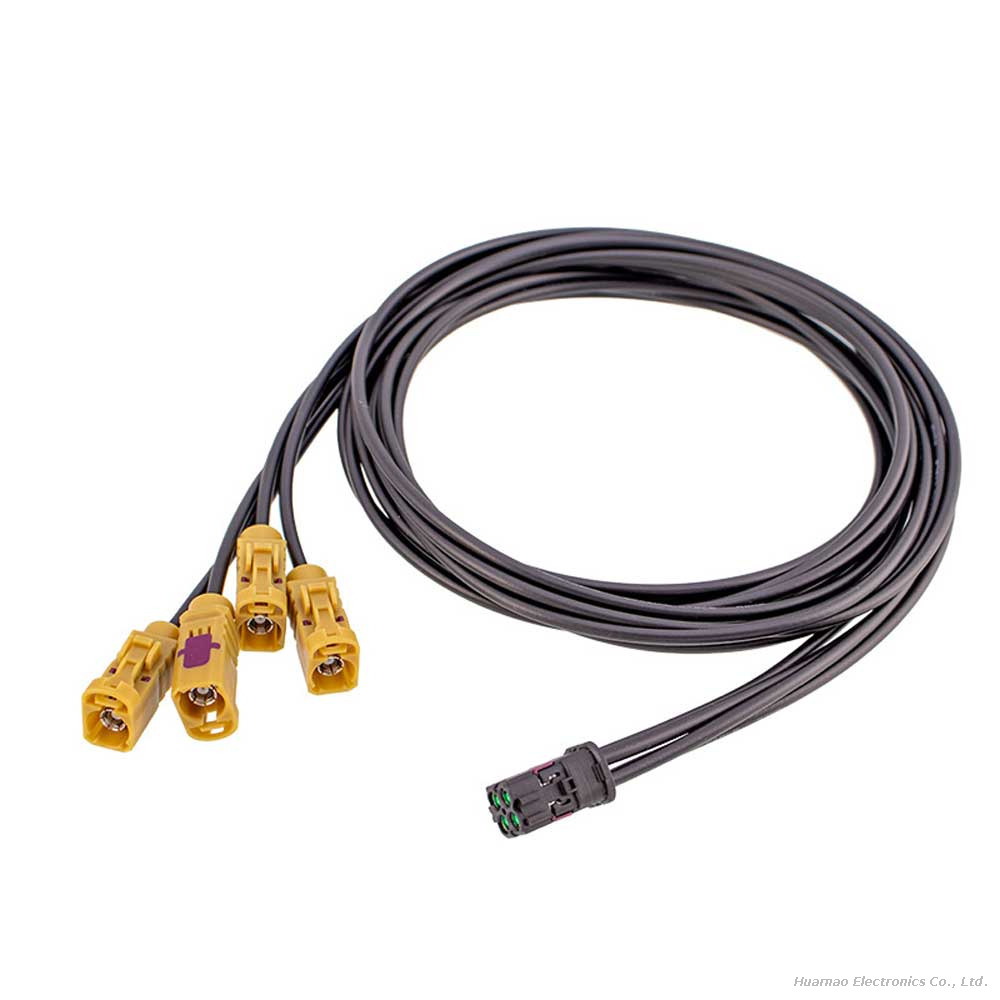

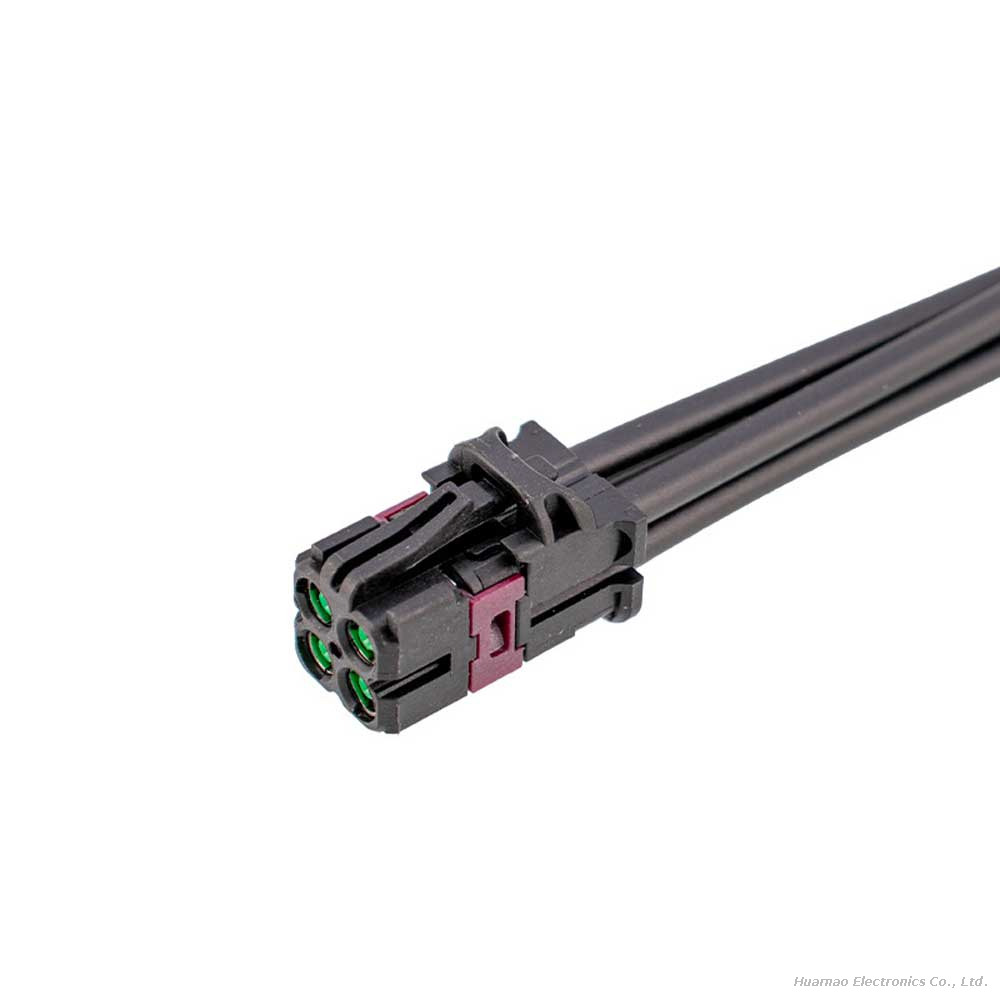

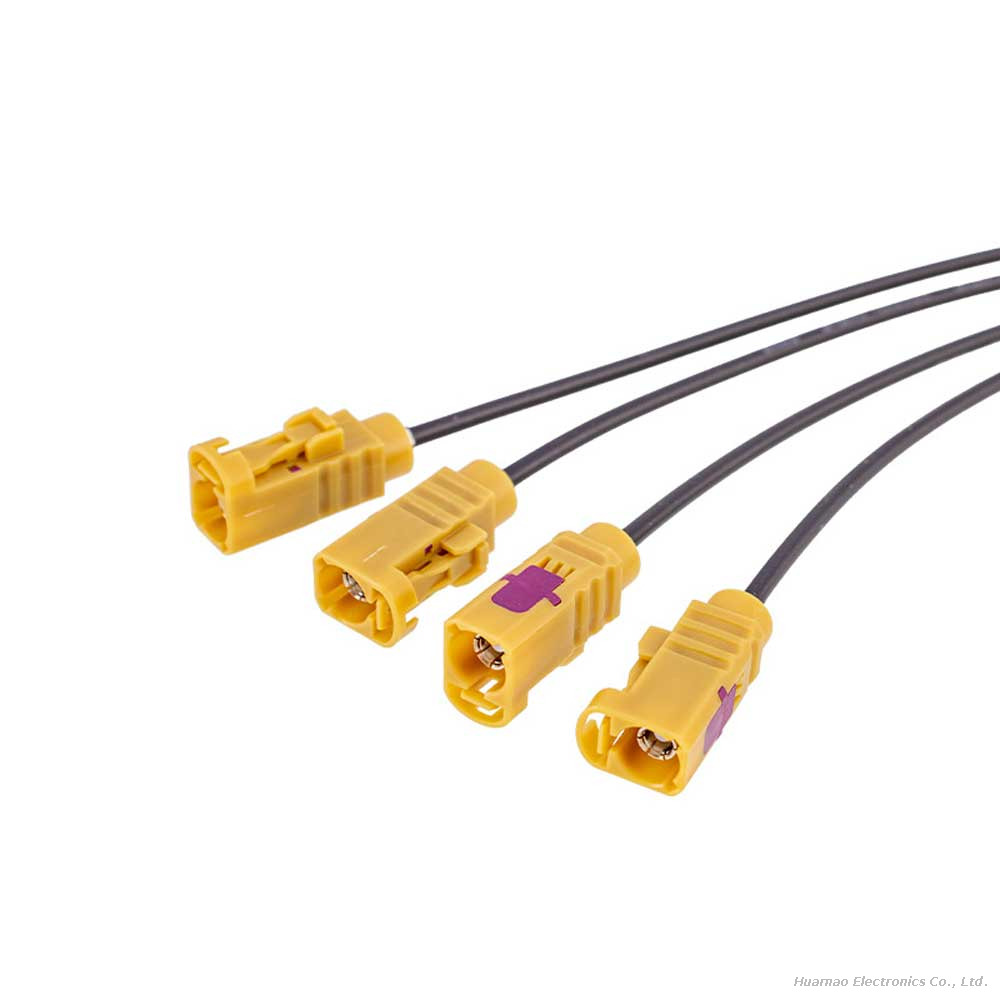

This Mini-Fakra 4-in-1 wire harness is a high-precision automotive-grade RF solution designed for multi-channel wireless communication in vehicles. It features one end with a black multi-pin (4-in-1) connector and the other end with four yellow Mini-Fakra connectors, enabling efficient, space-saving signal distribution for GPS, 4G/5G, WiFi, Bluetooth, and ADAS systems. The compact Mini-Fakra design minimizes installation space, while the durable cable structure resists vibration, heat, and moisture—making it ideal for automotive, marine, and industrial IoT applications. We also support custom cable length, connector configurations, and waterproofing to match your specific project requirements.
Key Features
✅
4-in-1 Multi-Channel DesignConsolidates four Mini-Fakra RF signals into a single harness, reducing wiring complexity and improving installation efficiency for vehicle communication systems.
✅
Mini-Fakra Standard CompatibilityFully compliant with Mini-Fakra (Fakra Mini) international standards, ensuring secure, error-free mating with automotive RF modules, antennas, and telematics units.
✅
Automotive-Grade ReliabilityConstructed with low-loss coaxial cable (RG174/RG316/LMR100) and gold-plated brass contacts, delivering low signal attenuation, excellent corrosion resistance, and long-term stability in harsh automotive environments.
✅
Space-Saving Miniature StructureMini-Fakra connectors are 50% smaller than standard Fakra connectors, making them ideal for tight installations in dashboard control units, roof antennas, and rear seat entertainment systems.
✅
Vibration & Water ResistanceThe positive-locking Mini-Fakra connectors provide a secure, vibration-proof connection, while the cable assembly supports IP67 waterproof rating for outdoor and under-hood applications.
✅
50Ω Impedance MatchingStandard 50Ω impedance ensures optimal RF performance for high-frequency signals (1.2–6GHz), supporting GPS, LTE, 5G, and 802.11ac/ax WiFi communication.
Common Applications
Automotive Communication: GPS/Glonass, 4G/5G telematics, WiFi, and Bluetooth antenna wiring.
ADAS Systems: Camera, radar, and lidar sensor data transmission.
Infotainment: Rear-seat entertainment, Apple CarPlay/Android Auto, and satellite radio.
Industrial IoT: Outdoor wireless communication modules, vehicle-mounted terminals.
Marine & Aerospace: Vibration-resistant RF signal distribution (custom waterproof versions).
Why Choose Mini-Fakra 4-in-1 Harness?
Space-Saving Design: Miniature connectors fit in ultra-compact vehicle enclosures, ideal for modern automotive electronics.
4-in-1 Efficiency: Reduces wiring clutter by combining four RF signals into one harness, simplifying system integration.
Automotive-Grade Durability: Withstands extreme temperatures, vibration, and moisture, meeting OEM quality standards.
High Signal Integrity: Low-loss cable and gold-plated contacts ensure minimal signal loss for high-frequency wireless links.
Customizable Solutions: We offer tailored cable lengths, connector genders, and waterproof options to fit your design.
Custom RF Cable Processing
We provide full custom Mini-Fakra harness assembly:
Custom Lengths: 0.5m to 10m+ (per your requirements)
Connector Combinations: Mini-Fakra to Mini-Fakra, Mini-Fakra to SMA/IPEX, etc.
Waterproof Versions: IP67/IP69K for outdoor/under-hood use
Bulk OEM/ODM: Private labeling, custom packaging, and technical support for vehicle projects
