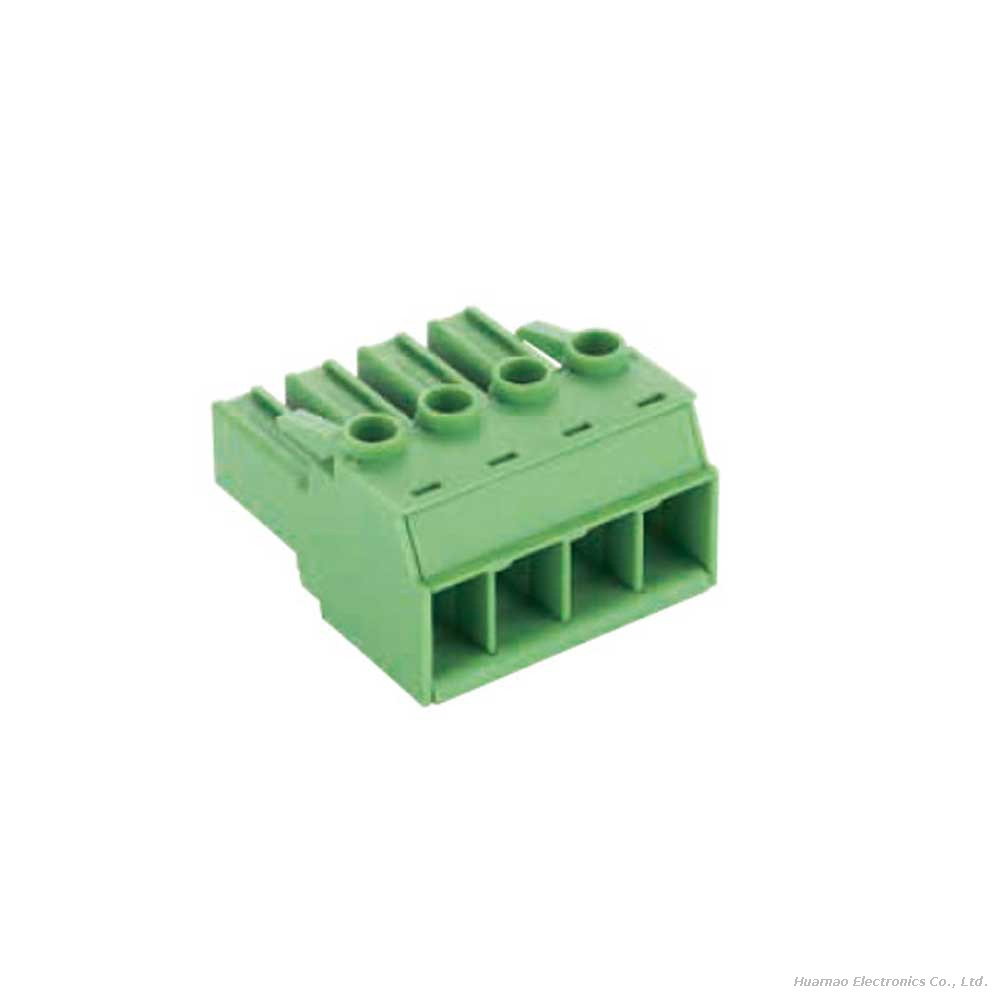

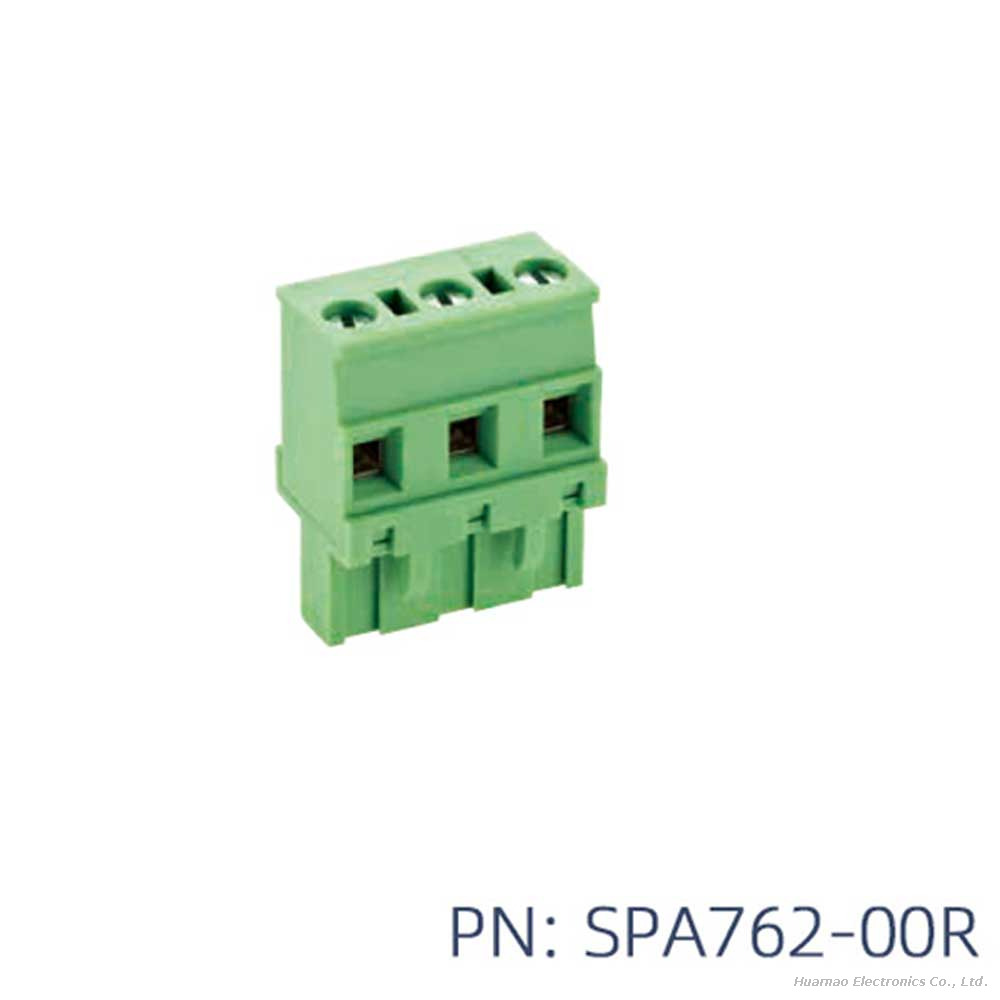

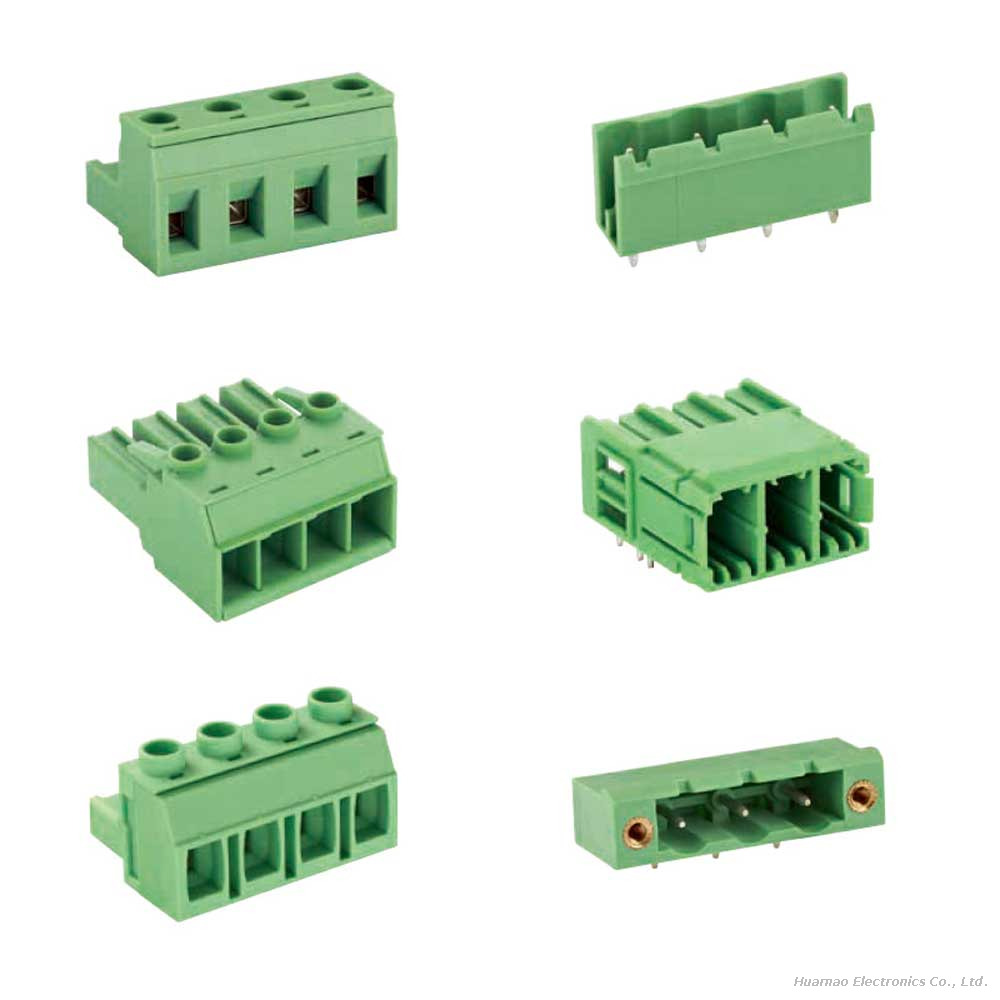

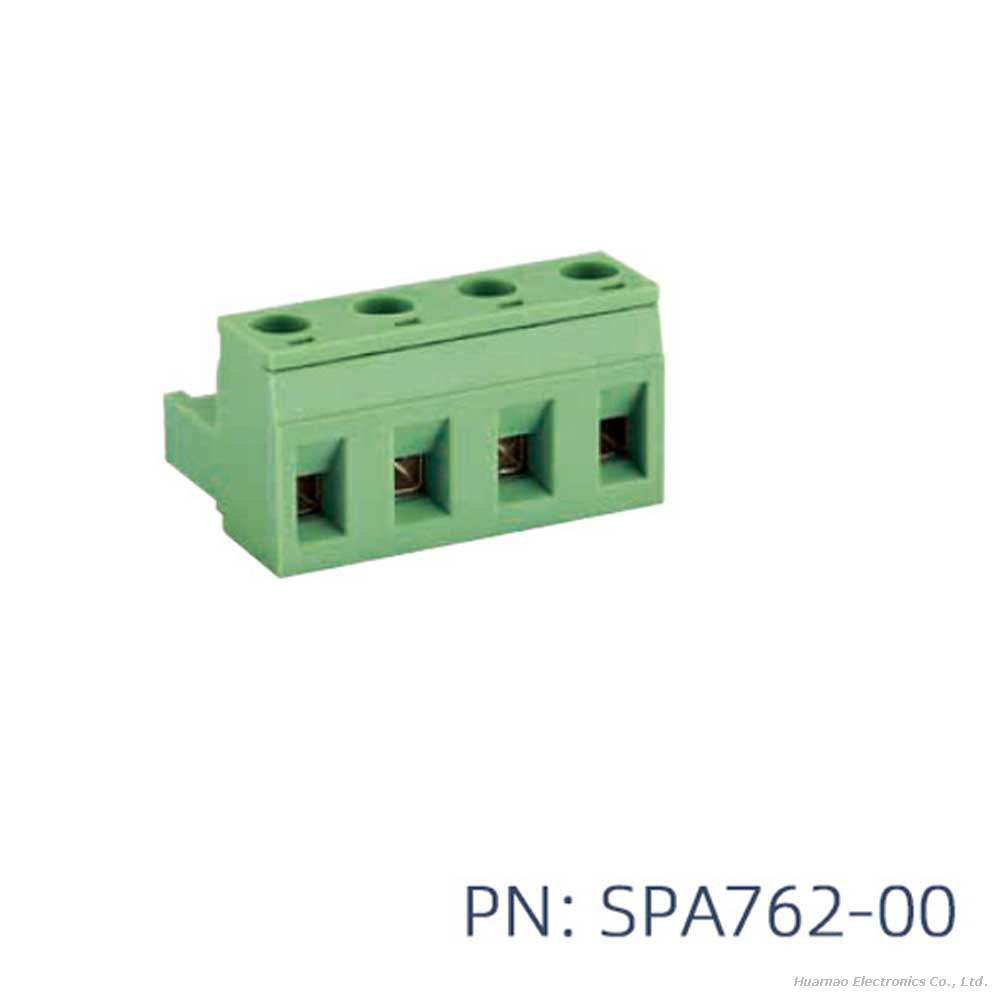

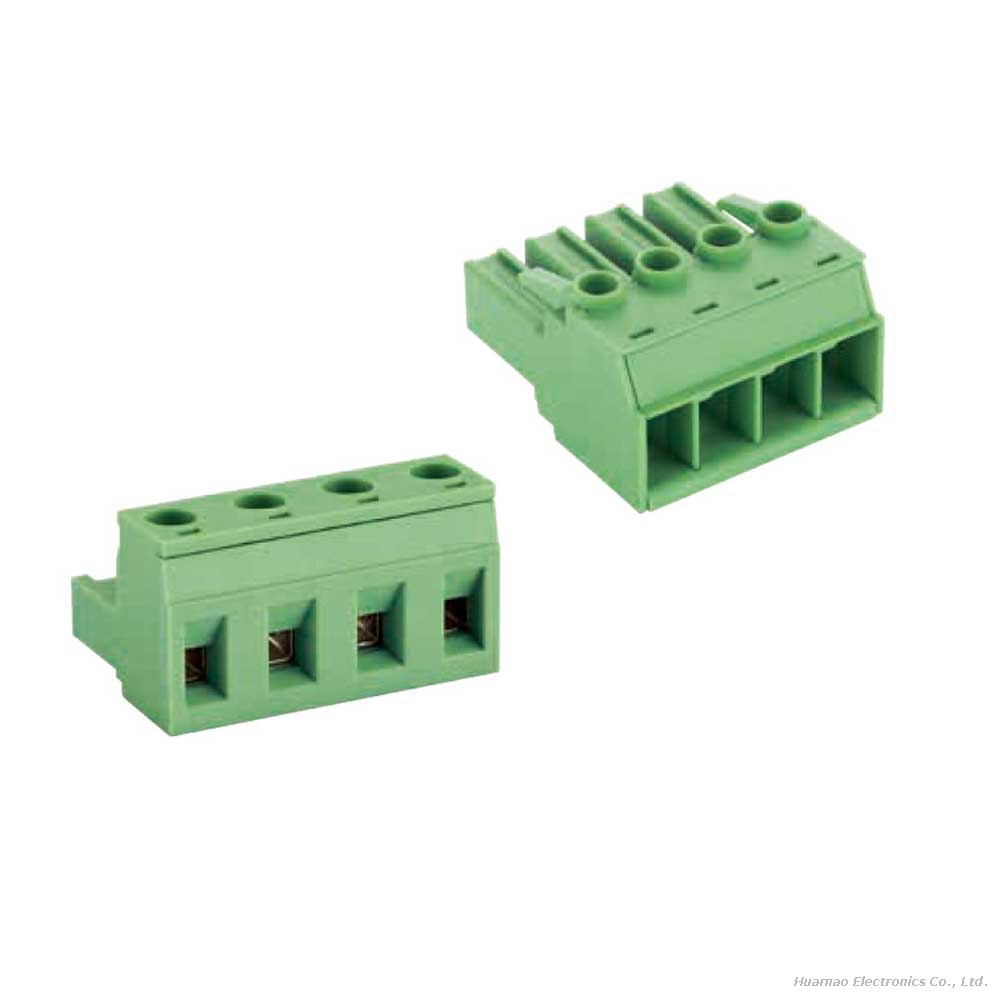

The 2EDGK-7.62-02/24P is a high-performance plug-in PCB terminal block designed specifically for industrial controllers, PLCs, and industrial automation PCB systems. With a standard 7.62mm (0.3 inch) pin pitch and 24-pin configuration, this terminal block enables fast, tool-free, and reliable wiring for power, signal, and control lines on printed circuit boards. Its plug-in structure replaces traditional screw terminals, drastically improving installation and maintenance efficiency while ensuring long-term stability in harsh industrial environments.
Key Features
✅
7.62mm Industry-Standard PitchCompliant with global industrial wiring standards, the 7.62mm pitch ensures universal compatibility with industrial controller PCB layouts, enabling seamless integration and reliable mating with matching plug housings.
✅
24-Pin Plug-in DesignThe 24-pin (24-circuit) configuration supports high-density PCB wiring, ideal for multi-channel I/O, power distribution, and signal transmission in industrial controllers and PLC systems. The plug-in structure allows quick wire insertion/removal without tools, reducing installation time by up to 60% compared to screw terminals.
✅
PCB Through-Hole MountDesigned for direct through-hole soldering on PCBs, the terminal block provides a permanent, secure mechanical and electrical connection, suitable for mass production and permanent industrial installations.
✅
High-Conductivity ContactsManufactured with high-purity brass contacts and tin plating, delivering low contact resistance (≤1mΩ), excellent current-carrying capacity, and superior corrosion resistance for long-term signal stability.
✅
Industrial-Grade DurabilityHousing made of flame-retardant PA66 (UL94 V-0) material, with high-temperature resistance, excellent insulation performance, and anti-aging properties, ensuring safe operation in industrial environments.
✅
IP20 Protection RatingProtects against accidental contact with live parts and dust ingress, suitable for indoor control cabinets, industrial automation equipment, and PCB assemblies.
Common Applications
Industrial Controller & PLC PCB I/O Wiring
Industrial Automation Control Systems
PCB Power Distribution & Signal Transmission
Electrical Control Cabinets & Panel Wiring
Industrial IoT & Edge Computing Devices
Industrial Test & Measurement Equipment
Renewable Energy Control Systems
Why Choose 2EDGK-7.62-02/24P Terminal Block?
Precision Compatibility: Customized for industrial controller PCB layouts, 100% matching 7.62mm standard spacing for reliable connection.
High-Density 24-Pin Design: Maximizes PCB space utilization for multi-channel I/O and power applications.
Time-Saving Plug-in Structure: Eliminates screwdriver operations, drastically improving installation and maintenance efficiency.
Industrial-Grade Reliability: Flame-retardant housing and corrosion-resistant contacts ensure long-term stability in harsh industrial environments.
Full Compliance: Meets IEC, UL, and RoHS international standards, ensuring safety and quality for industrial applications.
Customization Options
We offer flexible customization solutions to meet your specific project requirements:
Pole Configurations: 2P to 24P (custom pole counts available upon request)
Housing Colors: Custom colors (green, black, blue, etc.) for circuit identification
Contact Finishes: Gold-plated contacts for high-frequency/signal applications
Bulk OEM/ODM: Support for large-scale manufacturing orders with private labeling and custom packaging
Custom Cable Assemblies: Pre-assembled plug-and-play cable solutions for industrial controllers
