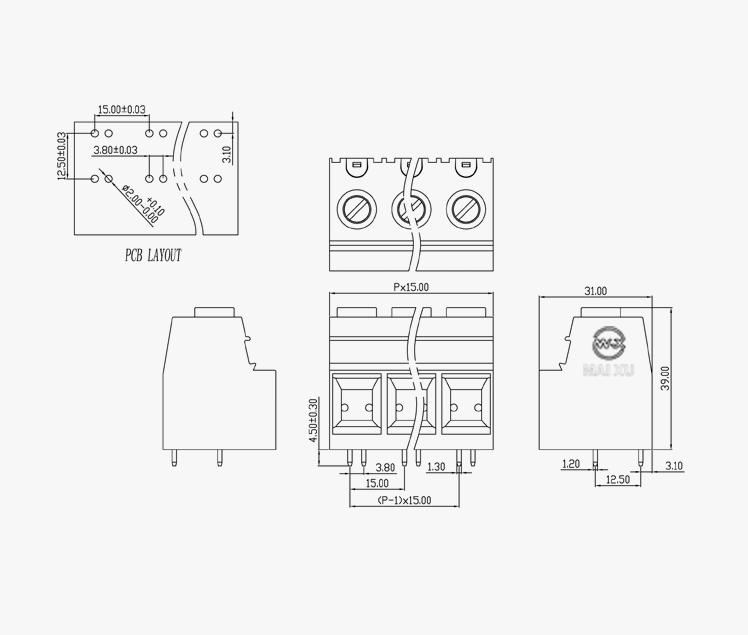

MX 137T-15.0mm PCB Terminal Block 3P Screw Type Connector

This finished wire harness is matched with MX 137T-3P screw terminal block, fixed 15.0mm ultra-wide pitch layout specially designed for high-power large cross-section wires. The terminal block is vertical through-hole PCB mounting type, directly soldered onto control board for stable power input/output connection.

Internal conductive components adopt integral thickened copper bar with full tin plating to reduce contact heat under heavy load; each circuit is equipped with stainless steel disc spring + metal clamping screw. When tightening the screw, the spring clamps the wire core tightly to avoid loose contact caused by equipment long-term vibration, effectively preventing heating and burnout faults.

The 15.0mm wide isolation gap between pins greatly enhances creepage distance, eliminate high-voltage arc discharge risk, meet safety standards for industrial high-power equipment. The housing is molded with high-temperature resistant PA66 flame retardant material, will not deform under continuous high-current temperature rise.

Matched wire range covers 1.5mm² ~ 6.0mm² multi-strand power cable, color-coded PVC insulated wire for clear phase identification. All wire crimp & clamping positions pass pull force inspection, finished harnesses go through continuity, high voltage withstand and aging load testing before delivery. We supply single-end terminal block finished cables and conversion harnesses with aviation plugs, bullet terminals and other connectors for industrial power equipment manufacturers.

Specifications

Advantages

• 15.0mm extra-wide safety pitch: Larger creepage & clearance distance between poles, effectively avoid high-voltage arc breakdown, fully meet industrial high-power equipment safety specifications.

• Screw + stainless steel spring double clamping structure: Even after long-term vibration and temperature cycling, the wire core maintains tight clamping, eliminate hidden danger of overheating caused by loose wiring.

• 30A high current load capacity: Integral thick copper conductive bar with low impedance, stable power transmission without obvious temperature rise under full continuous load.

• UL94 V-0 flame retardant high-temperature housing: Resist heat accumulation from high-current operation, reduce fire risk inside power control cabinets and inverters.

• Simple on-site assembly: No terminal crimp tools required, directly strip wire insulation and lock by screwing, greatly improve production and after-sales wiring efficiency.

• Flexible OEM customization: Support arbitrary adjustment of cable length and wire thickness according to equipment power parameters, can match waterproof aviation plugs, ring terminals and other connectors at the other end of the wire.

Application

• Industrial Automation Control Equipment:Frequency converter internal main power wiring, PLC high-power expansion module connecting cable, servo drive power input harness, industrial control cabinet terminal extension wire

• New Energy Power Equipment:Small energy storage power supply main circuit wire, solar controller power transmission harness, lithium battery pack charging high-current connecting cable

  High Power LED Lighting Equipment:Outdoor high-wattage flood light driver power wire, industrial mining lamp internal power terminal harness, landscape engineering high-power light connecting cable

  Power Supply & Charging Equipment:Switching power supply output heavy-current cable, industrial high-power charger internal wiring, welding equipment auxiliary power harness

  Agricultural & Engineering Machinery Control Box:Electric tractor control cabinet power wiring, irrigation pump drive power connecting wire, outdoor mobile machine power extension harness

  FAQ

  Q1: What is the pitch and pin count of MX 137T terminal block?

  A: MX 137T series adopts 15.0mm large safety center pitch, this model is 3-position single row screw type PCB terminal block.




  Q2: What maximum current can this 3P terminal block withstand?

  A: Single pole supports stable 30A continuous current, suitable for high-power industrial equipment main power loop wiring.




  Q3: What wire size can be clamped by MX 137T terminal?

  A: Compatible with 1.5mm² ~ 6.0mm² multi-strand copper power cables, covering most medium and high-power industrial wiring requirements.




  Q4: What is the advantage of double spring clamping design?

  A: The stainless steel disc spring provides lasting clamping force, compensate thermal expansion and contraction of wire and plastic housing, prevent wire loosening under long-term vibration.




  Q5: Can different connectors be matched on the opposite end of the cable?

  A: Yes, we provide conversion harness customization service, the other end can be fitted with M23/M16 aviation plugs, ring terminals, bullet terminals and other connectors as customer drawings required.
