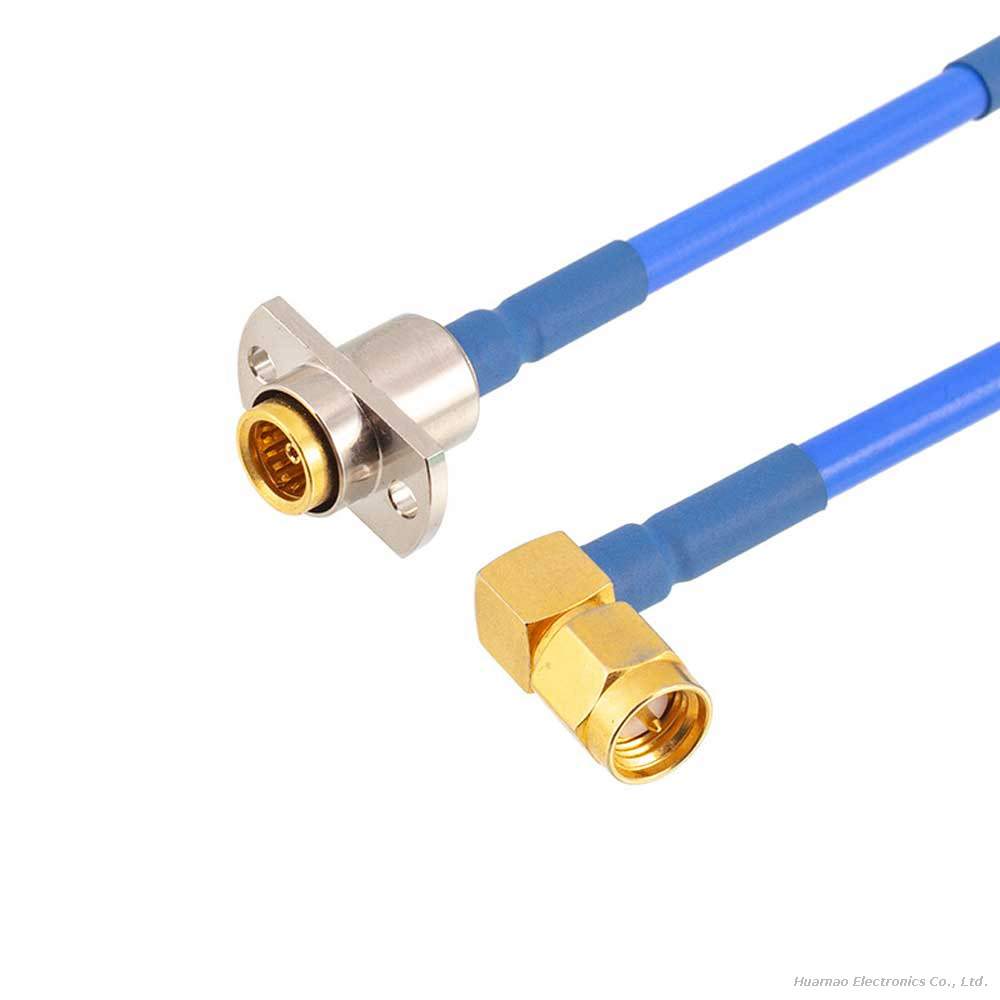

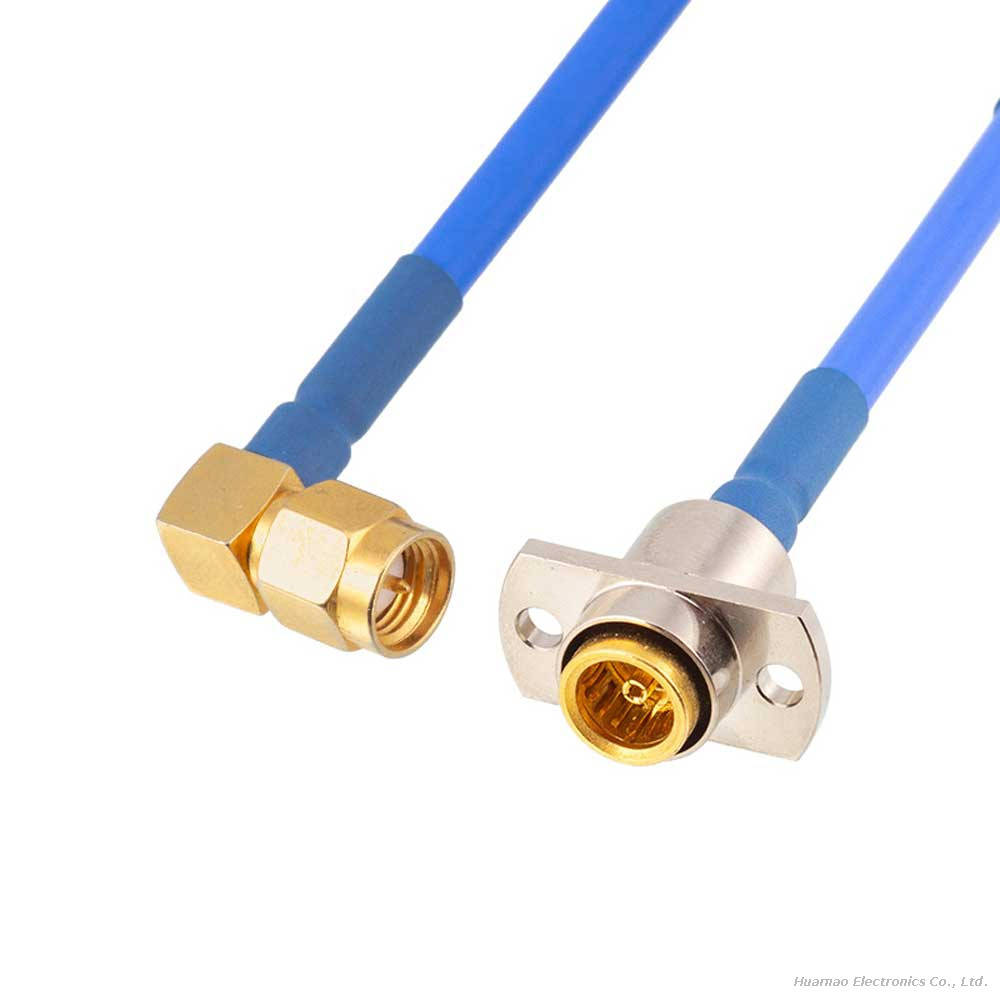

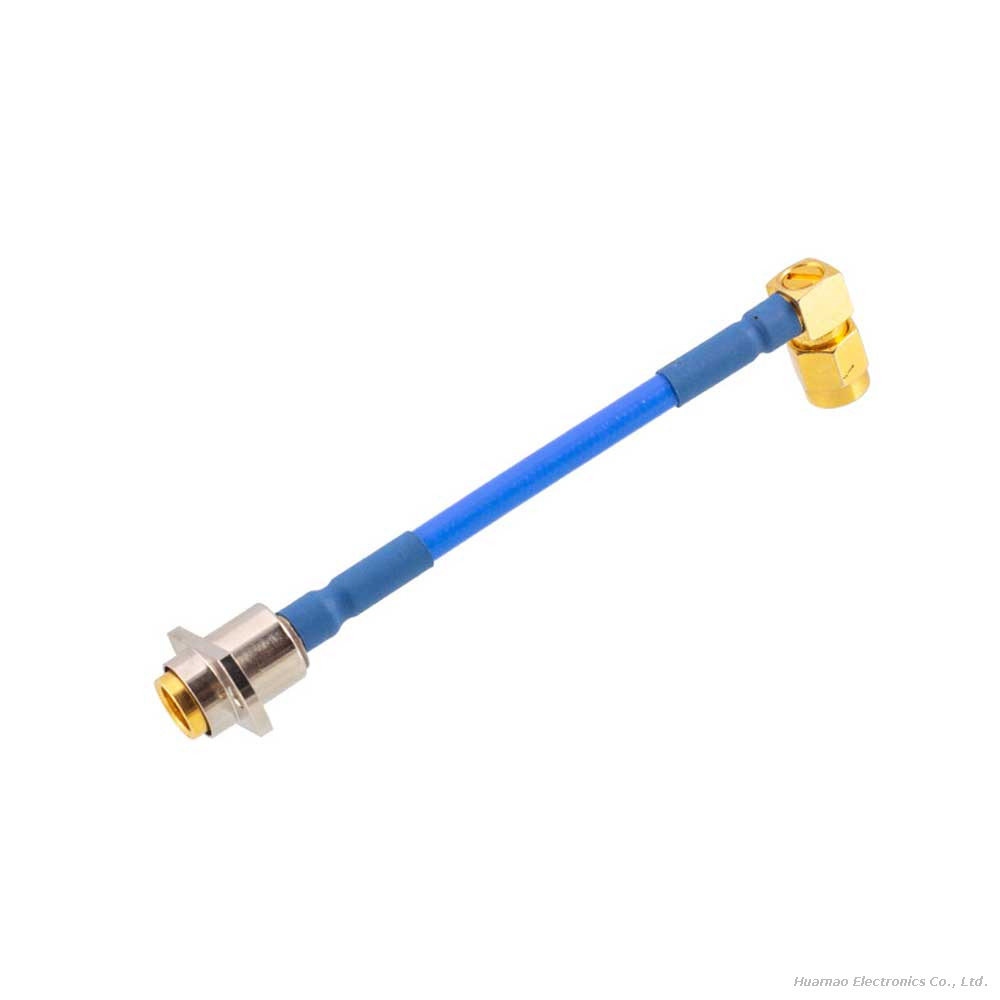

This high-performance RF cable assembly features a BMA-KFB3 female 2-hole flange mount connector on one end and an SMA right-angle (90°) male connector on the other, terminated with a premium RG402 semi-flexible coaxial cable. Designed for high-frequency microwave applications, it delivers ultra-low signal loss, excellent impedance matching, and reliable mechanical stability, making it ideal for test and measurement, radar, satellite communication, and high-speed RF systems.
Key Features
✅

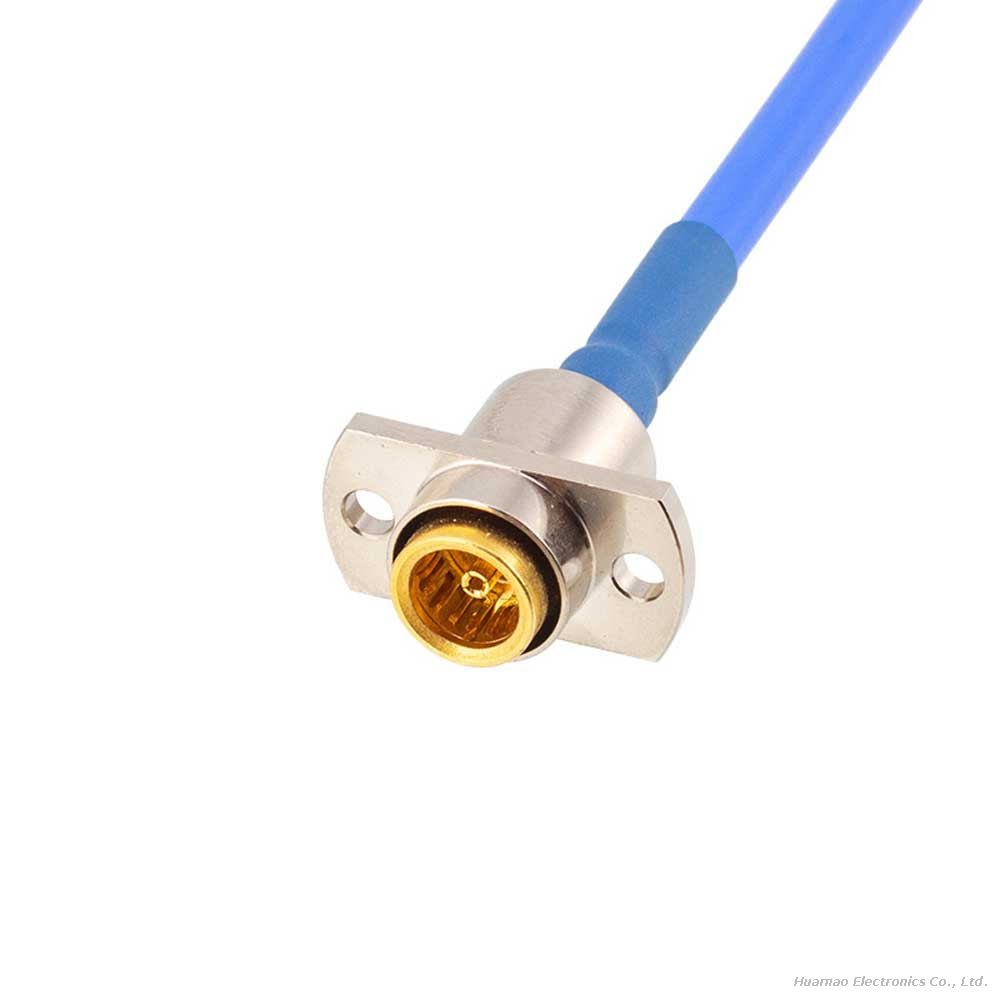

BMA-KFB3 2-Hole Flange Mount DesignCompliant with BMA (Blind Mate) interface standards, the BMA-KFB3 connector features a 2-hole flange for secure, permanent panel/equipment mounting. The blind-mate structure enables quick, error-free connection in high-density RF systems.
✅

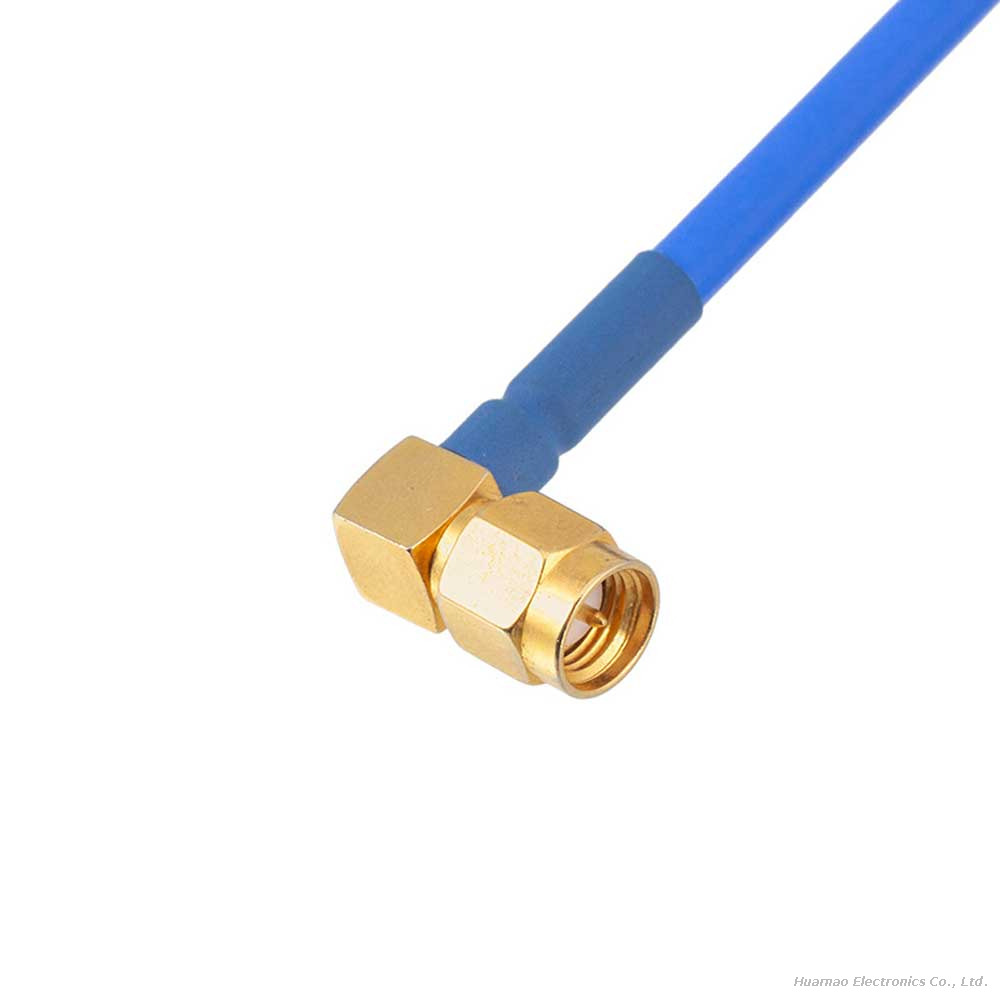

SMA Right Angle Male ConnectorGold-plated brass SMA right-angle male connector ensures excellent electrical conductivity, corrosion resistance, and a secure, vibration-proof connection. The 90° design is perfect for space-constrained installations where straight connectors cannot fit.
✅
RG402 Semi-Flexible Coaxial CableRG402 semi-flexible cable offers superior low-loss performance, high shielding effectiveness, and excellent phase stability across a wide frequency range. It maintains shape after bending, making it ideal for fixed installations in RF systems.
✅
50Ω Impedance MatchingStrict 50Ω impedance design ensures optimal RF performance, minimizing signal reflection (VSWR ≤ 1.2) and maximizing power transfer for high-frequency applications up to 18GHz.
✅
High Frequency CompatibilityOptimized for high-frequency microwave signals, supporting DC to 18GHz operation, fully compatible with radar, satellite communication, test instruments, and 5G/6G RF systems.
✅
Industrial-Grade DurabilityGold-plated contacts, stainless steel flange, and high-quality cable jacket resist corrosion, high temperature, and mechanical stress, ensuring long-term reliability in harsh industrial and laboratory environments.
Common Applications
High-Frequency Test & Measurement Instruments
Radar & Satellite Communication Systems
Microwave Communication Equipment
5G/6G RF Base Station Testing
Aerospace & Defense RF Systems
Medical Imaging & RF Equipment
Industrial IoT & High-Speed Data Transmission
Why Choose This BMA to SMA RF Cable?
High-Frequency Performance: Optimized for DC-18GHz, ideal for microwave and high-speed RF applications.
Ultra-Low Loss: RG402 semi-flexible cable ensures minimal signal attenuation for long-distance transmission.
Secure Mounting: 2-hole BMA flange provides stable, vibration-resistant panel installation.
Space-Saving Design: SMA right-angle connector fits in compact enclosures and tight spaces.
Industrial-Grade Reliability: Gold-plated contacts and stainless steel flange ensure long service life in harsh environments.
Customizable: We offer custom cable lengths, connector configurations, and cable types (RG405, LMR-400, etc.) to meet your project needs.
Custom RF Cable Assembly Options
We provide full custom RF cable solutions:
Custom Lengths: 10cm to 5m+ (per your requirements)
Connector Combinations: BMA to SMA, BMA to N-type, BMA to BNC, etc.
Cable Types: RG402, RG405, LMR-400, RG142, etc.
Flange Configurations: 2-hole, 4-hole, custom flange sizes
Bulk OEM/ODM: Private labeling, custom packaging, and technical support for high-volume projects
