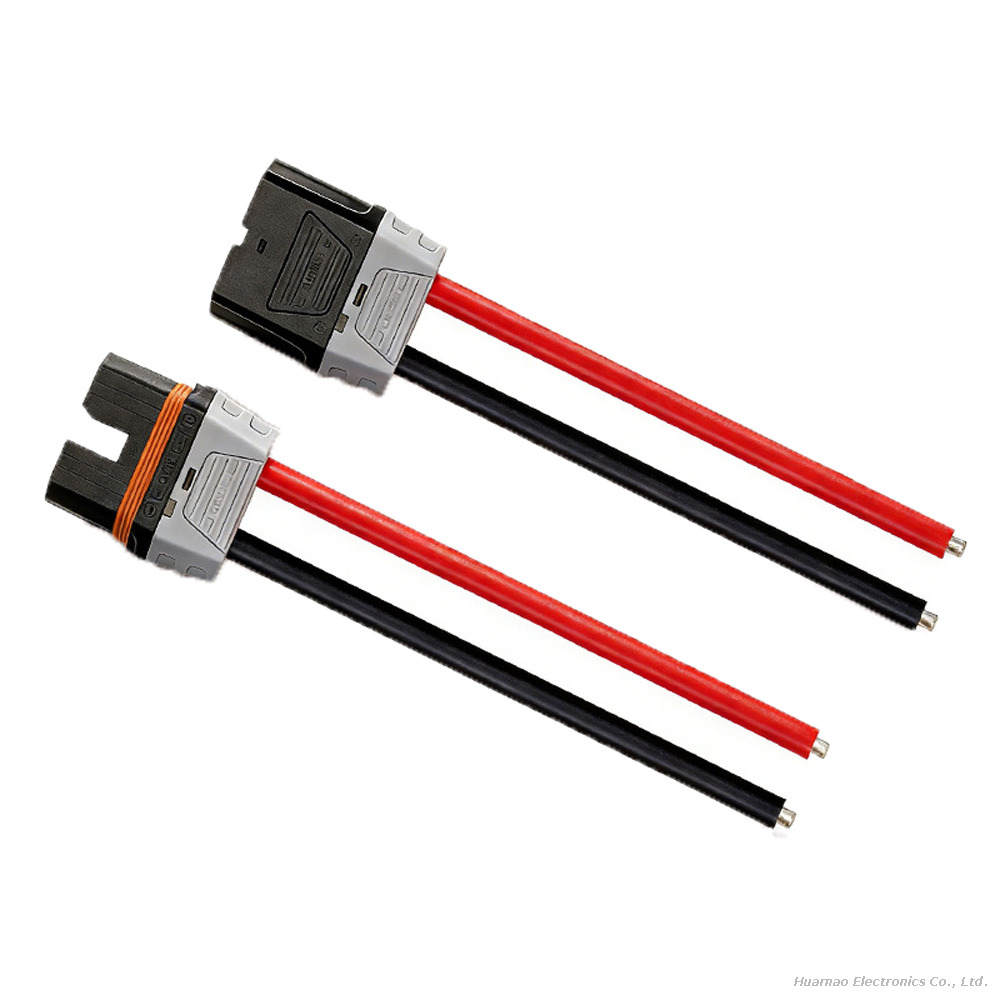

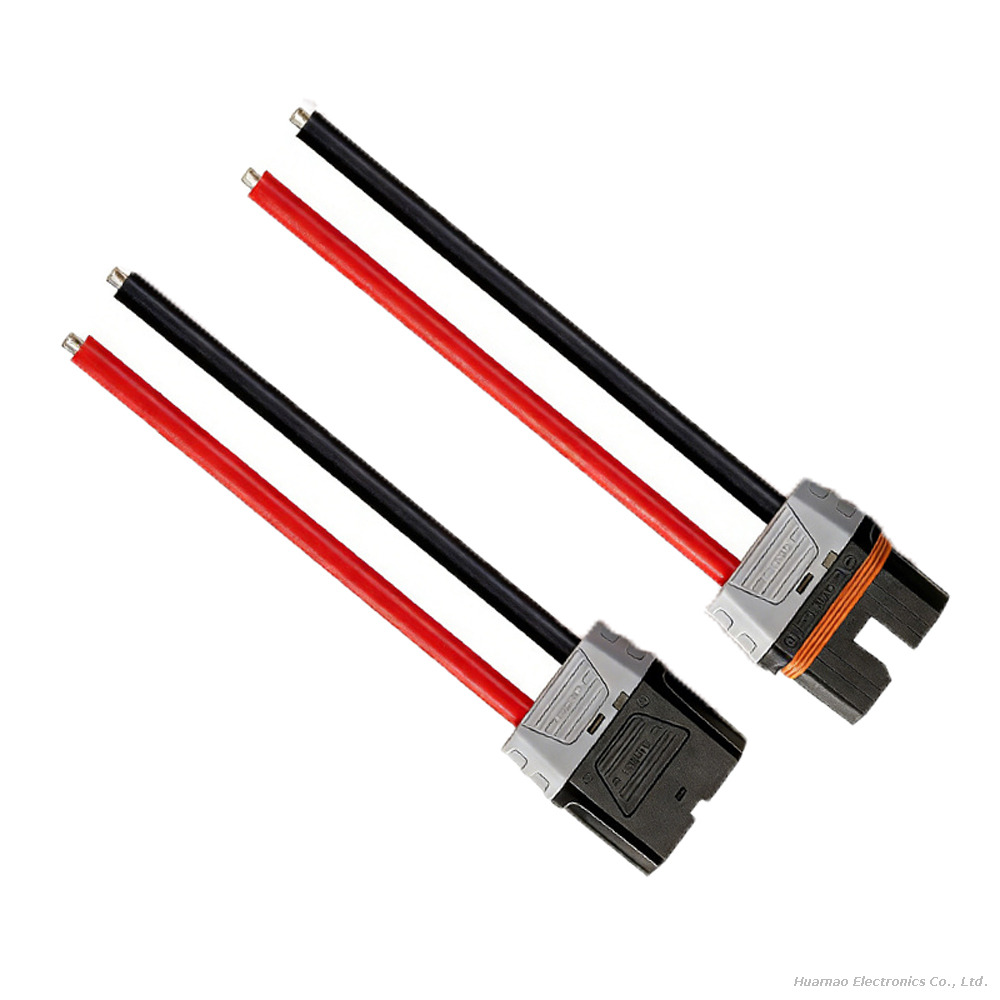

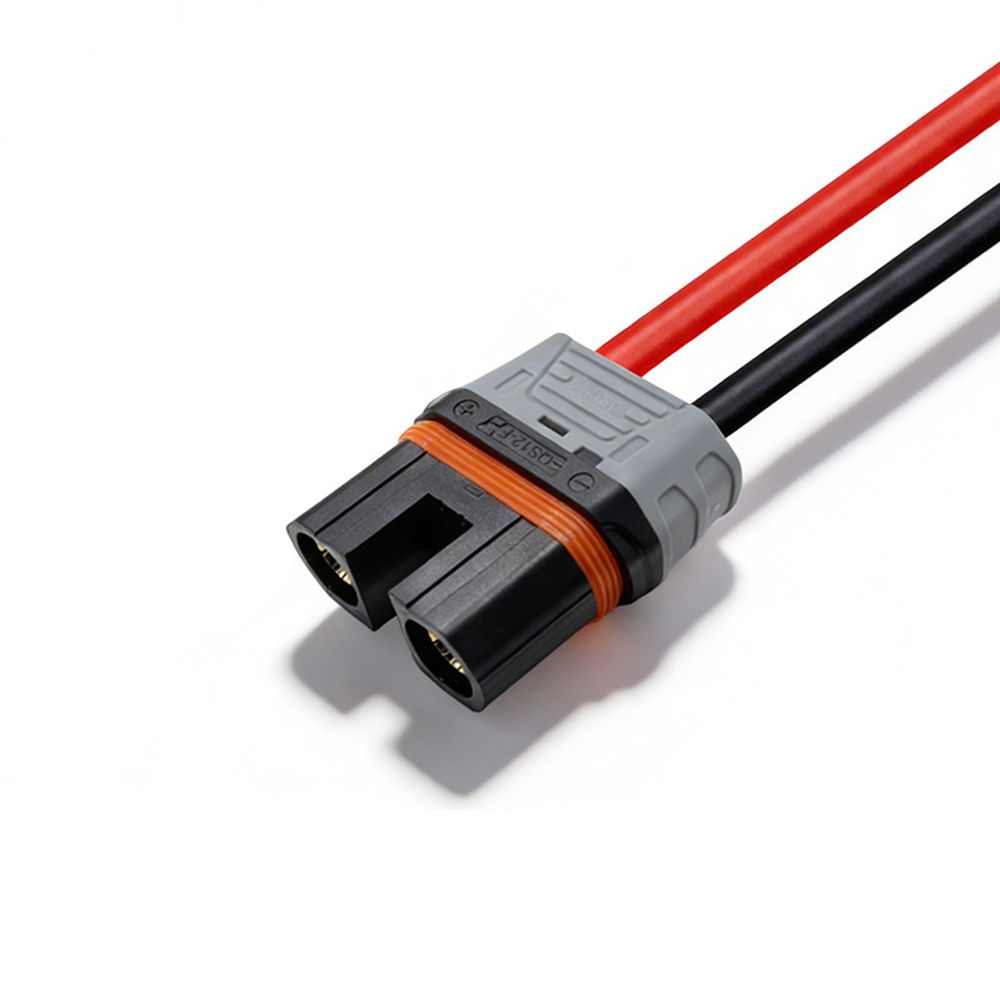

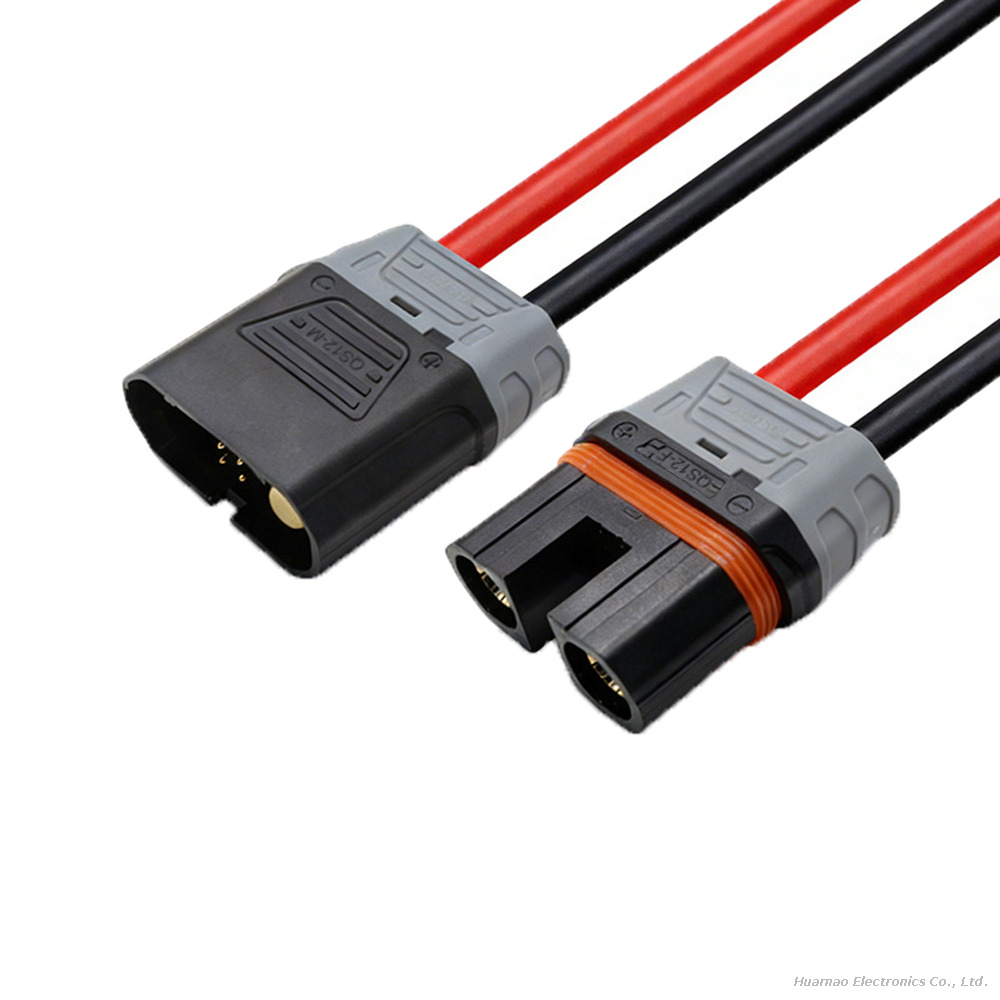

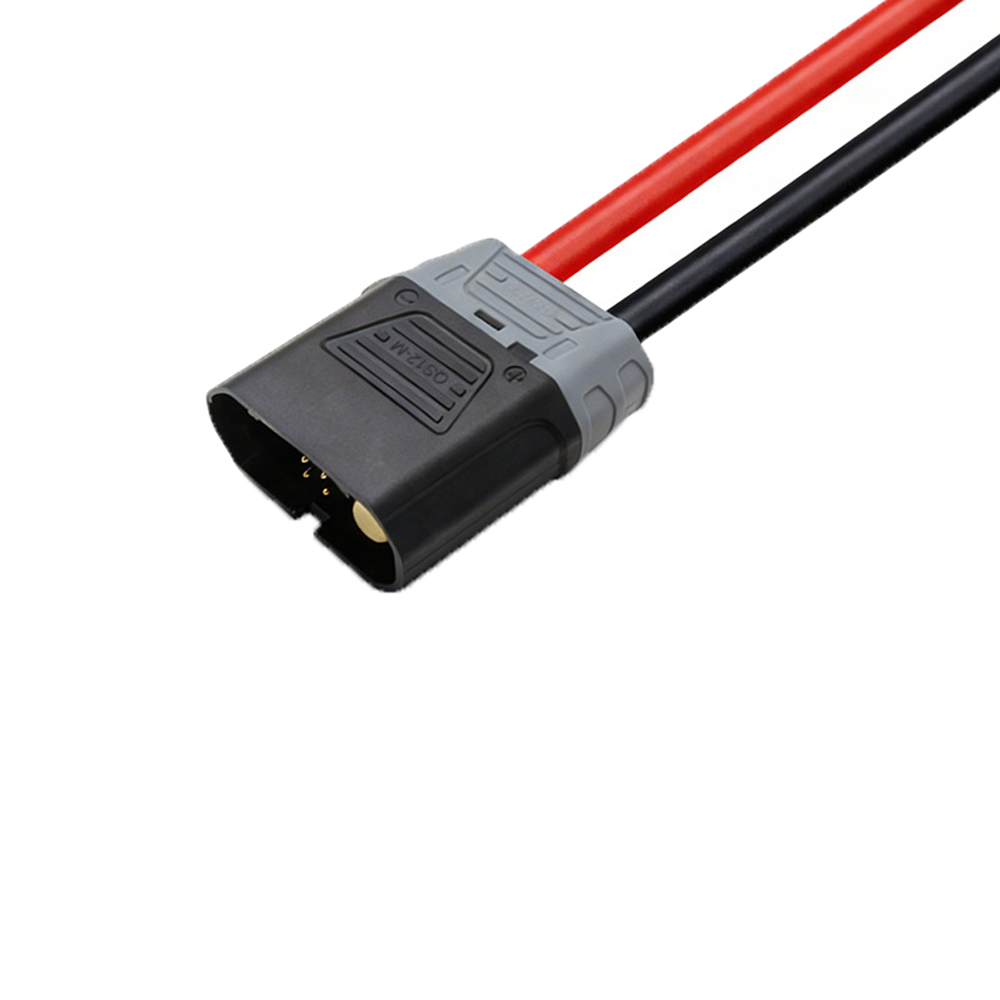

QS12-S Connector Cable 250A Male And Female Battery Plug Wire Anti-ignition

Intrinsic safety design limits spark energy below minimum ignition thresholds , eliminating arcing during connection/disconnection

Pre-charge circuit reduces voltage differential before full contact, preventing electrical sparks in high-voltage systems

Polarity-locked housing prevents reverse connection, avoiding short-circuit-induced ignition risks

250A continuous current rating, 320A peak current capacity  for high-power applications

4AWG (21.1mm²) stranded copper wire minimizes voltage drop ( 250A) and power loss

Gold-plated brass contacts (≥3μm thickness) ensure ultra-low contact resistance (≤0.2mΩ)

PA (nylon) housing with UL94 V-0 flame-retardant rating , self-extinguishing in fire exposure

Wide operating temperature range: -30℃ to 150℃ , adapting to extreme environmental conditions

Sealed rubber gasket provides IP65-level dust/water resistance , suitable for outdoor/harsh environments

Shock-resistant construction withstands vibration (15g, 10-2000Hz) and mechanical impact

Textured grip with embossed ridges enables easy plug/unplug even with gloves

Audible locking mechanism confirms secure mating, preventing accidental disconnection

Color-coded housing (male: black, female: gray)  simplifies identification and installation

Compatible with 4AWG wires (max insulation diameter 8mm) for heavy-duty wiring setups

Electric Vehicles: EV/HEV battery packs, electric motorcycles, scooters, and golf carts

Industrial Equipment: Forklifts, winches, lifts, and heavy-duty power supplies

Recreational Vehicles: ATVs, RVs, boats, and marine battery systems

High-Performance Hobby: Large-scale RC models, racing drones, and hobbyist power projects

Energy Storage: Lithium-ion battery banks, solar inverters, and backup power systems

100% continuity, insulation resistance (≥1000MΩ), and anti-ignition performance tested before shipment

RoHS compliant (lead-free, cadmium-free) for environmental safety

Resistant to oil, grease, and chemical exposure common in industrial environments

Authentic QS12-S components with full batch traceability

Custom cable lengths: 50cm-500cm (20inch-197inch) with precise cut-to-length processing

Wire gauge upgrades: 2AWG (for 400A peak current applications)

Connector variants: IP67 waterproof sealing for underwater/marine use

Labeling: Laser-etched part numbers or custom branding for bulk orders

Terminal options: Soldered or crimped connections based on installation requirements
